Walkways Systems Echelle Canada

Walk safely on roofs or access at height thanks to our Echelle Canada walkways systems.

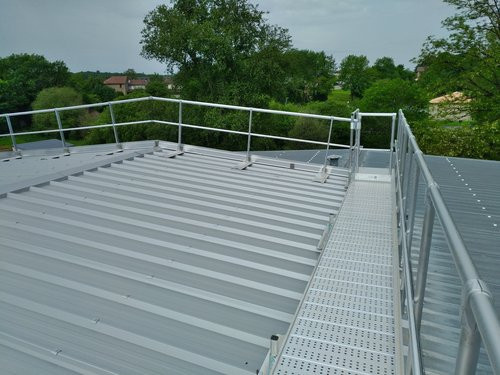

Echelle Canada roof Walkways systems

New quick-to-install roof guide system that adapts to all roof configurations. Enables safe traffic areas with straight configurations, 90° angles of T, L-junctions with slope changes.


All roof standard tilting (0-45°) is managed using clever fastening kits. The FASTWALK walkway allows slope changes for the ridge passage.


FASTWALK is installed on concrete, gravel and is fastened on steel pans or on fibre cement thanks to the dedicated fastening interfaces.


FASTWALK is easily installed on blocks for all common waterproofing complexes.


​​​​​​​​​​​​​​​​​​​​​

ici votre image

Fastening according to your installation

ici votre image

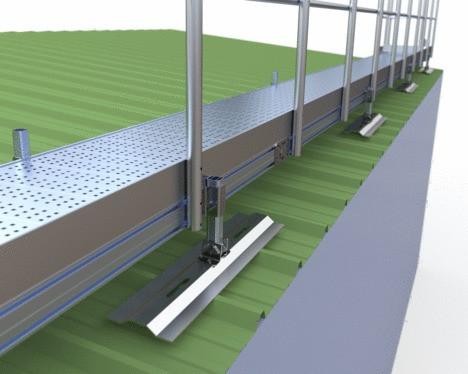

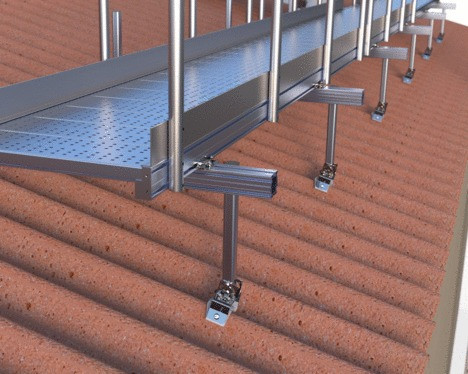

Fastening kit for fibre cement roofs

ici votre image

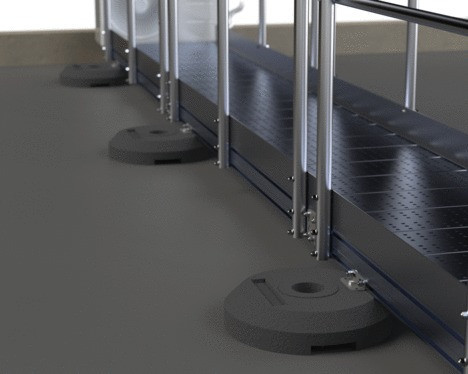

Fastening on blocks for concrete roofs and waterproof roofs

ici votre image

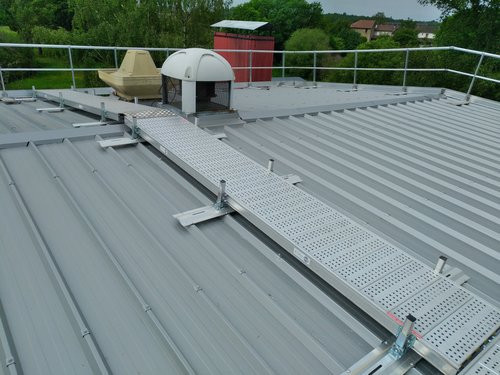

Fastening kit for steel pan

THE ADVANTAGES OF ECHELLE CANADA ROOF ACCESS

ici votre image

• Easy to install


• Seamless connection plate systems


• Quote in just 48 hours


• Installation service by Echelle Canada


• Tailor-made manufacturing according to the characteristics of the project

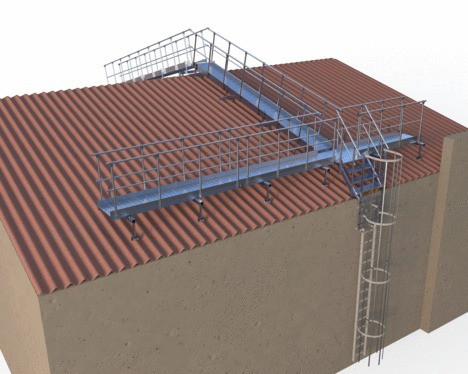

• 3D Plan


​​​​​​​​​​​​​​​​​​​​​

The characteristics of our roof wakways

• Passage widths: 23/31 inches


• Planking: LEEVELGRIP draining and anti-slip or ribbed anti-slip profile


• Managed tilting: 0-15° / 15-30° / 30-45°


• Walkway weight (lb/'): 19 (GRIP 23') / 22,5 (GRIP 31') / 33 (GRIP 39')


• Max. fastening centreline ('): 98'


ici votre image

Find our FASTWALK guising system achievements
