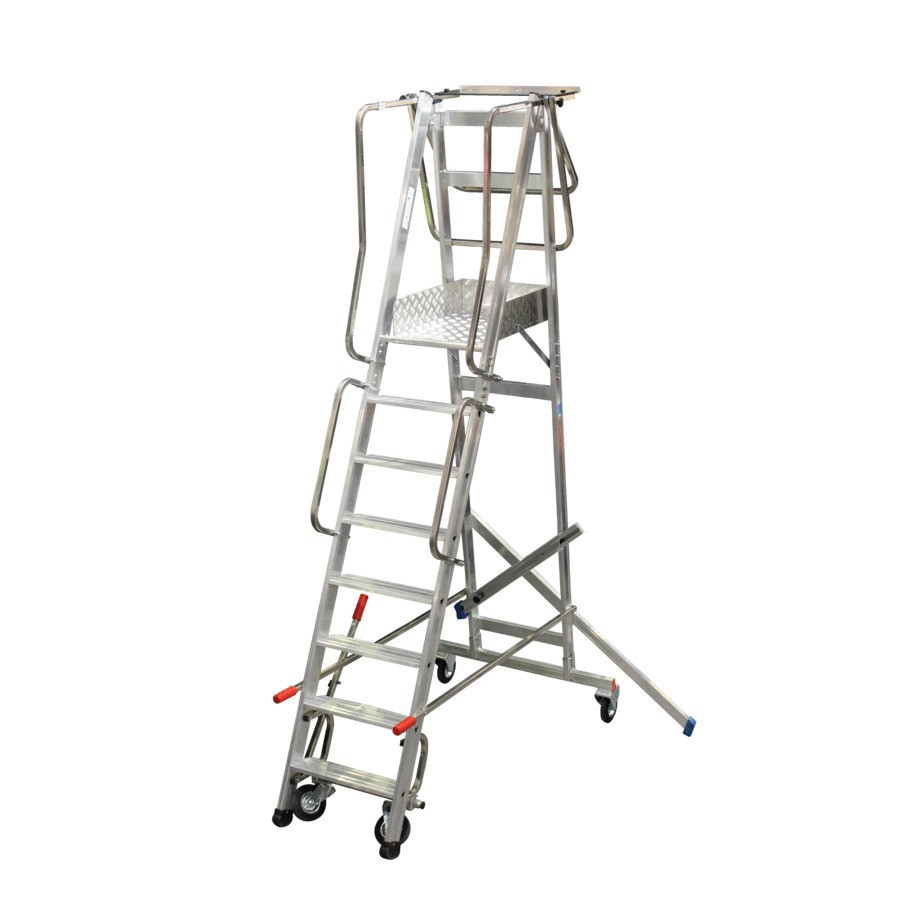

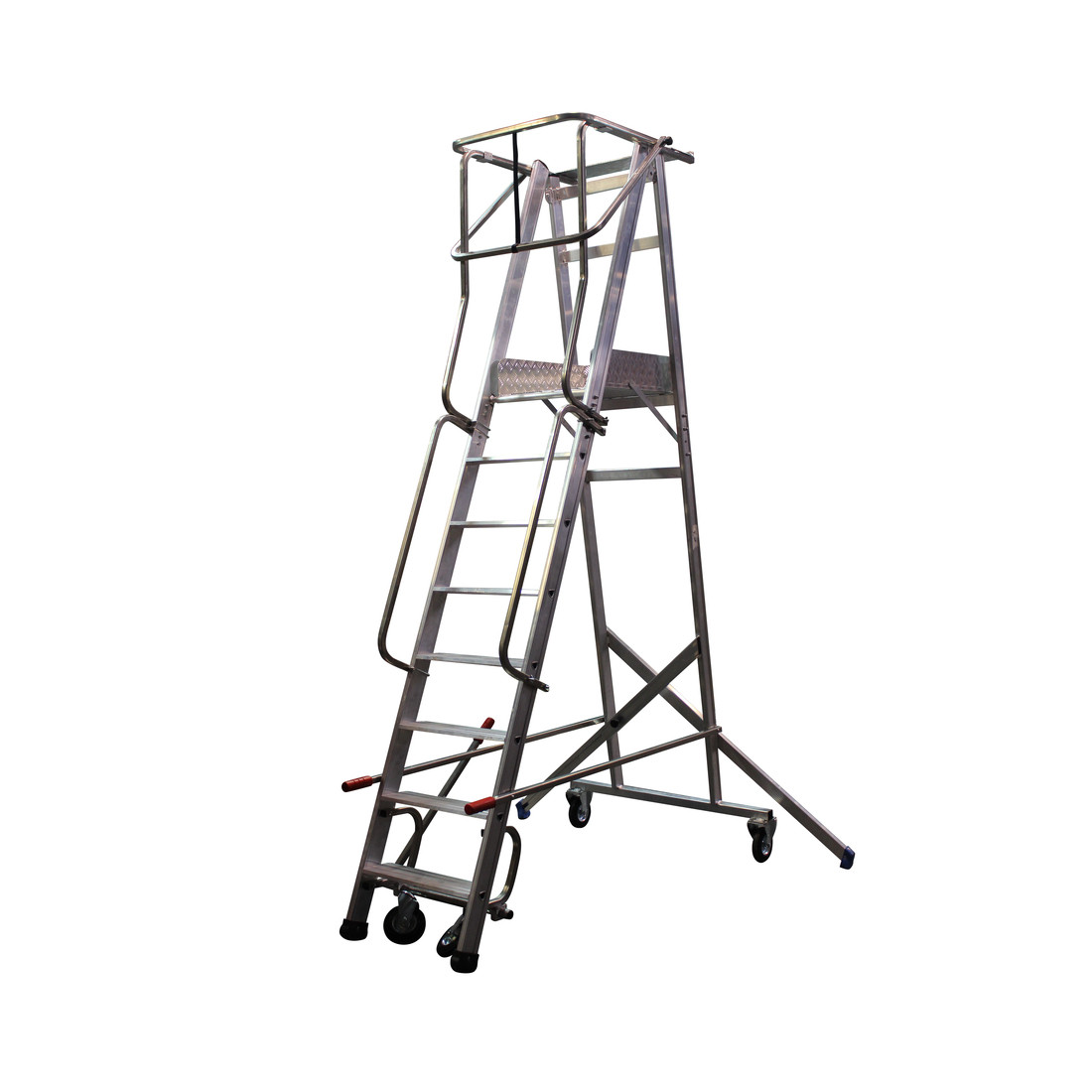

ALTEE platform

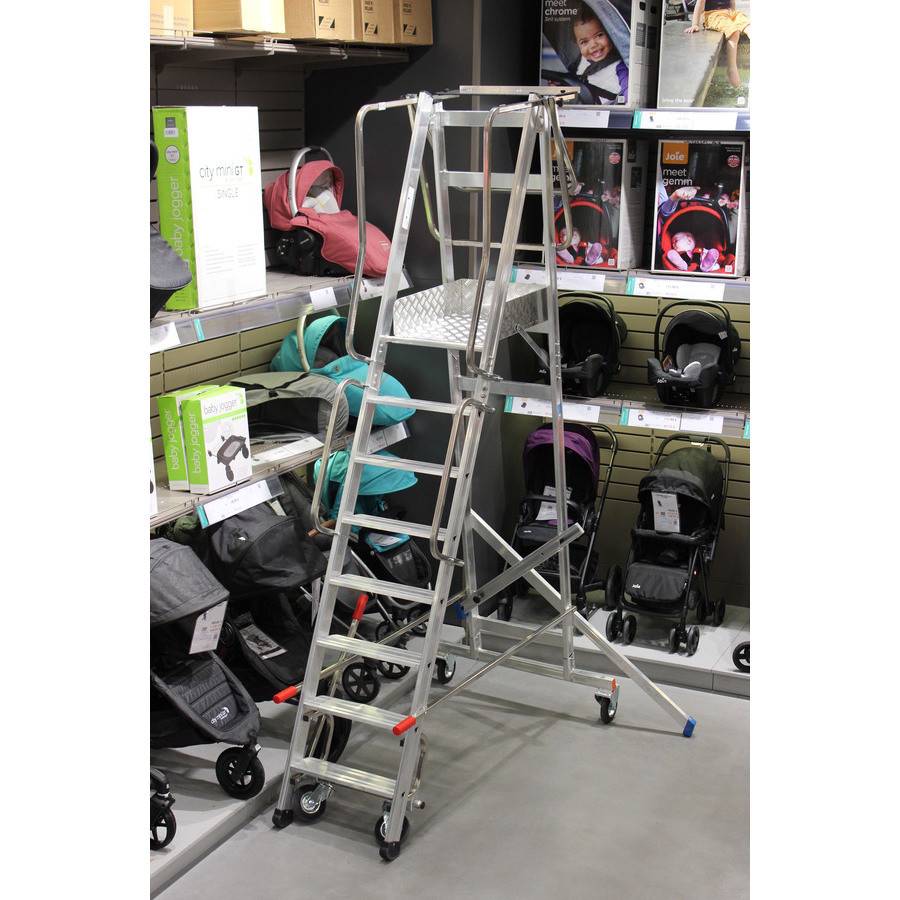

New secure work platform designed for picking and access to storage and shelving areas
Advantages and strengths
Double usage, depending on the position of the guardrails : access equipment and workstation
Technical characteristics
ALTEE3 3-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE3 |
Stabilizer | No |
Number of walking | 3 |
Working height (') | 9 ' |
Width ('') | 3 '' |
Spacing (') | 4 ' |
Weight (lb) | 53,00 lb |
Quantity : |
|
ALTEE4 4-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE4 |
Stabilizer | No |
Number of walking | 4 |
Working height (') | 10 ' |
Width ('') | 3 '' |
Spacing (') | 4 ' |
Weight (lb) | 57,00 lb |
Quantity : |
|
ALTEE5 5-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE5 |
Stabilizer | Sliding |
Number of walking | 5 |
Working height (') | 10 ' |
Width ('') | 5 '' |
Spacing (') | 4 ' |
Weight (lb) | 62,00 lb |
Quantity : |
|
ALTEE6 6-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE6 |
Stabilizer | Sliding |
Number of walking | 6 |
Working height (') | 11 ' |
Width ('') | 5 '' |
Spacing (') | 5 ' |
Weight (lb) | 66,00 lb |
Quantity : |
|
ALTEE7 7-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE7 |
Stabilizer | Sliding |
Number of walking | 7 |
Working height (') | 12 ' |
Width ('') | 5 '' |
Spacing (') | 5 ' |
Weight (lb) | 71,00 lb |
Quantity : |
|
ALTEE8 8-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE8 |
Stabilizer | Sliding |
Number of walking | 8 |
Working height (') | 13 ' |
Width ('') | 5 '' |
Spacing (') | 6 ' |
Weight (lb) | 79,00 lb |
Quantity : |
|
ALTEE9 9-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE9 |
Stabilizer | Sliding |
Number of walking | 9 |
Working height (') | 14 ' |
Width ('') | 5 '' |
Spacing (') | 6 ' |
Weight (lb) | 84,00 lb |
Quantity : |
|
ALTEE10 10-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE10 |
Stabilizer | Sliding |
Number of walking | 10 |
Working height (') | 14 ' |
Width ('') | 10 '' |
Spacing (') | 7 ' |
Weight (lb) | 88,00 lb |
Quantity : |
|
ALTEE11 11-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE11 |
Stabilizer | Sliding and side |
Number of walking | 11 |
Working height (') | 15 ' |
Width ('') | 10 '' |
Spacing (') | 7 ' |
Weight (lb) | 93,00 lb |
Quantity : |
|
ALTEE12 12-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE12 |
Stabilizer | Sliding and side |
Number of walking | 12 |
Working height (') | 16 ' |
Width ('') | 10 '' |
Spacing (') | 8 ' |
Weight (lb) | 97,00 lb |
Quantity : |
|
ALTEE13 13-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE13 |
Stabilizer | Sliding and side |
Number of walking | 13 |
Working height (') | 18 ' |
Width ('') | 10 '' |
Spacing (') | 9 ' |
Weight (lb) | 101,00 lb |
Quantity : |
|
ALTEE14 14-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE14 |
Stabilizer | Sliding and side |
Number of walking | 14 |
Working height (') | 18 ' |
Width ('') | 10 '' |
Spacing (') | 9 ' |
Weight (lb) | 106,00 lb |
Quantity : |
|
ALTEE15 15-STEP ALTEE PLATFORM | |
---|---|
Reference : | ALTEE15 |
Stabilizer | Sliding and side |
Number of walking | 15 |
Working height (') | 19 ' |
Width ('') | 10 '' |
Spacing (') | 9 ' |
Weight (lb) | 110,00 lb |
Quantity : |
|
ALTEE ROLLING ARM | |
---|---|
Reference : | ALTEEBRAS |
Stabilizer | 0 |
Number of walking | 0 |
Working height (') | 0 ' |
Width ('') | 0 '' |
Spacing (') | 0 ' |
Weight (lb) | 0 lb |
Quantity : |
|
Use

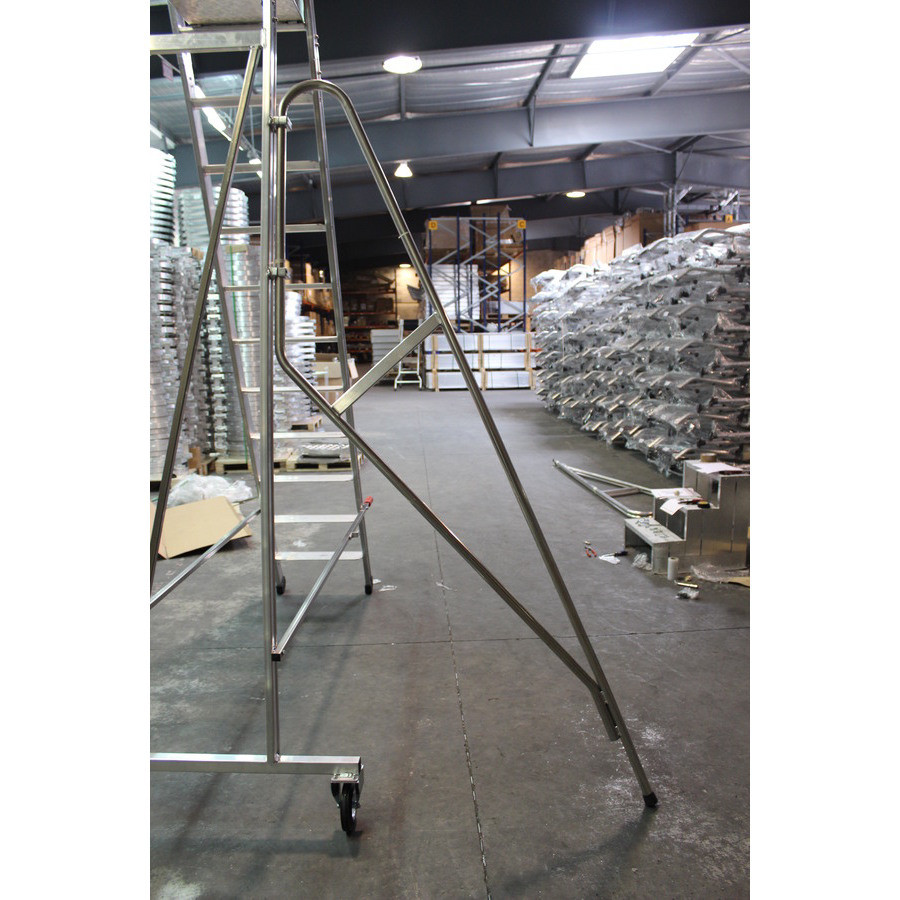

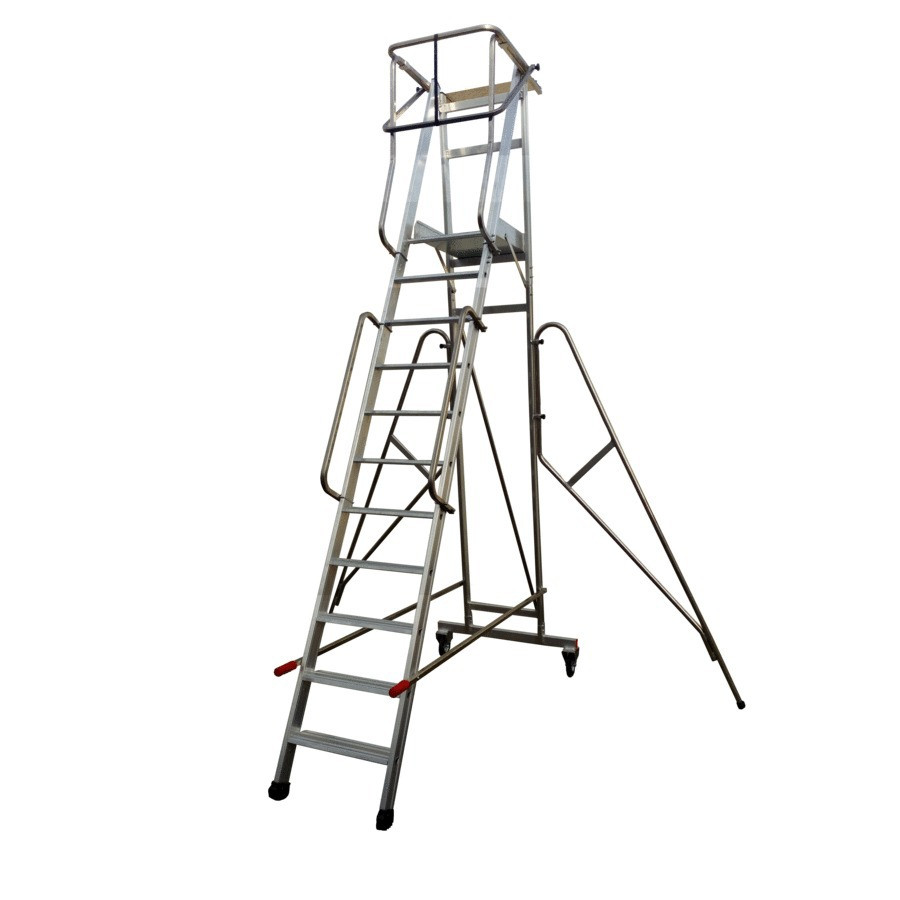

Innovative platform with a double tilting guardrail with 2 positions :
- in front of the platform, to create an access equipment

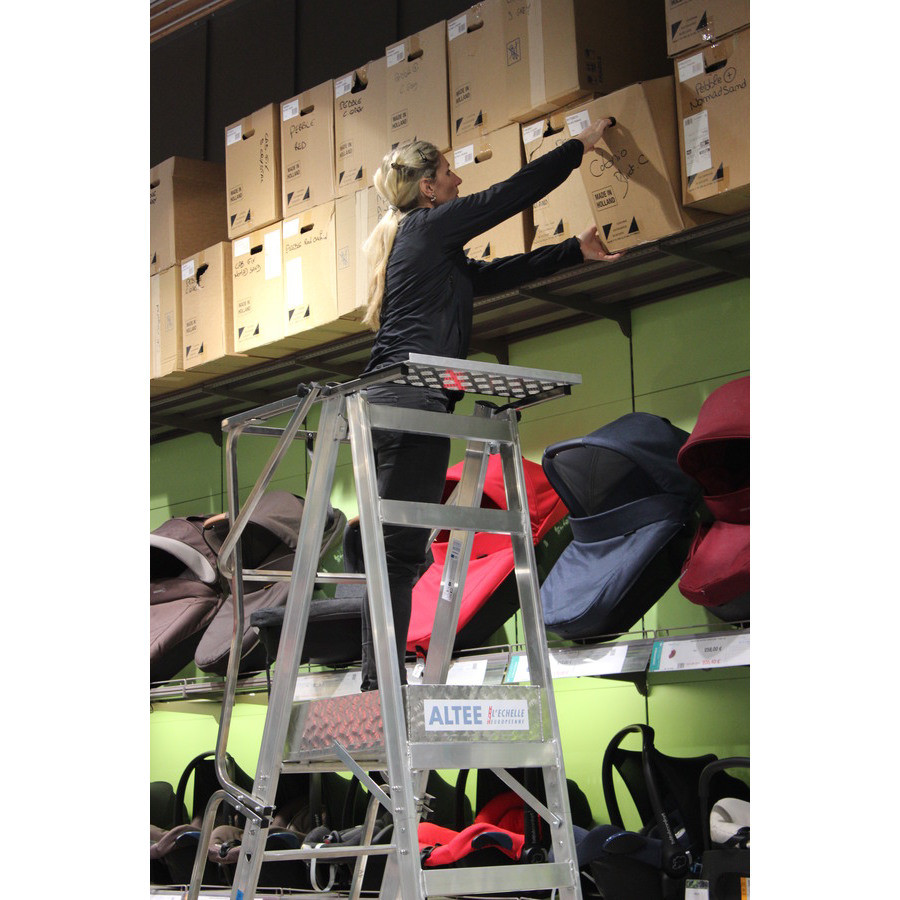

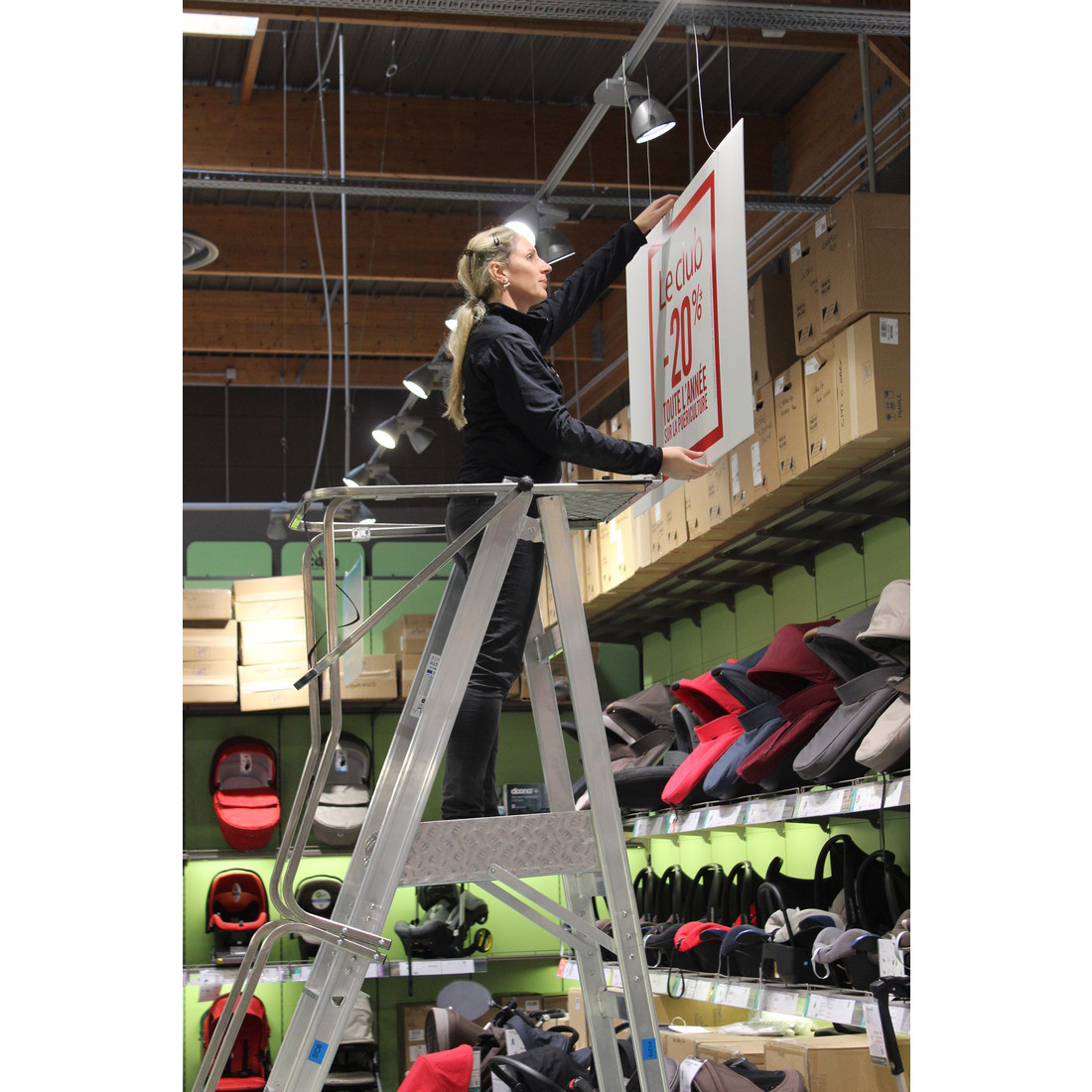

- behind the user, to create a station
From step 3 to step 15, all heights for all types of shelving : from 2,75 to 5,75 m (9' à 19') working height.

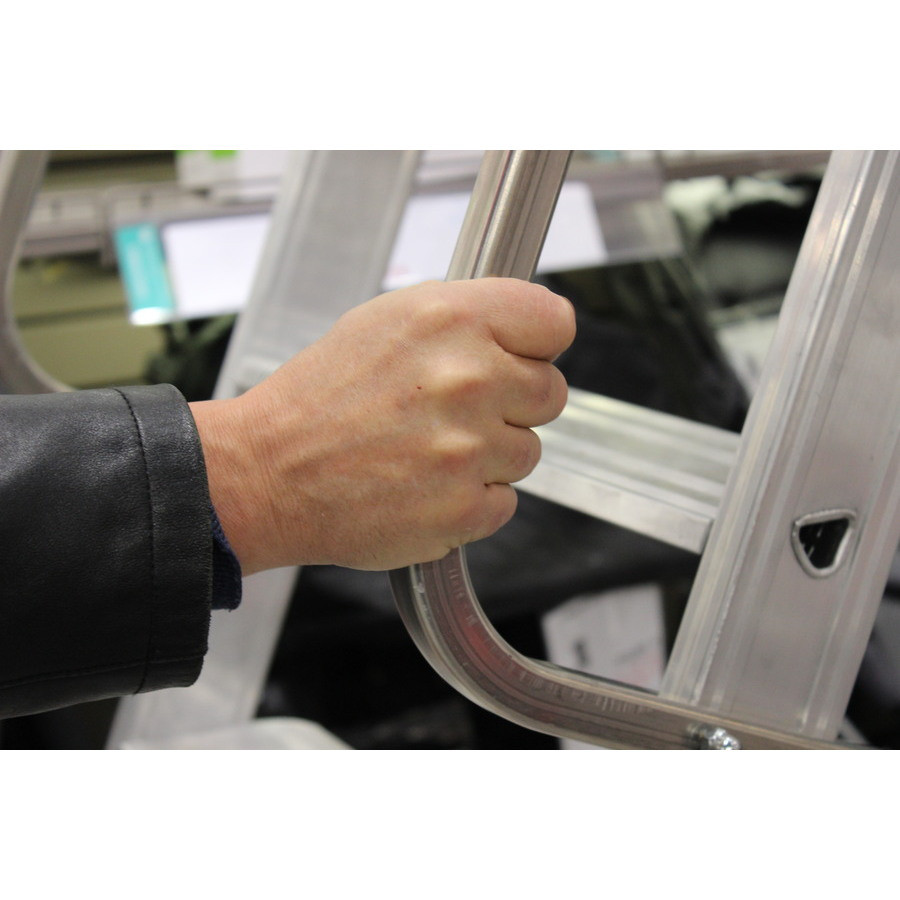

Easily accessible, the platform is equipped with handrails to facilitate the climbing.
130 mm (5") deep anti-slip step for greater comfort.
Technical description
Step position (mm) : 600 (24")
Tilting : 68°
Platform sizes (mm) : 600 x 450 (24"x17")

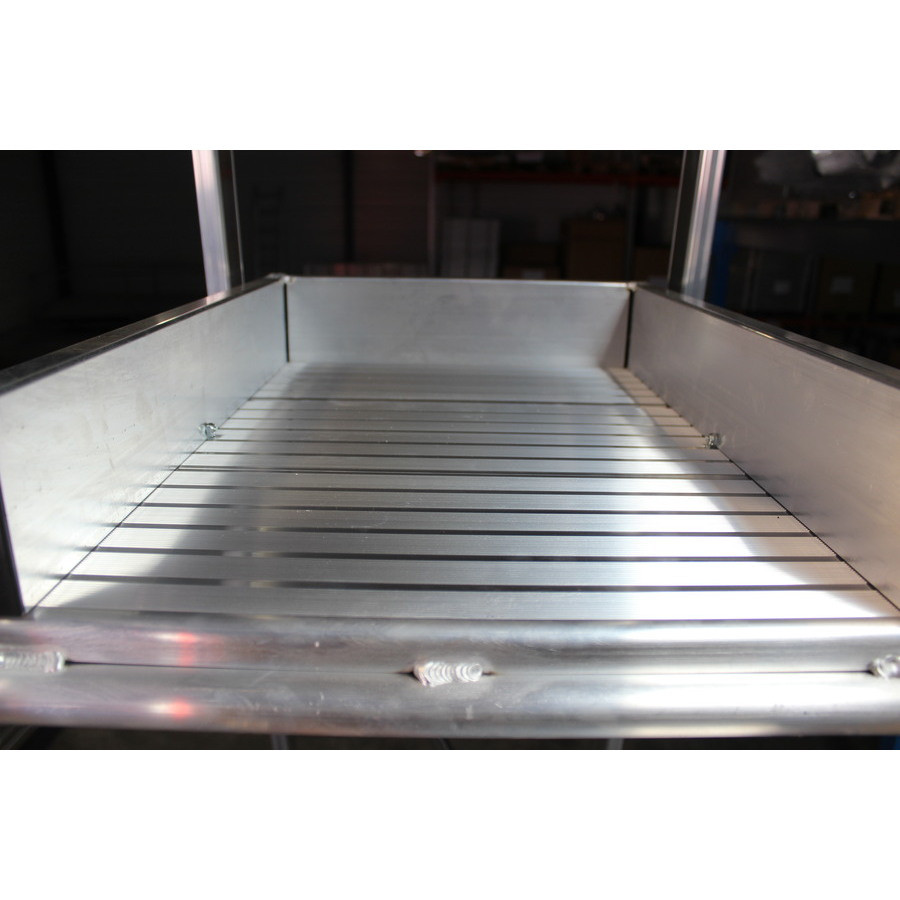

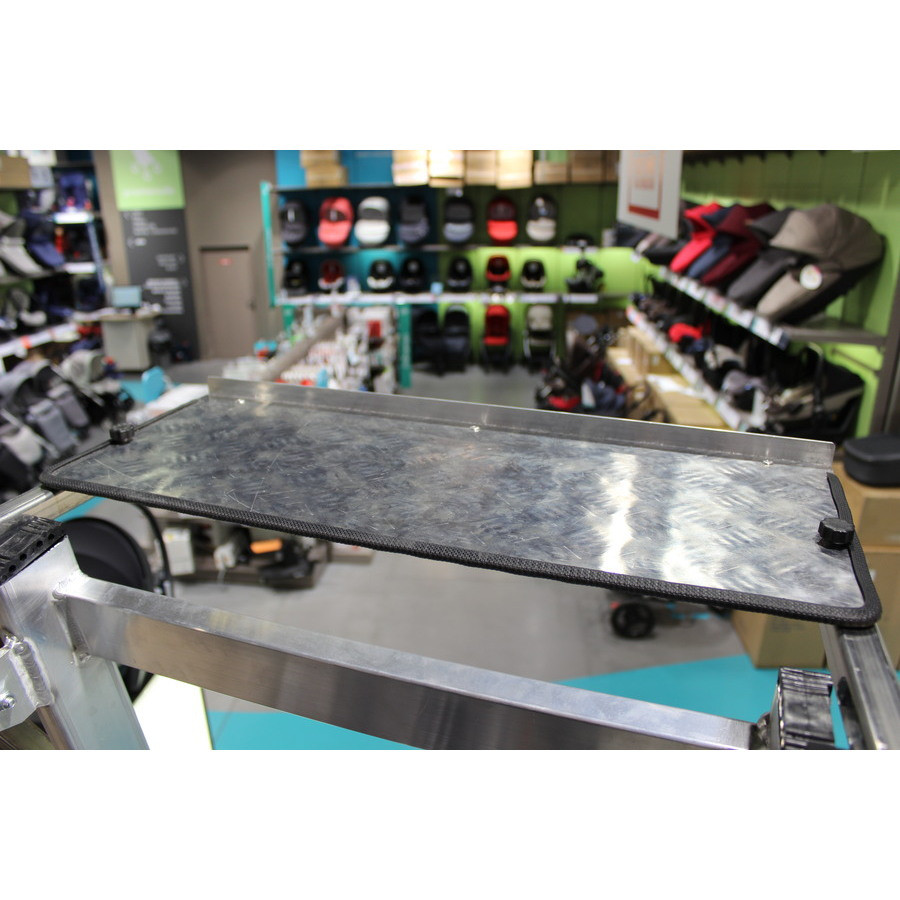

Tool carrier shelf (mm) : 600 x 180 (24"x7")

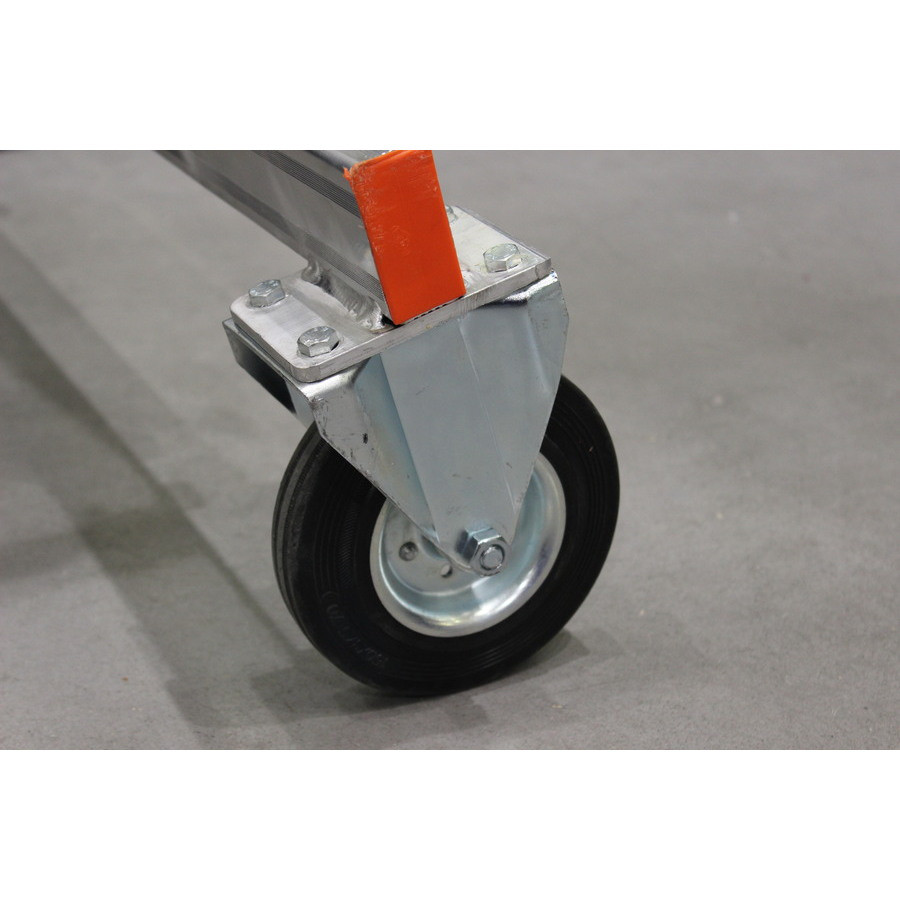

Wheel diameter (mm) : 150 (6")
