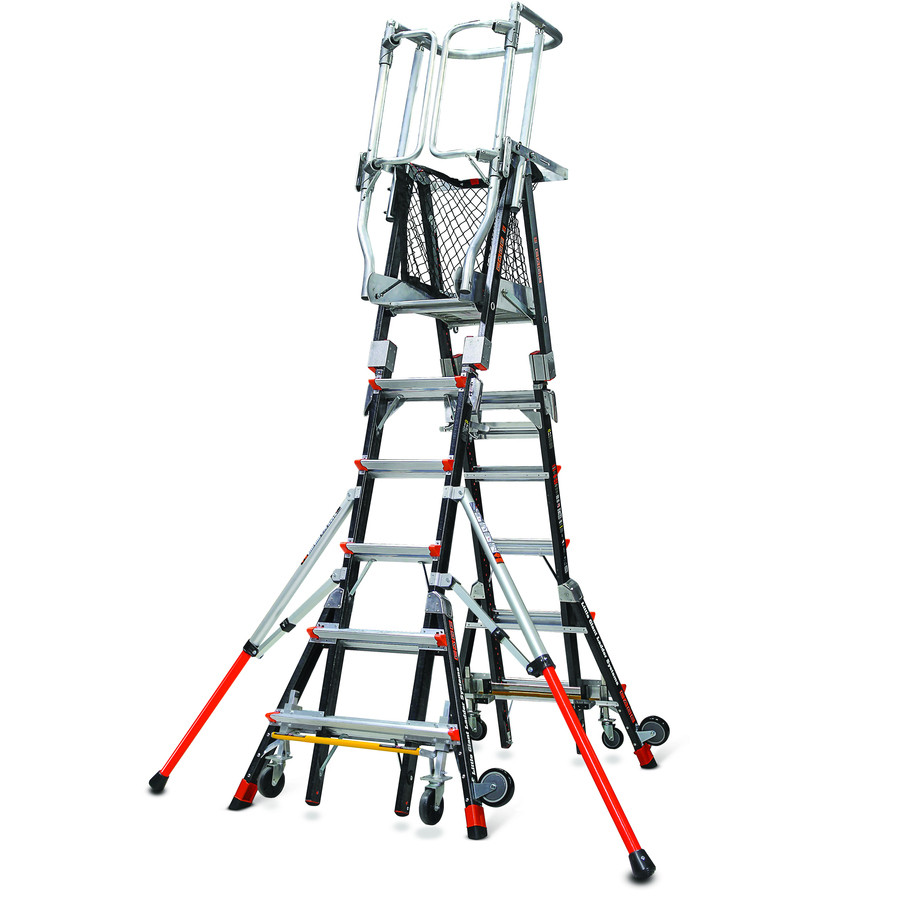

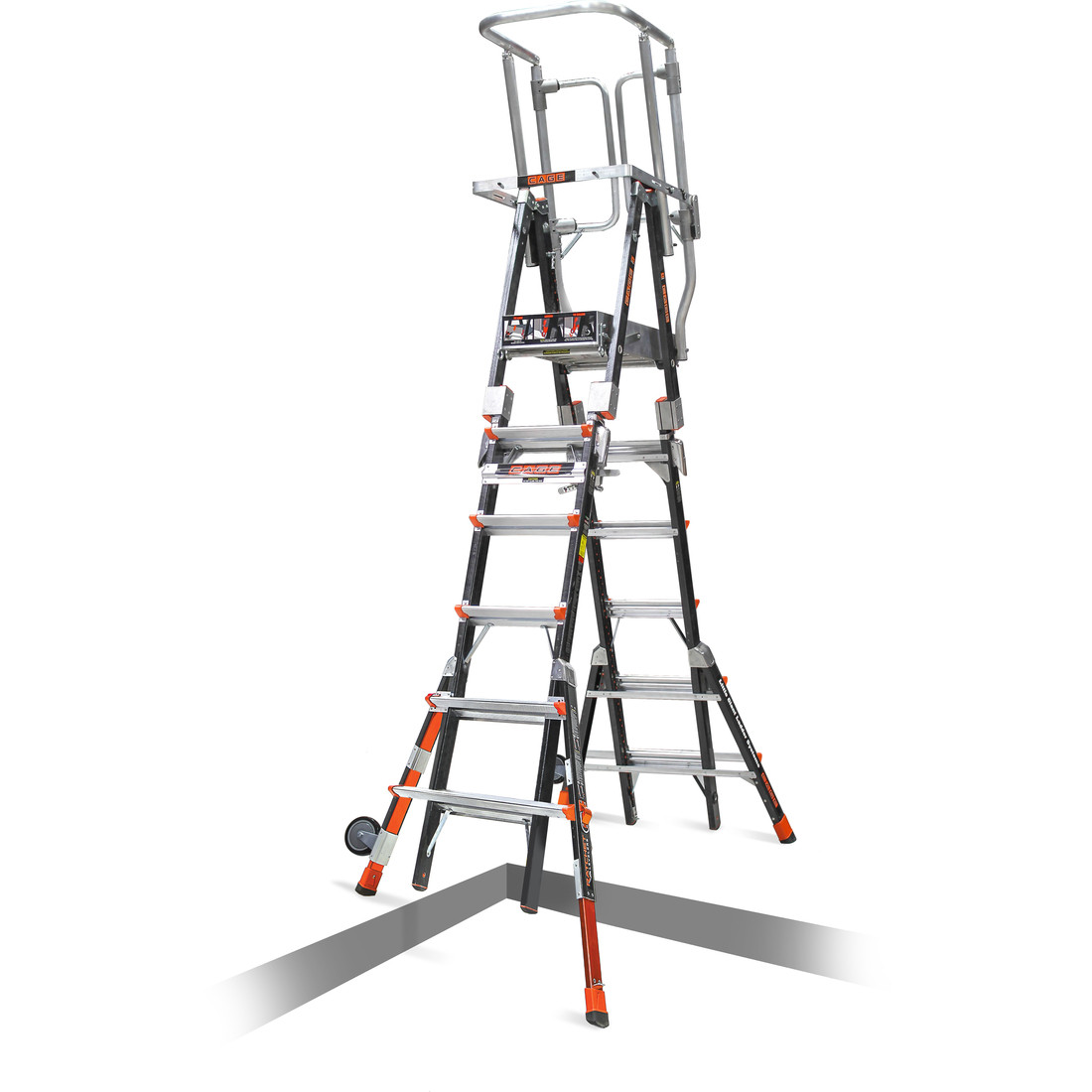

Safety compact cage
Safety compact cage

Safety compact cage

Standard: OSHA/ANSI A14.2

Thanks to the compact design of this design, this work platform allows access in restricted areas.

Select your reference
+
-

Advantages and strengths

Thanks to the unique Tip & Glide wheels on this design, it can be quickly and easily carried from one job to another.

Technical characteristics

Reference Deployed height (') Width (') Base width (') Load-bearing capacity (lb) Weight (lb) Quantity Quote
Ref. 19506-815
Code AC000069
SAFETY COMPACT CAGE 6-10'
10 ' 1 ' 36 '' 375 lb 99,00 lb
+
-
SAFETY COMPACT CAGE 6-10'
Reference : 19506-815
Deployed height (') 10 '
Width (') 1 '
Base width (') 36 ''
Load-bearing capacity (lb) 375 lb
Weight (lb) 99,00 lb
Quantity :
+
-

Use

Platform available in 6 to 10 feet designs.

Users can move easily and completely safely in their working space, with both hands free to perform their tasks.

Equipped with an extension locking system and cast aluminium rock locks.

Technical description

High-strength fiberglass and resin


Maximum extension : 3,07 m (10’)


Minimum extension : 1,85 m (6’)


Inner rung size : 0,03 m (1’’)


Height : 3.07 m (10’1’’)


Platform length:0.33m (1’1’’)


Platform width: 0.56 m (1’10’’)


Storage depth : 0.33 m (1’1’’)


Storage height : 3,20 m (10’6’’)


Storage width at the base : 1,04 m (3’5’’)


Weight : 45 kg (100 lb)


Total weight capacity : 170kg (375lb)
