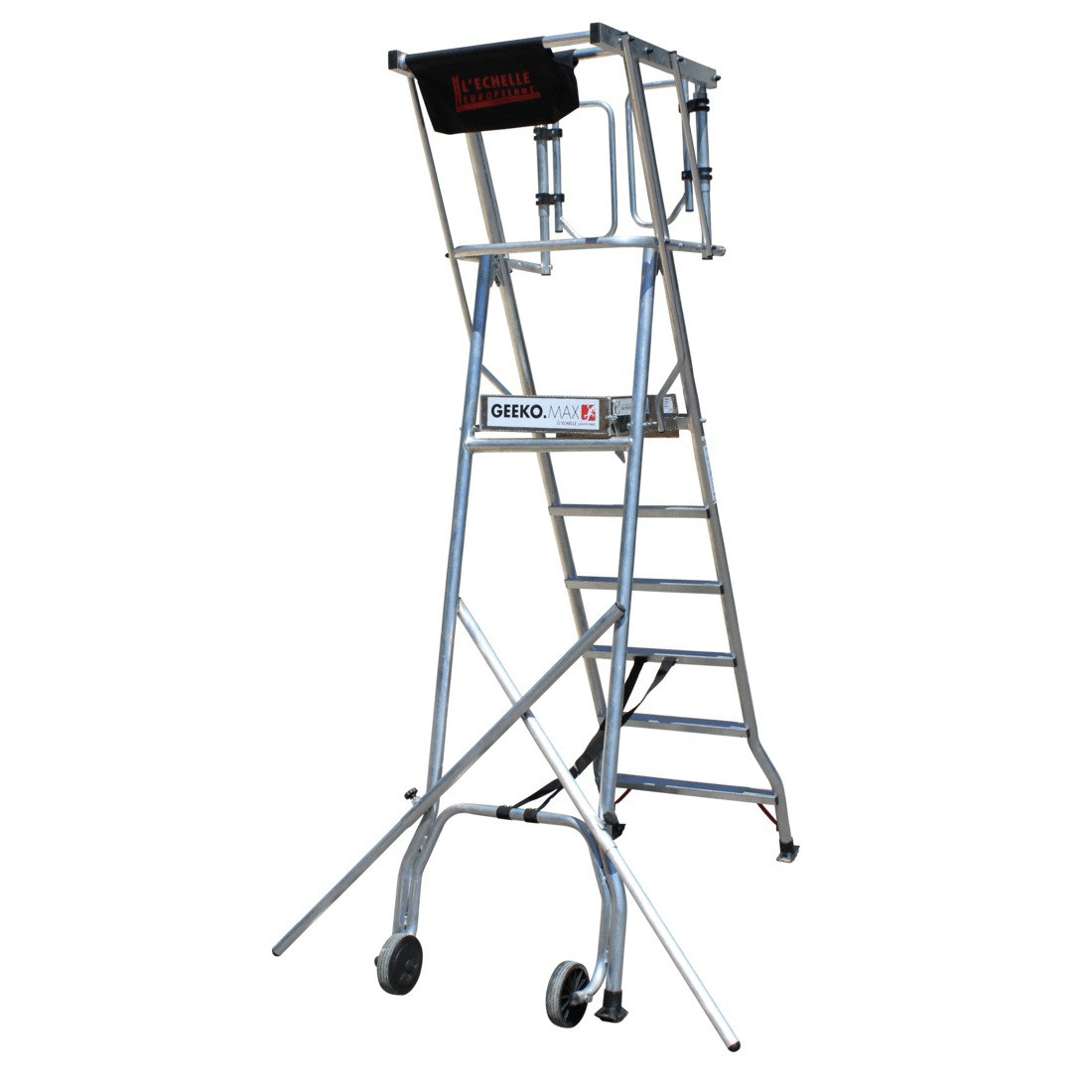

GEEKO.MAX rolling platform

GEEKO.MAX rolling platform

Standard: ANSI-ASC A14.7/EN 131-7

New platform with "saloon"-type automatic closing side door.

Select your reference
+
-

Advantages and strengths

Hyper lightweight with its tube design - 25% lightweighter.Easy to carry in the utility: 30 cm (11’’) wide in folded position.Mobile on all construction sites with Ø 150 mm (6’’) wheels.

Technical characteristics

Reference Number of walking Platform height (') Working height (') Base width (') Folded length (') Spacing (') Weight (lb) Quantity Quote
Ref. EECAGEEKOMAX2M
Code A0010671
GEEKOMAX 2 STEPS
2 2 ' 8 ' 28 '' 6 ' 3 ' 29,00 lb
+
-
Ref. EECAGEEKOMAX3M
Code A0010591
GEEKOMAX 3 STEPS
3 2 ' 9 ' 28 '' 7 ' 4 ' 31,00 lb
+
-
Ref. EECAGEEKOMAX4M
Code A0010592
GEEKOMAX 4 STEPS
4 3 ' 10 ' 28 '' 8 ' 4 ' 35,00 lb
+
-
Ref. EECAGEEKOMAX5M
Code A0010593
GEEKOMAX 5 STEPS
5 4 ' 11 ' 28 '' 9 ' 5 ' 42,00 lb
+
-
Ref. EECAGEEKOMAX6M
Code A0010594
GEEKOMAX 6 STEPS
6 5 ' 11 ' 28 '' 9 ' 5 ' 44,00 lb
+
-
GEEKOMAX 2 STEPS
Reference : EECAGEEKOMAX2M
Number of walking 2
Platform height (') 2 '
Working height (') 8 '
Base width (') 28 ''
Folded length (') 6 '
Spacing (') 3 '
Weight (lb) 29,00 lb
Quantity :
+
-
GEEKOMAX 3 STEPS
Reference : EECAGEEKOMAX3M
Number of walking 3
Platform height (') 2 '
Working height (') 9 '
Base width (') 28 ''
Folded length (') 7 '
Spacing (') 4 '
Weight (lb) 31,00 lb
Quantity :
+
-
GEEKOMAX 4 STEPS
Reference : EECAGEEKOMAX4M
Number of walking 4
Platform height (') 3 '
Working height (') 10 '
Base width (') 28 ''
Folded length (') 8 '
Spacing (') 4 '
Weight (lb) 35,00 lb
Quantity :
+
-
GEEKOMAX 5 STEPS
Reference : EECAGEEKOMAX5M
Number of walking 5
Platform height (') 4 '
Working height (') 11 '
Base width (') 28 ''
Folded length (') 9 '
Spacing (') 5 '
Weight (lb) 42,00 lb
Quantity :
+
-
GEEKOMAX 6 STEPS
Reference : EECAGEEKOMAX6M
Number of walking 6
Platform height (') 5 '
Working height (') 11 '
Base width (') 28 ''
Folded length (') 9 '
Spacing (') 5 '
Weight (lb) 44,00 lb
Quantity :
+
-

Use

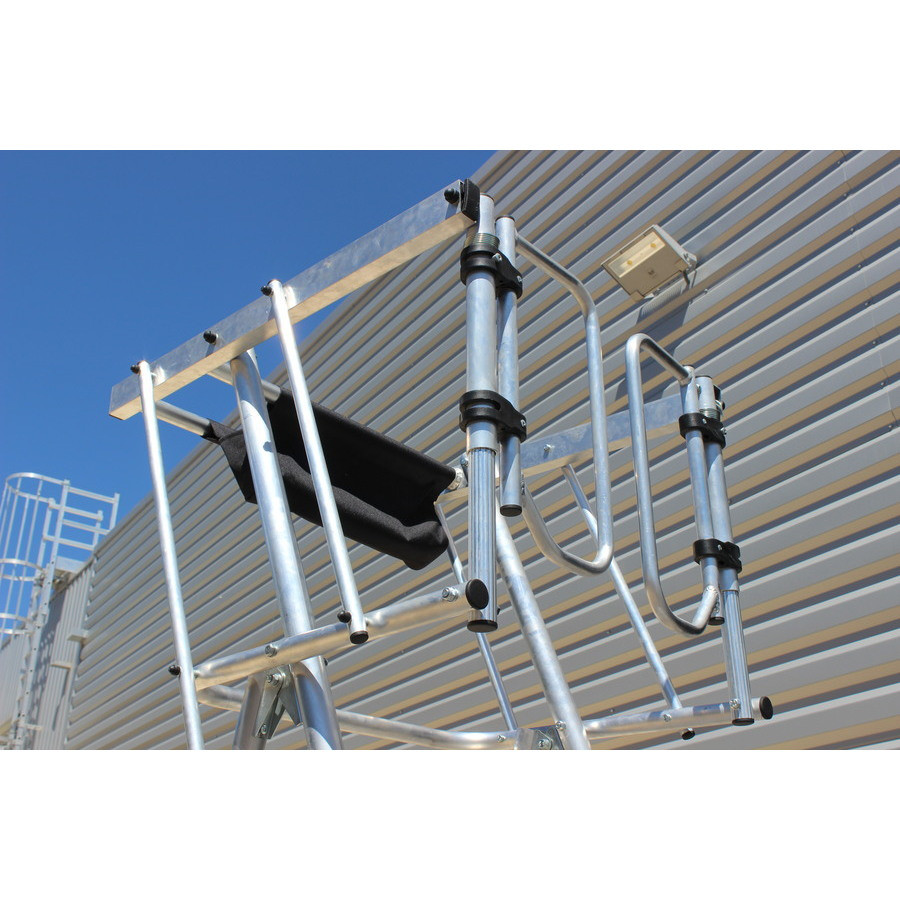

New platform with automatic closing gate type "saloon".

Work platform designed for all work up to 3,50 m (11') high.

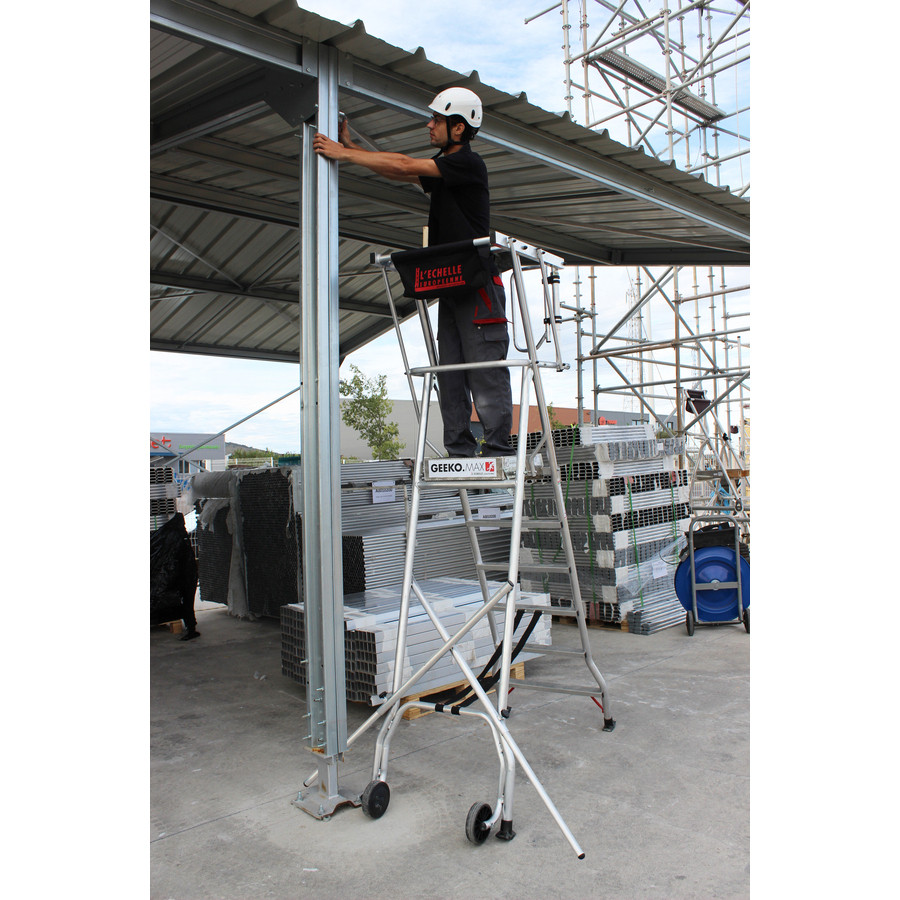

Ideal for finishing work such as electrical installation, painting, carpentry installation...Can be used for sub-ceiling or facade work indoors or outdoors.

Technical description

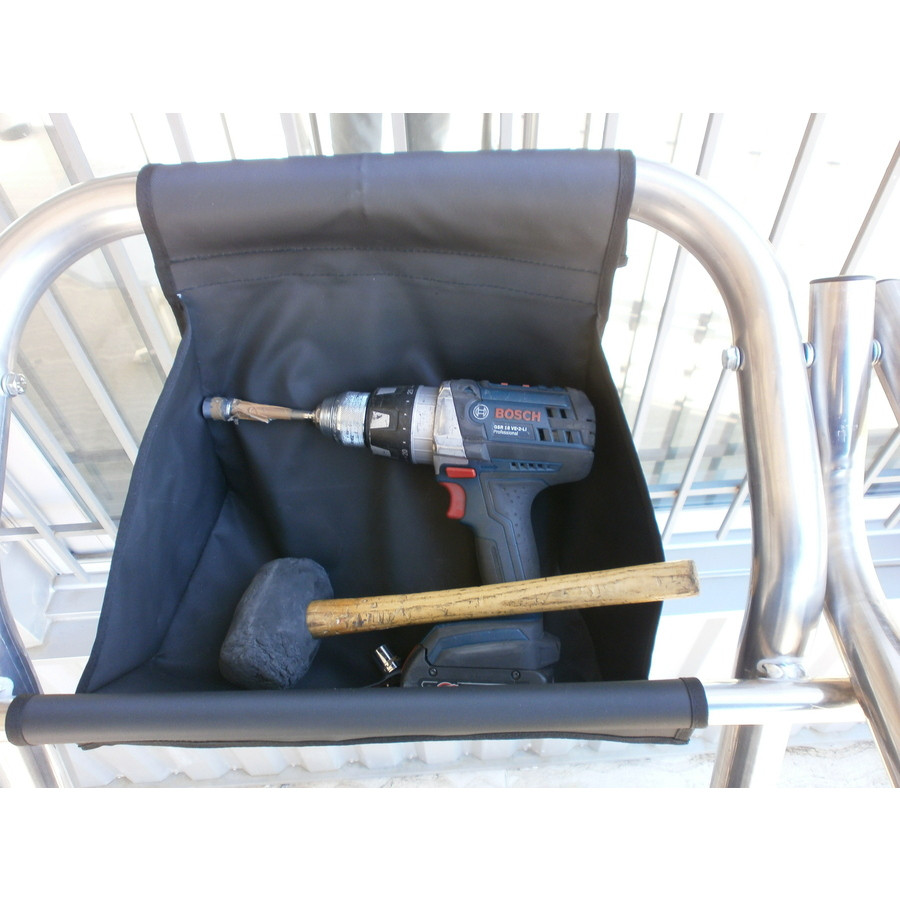

Deep tool pocket


Stabilizer with milimetric adjustment (starting from a one metre high platform)


10 cm (4") skirting board


Anti-lifting hook.


Clearance height of 45 cm (17")

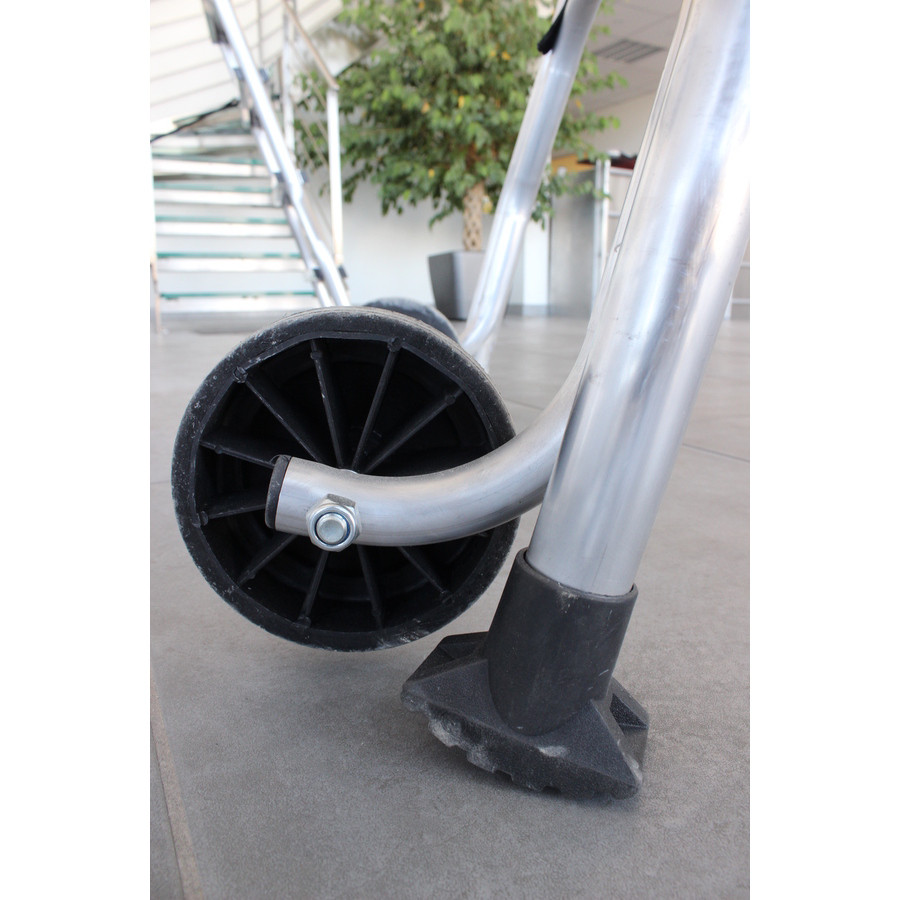

150 mm (6") displacement wheels not load bearing and not stainable


Passage width 485 mm (19")


Travel depth 80 mm (3")


2 years warranty
