Staircase SWING
The choice of a glass ramp.
Technical characteristics
SWING suspended wooden staircase | |
---|---|
Reference : | SWING |
Quantity : |
|
Suspended wooden staircase SWING version railing Jazz | |
---|---|
Reference : | SWINGJAZZ |
Quantity : |
|
Suspended wooden staircase SWING version railing Jazz | |
---|---|
Reference : | SWINGVIEW |
Quantity : |
|
Wooden staircase SWING railing version View Deko | |
---|---|
Reference : | SWINGVIEWDEKO |
Quantity : |
|
SWING suspended wooden staircase with stringers | |
---|---|
Reference : | SWINGLIMON |
Quantity : |
|
Wooden suspended staircase SWING with stringer version Jazz balustrade | |
---|---|
Reference : | SWINGLIMONJAZZ |
Quantity : |
|
Wooden staircase SWING with stringer version View | |
---|---|
Reference : | SWINGLIMONVIEW |
Quantity : |
|
Wooden staircase SWING with handrail version View Deko | |
---|---|
Reference : | SWINGLIMONVIEWDEKO |
Quantity : |
|
Use

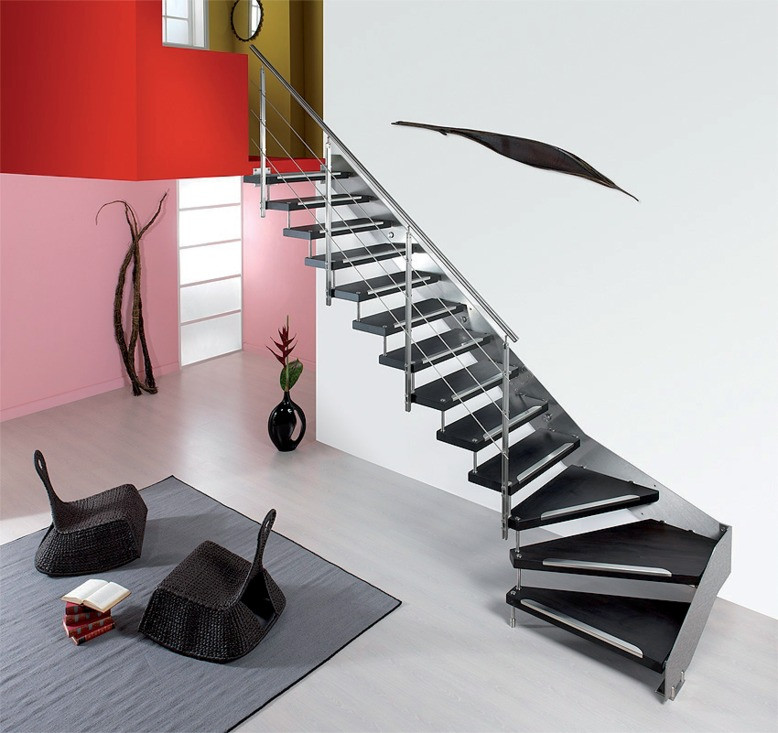

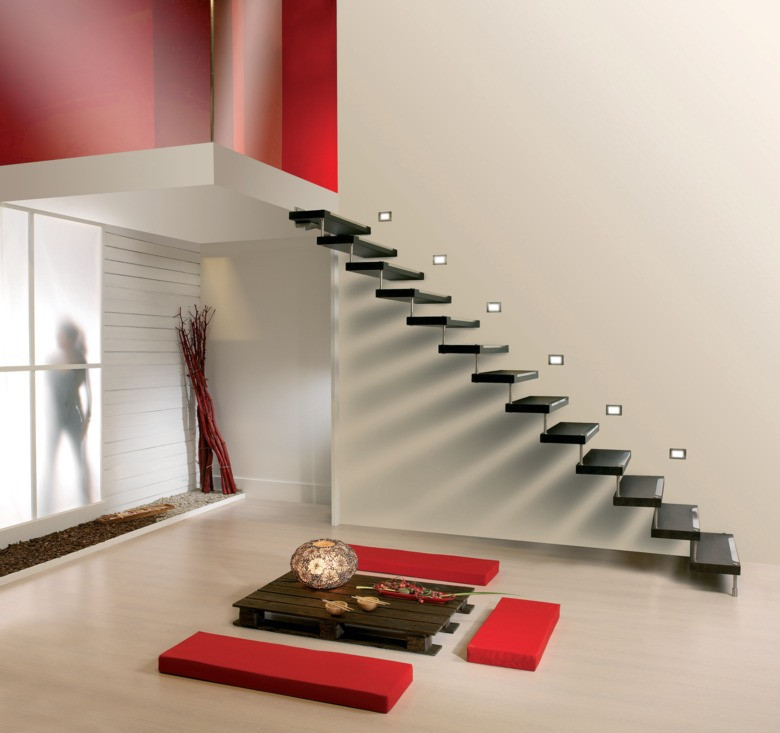

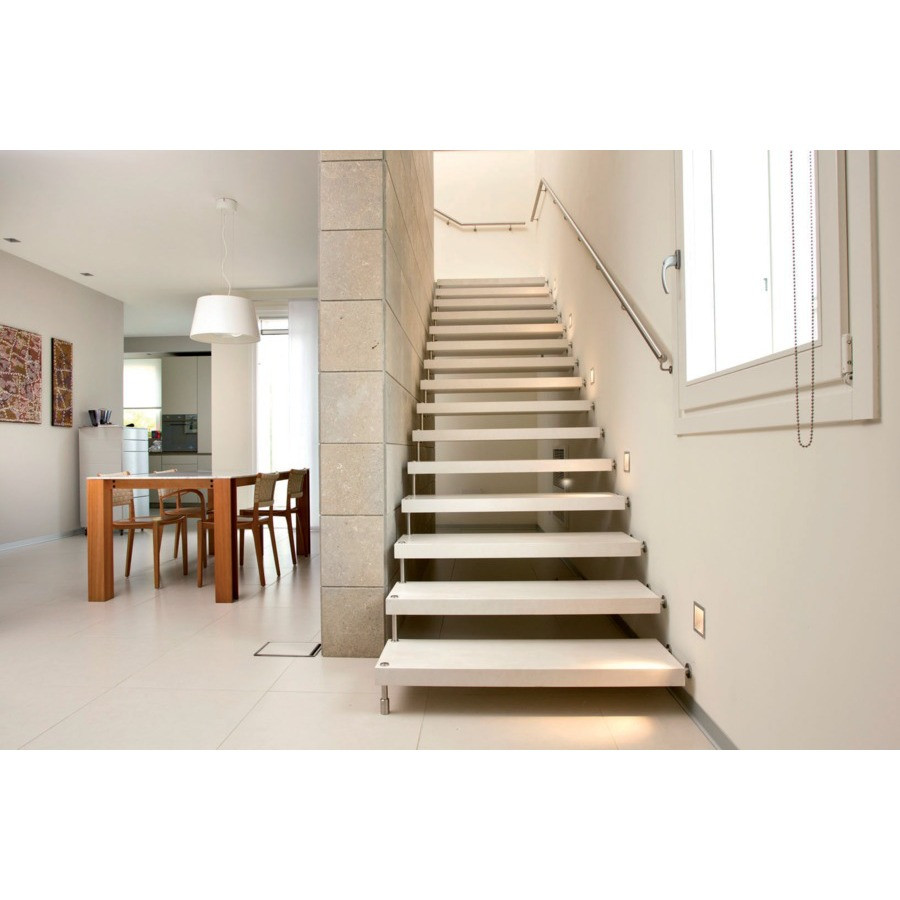

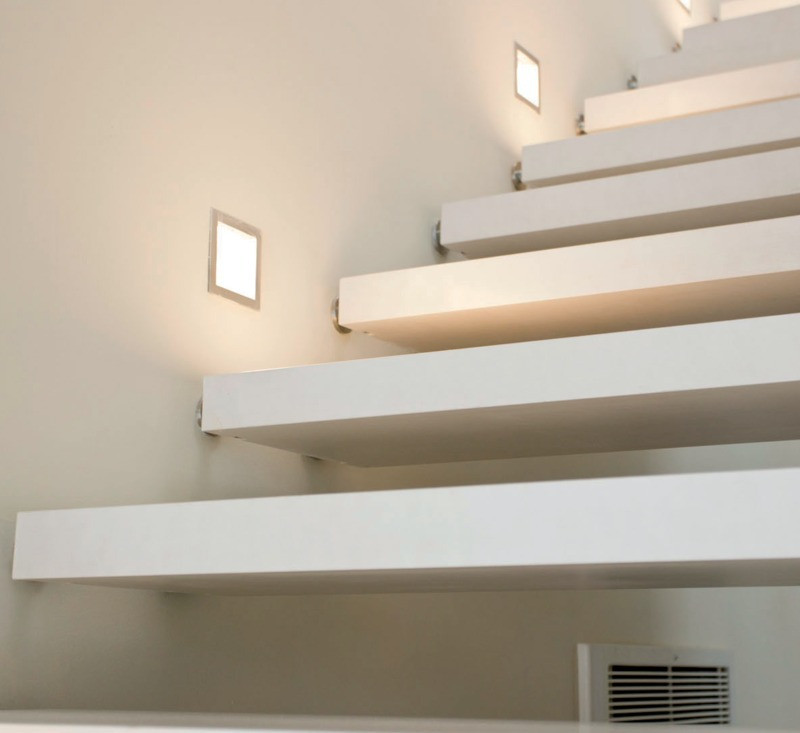

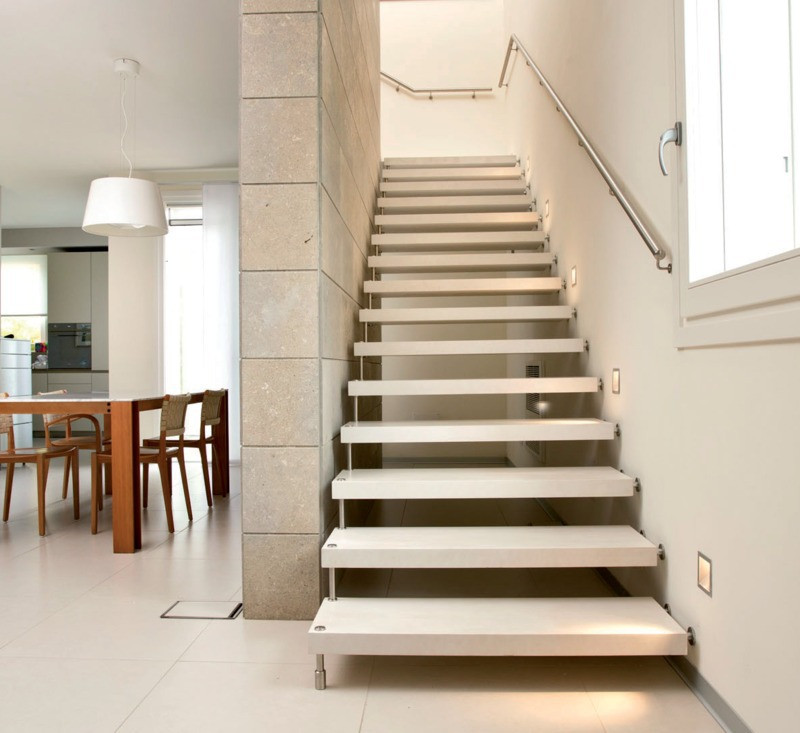

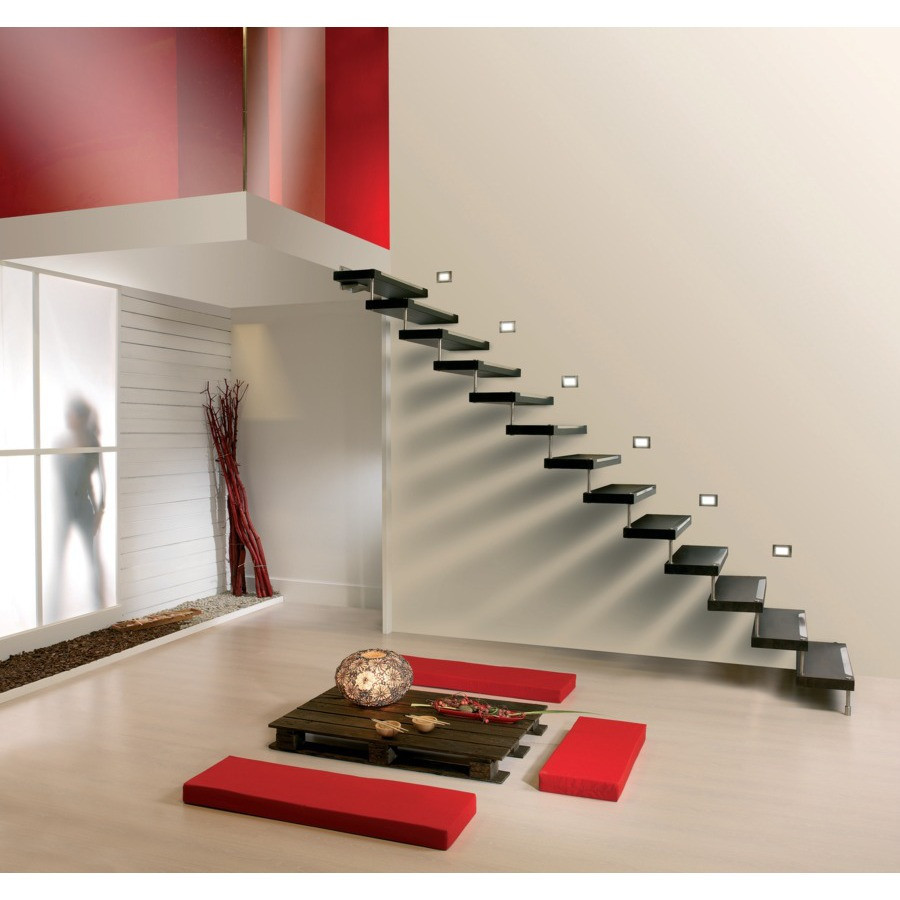

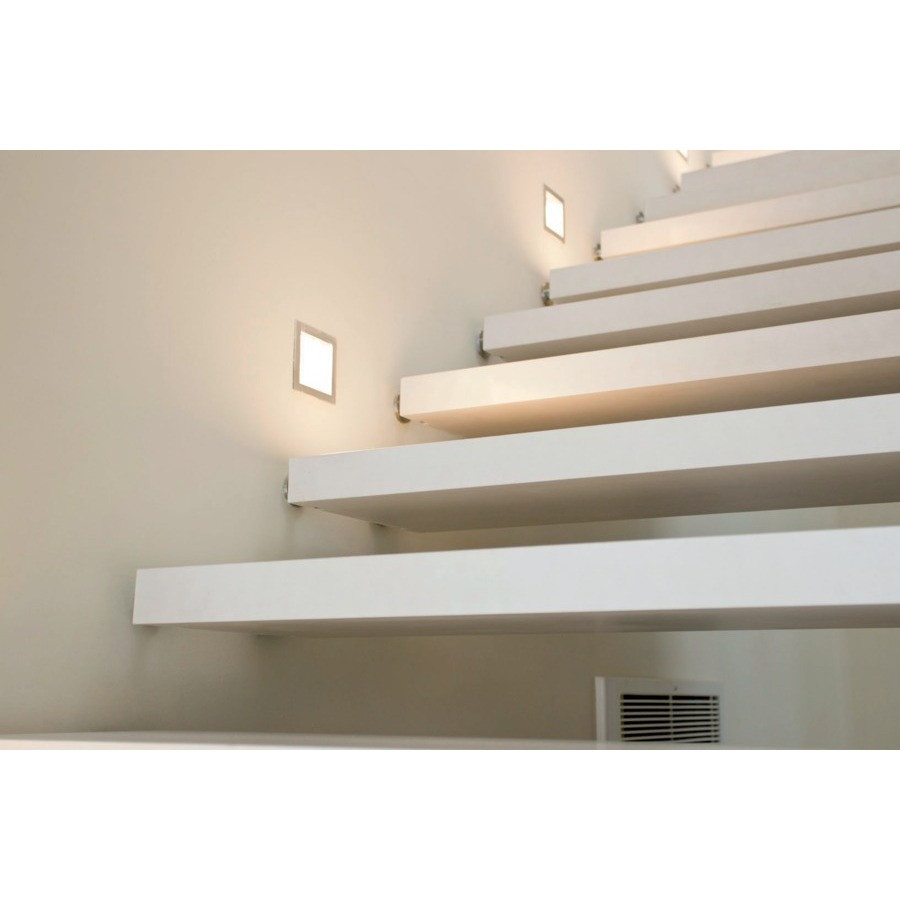

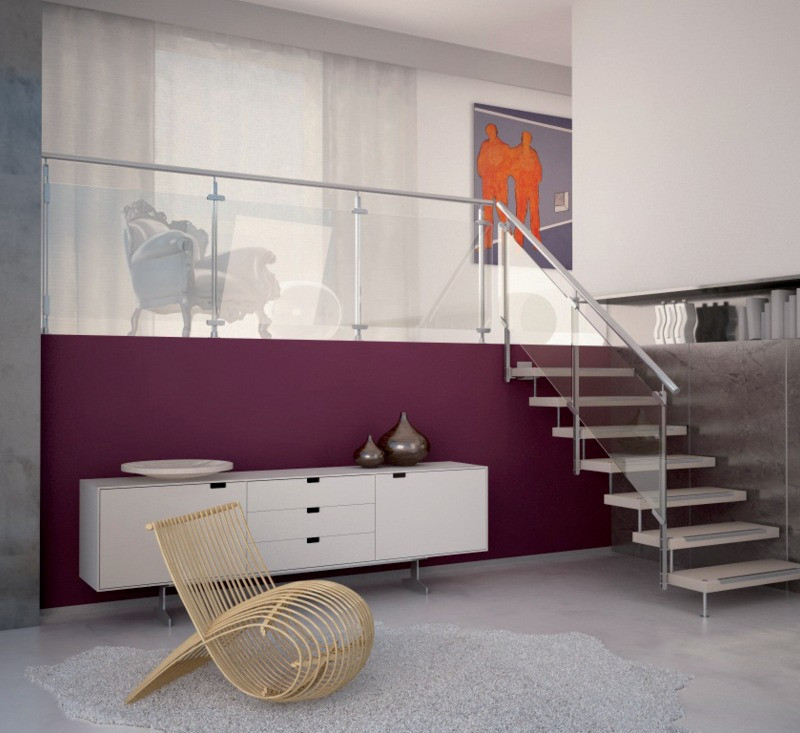

Suspended staircase with wooden steps bringing a modern style to the interior.Very trendy, this staircase is fastened on a non-insulated load-bearing wall.Allows for straight and 1/4 turn configurations.
Technical description
STRUCTURE Structure free suspended staircase, fastening on a non-insulated load-bearing wall
STEPS Standard laminated beech wood, 60 mm thick Stainless steel step nose, on wooden steps
AVAILABLE COLOURS natural beech, light oak, whitened, light walnut, medium walnut, dark walnut, wengé, whitened
AVAILABLE TREADS: 220 - 230 - 240 - 250 - 260 mm

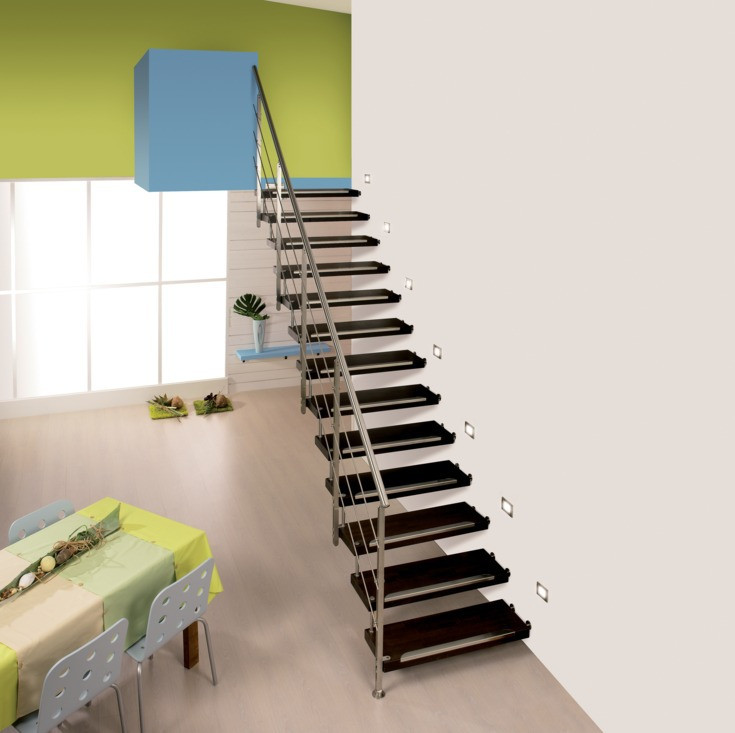

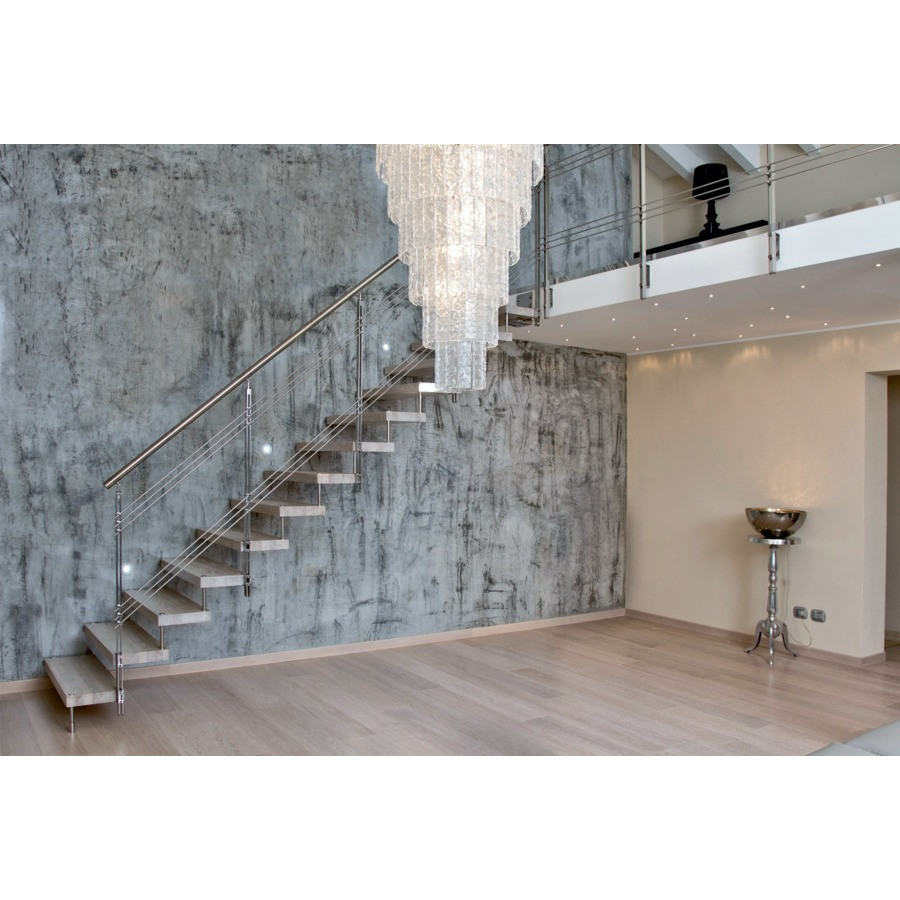

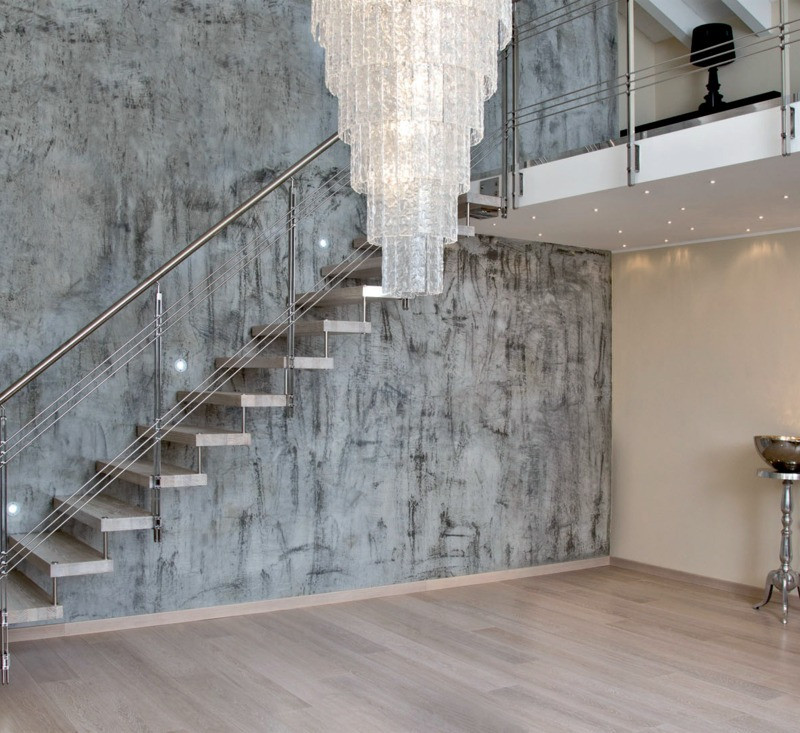

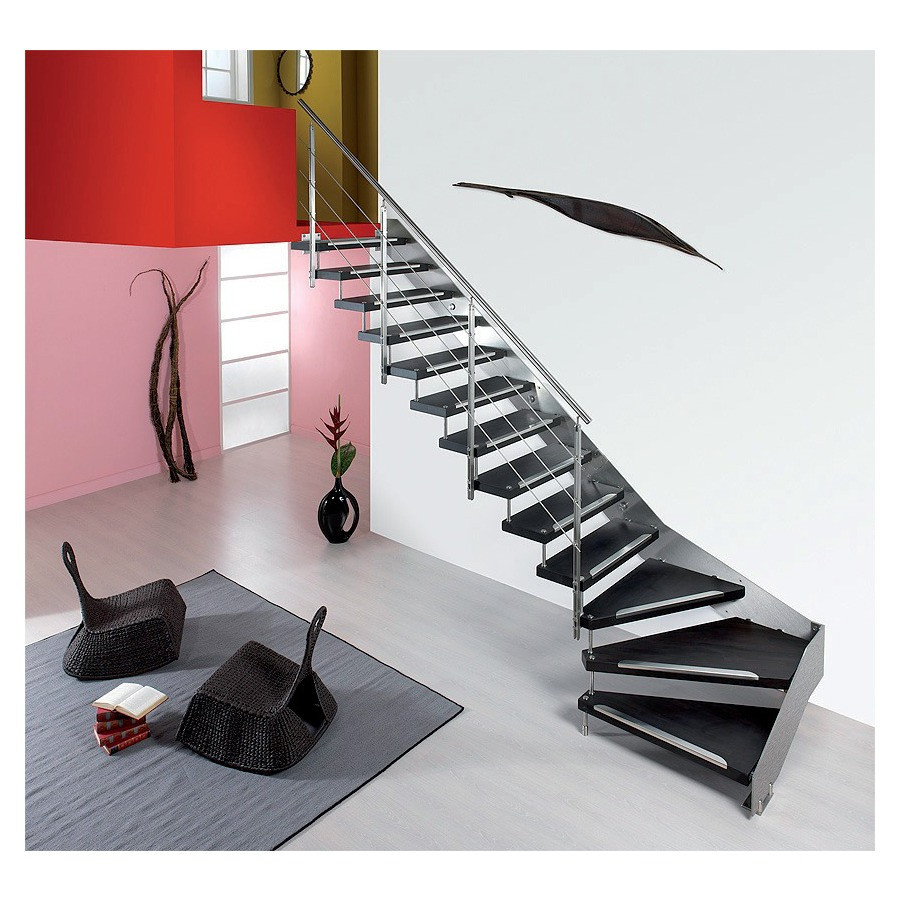

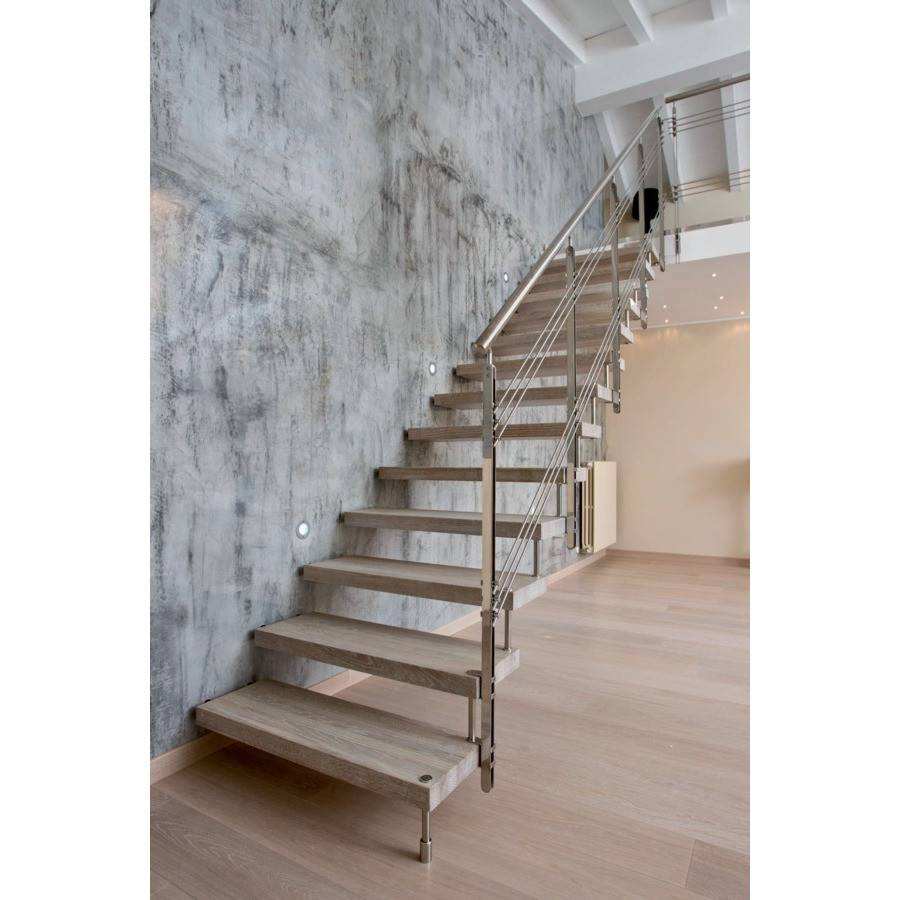

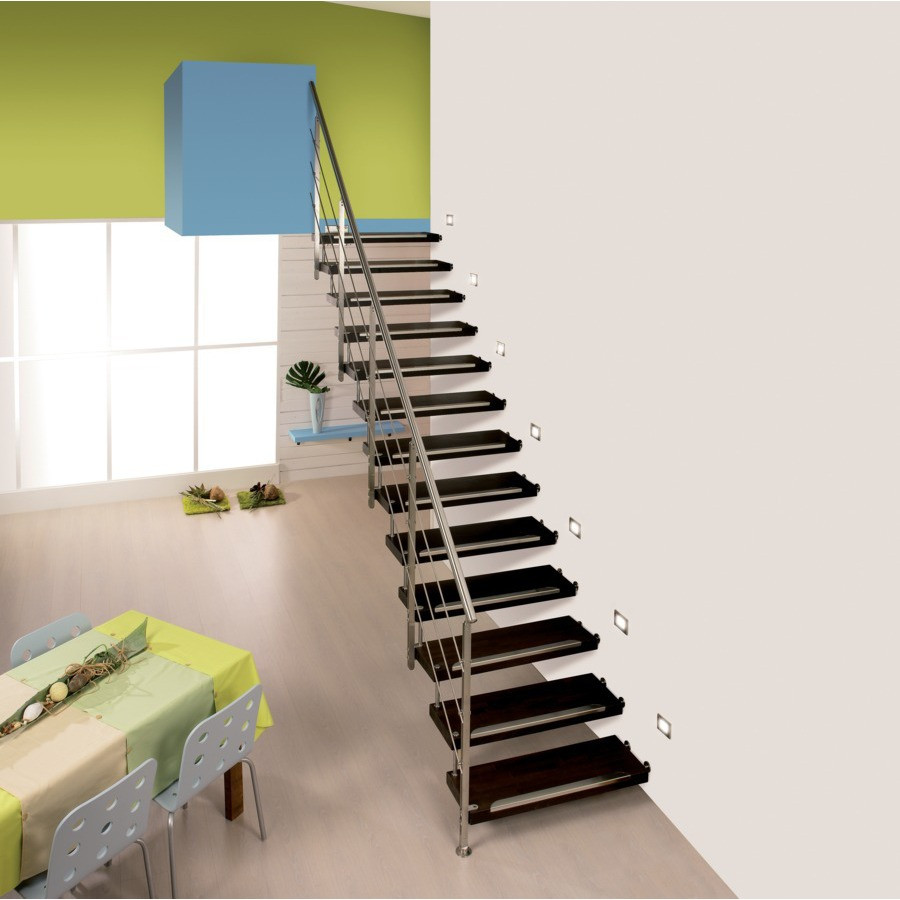

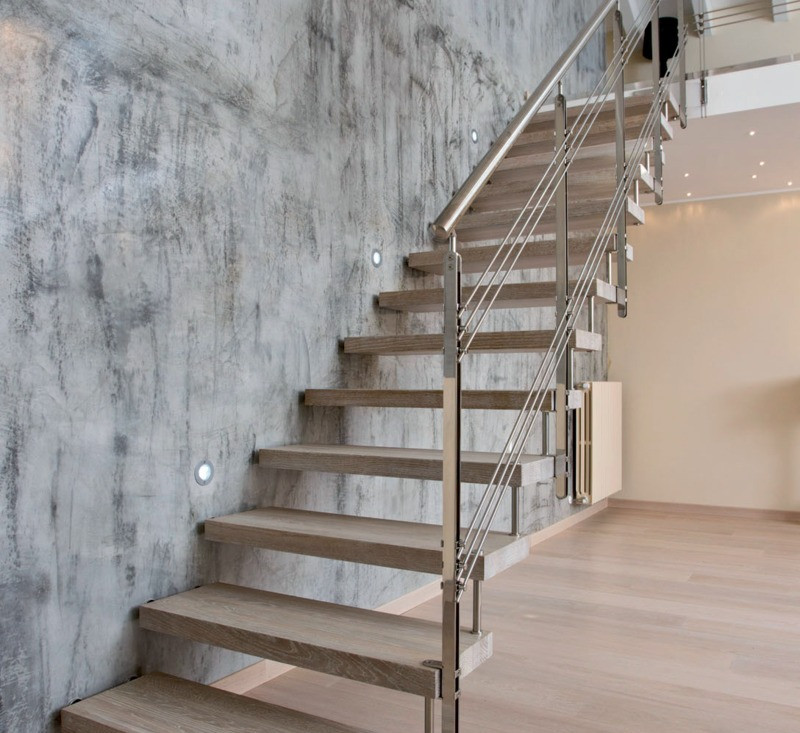

JAZZ RAMP Double flat iron made of 30 x 5 mm stainless steel and 3 to 9 stainless steel rails, 8 mm Ø

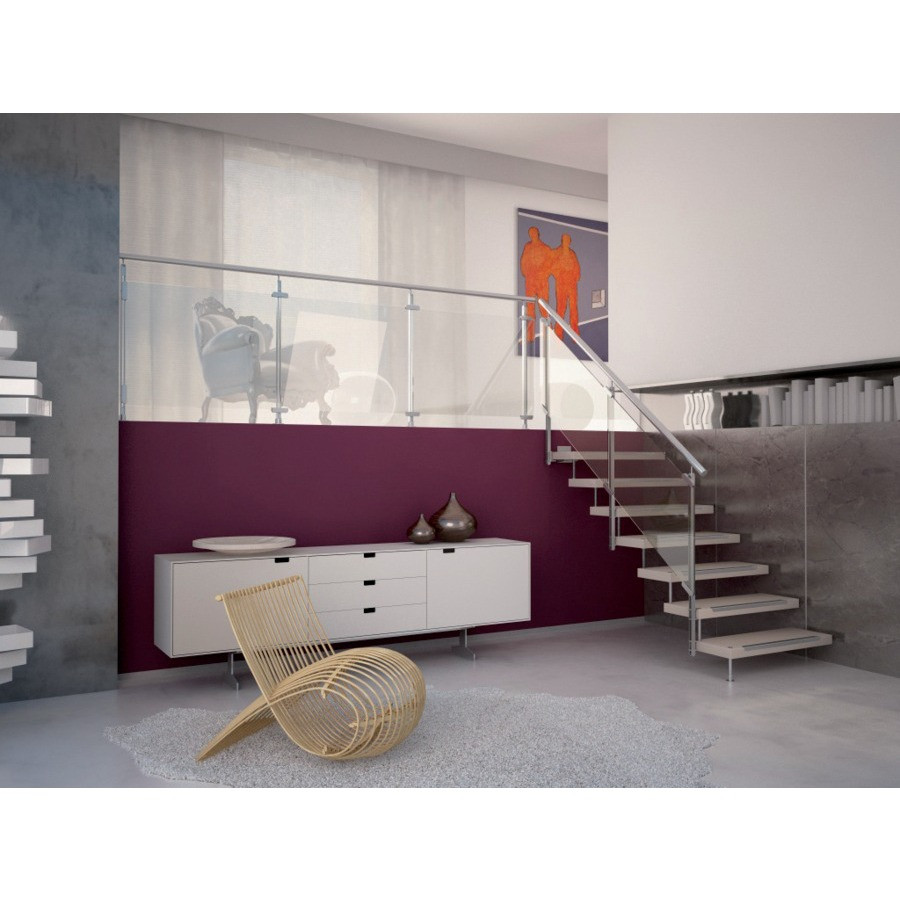

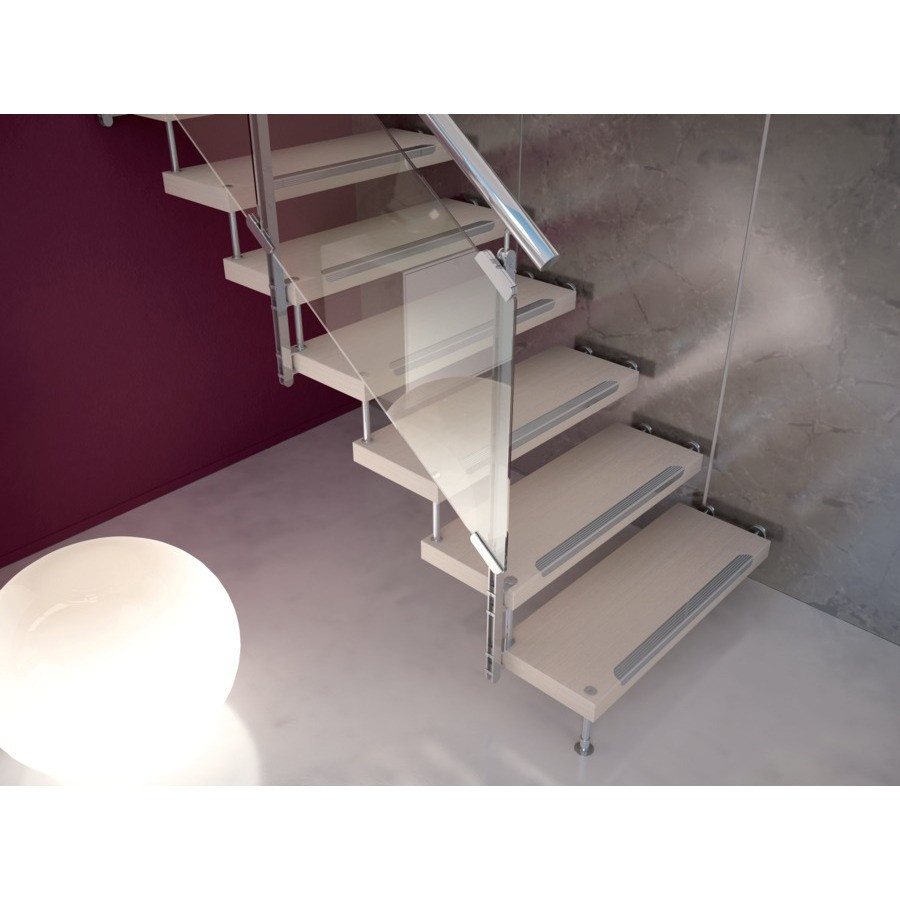

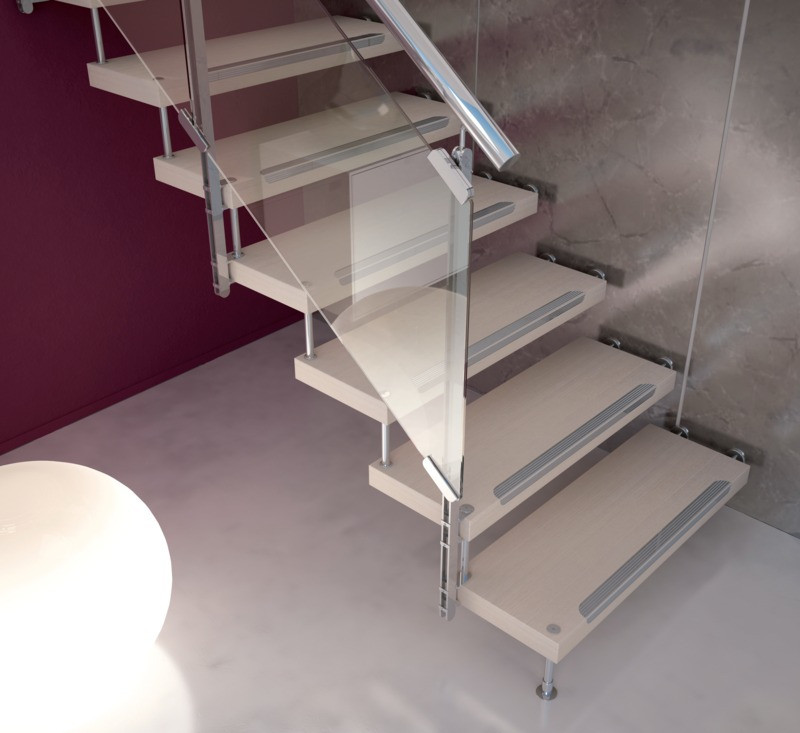

VIEW RAMP Double flat iron made of 30 x 5 mm stainless steel and tempered and laminated glass panels, 4 + 4 mm thick

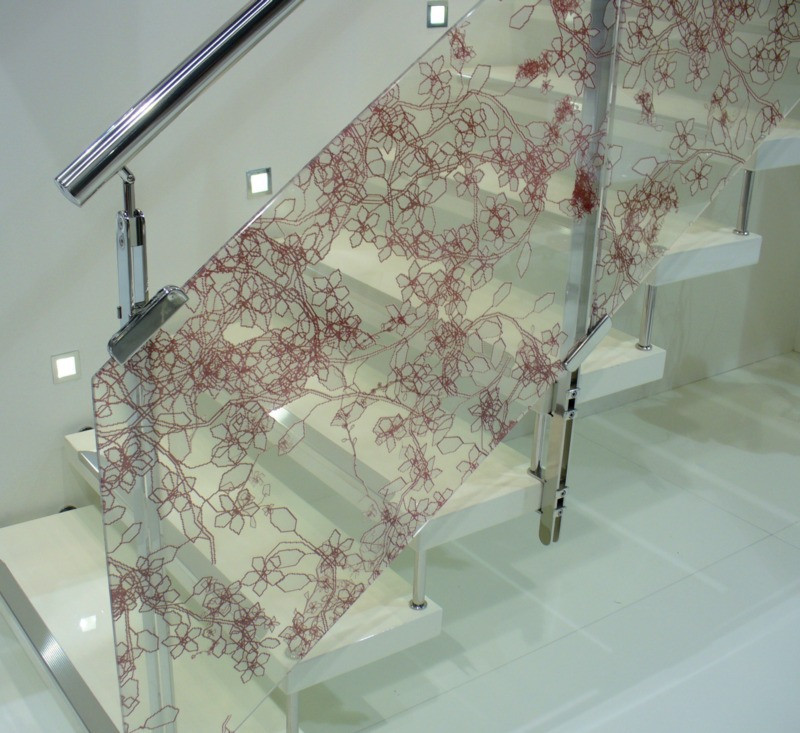

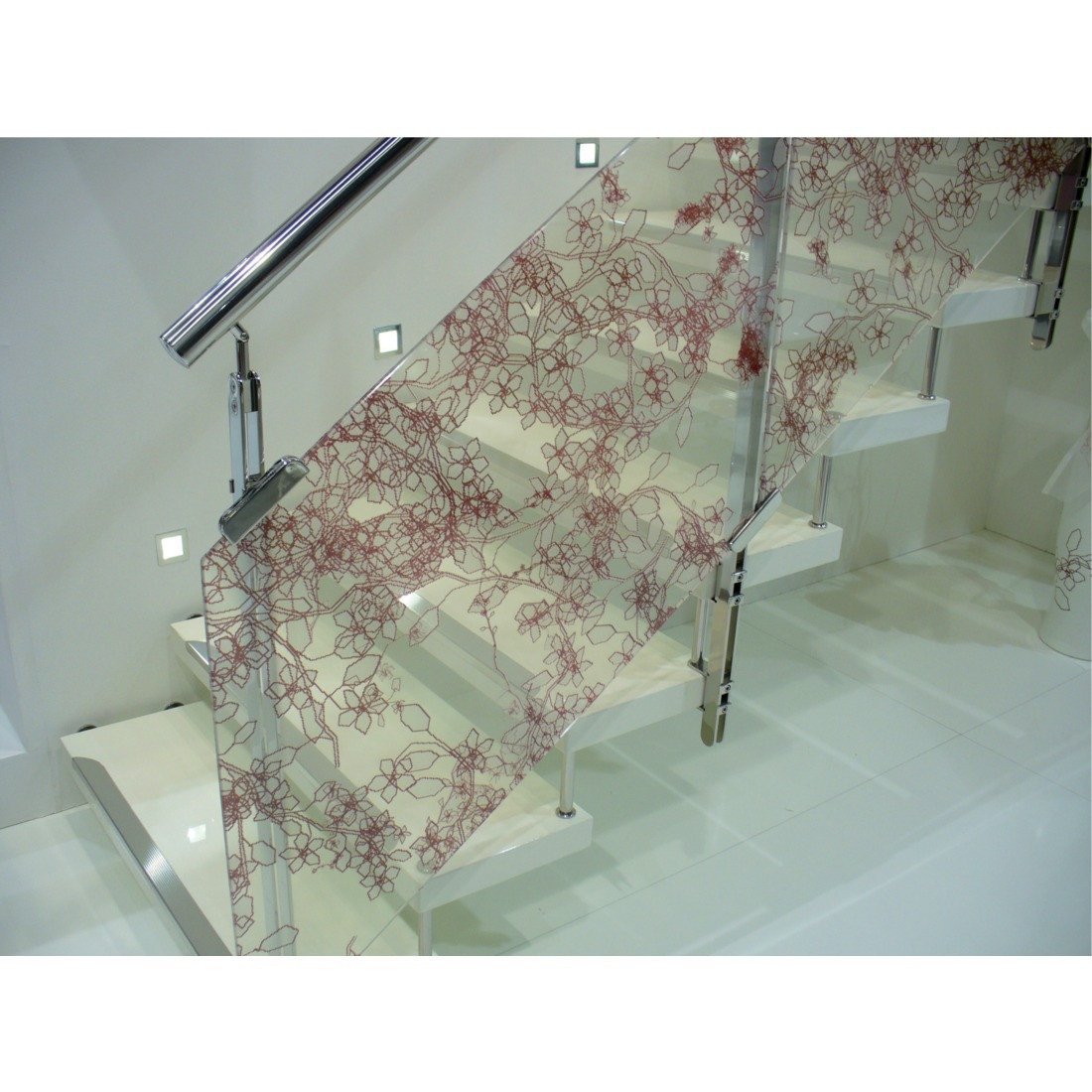

VIEW DEKO Ramp Double flat iron made of 30 x 5 mm stainless steel and tempered and laminated glass panels, 4 + 4 mm thick, with fabric inside Tubular handrail in beech wood, 48 mm Ø or stainless steel or iron, 42 mm Ø
OPTIONS ON REQUEST Special treads, between 270 and 280 mm
