Standard: EN 14975:2007

Select your reference
+
-

Advantages and strengths

Ships fully assembled, ready for installation. Hatch in MDF E1. L-shaped plates for quick fixing.

Technical characteristics

Reference Quantity Quote
Ref. ESCAMOTABLEWALL
Code A0013231
Retractable staircase model Wall
+
-
Retractable staircase model Wall
Reference : ESCAMOTABLEWALL
Quantity :
+
-

Use

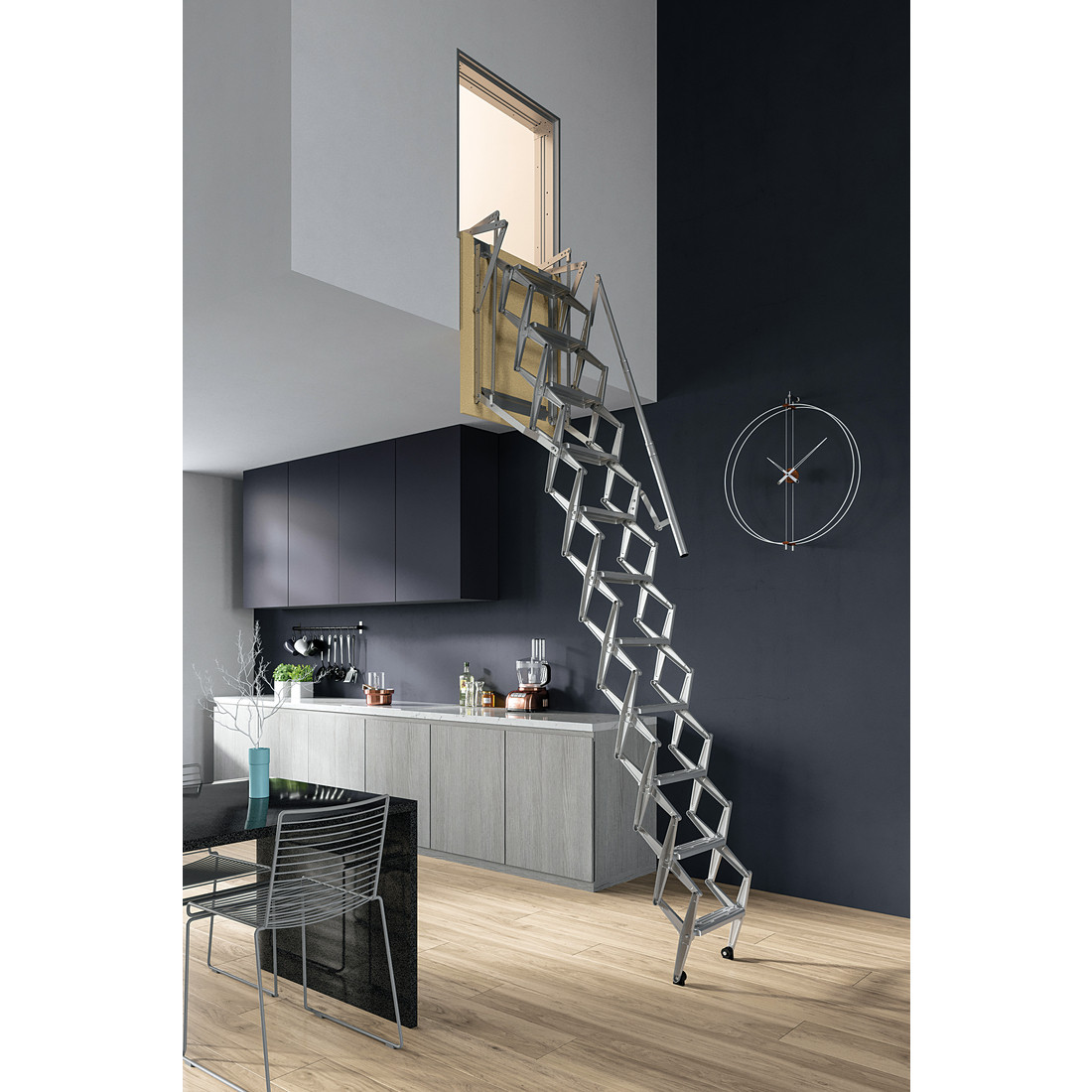

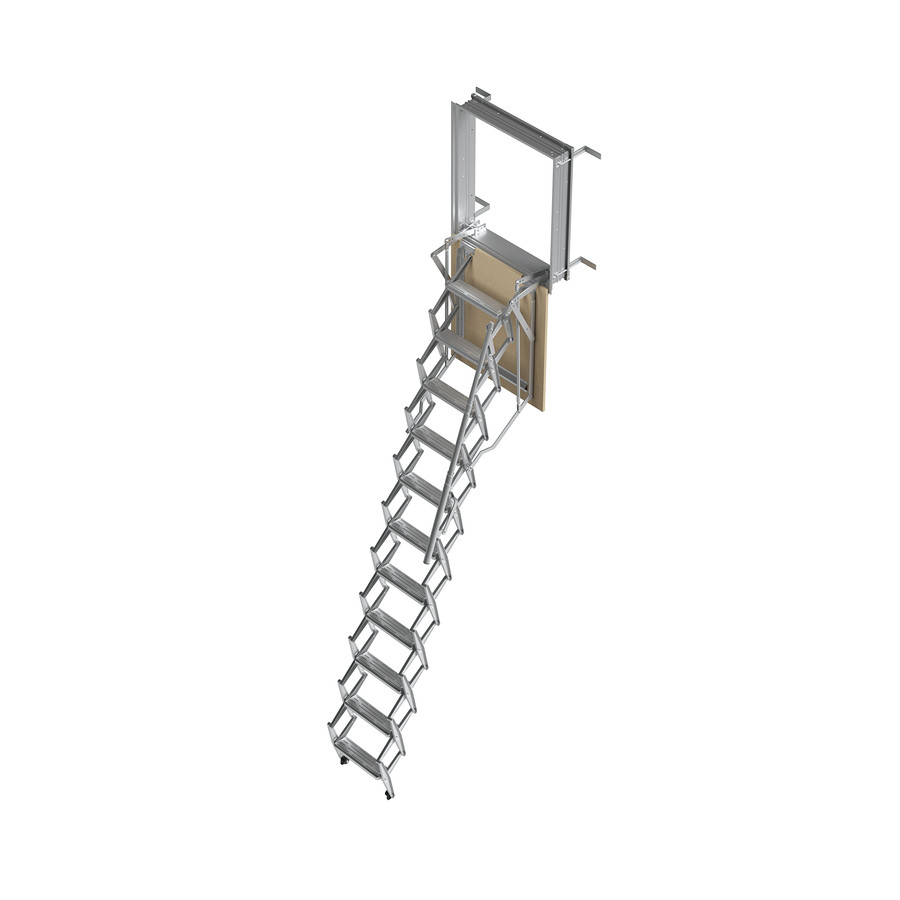

The Wall concertina retractable staircase has been designed for wall access consisting of 11 steps in pressed galvanized sheet steel.

Precaution for use: the wall against which the staircase must be mounted must be able to withstand a strong horizontal thrust.

For walls made of plasterboard or 8 cm partition bricks, the staircase must be fixed with dowels to the supporting floor with the reinforcement plate provided for this purpose.

Technical description

Mobile step assembly in stamped 15/10 zinc-plated sheet steel.


Non-slip step


Telescopic handrail right side


Panel insulation


Chipboard hatch, 16 mm thick


Casing made of 10/10 galvanized sheet steel with 12/10 reinforcing angles and plate


Floor support feet


Opening hook and operating rod


Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)


Galvanized steel reinforcement plate


Bolt-on levers for easy adjustment


Maximum load 150 kg. Tested with static load of 260 kg
