Retractable staircase Terrace
Retractable staircase Terrace

Retractable staircase Terrace

Standard: EN 14975:2007

Select your reference
+
-

Advantages and strengths

Ships fully assembled, ready for installation. Bolt-on levers for easy adjustment.

Technical characteristics

Reference Quantity Quote
Ref. ESCAMOTABLETER
Code A0013230

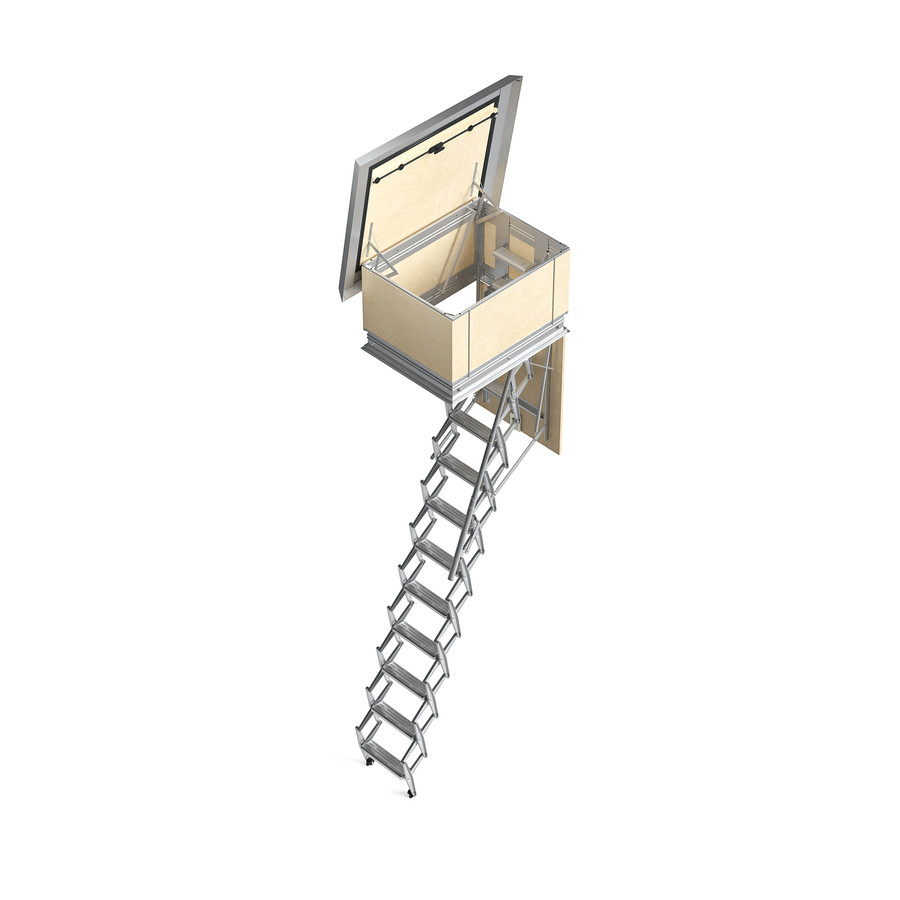

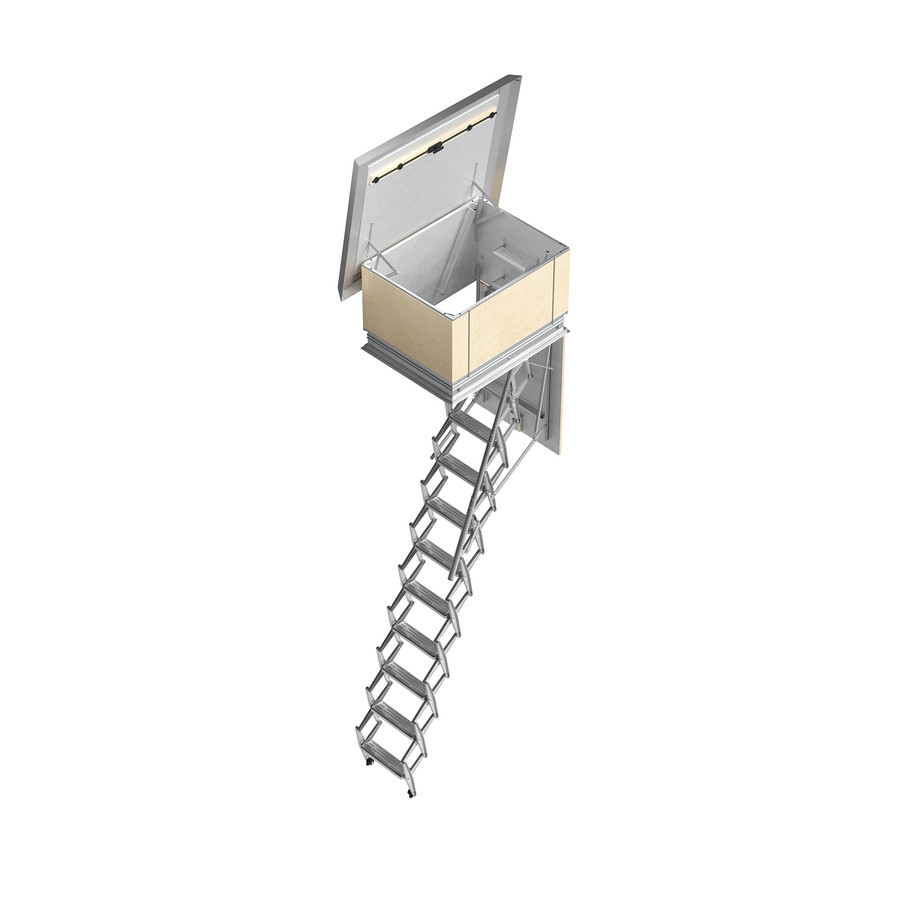

Retractable staircase model Terrace
+
-
Retractable staircase model Terrace
Reference : ESCAMOTABLETER
Quantity :
+
-

Use

The Terrace accordion retractable staircase, designed as its name is identical for terrace access, is made up of 11 steps in pressed galvanized steel sheet.

Technical description

Set of steps made of 15/10 stamped steel sheet treated with electrolytic zinc plating

Exit steps (for structure ≥ 60 cm)

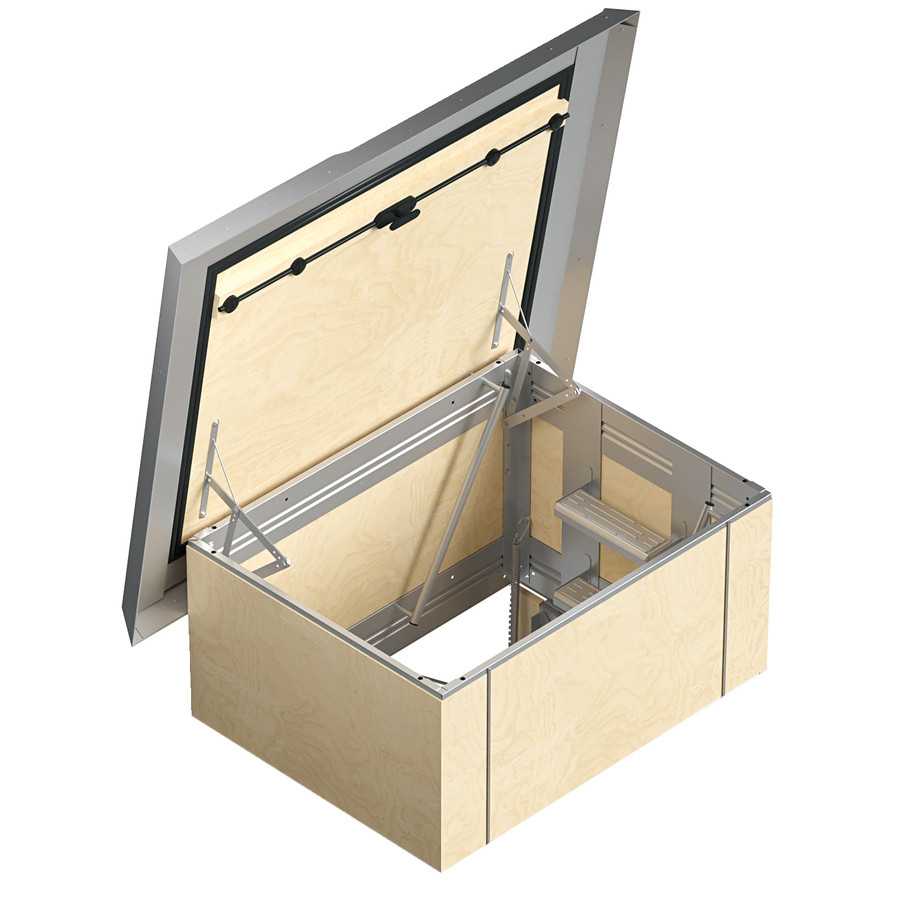

Roof access structure: internal box in plywood and cover in galvanized steel 10/10. Premium poplar plywood panel, 15mm thick


Gas spring (dimensions >70x100)


Telescopic handrail right side


Exit handles


Floor support feet


Opening hook and operating rod


L-mounting plates


Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)


Maximum load 150 kg. Tested with static load of 260 kg
