Retractable staircase Panto
Retractable staircase Panto

Retractable staircase Panto

Standard: EN 14975:2007

Select your reference
+
-

Advantages and strengths

Ships fully assembled, ready for installation. Bolt-on levers for easy adjustment. Quick fixing plate. With panel insulation + termocover.

Technical characteristics

Reference Quantity Quote
Ref. ESCAMOTABLEPANTO
Code A0013228

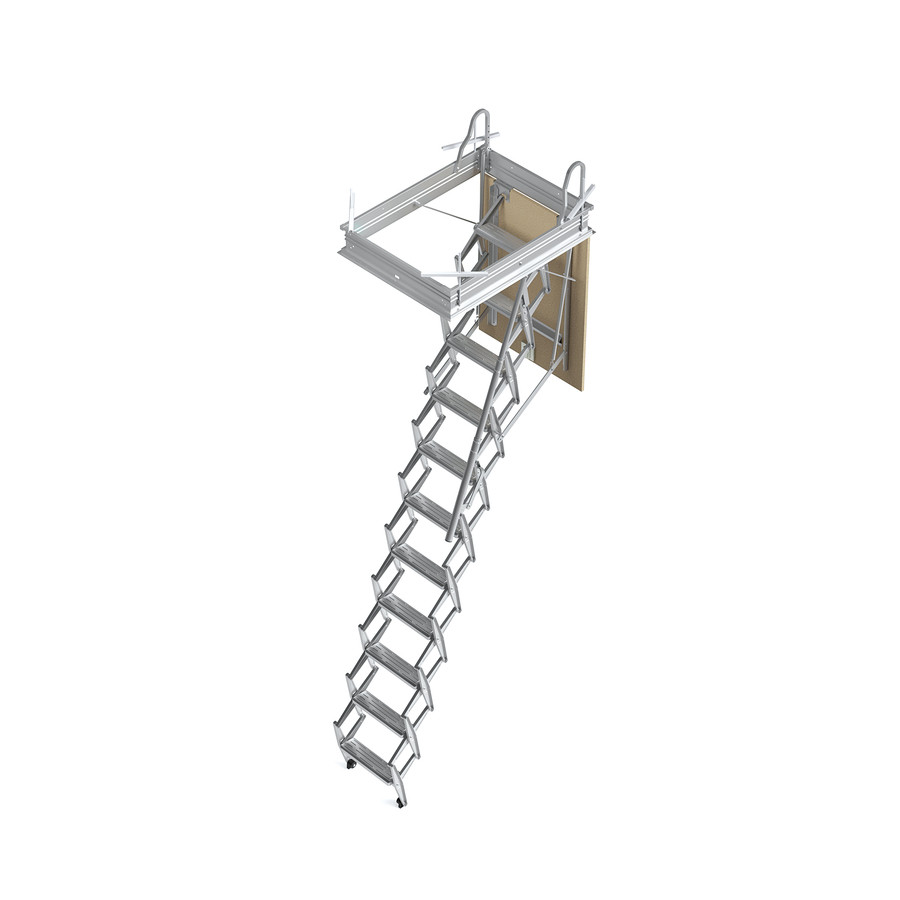

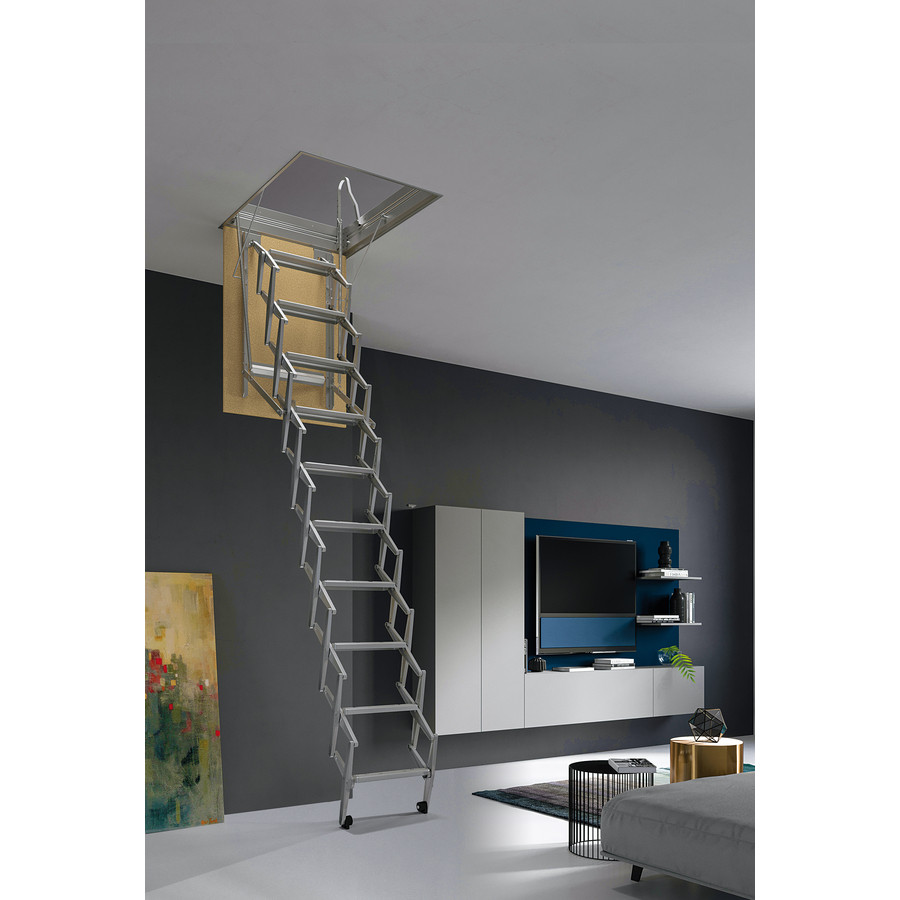

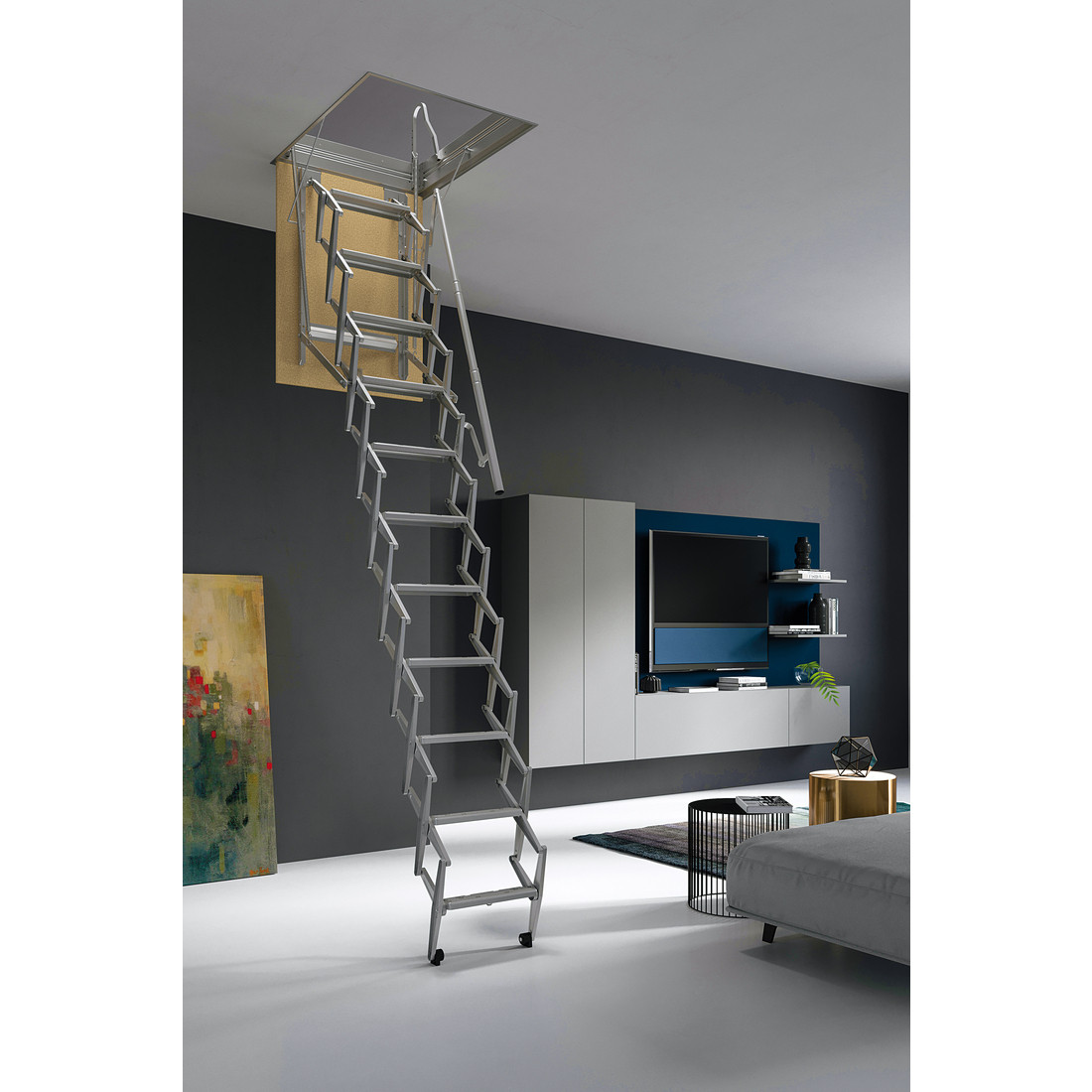

Retractable staircase model Panto
+
-
Retractable staircase model Panto
Reference : ESCAMOTABLEPANTO
Quantity :
+
-

Use

The Panto concertina retractable staircase is made up of 11 steps in pressed galvanized sheet steel.

Technical description

Mobile step assembly in 15/10 stamped painted steel sheet treated with electrolytic zinc plating


Non-slip step


Exit handles


Telescopic handrail right side


Chipboard hatch, 16 mm thick


Casing made of 10/10 galvanized sheet steel with 12/10 reinforcing angles


Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)


Floor support feet


Opening hook and operating rod


Maximum load 150 kg. Tested with static load of 260 kg
