Retractable staircase Motora
Retractable staircase Motora

Retractable staircase Motora

Standard: EN 14975:2007

Select your reference
+
-

Advantages and strengths

Ships fully assembled, ready for installation. L-shaped plates for quick fixing. Termocover: patented insulating device.

Technical characteristics

Reference Quantity Quote
Ref. ESCAMOTABLEMOT
Code A0013226

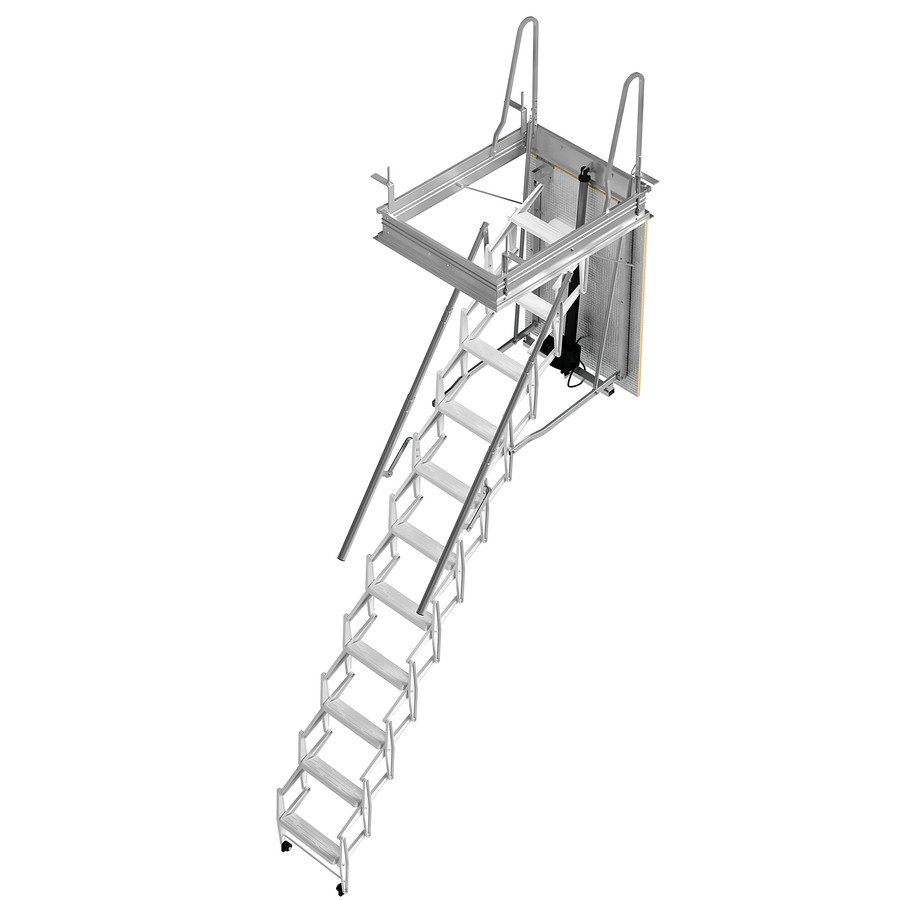

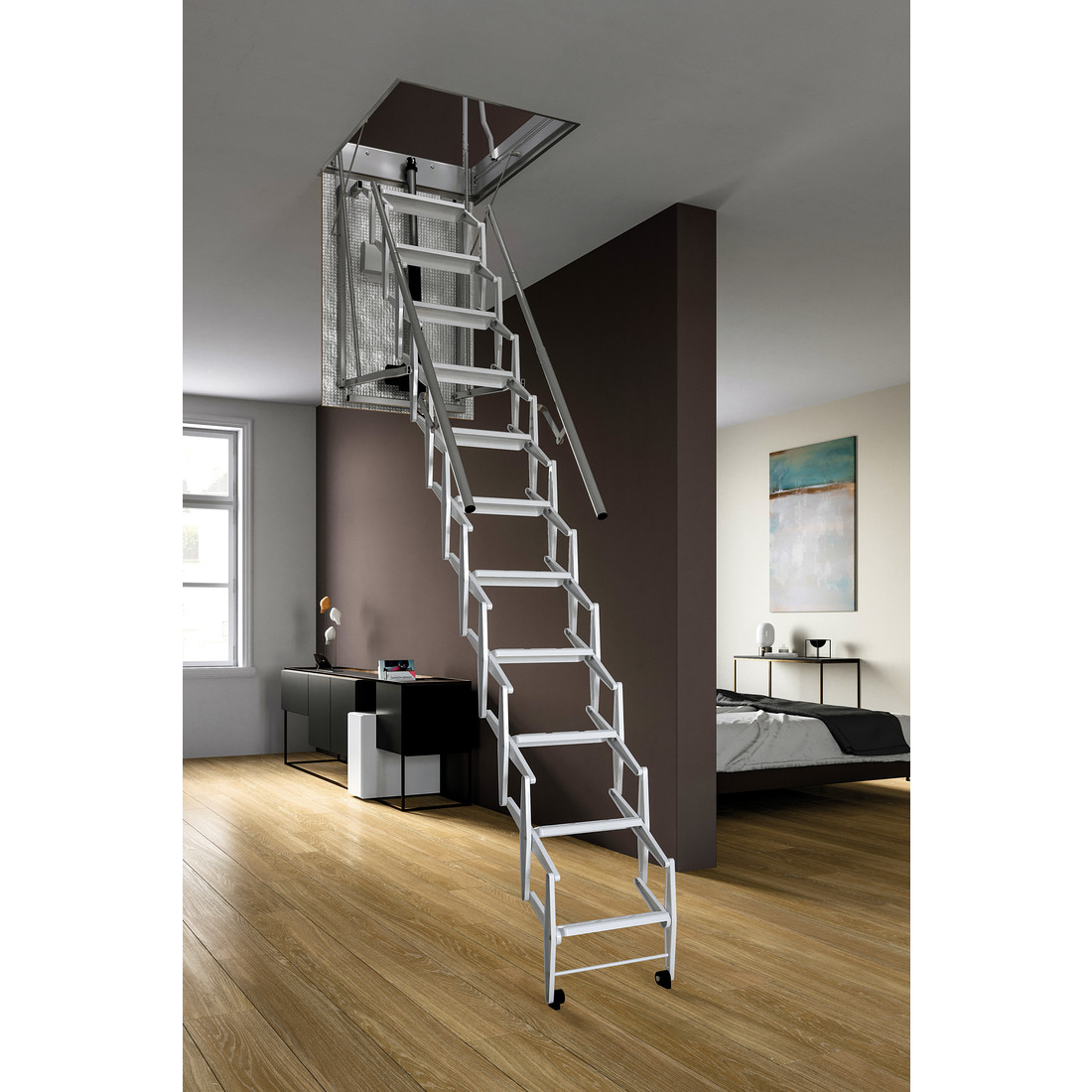

Retractable staircase model Motora
+
-
Retractable staircase model Motora
Reference : ESCAMOTABLEMOT
Quantity :
+
-

Use

The Motora insulated electric accordion retractable staircase is made up of 11 steps in white varnished stamped steel sheet and a box in steel sheet treated with electrolytic zinc plating.

The mobile structure is united by axes allowing a fluid and precise electromechanical movement.

The hatch is fitted with motor release screws for manual opening in the event of a power failure.

Technical description

Extended exit handles (H 55 m)


Double telescopic handrail


Stabilization rod for the stair inclination at 65°


Mobile step set in 15/10 stamped steel painted in white RAL 9010


Steel axes for safer and more precise movement


Non-slip step


Floor support feet


Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)


Casing made of 10/10 galvanized sheet steel with 12/10 reinforcing angles and motor attachment plate


Damping springs for easy opening and closing


Premium plywood poplar panel mat, 15mm thick with insulation


Electric motor (220Vac – 240W) with release screw for manual opening

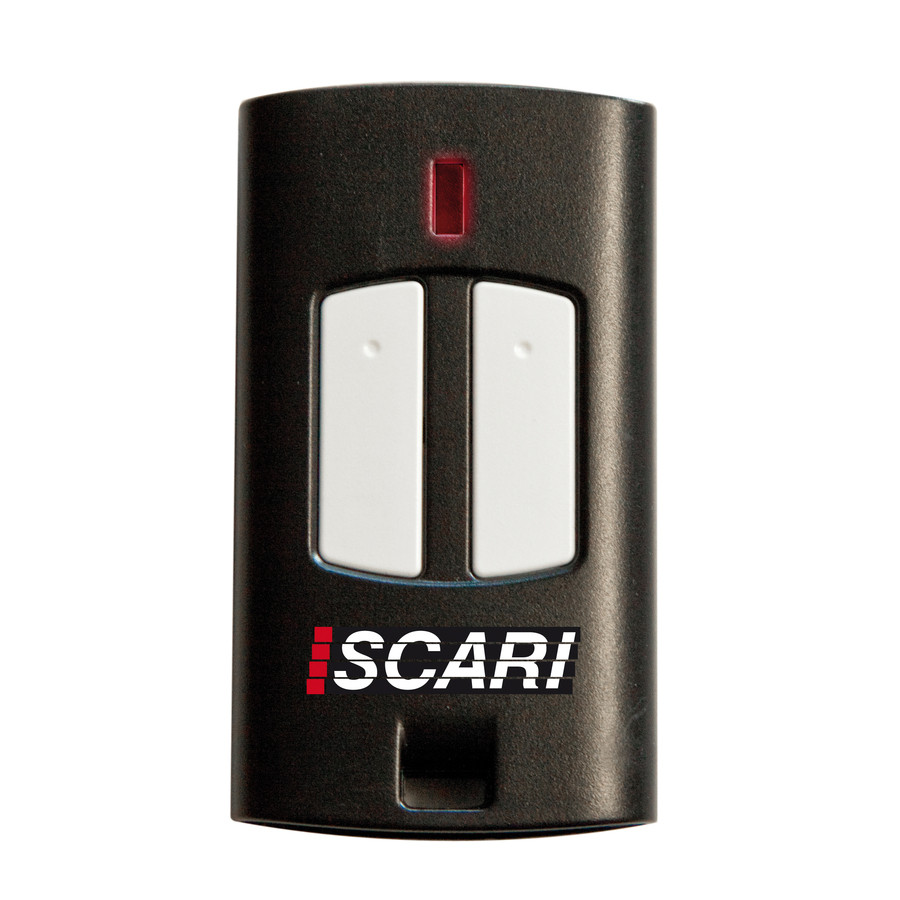

Remote control for opening and closing


Certified thermal transmittance of the entire box for the scissor stairs of 1.1 W/m2K


Maximum load 150 kg. Tested with static load of 260 kg
