Retractable staircase 4PZ
Retractable staircase 4PZ

Retractable staircase 4PZ

Standard: EN 14975:2007

Select your reference
+
-

Advantages and strengths

Ships fully assembled, ready for installation. Quick fixing plates.

Technical characteristics

Reference Quantity Quote
Ref. ESCAMOTABLE4PZ
Code A0013229
Retractable staircase model 4PZ
+
-
Retractable staircase model 4PZ
Reference : ESCAMOTABLE4PZ
Quantity :
+
-

Use

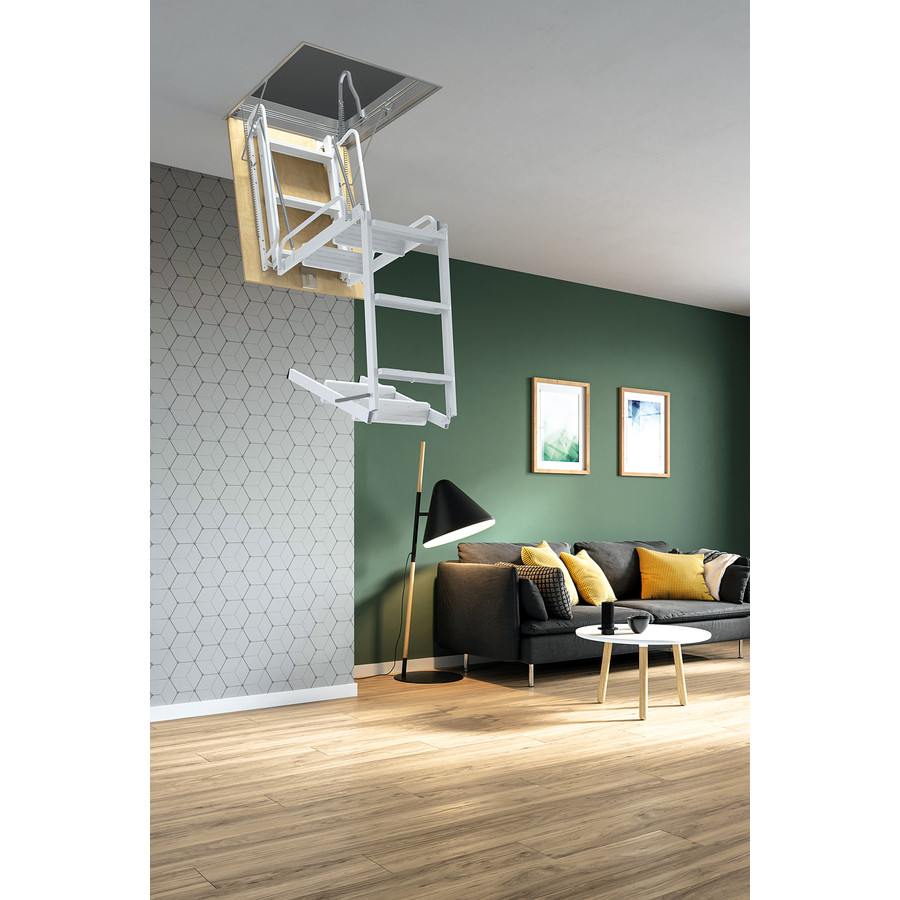

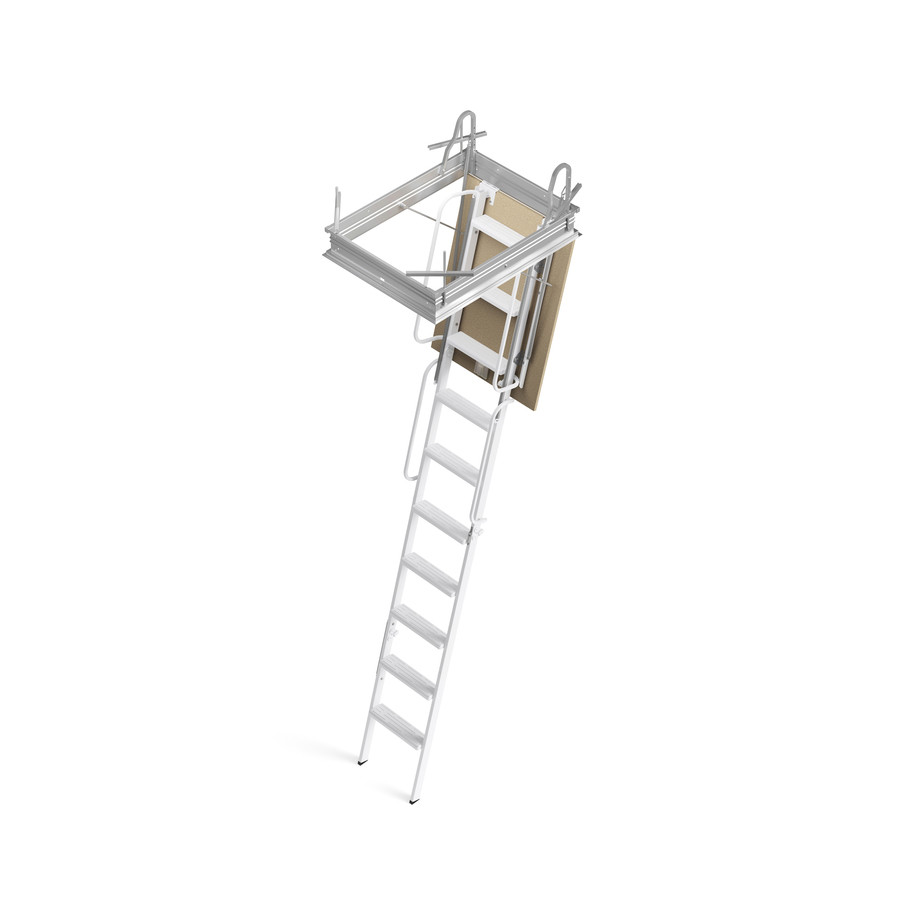

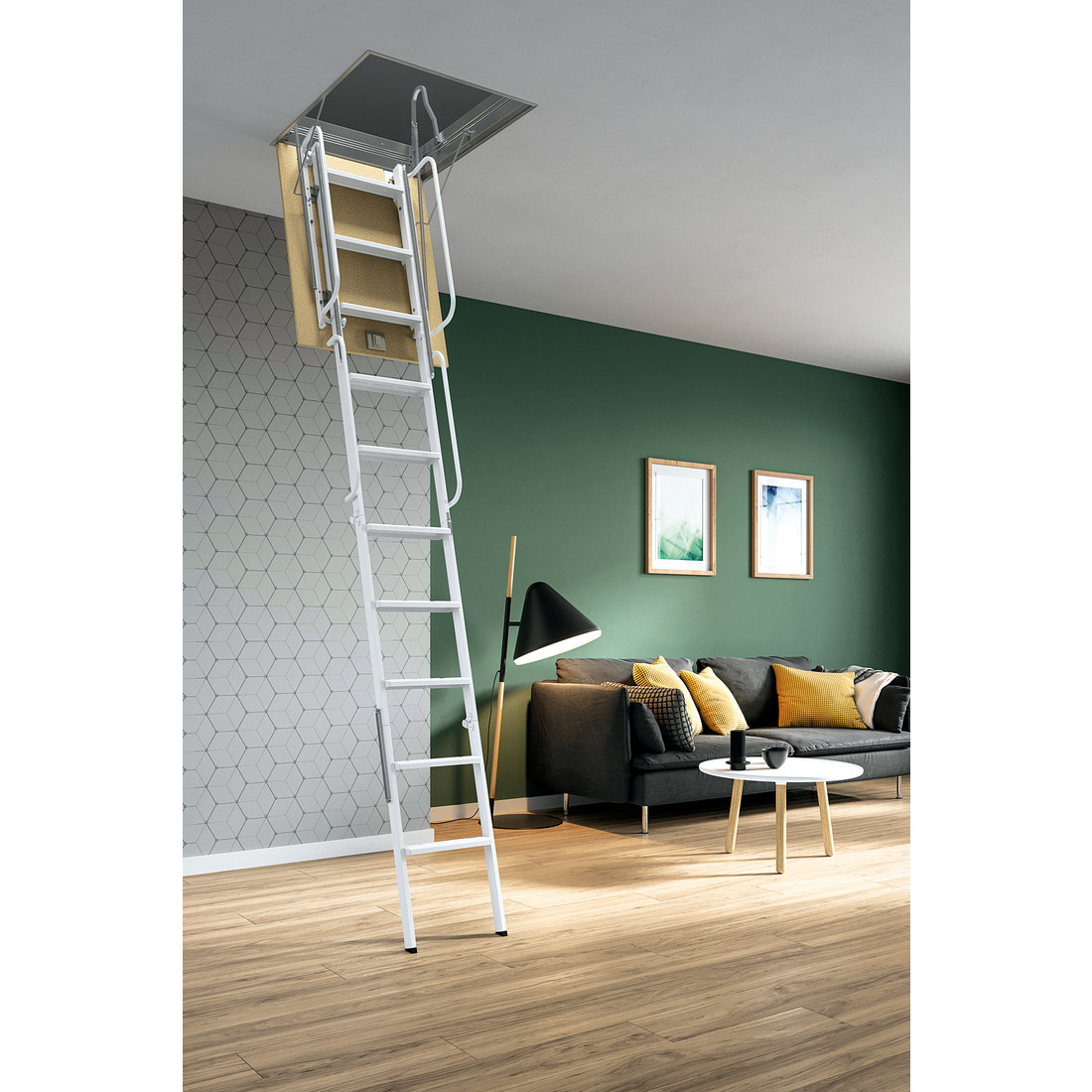

The straight 4PZ retractable staircase consists of a rigid structure with 4 mobile elements made up of 10 steps in white varnished steel (RAL 9010) and a galvanized box.

Technical description

Rigid painted steel structure


Step in 15/10 stamped steel sheet, structure in 50x20 mm steel tubes painted in white RAL 9010


Non-slip steps


Exit handles


Double welded handrail


Opening hook and operating rod


Floor support feet


Casing with 10/10 galvanized steel sheet and 12/10 reinforcing angles


Damping springs for easy opening and closing


Chipboard hatch, 16 mm thick


Height: 3 m (For any height greater than 3 m and non-standard hatch dimensions, please contact us)


With panel insulation + termocover


Maximum load 150 kg. Tested with static load of 260 kg
