Railing SPIRALE
Railing SPIRALE

Railing SPIRALE

Standard: P 01-012/P 01-013

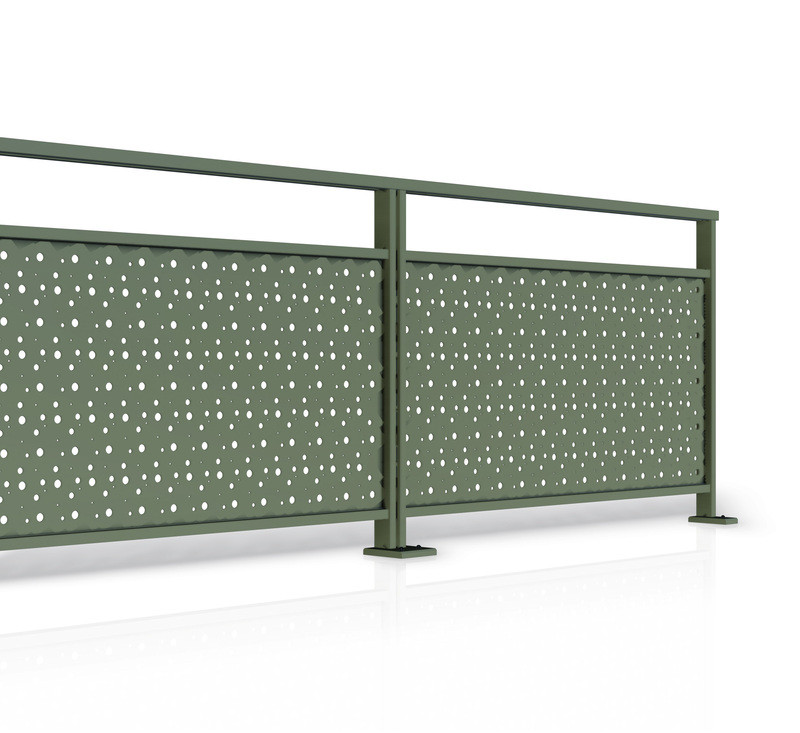

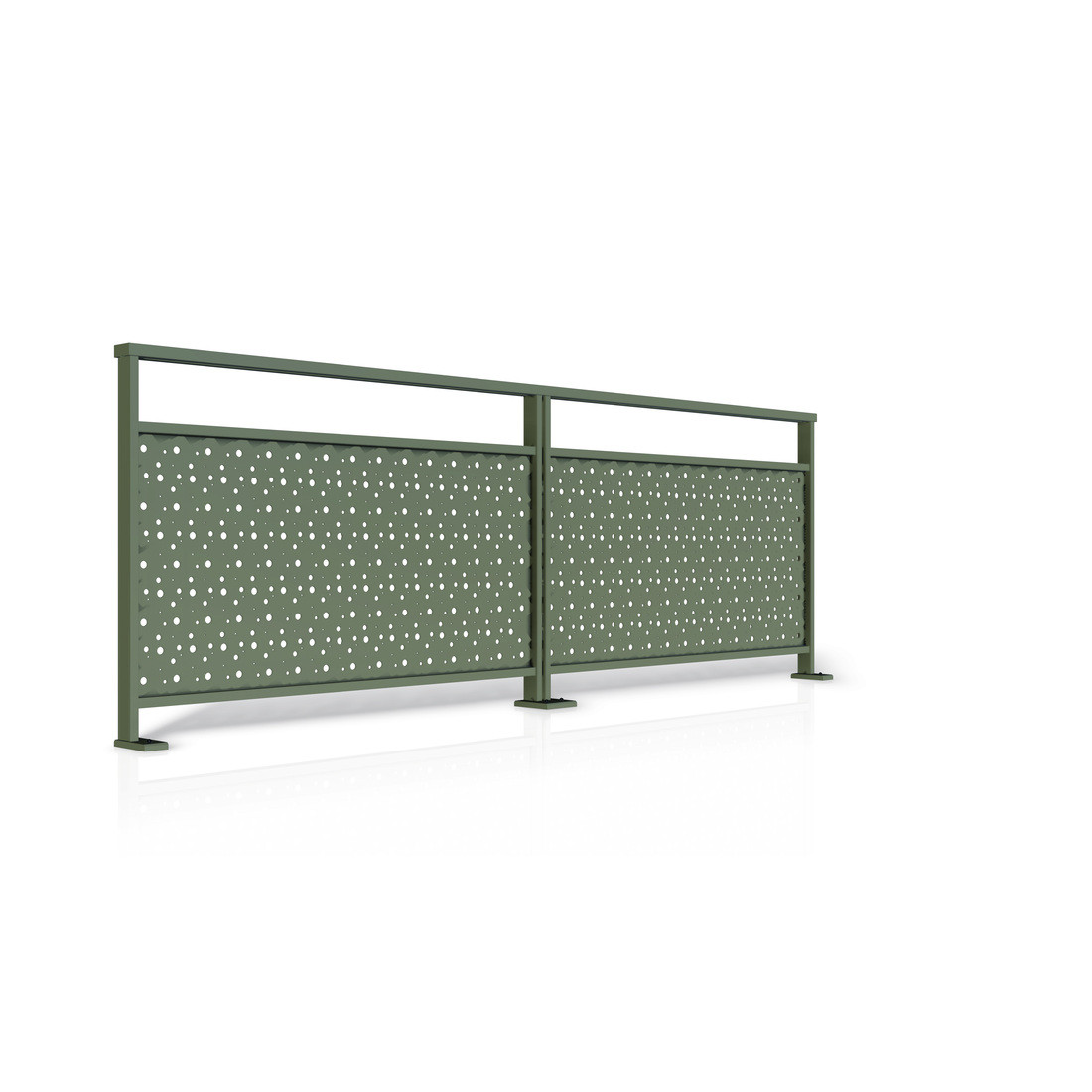

SPIRAL aluminum railing with space under the handrail.

Select your reference
+
-

Advantages and strengths

Simple and easy installation. Excellent quality/price

Technical characteristics

Reference Quantity Quote
Ref. SPIRALEDCPR
Code A0012870
Guardrail spirale
+
-
Guardrail spirale
Reference : SPIRALEDCPR
Quantity :
+
-

Use

Guardrail with aluminum sheet filling and a choice of patterns to be defined.

This guardrail will ensure your safety thanks to the robustness of aluminum.

Guaranteed 7 years.

Technical description

Aluminum sheet infill, thickness 2 mm (choice of patterns to be defined) in a wallet joint in the bottom and top rectangular rail 27 x 50 mm


Rectangular handrail 74 x 32 mm (also available with round handrail diameter 50 mm)


Fixation on slab by plate 150 x 70 x 18 mm or slab nose by plate 73 x 80 x 160 mm


Double posts 62 x 23 mm spaced at 16 mm


Powder coated aluminum: RAL Qualicoat label
