Railing JASPE
Railing JASPE

Railing JASPE

Standard: P 01-012/P 01-013

Select your reference
+
-

Advantages and strengths

Quick and easy to install. Excellent quality/price ratio.

Technical characteristics

Reference Quantity Quote
Ref. JASPEDCPR
Code A0012869
Guardrail jaspe
+
-
Guardrail jaspe
Reference : JASPEDCPR
Quantity :
+
-

Use

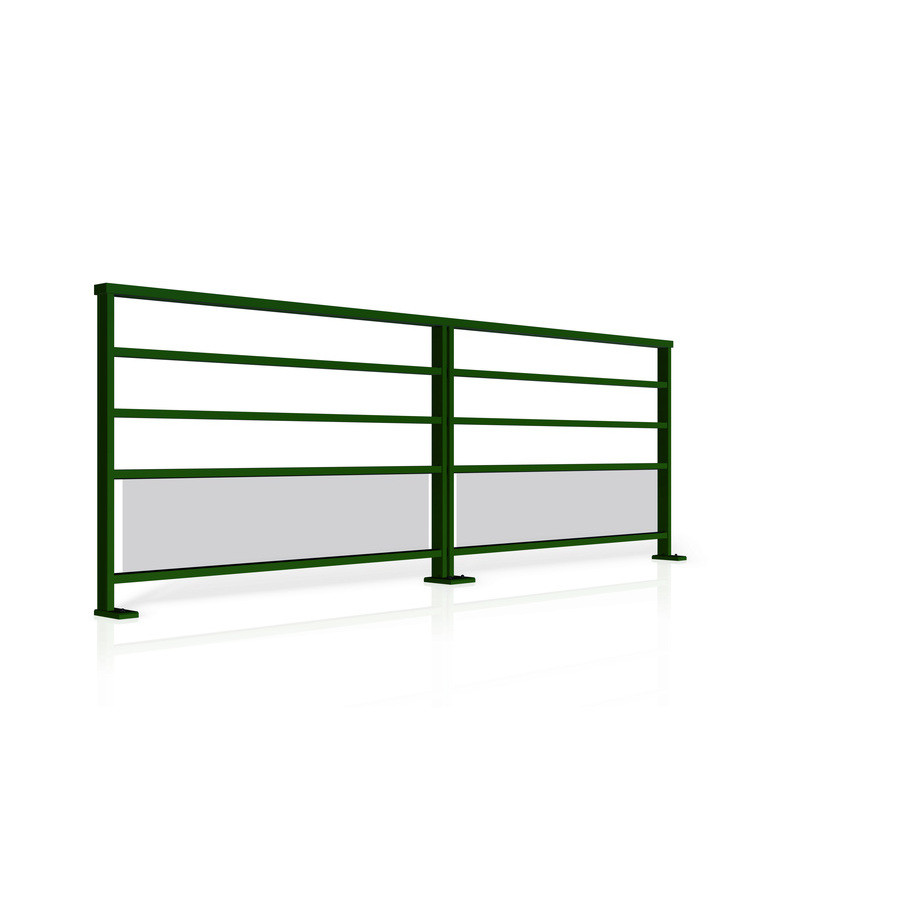

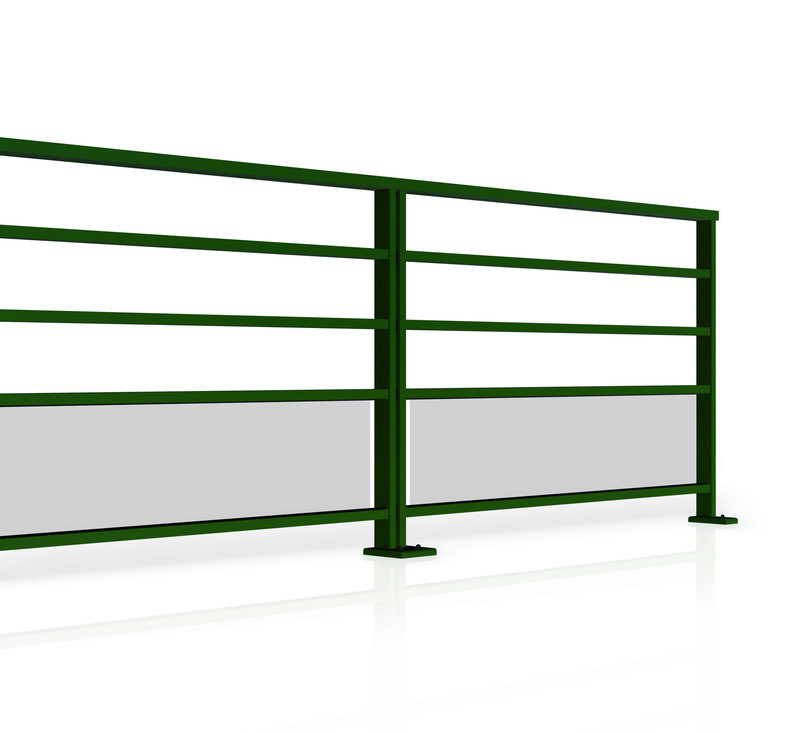

JASPE aluminum railing with space under the handrail and two intermediate rails.

7 year warranty.

Technical description

Filling 44.2 clear glass (other glass possible) in a wallet joint in the lower and upper rectangular rail 27 x 50 mm, intermediate rectangular rail 27 x 50 mm


Rectangular handrail 74 x 32 mm (also available with round handrail diameter 50 mm)


Fixing on slab by plate 150 x 70 x 18 mm or slab nose by plate 73 x 80 x 60 mm


Powder coated aluminum; RAL Qualicoat label
