Advantages and strengths

Quick and easy to install. Excellent quality/price ratio.

Technical characteristics

Reference	Quantity	Quote
Ref. DIAMANTDCPR Code A0012867 Guardrail diamant	Quantité maximum disponible pour ce magasin + -

Guardrail diamant
Reference :	DIAMANTDCPR
Quantité maximum disponible pour ce magasin Quantity :	+ -

Add to quote

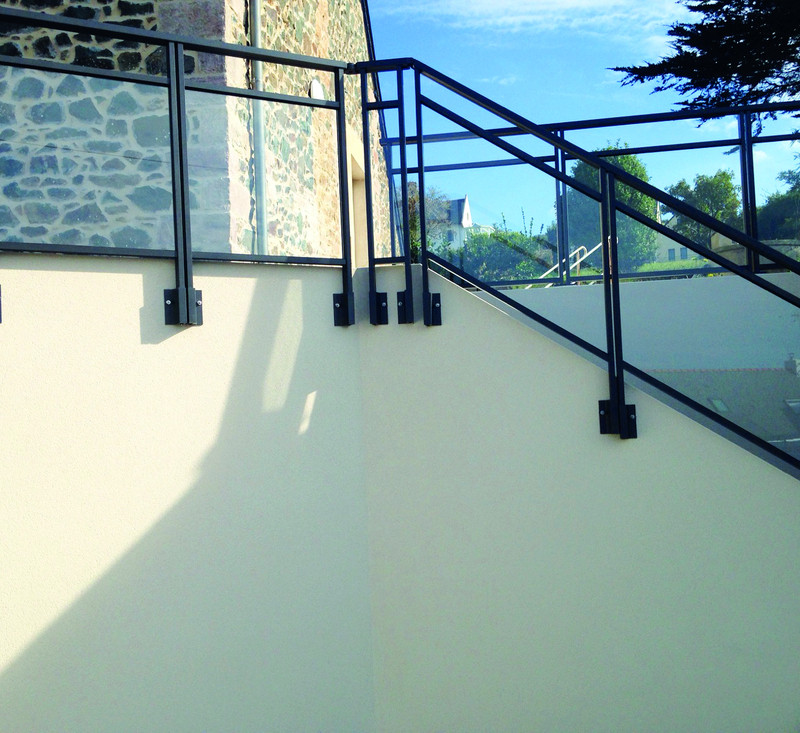

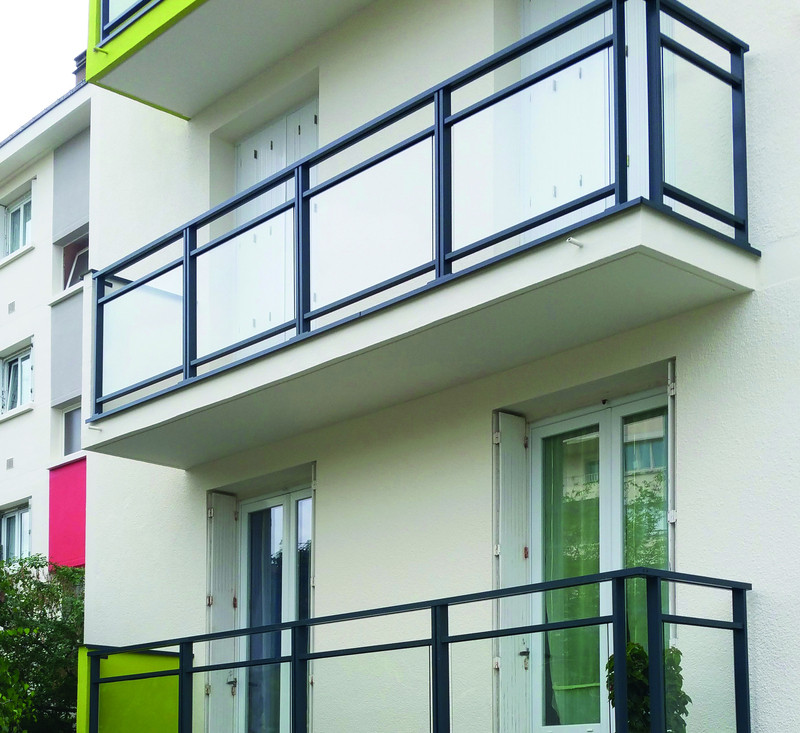

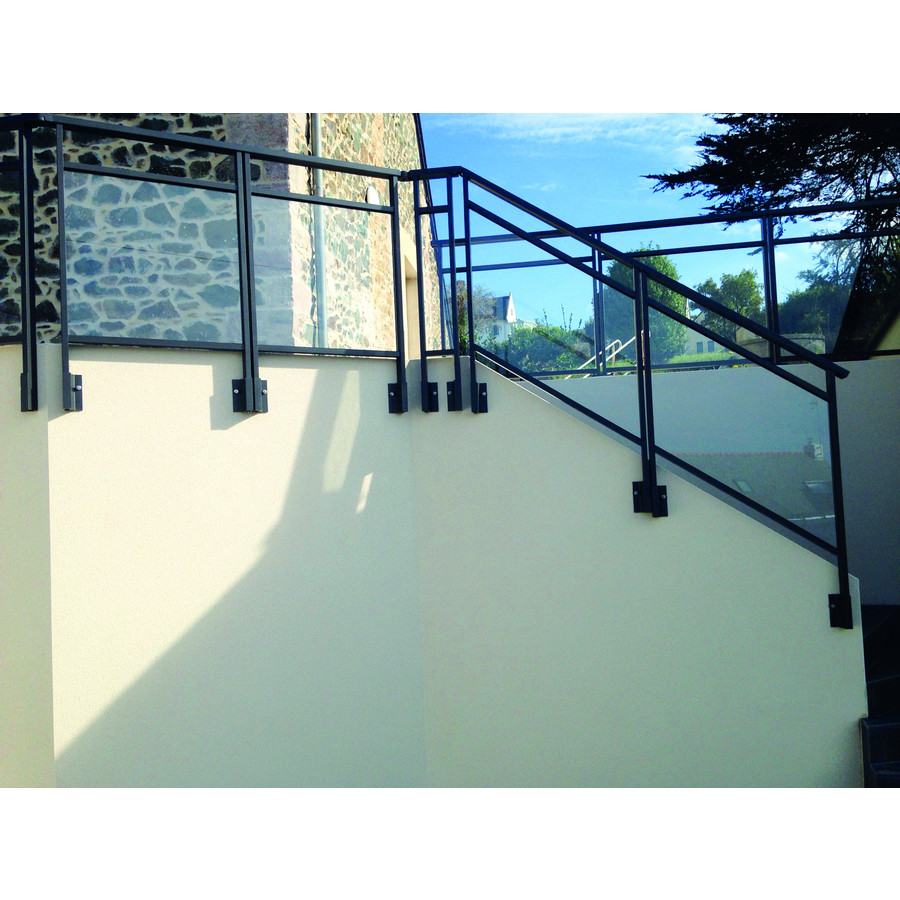

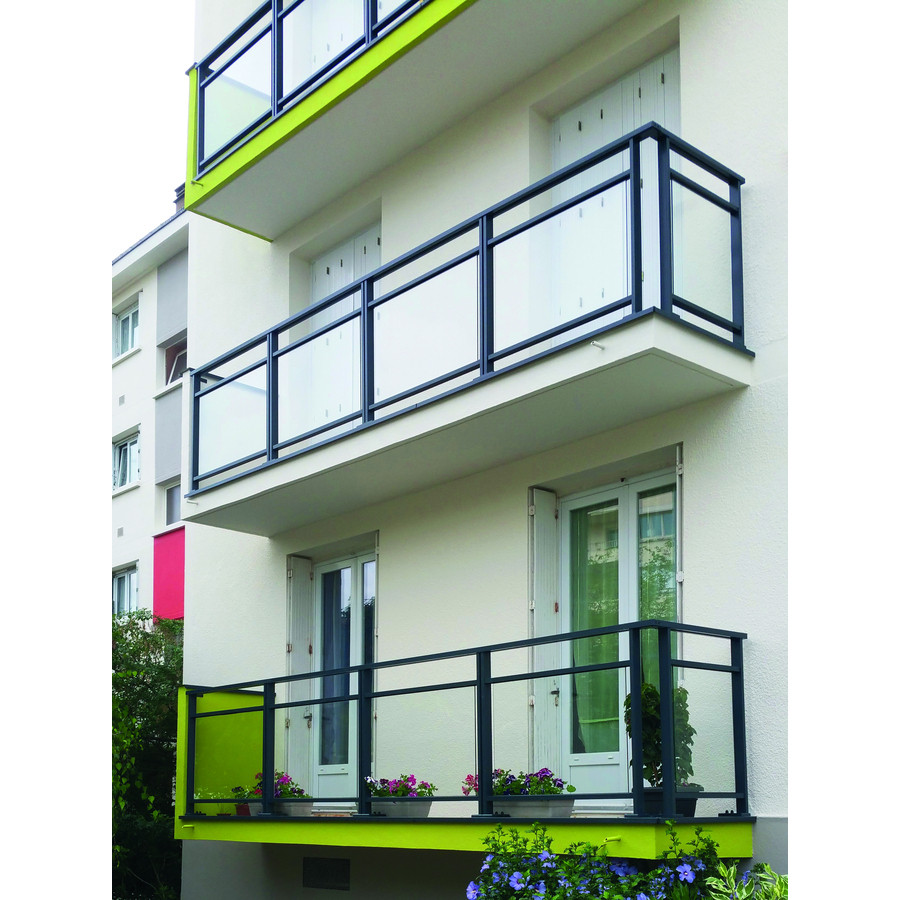

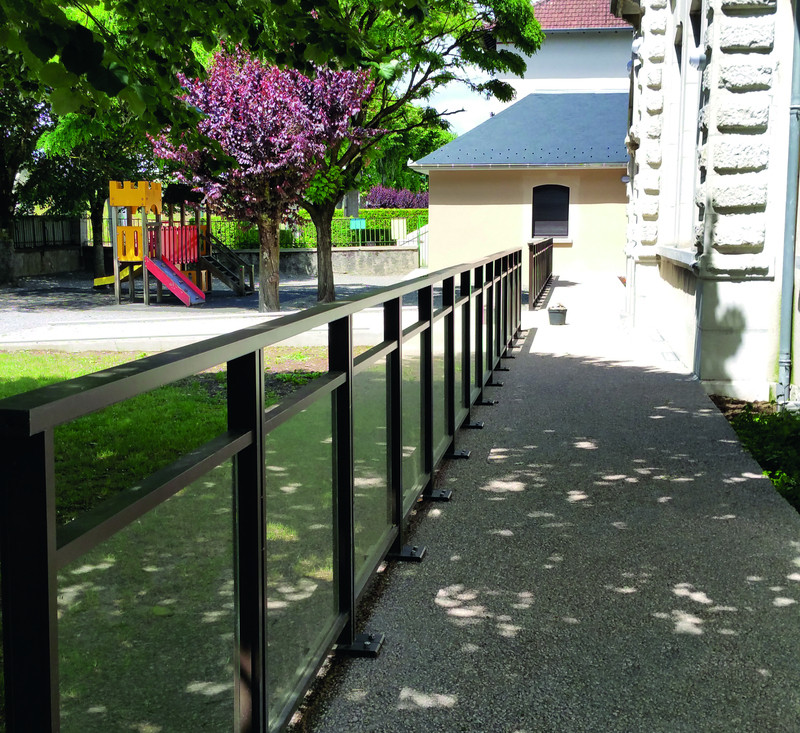

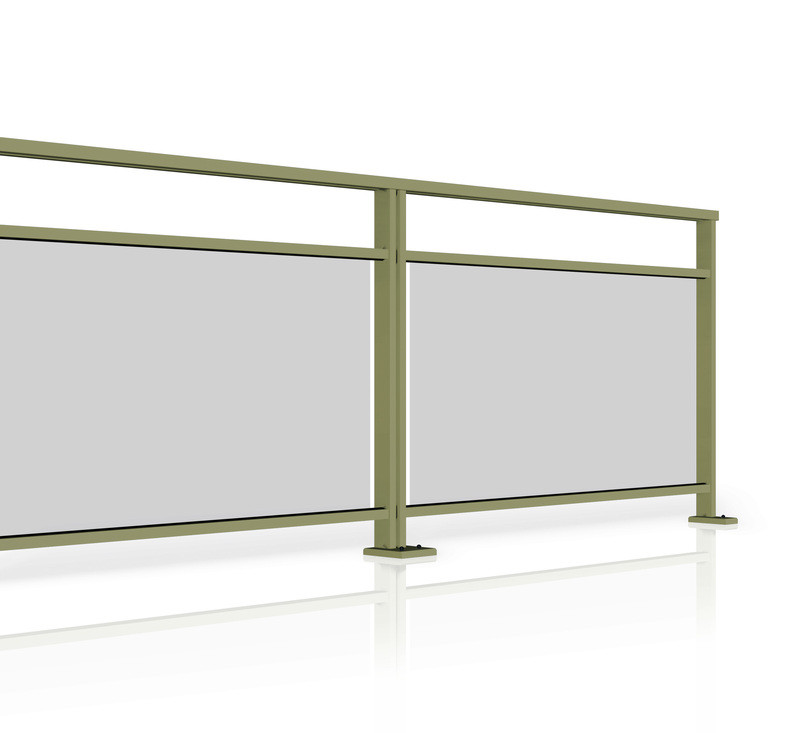

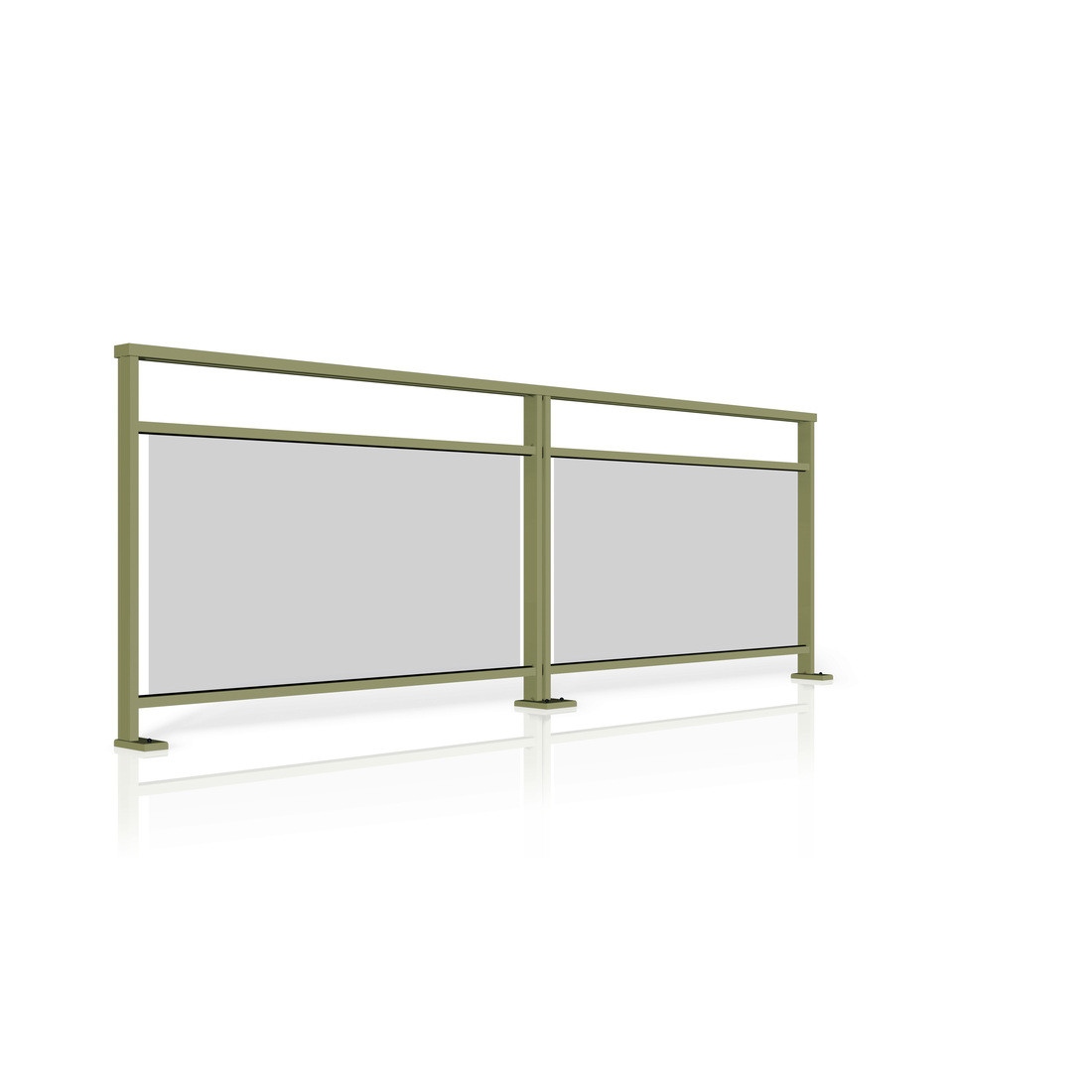

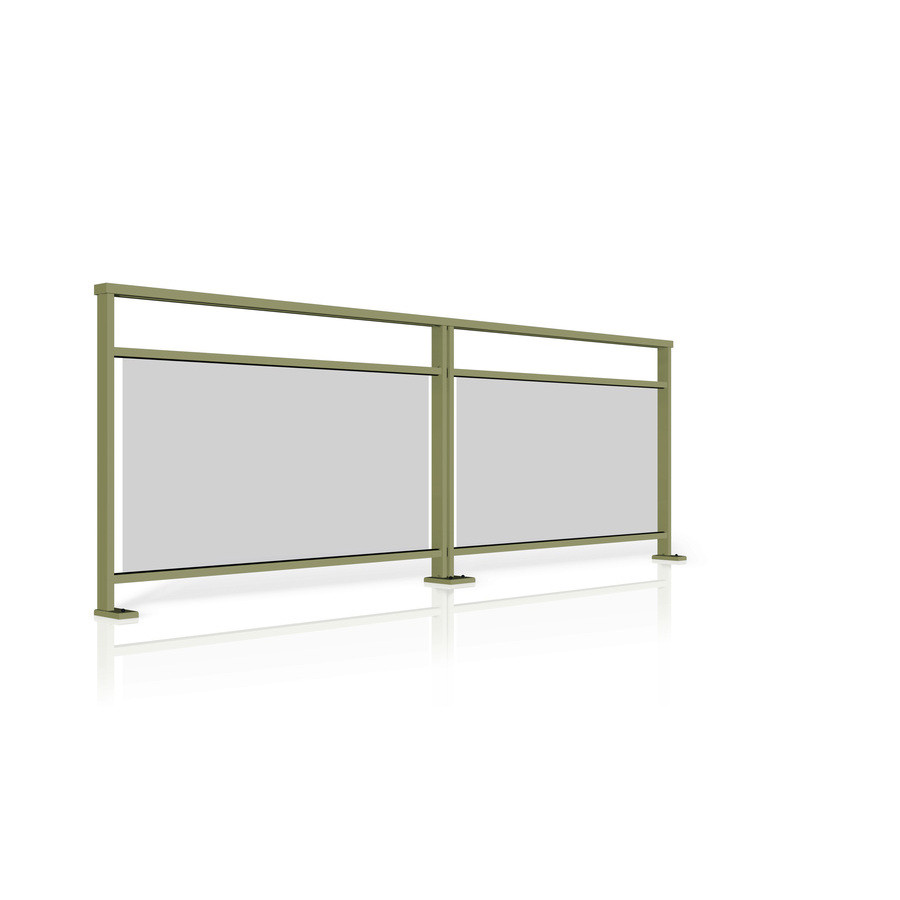

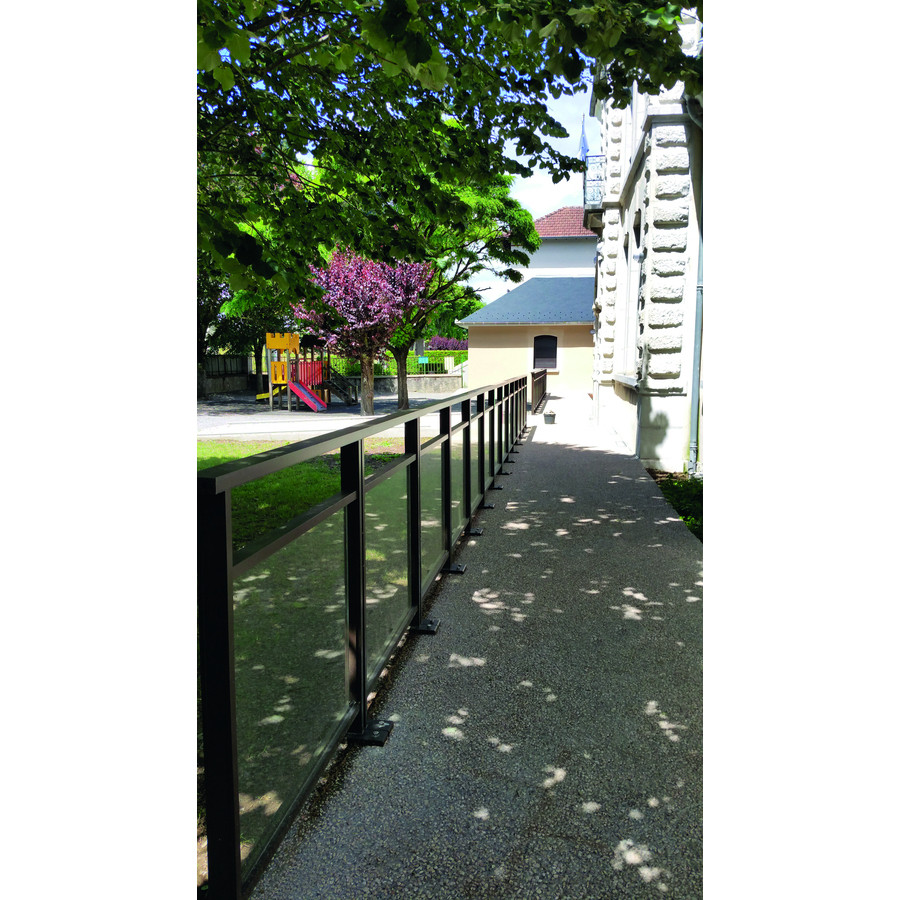

DIAMANT aluminum railing with space under the handrail.

7 year warranty.

Glazing filling 44.2 clear (other glazing possible) taken in a portfolio seal in lower and upper rectangular rail 27 x 50 mm

Rectangular handrail 74 x 32 mm (also available with round handrail diameter 50 mm)

Fixing on slab by plate 150 x 70 x 18 mm or slab nose by plate 73 x 80 x 160 mm

Double posts 62 x 23 mm spaced 16 mm

Thermo-lacquered aluminium: RAL label Qualicoat
