Aluminium railing AMELITE
Aluminium railing AMELITE

Aluminium railing AMELITE

Standard: P 01-012/P 01-013

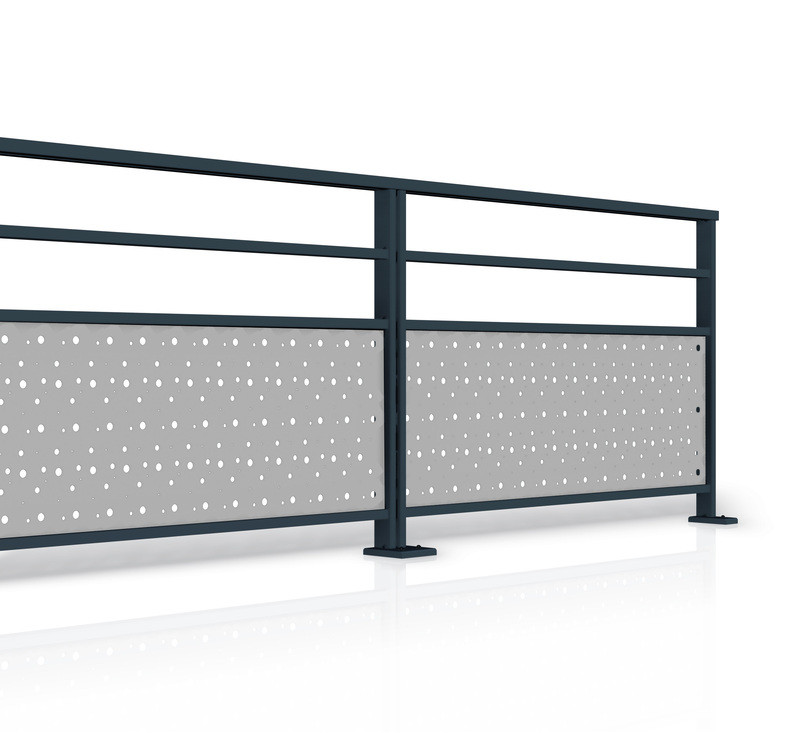

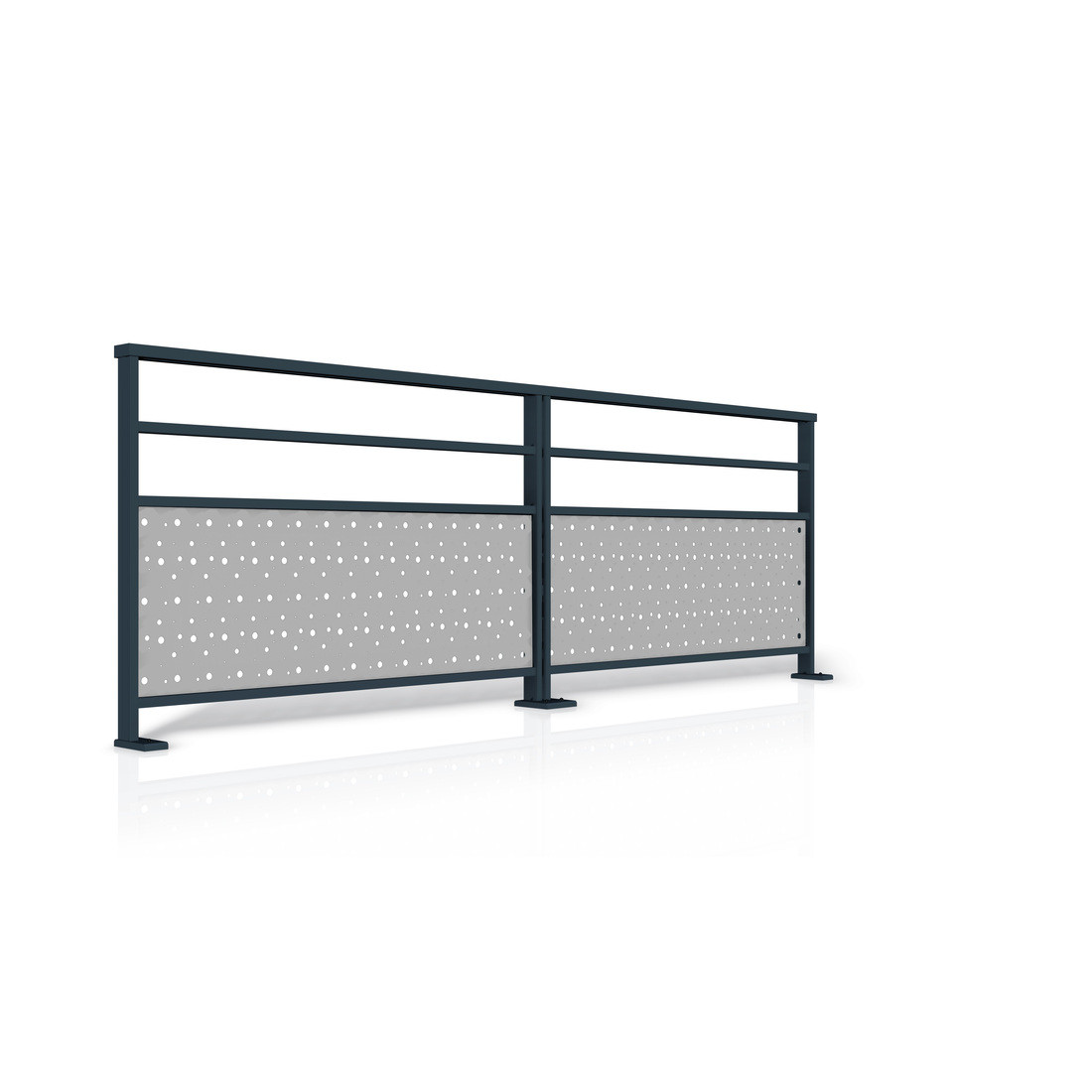

AMÉLITE aluminum railing with space under the handrail and an intermediate rail.

Select your reference
+
-

Advantages and strengths

Quick and easy to install. Excellent quality/price ratio.

Technical characteristics

Reference Quantity Quote
Ref. AMELITEDCPR
Code A0012866
Guardrail amelite
+
-
Guardrail amelite
Reference : AMELITEDCPR
Quantity :
+
-

Use

With its simple and quick installation, the AMELITE guardrail is made with a rectangular handrail and an intermediate rail.

Guaranteed 7 years.

Technical description

Filling of 2 mm thick aluminum sheet (patterns of your choice to be defined) taken in a portfolio joint in the lower and upper rectangular rail 27 x 50 mm


Rectangular handrail 74 x 32 mm (also available with round handrail diameter 50 mm)


Fixing on slab by plate 150 x 70 x 18 mm or slab nose by plate 73 x 80 x 160 mm


Double posts 62 x 23 mm spaced 16 mm


Thermo-lacquered aluminium: RAL label Qualicoat
