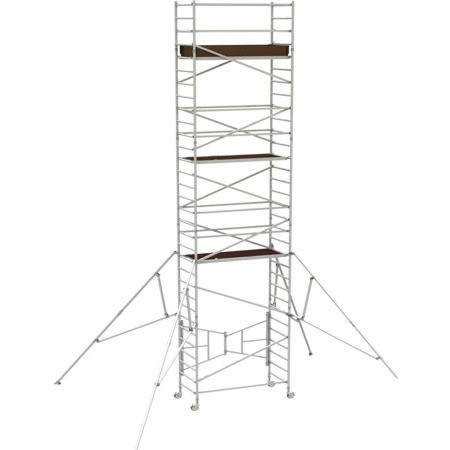

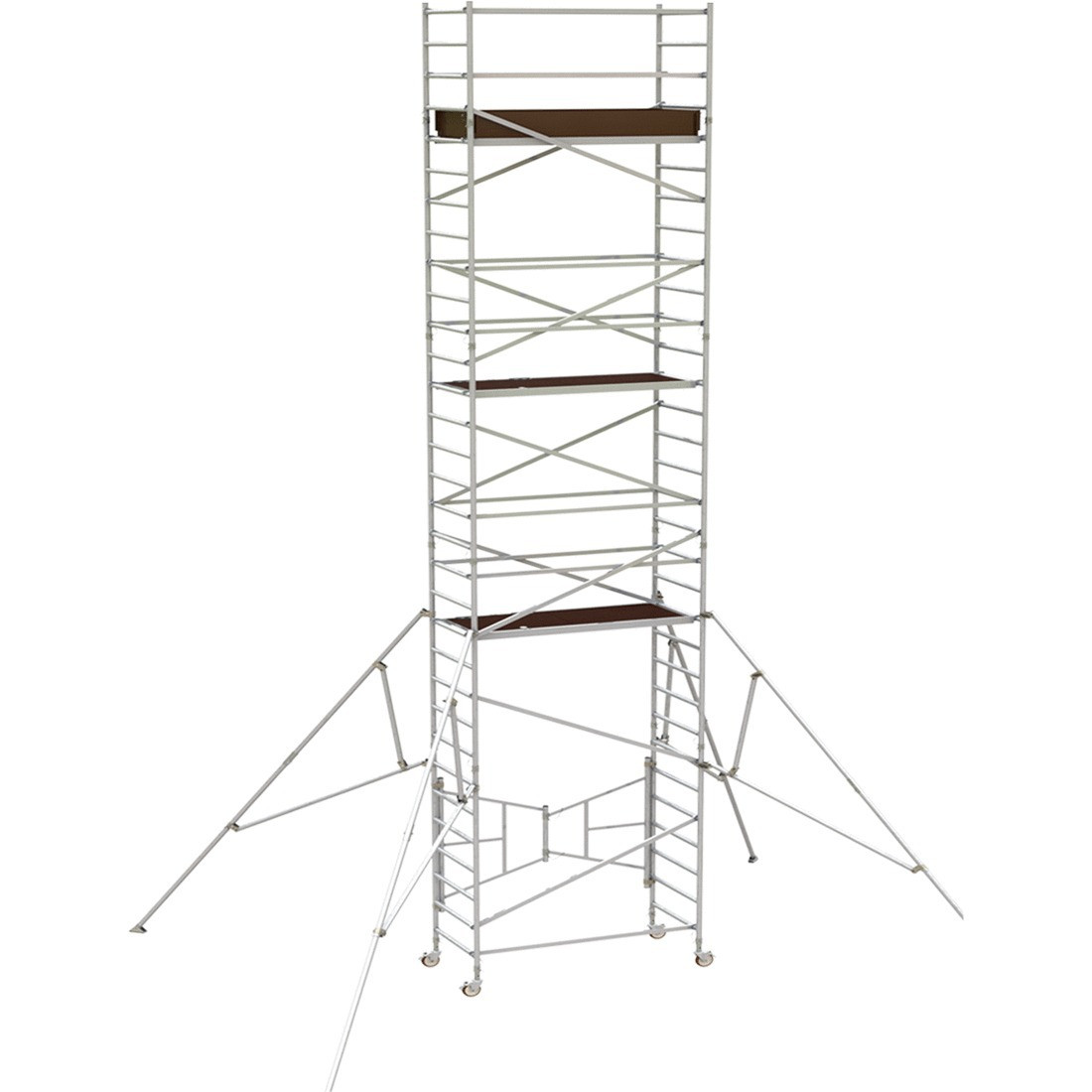

EESY aluminium rolling scaffolding Online
Designed for construction experts
Advantages and strengths
Platform and reinforced link hook. Non-detachable frame locking pin. Extra strong welding. Folding basic unit. Heightadjustable wheels.
Technical characteristics

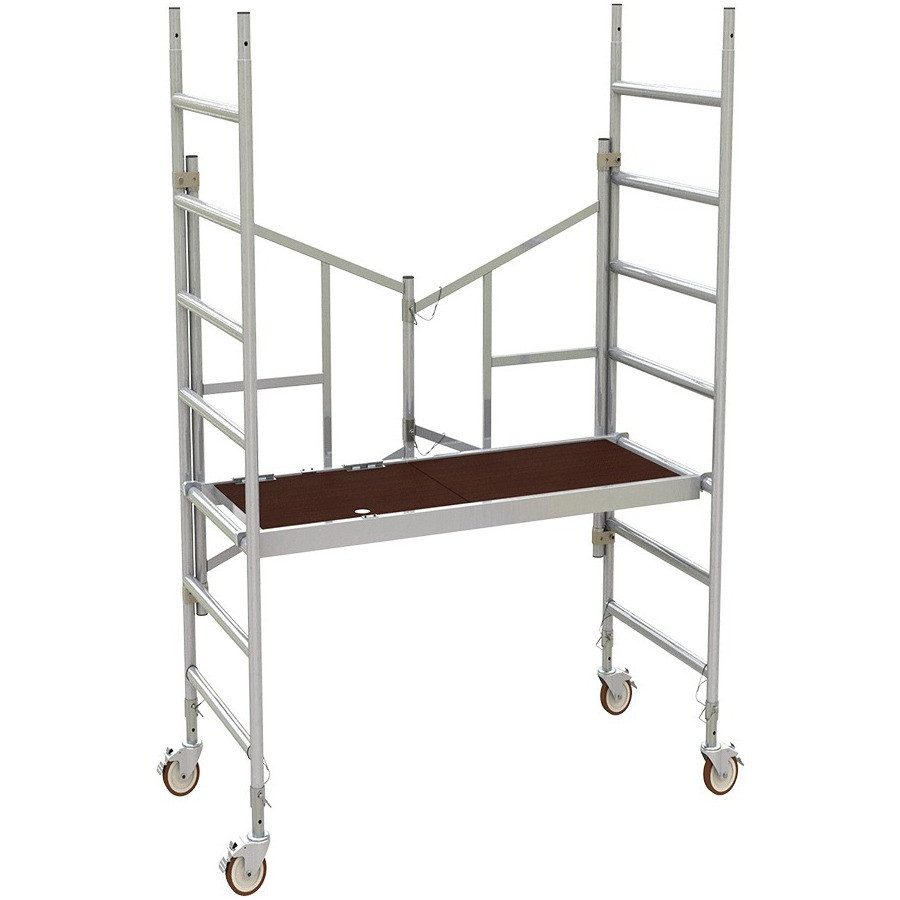

EESY aluminium rolling scaffolding Online - Working height : 2,80 m (9') | |
---|---|
Reference : | WEBA0011526 |
Working height (') | 9 ' |
Height under platform (') | 3 '' |
Length platform ('') | 65 '' |
Width (') | 3 ' |
Weight (lb) | 64,00 lb |
Quantity : |
|
EESY aluminium rolling scaffolding Online - Working height : 3,80 m (12') | |
---|---|
Reference : | WEBA0012139 |
Working height (') | 13 ' |
Height under platform (') | 6 '' |
Length platform ('') | 65 '' |
Width (') | 3 ' |
Weight (lb) | 93,00 lb |
Quantity : |
|
EESY aluminium rolling scaffolding Online - Working height : 5,50 m (18') | |
---|---|
Reference : | WEBA0012140 |
Working height (') | 18 ' |
Height under platform (') | 12 '' |
Length platform ('') | 65 '' |
Width (') | 3 ' |
Weight (lb) | 185,00 lb |
Quantity : |
|
EESY aluminium rolling scaffolding Online -Working height : 7,30 m (24') | |
---|---|
Reference : | WEBA0012141 |
Working height (') | 24 ' |
Height under platform (') | 17 '' |
Length platform ('') | 65 '' |
Width (') | 3 ' |
Weight (lb) | 200,00 lb |
Quantity : |
|
EESY aluminium rolling scaffolding Online -Working height : 9,10 m (30') | |
---|---|
Reference : | WEBA0012142 |
Working height (') | 30 ' |
Height under platform (') | 23 '' |
Length platform ('') | 65 '' |
Width (') | 3 ' |
Weight (lb) | 270,00 lb |
Quantity : |
|
Use
Large and comfortable.
Heavy-duty and reliable:
- Welded rungs
- Massive aluminium hooks
Adjustable wheels.
Technical description
Max. load-bearing capacity of the platform: 180 kg (397 lb)
Max. load-bearing capacity of the scaffolding: 400 kg (882 lb)
Max. working height: 9,10 m (29'10")
Platform length: 1,65 m (5'5")
Platform width: 780 mm (30")
Frame heights: 1,75 m (5'9")
Sleeper spacing: 250 mm (10")
Tubes with Ø of 40 mm (1")
Wheels with Ø 127 mm (5")
