Saferstack arch frame

Saferstack arch frame

Standard: ANSI/CSA/OSHA

Select your reference
+
-

Technical characteristics

Reference Sizes ('') Weight (lb) Quantity Quote
Ref. M-MA7660LPS
Code AC000227

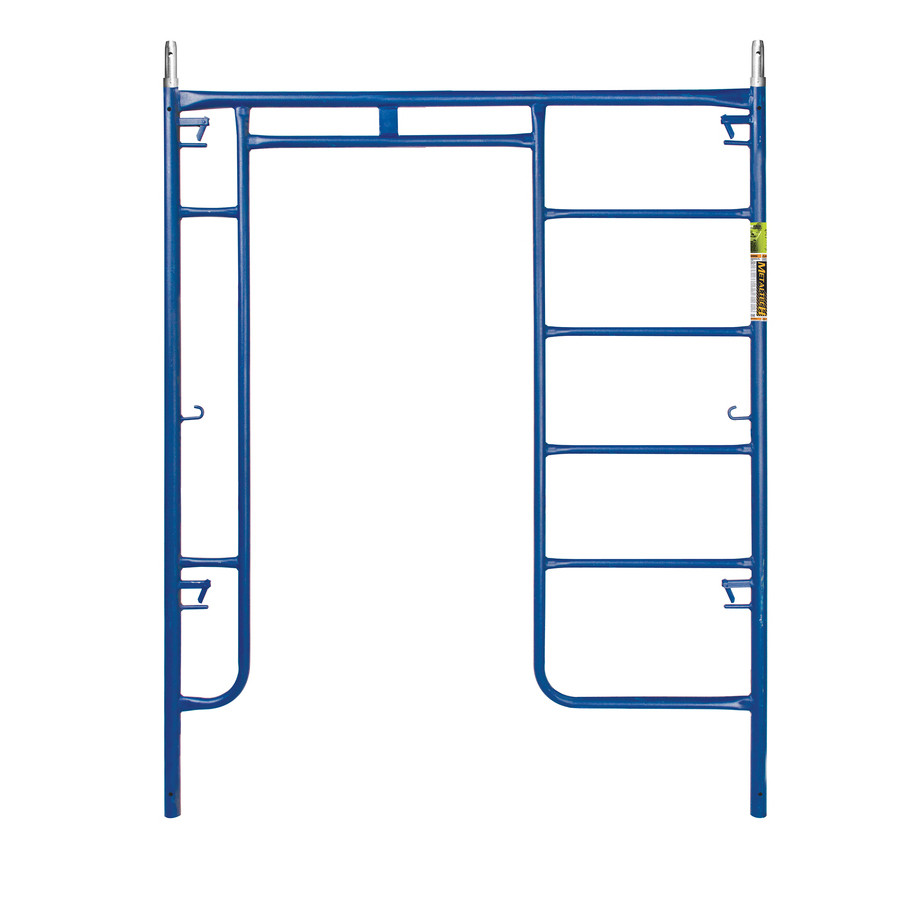

Cadre en arches avec échelle SAFERSTACK 76"x60"
76 x 60 '' 52,80 lb
+
-
Ref. M-MA7860LPS
Code AC000228

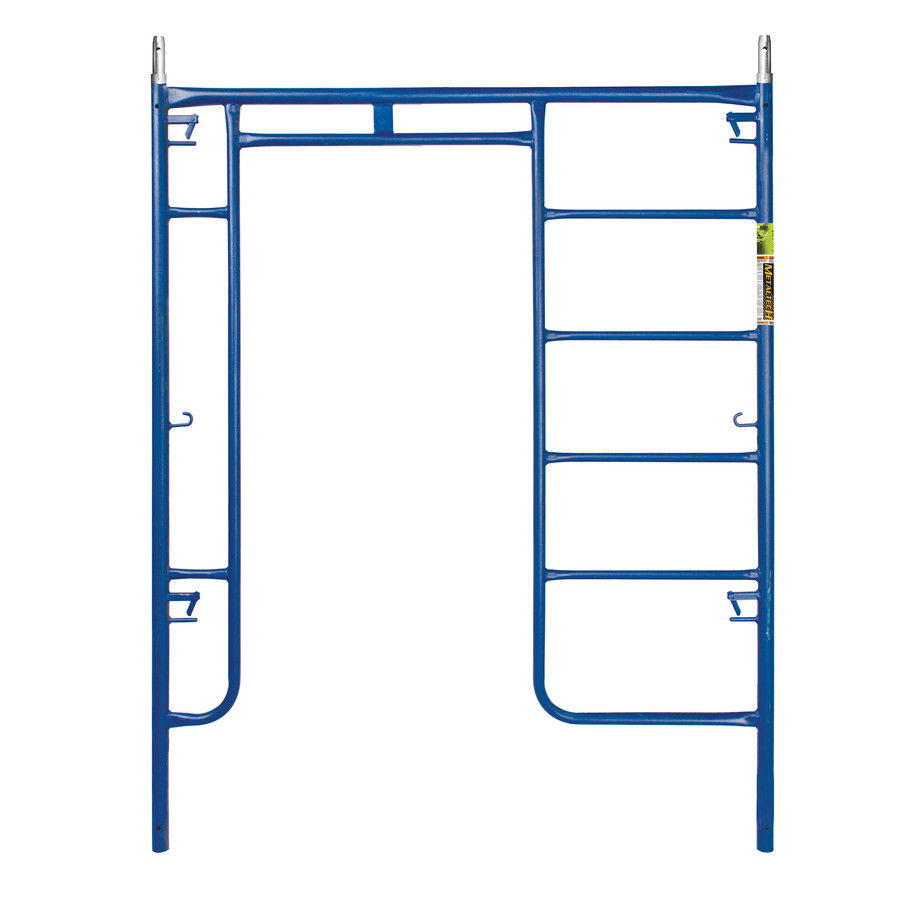

Cadre en arches avec échelle SAFERSTACK 78"x60"
78 x 60 '' 53,50 lb
+
-
Ref. M-MA7660PS
Code AC000225

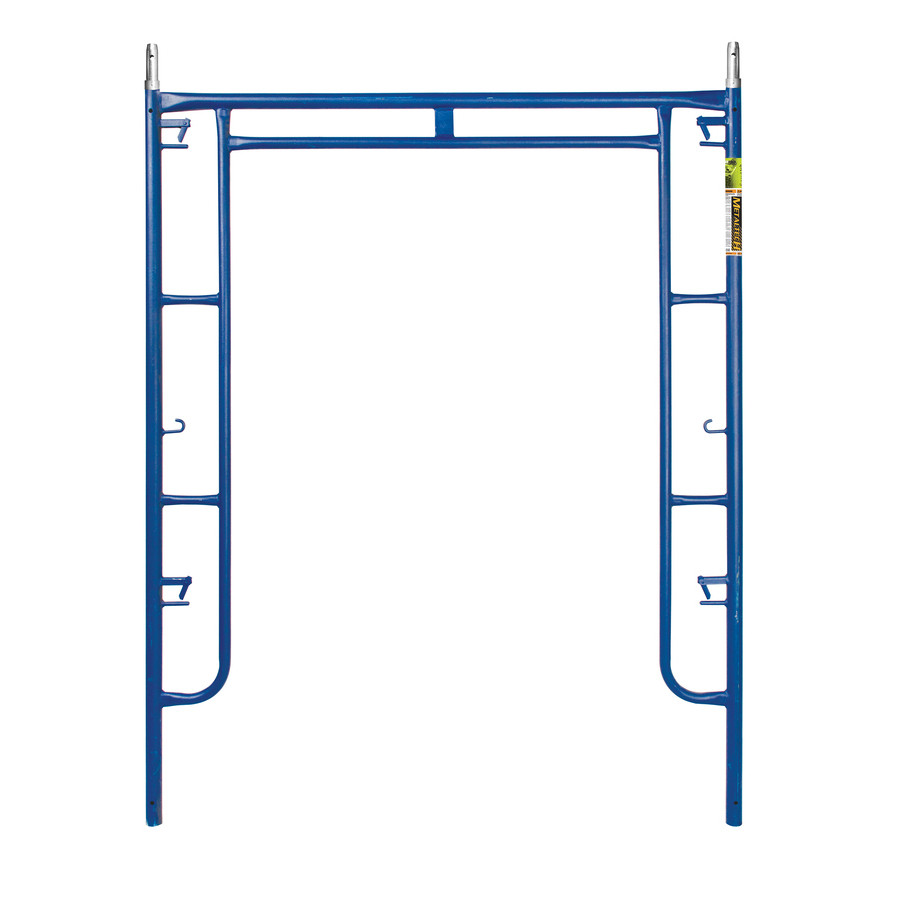

Cadre en arches SAFERSTACK 76"x60"
76 x 60 '' 46,80 lb
+
-
Ref. M-MA7860PS
Code AC000226

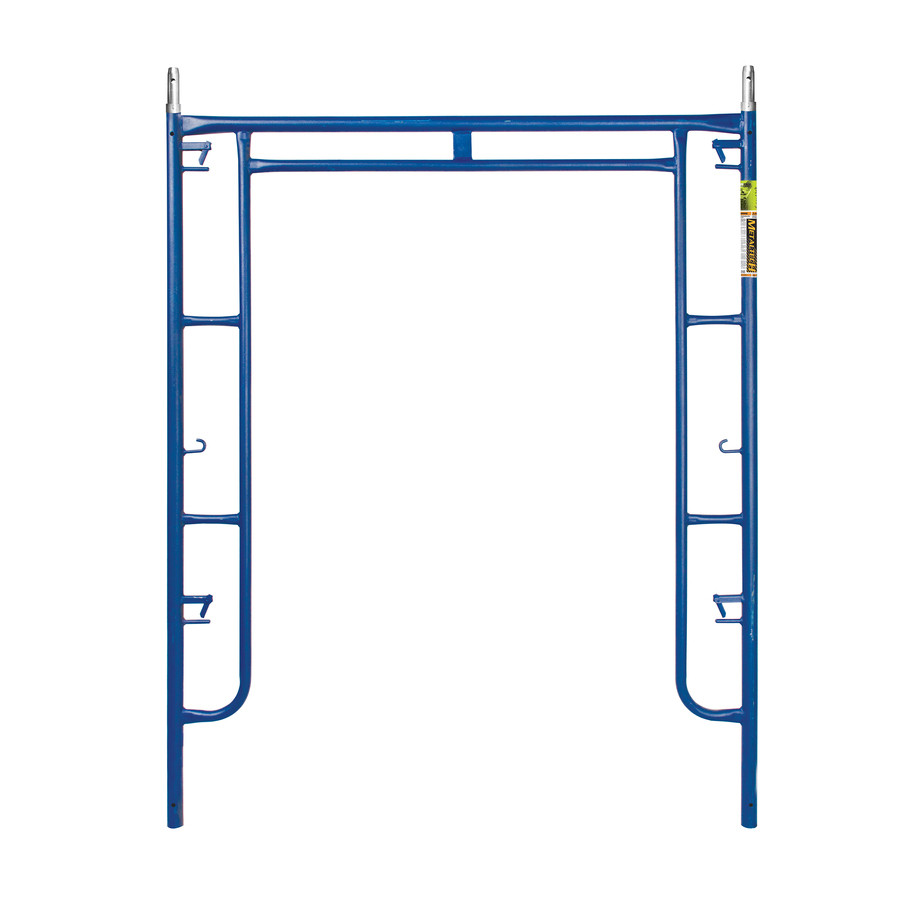

Cadre en arches SAFERSTACK 78"x60"
78 x 60 '' 47,30 lb
+
-
Cadre en arches avec échelle SAFERSTACK 76"x60"
Reference : M-MA7660LPS
Sizes ('') 76 x 60 ''
Weight (lb) 52,80 lb
Quantity :
+
-
Cadre en arches avec échelle SAFERSTACK 78"x60"
Reference : M-MA7860LPS
Sizes ('') 78 x 60 ''
Weight (lb) 53,50 lb
Quantity :
+
-
Cadre en arches SAFERSTACK 76"x60"
Reference : M-MA7660PS
Sizes ('') 76 x 60 ''
Weight (lb) 46,80 lb
Quantity :
+
-
Cadre en arches SAFERSTACK 78"x60"
Reference : M-MA7860PS
Sizes ('') 78 x 60 ''
Weight (lb) 47,30 lb
Quantity :
+
-

Use

Frame structure made of powder coated steel tubes.

Technical description

Diameter of upright tubes : 4,3 mm (1,69") - 13 gauge


Diameter of sleeper tubes : 2,5 mm (1") - 16 gauge


Pins and springs included in the frames


Gravity locking connection system

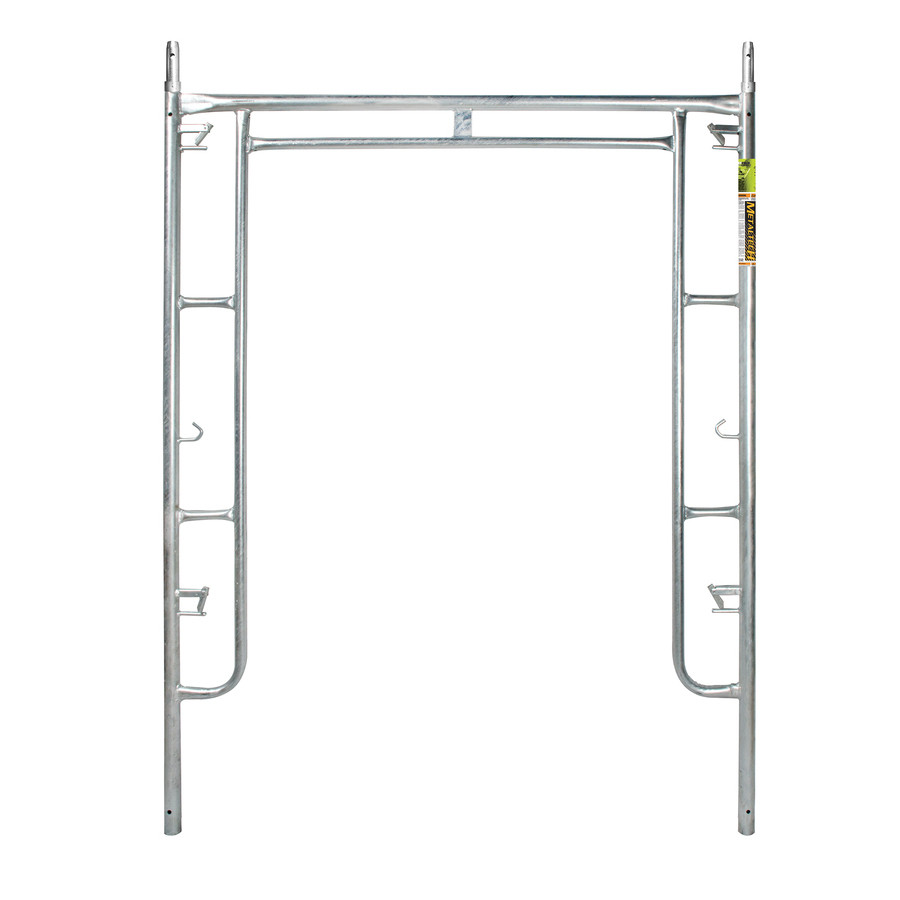

Also available in galvanised steel
