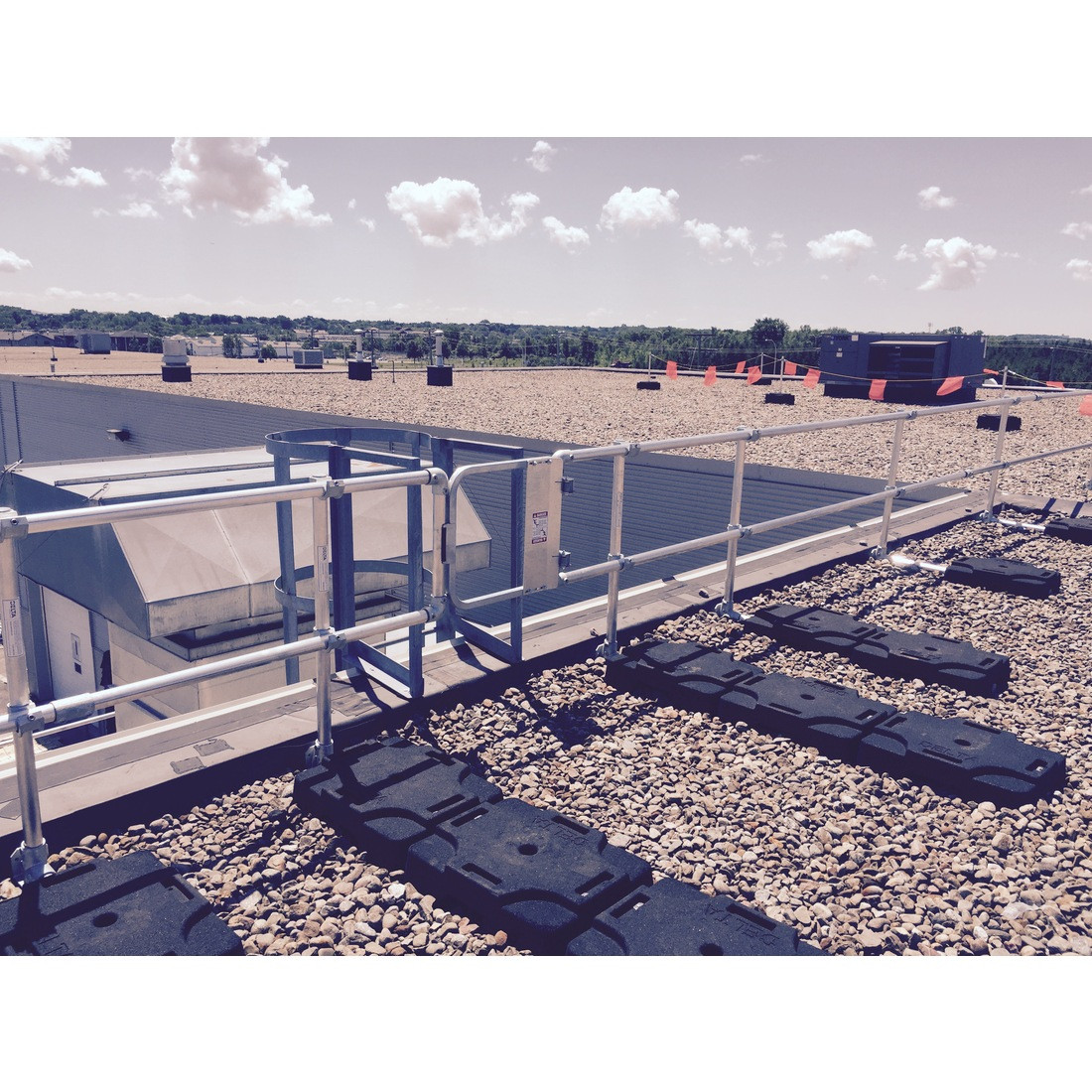

SELF-SUPPORTING GUARDRAIL FOR ROOF ACCESS LADDERS
Improves the safety around these very common access points.
Advantages and strengths
Quick and easy assembly. Weatherproof.
Use
The recycled rubber base provides the best adhesion without any additional membrane.
No damage to the roof, because it is 100% self-supporting.
Aluminium preventing the peeling of paint.
Best resistance to rust and deterioration caused by the rain, temperature changes and acid environments.
Moulded handle for easy transport.
Installed on roofs with or without parapet.
10 years of warranty.
Technical description
Recycled rubber
Pipes & posts:
Aluminium 6061-T6
Outer diameter: 25.40 mm (1.9")
Length: 30.50 cm (12'6"/side)
Height: 1 m (42")
Width: 1.90 m (75")
Opening of the security barrier: 0.50 m - 0.66 m (22.75" - 26.50") (optional)
Counterweight: 22,70 kg (50 lb/base)
Fittings - material: galvanised steel
Hardware: stainless steel
Tightening torque: 13.60 kg (30 lb/pi) (CL201: 20lb/pi)
