AVEELINE PERMANENT WARNING LINE
AVEELINE PERMANENT WARNING LINE

AVEELINE PERMANENT WARNING LINE

Warranty 5 years
Standard: CBNC/CNESST/OSHA

Allows demarking a protection perimeter between the areas for works at height.

Select your reference
+
-

Advantages and strengths

Quick and easy assembly. Extremely resistant to shocks and temperature changes, as these 50-lb. bases provide maximum adhesion on all types of flat roofs.

Technical characteristics

Reference Quantity Quote
Ref. EECAAVEEM1
AVEELINE câble 2.5 mètres (8’2’’)
+
-
Ref. EECAAVEEP2
AVEELINE câble 12.5 mètres (41’)
+
-
Ref. EECAAVEEP1
AVEELINE câble 20 mètres (65’7’’)
+
-
Ref. EECAAVEPOST
AVEELINE POTEAU VERTICAL
+
-
Ref. EECABASEPOTEAU
AVEELINE BASE A LESTER
+
-
Ref. FON19
FON19 DEMI PLOT BETON
+
-
Ref. VISAUTOTETEHEXO
VIS AUTO TETE HEXAGONALE 6.3 X 100 MM (0.23’’x4’’)
+
-
Ref. RONDELLEPLATE
RONDELLE PLATTE ACIER ZINGUE M10X22 EP 2
+
-
AVEELINE câble 2.5 mètres (8’2’’)
Reference : EECAAVEEM1
Quantity :
+
-
AVEELINE câble 12.5 mètres (41’)
Reference : EECAAVEEP2
Quantity :
+
-
AVEELINE câble 20 mètres (65’7’’)
Reference : EECAAVEEP1
Quantity :
+
-
AVEELINE POTEAU VERTICAL
Reference : EECAAVEPOST
Quantity :
+
-
AVEELINE BASE A LESTER
Reference : EECABASEPOTEAU
Quantity :
+
-
FON19 DEMI PLOT BETON
Reference : FON19
Quantity :
+
-
VIS AUTO TETE HEXAGONALE 6.3 X 100 MM (0.23’’x4’’)
Reference : VISAUTOTETEHEXO
Quantity :
+
-
RONDELLE PLATTE ACIER ZINGUE M10X22 EP 2
Reference : RONDELLEPLATE
Quantity :
+
-

Use

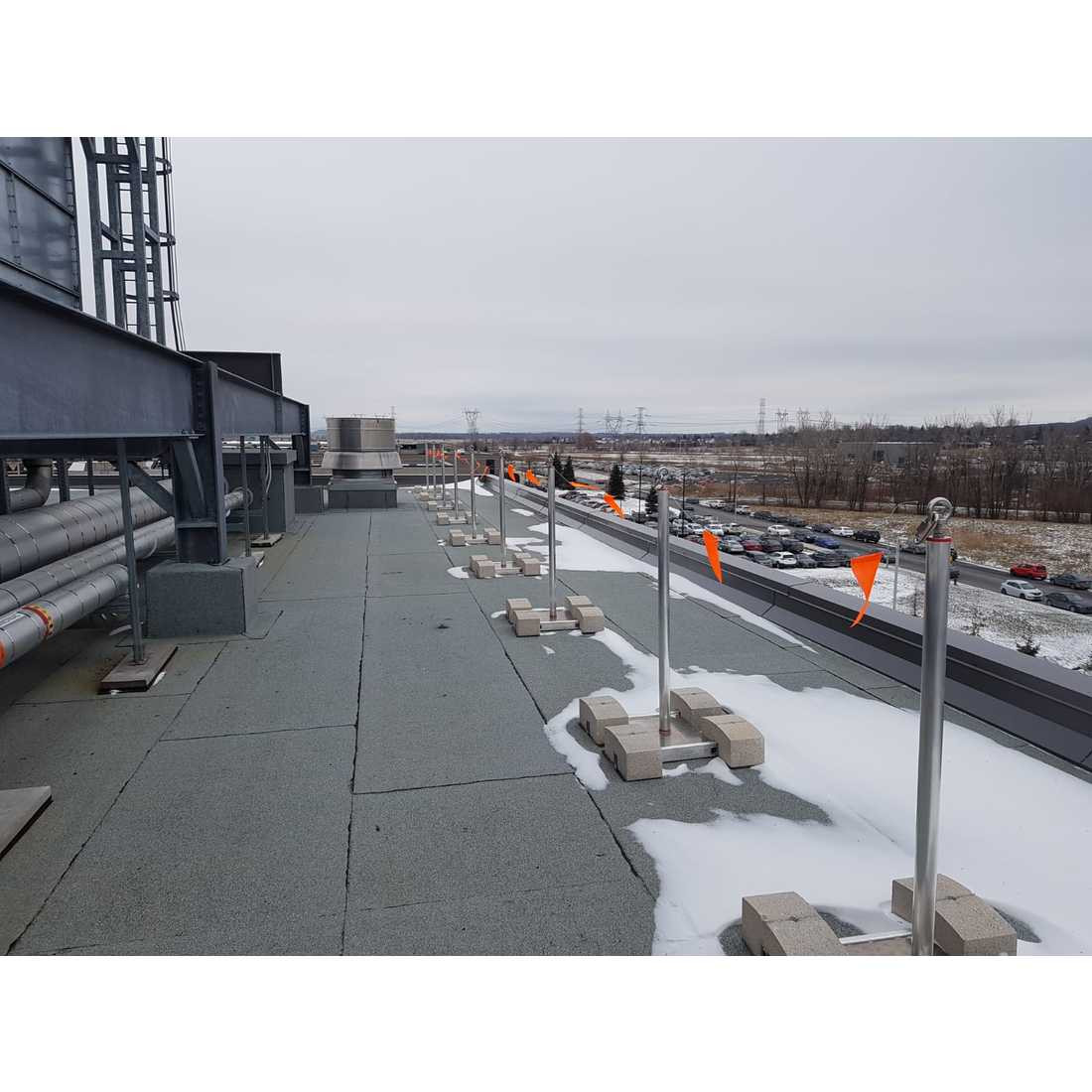

This AVEELINE permanent warning line is perfectly fit.

It maintains the integrity of the waterproofing membrane thanks to its self-supporting system, without any perforation.

5 years of warranty.

Technical description

Pipes & posts: aluminium 6061-T6


Outer diameter: 0.05 m (1.9")


Fittings - material: zinc-coated steel


Hardware: stainless steel


Maximum height allowed for the cable: 1 m (39") from the ground


Minimum height allowed for the cable: 0.86 m (34") from the ground


Max. distance between flags: 1.80 m (72")


Counterweight: 4 x 12.5 kg (27.5 lb/base)


3 AVAILABLE LENGTHS:


2.5 metres: distance between loops: 2580 mm (8'2") - including 2 pennants (CNESST)


12.5 metres: distance between loops: 3660 mm (41') - including 2 pennants


20 metres: distance between loops: 6030 mm (65'7) - including 3 pennants
