SecuRail Vertical lifeline

SecuRail Vertical lifeline

Standard: EN 353-1:2008

Vertical lifeline with simple and intuitive operation.

Select your reference
+
-

Advantages and strengths

Discrete and aesthetic access solution.

Technical characteristics

Reference Quantity Quote
Ref. SECURAILV
Code A0009226
SecuRail Vertical lifeline
+
-
SecuRail Vertical lifeline
Reference : SECURAILV
Quantity :
+
-

Use

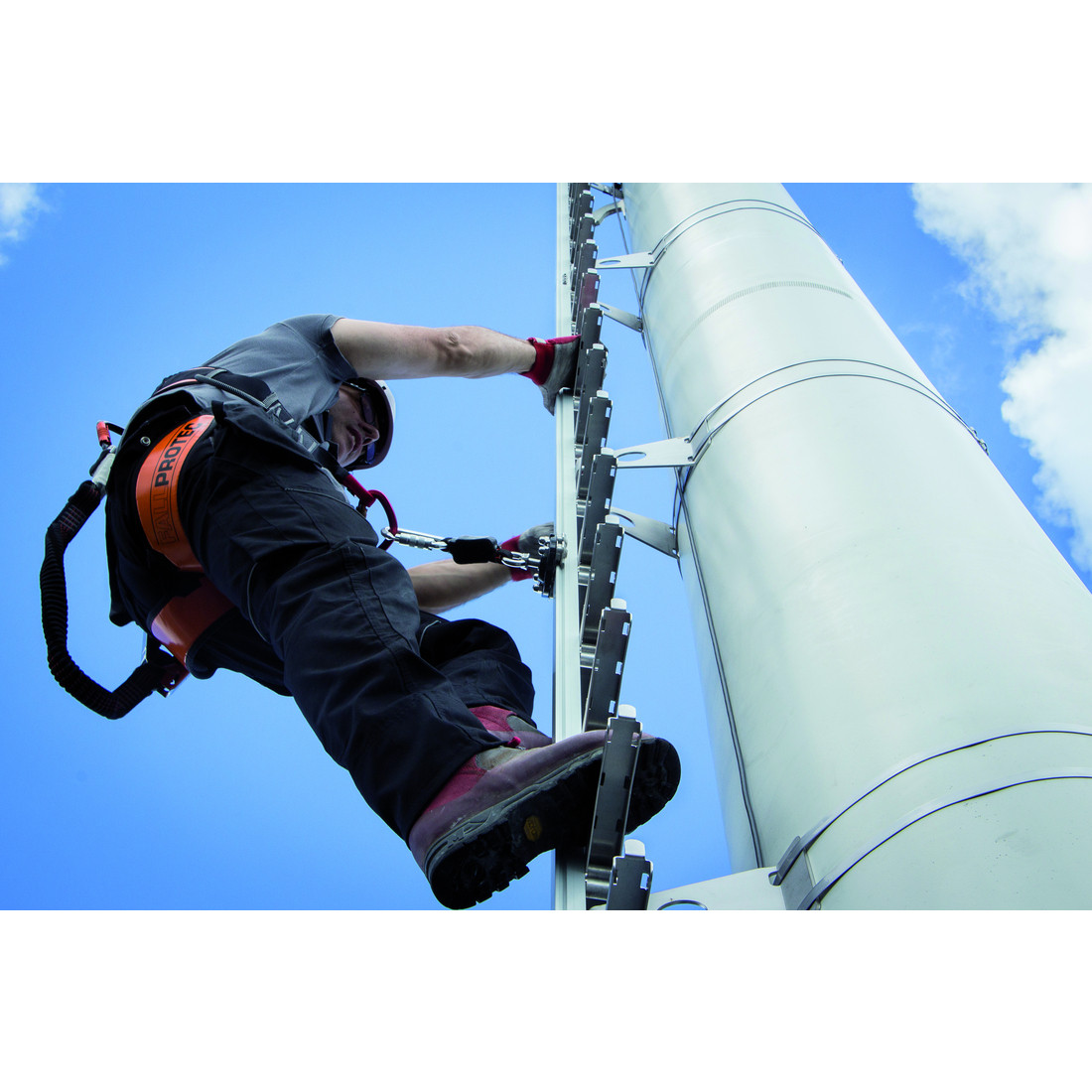

The vertical SécurRail allows access at height in full safety

System for securing vertical and tilted plans

Available in 2 versions :

- rail with fixed or folding rungs

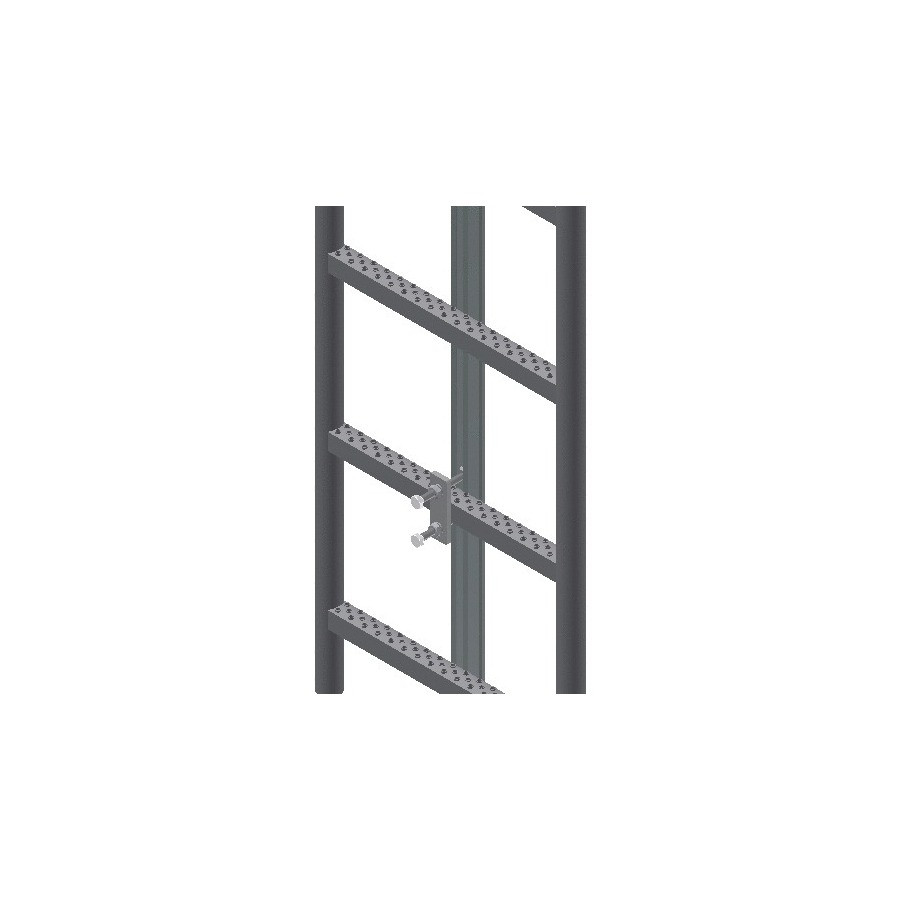

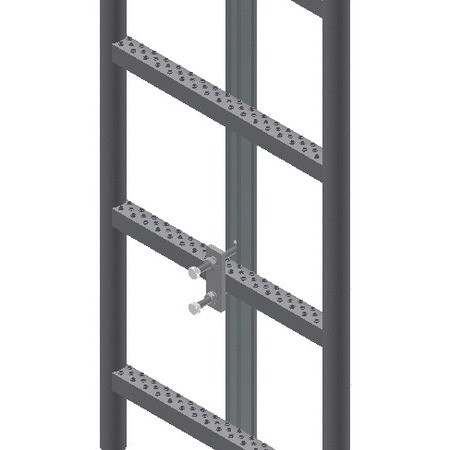

- universal single rail for attachment to a vertical ladder.

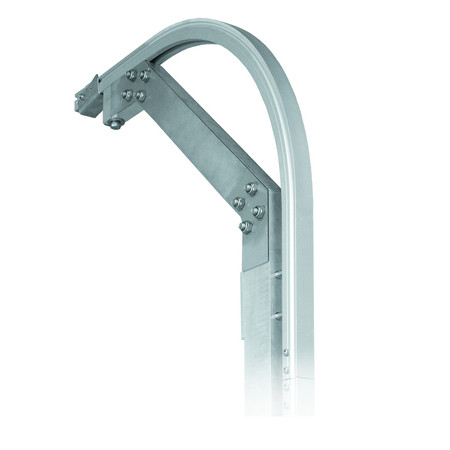

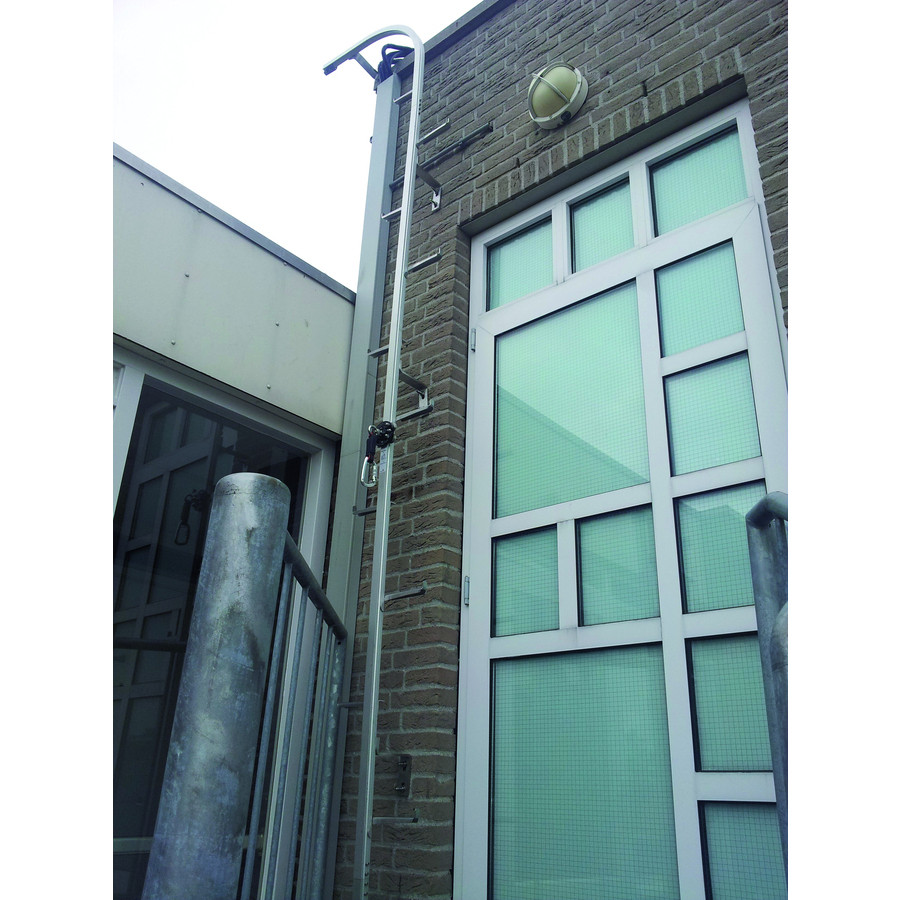

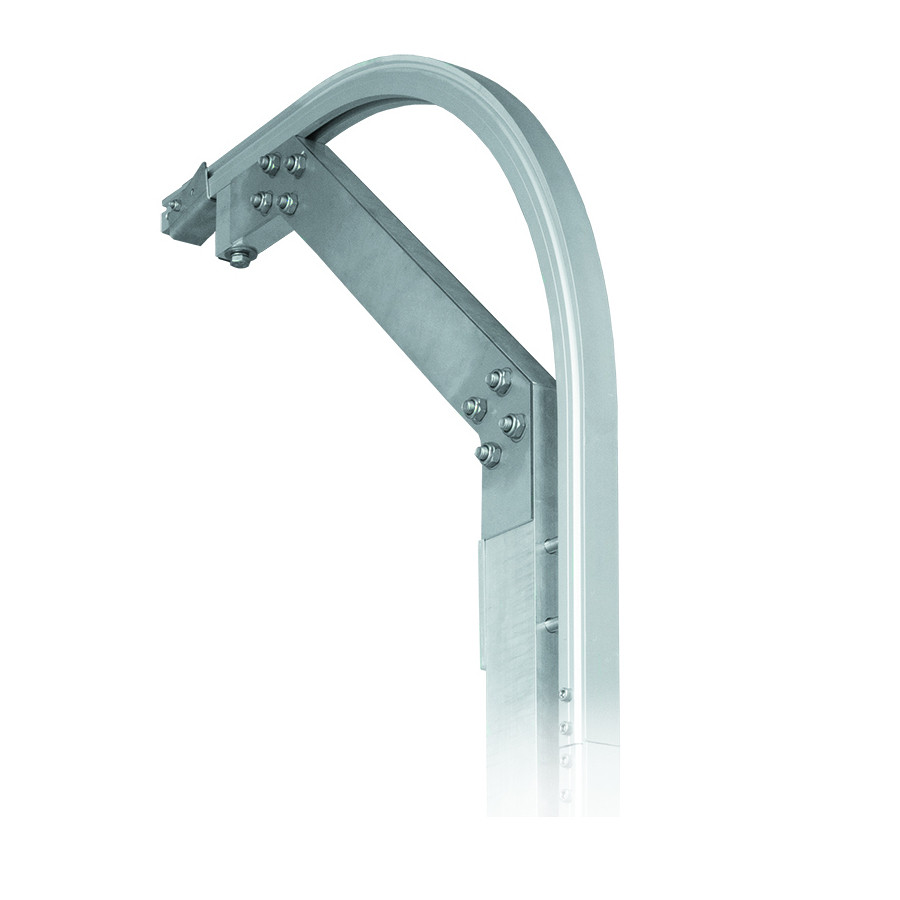

In roof access configuration, the rail is fitted with an extension rail.

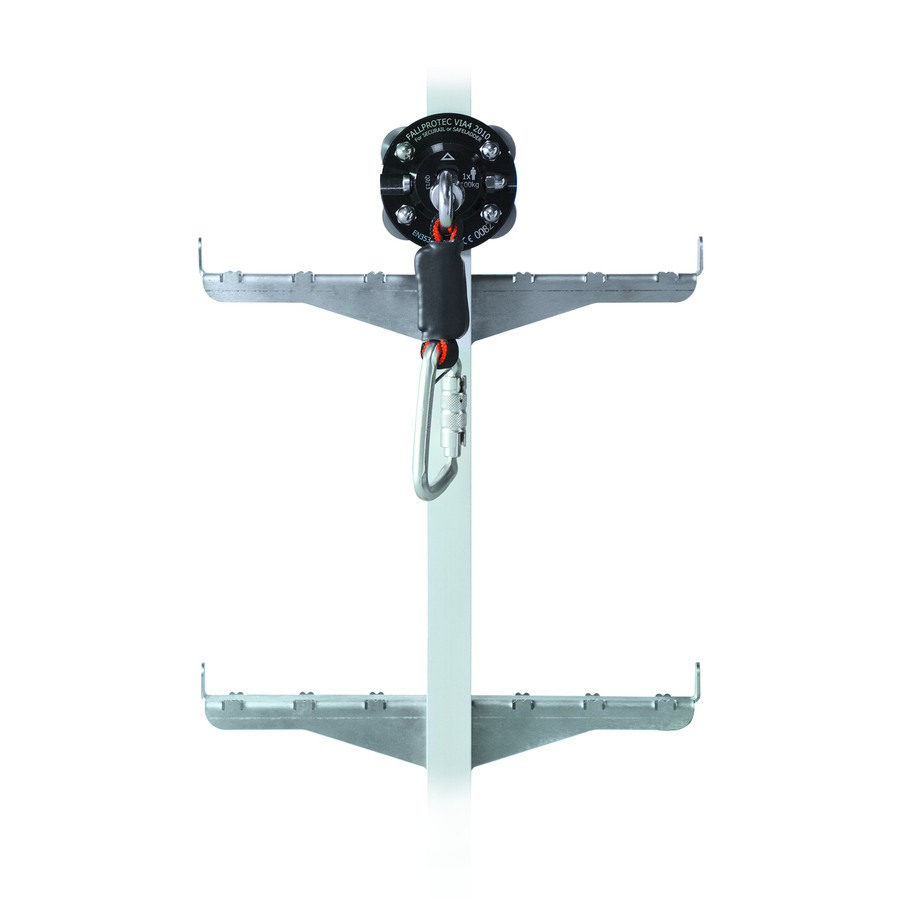

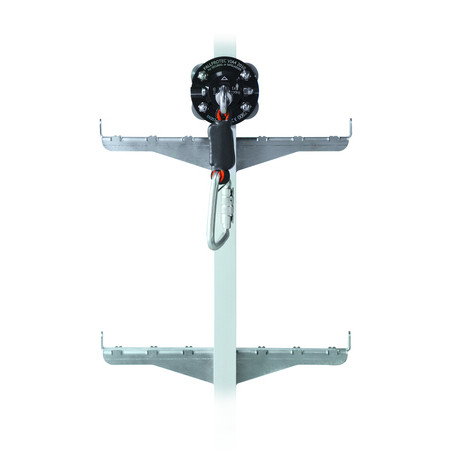

The trolley incorporates an energy absorber and a carabiner.

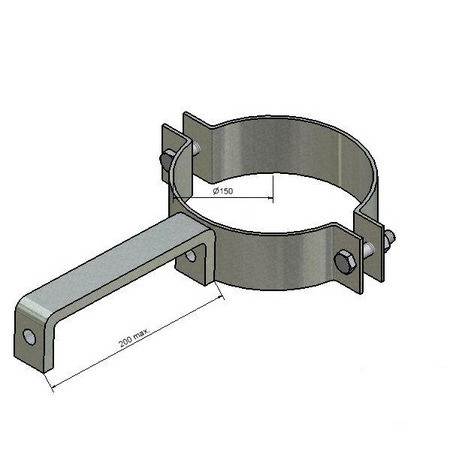

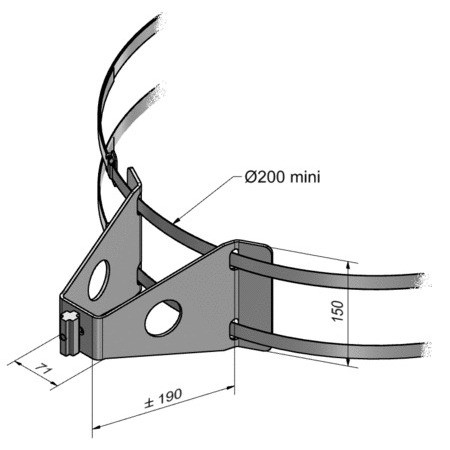

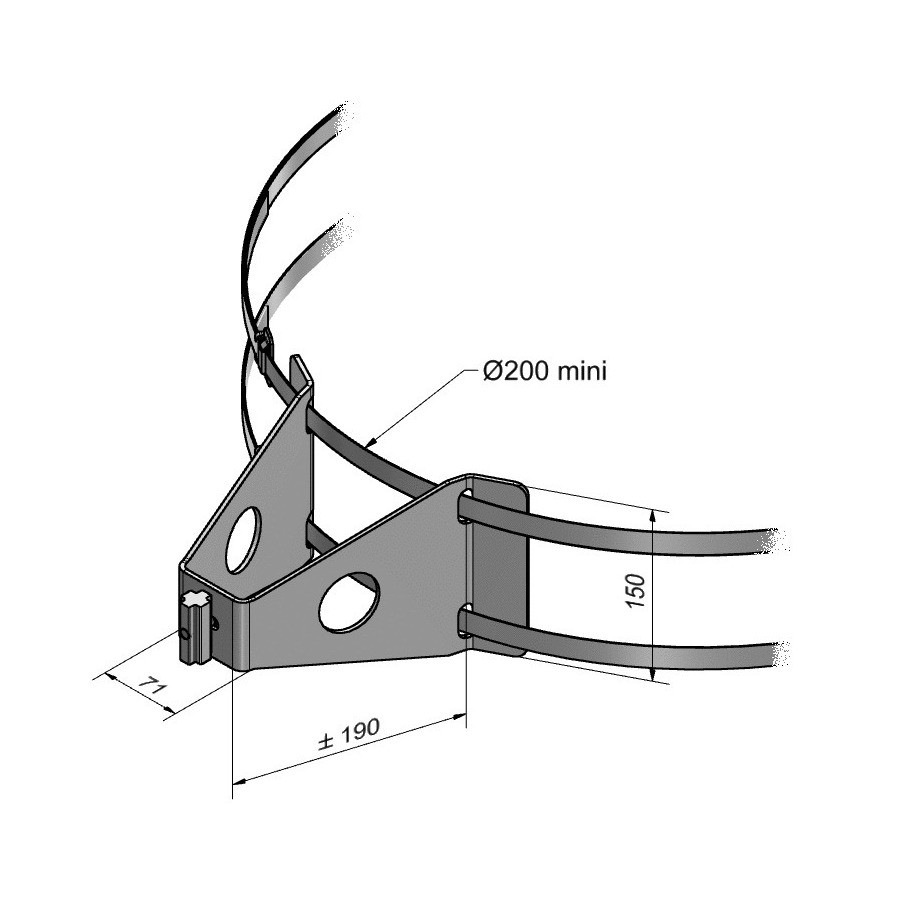

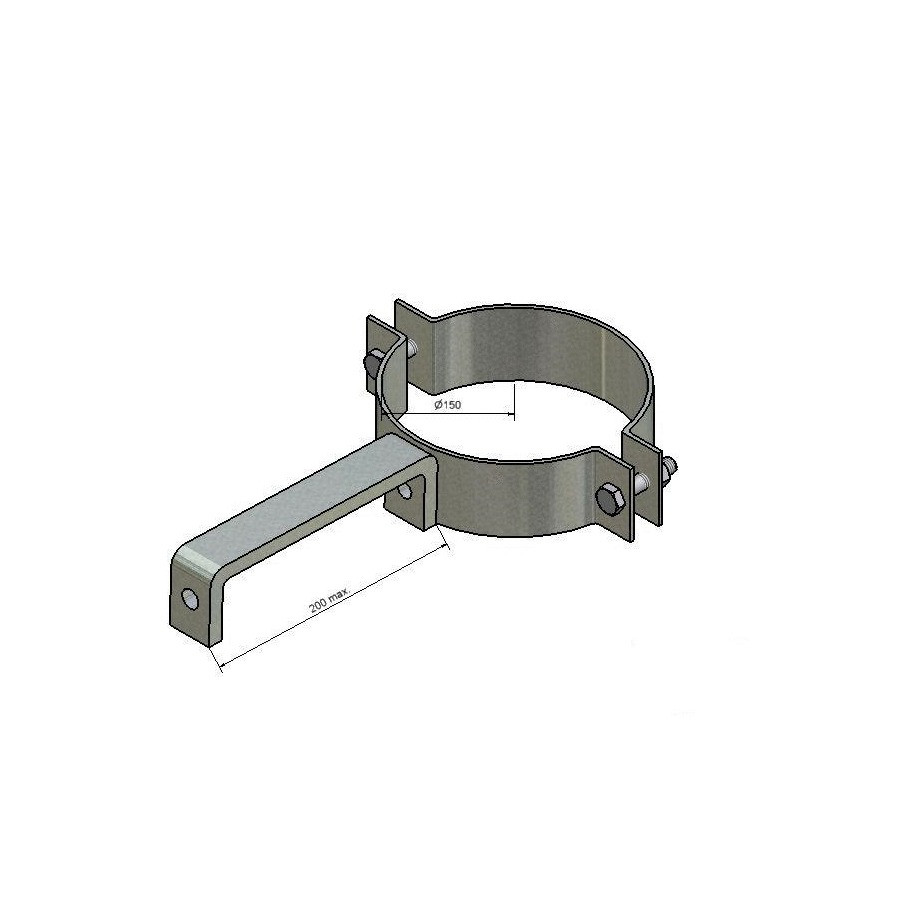

Possible fastening by strapping.

Technical description

6060T6 anodized aluminium rail


Aluminium trolley with AISI304 stainless steel roller

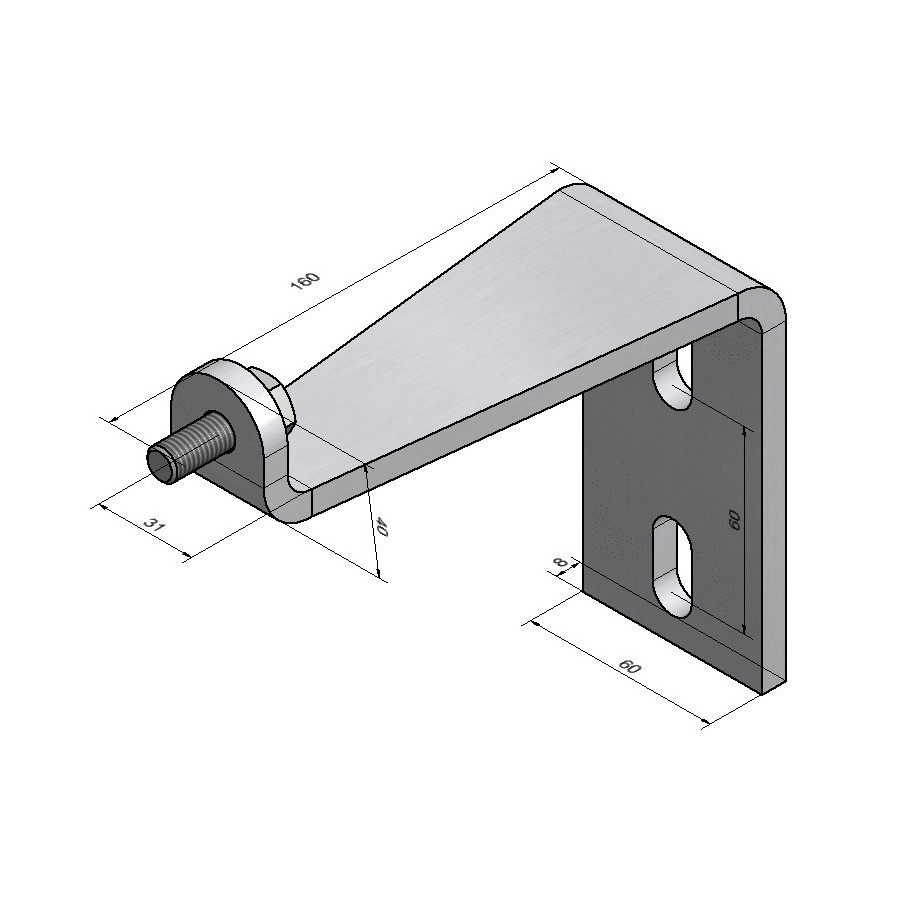

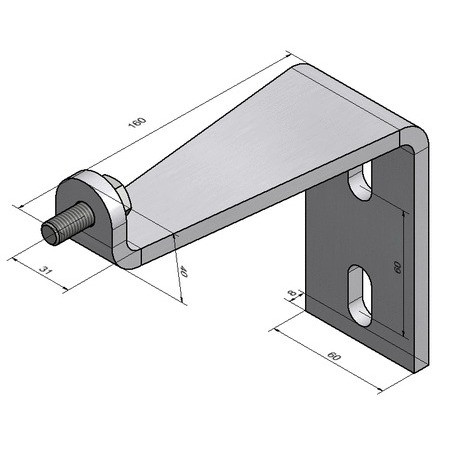

AISI304 stainless steel rungs. Vertical fastening at every 1500 mm (59") maximum


On vertical ladders, fastening of the rail at every 1750 mm (69") maximum
