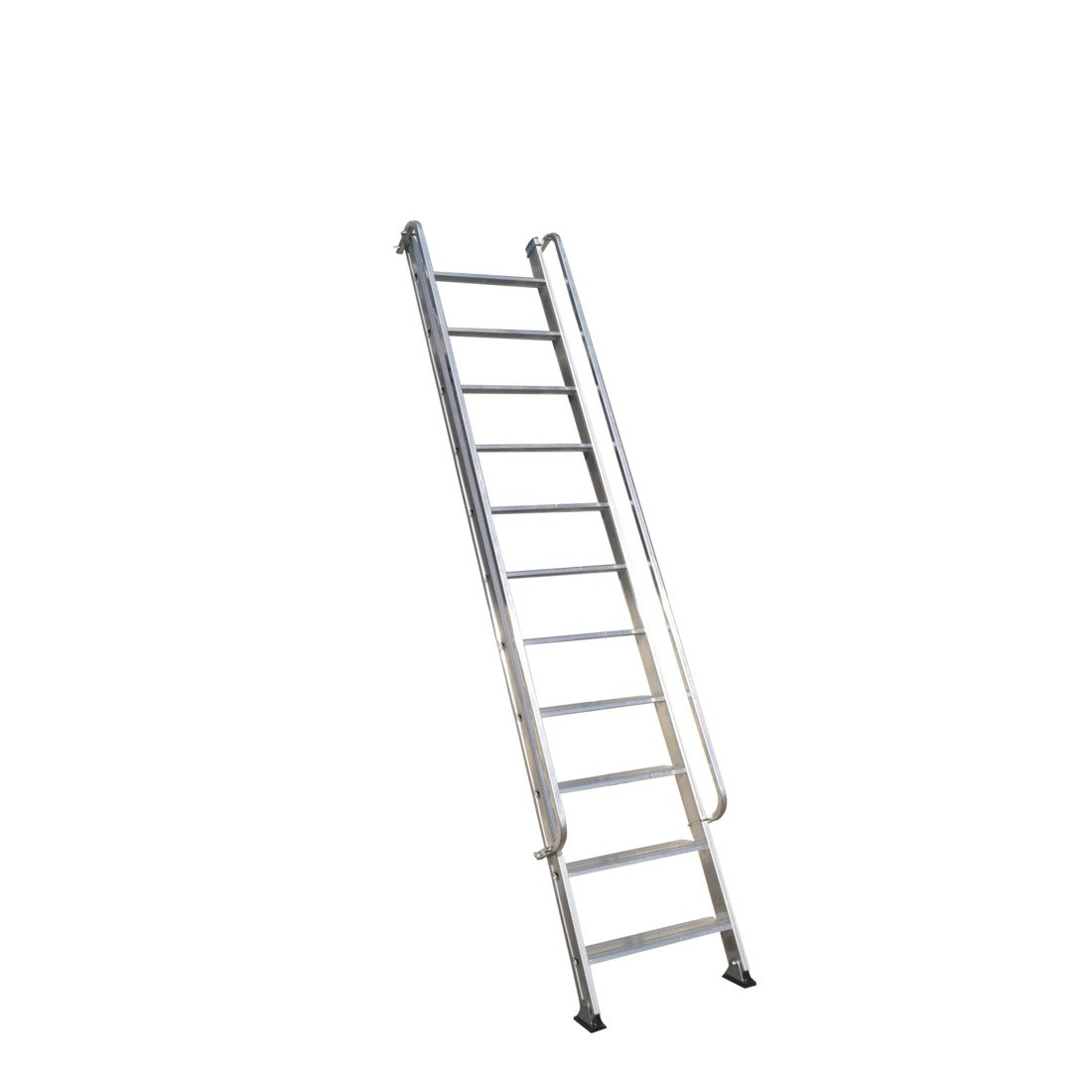

LEEVEL step access ladder 130 mm (5")
LARGEUR D'ACCES DE 700 mm
Advantages and strengths
Équipée de série avec patins articulés et rampes de sécurité.
Technical characteristics
130 MM DEEP ACCESS STEP LADDERS 6 STEPS | |
---|---|
Reference : | LEEVEL130606RL |
Number of walking | 6 |
Stabilizer | Non |
Support height (') | 5 ' |
Length (') | 6 ' |
Width ('') | 28 '' |
Spacing (') | 26 ' |
Weight (lb) | 19,80 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 7 STEPS | |
---|---|
Reference : | LEEVEL130607RL |
Number of walking | 7 |
Stabilizer | Non |
Support height (') | 6 ' |
Length (') | 7 ' |
Width ('') | 28 '' |
Spacing (') | 30 ' |
Weight (lb) | 22,04 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 8 STEPS | |
---|---|
Reference : | LEEVEL130608RL |
Number of walking | 8 |
Stabilizer | Non |
Support height (') | 7 ' |
Length (') | 7 ' |
Width ('') | 28 '' |
Spacing (') | 0 ' |
Weight (lb) | 24,25 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 9 STEPS | |
---|---|
Reference : | LEEVEL130609RL |
Number of walking | 9 |
Stabilizer | Non |
Support height (') | 8 ' |
Length (') | 8 ' |
Width ('') | 28 '' |
Spacing (') | 37 ' |
Weight (lb) | 30,86 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 10 STEPS | |
---|---|
Reference : | LEEVEL130610RL |
Number of walking | 10 |
Stabilizer | Non |
Support height (') | 9 ' |
Length (') | 9 ' |
Width ('') | 28 '' |
Spacing (') | 41 ' |
Weight (lb) | 33,00 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 11 STEPS | |
---|---|
Reference : | LEEVEL130611RL |
Number of walking | 11 |
Stabilizer | Non |
Support height (') | 9 ' |
Length (') | 10 ' |
Width ('') | 28 '' |
Spacing (') | 44 ' |
Weight (lb) | 35,27 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 12 STEPS | |
---|---|
Reference : | LEEVEL130612RL |
Number of walking | 12 |
Stabilizer | Oui |
Support height (') | 10 ' |
Length (') | 11 ' |
Width ('') | 28 '' |
Spacing (') | 48 ' |
Weight (lb) | 35,27 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 13 STEPS | |
---|---|
Reference : | LEEVEL130613RL |
Number of walking | 13 |
Stabilizer | Oui |
Support height (') | 11 ' |
Length (') | 12 ' |
Width ('') | 28 '' |
Spacing (') | 52 ' |
Weight (lb) | 37,48 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 14 STEPS | |
---|---|
Reference : | LEEVEL130614RL |
Number of walking | 14 |
Stabilizer | Oui |
Support height (') | 12 ' |
Length (') | 13 ' |
Width ('') | 28 '' |
Spacing (') | 55 ' |
Weight (lb) | 39,68 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 15 STEPS | |
---|---|
Reference : | LEEVEL130615RL |
Number of walking | 15 |
Stabilizer | Oui |
Support height (') | 13 ' |
Length (') | 14 ' |
Width ('') | 28 '' |
Spacing (') | 59 ' |
Weight (lb) | 44,00 lb |
Quantity : |
|
130 MM DEEP ACCESS STEP LADDERS 16 STEPS | |
---|---|
Reference : | LEEVEL130616RL |
Number of walking | 16 |
Stabilizer | Oui |
Support height (') | 14 ' |
Length (') | 14 ' |
Width ('') | 28 '' |
Spacing (') | 62 ' |
Weight (lb) | 48,50 lb |
Quantity : |
|
Use
Equipped as standard with articulated pads and safety ramps.
Ladder with aluminium steps for all accesses.
Provides access to heights ranging from 1,50 m to 4 m (4'11"- 13').
Its articulated pads allow a ground support surface optimised for greater safety.
Available from 6 to 16 steps.
Starting with 12 steps, equipped with a telescopic stabiliser.
Technical description

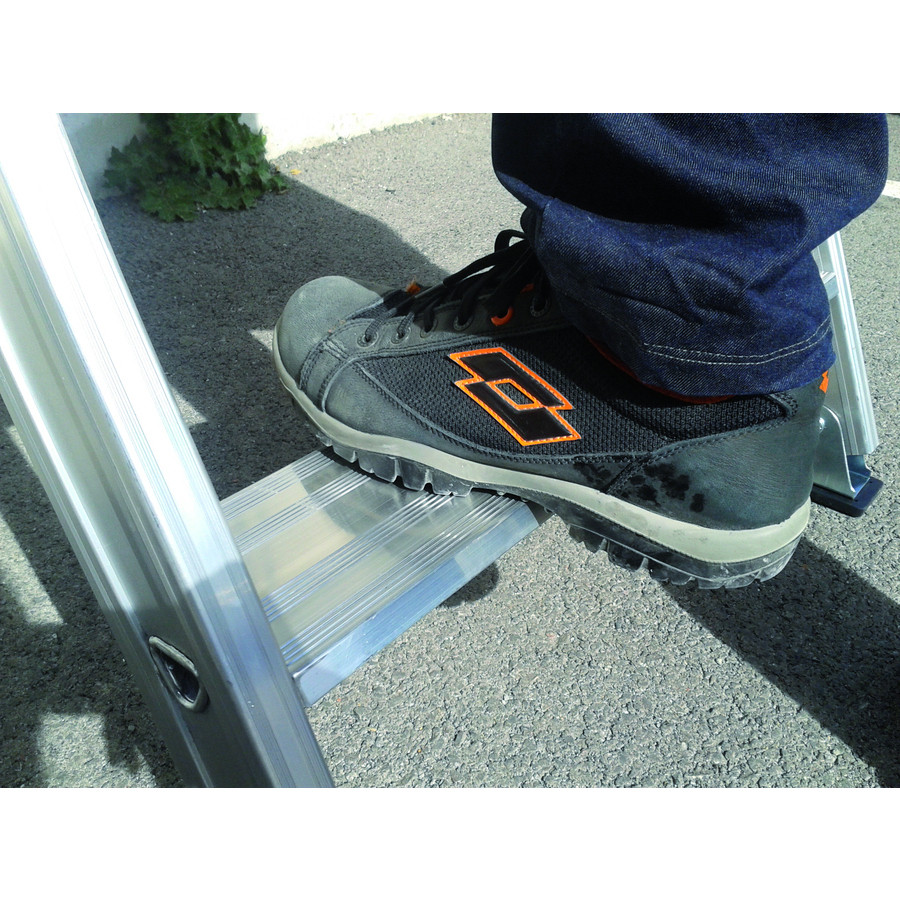

High resistance grooved aluminium steps
Usage tilt : 70°
Step depth : 130 mm (5")
Height between steps of 250 mm (10")
Step position: 600 mm (24")
Exterior width with 2 ramps: 700 mm (78")
Load-bearing capacity per step: 150 kg (330 lb)
