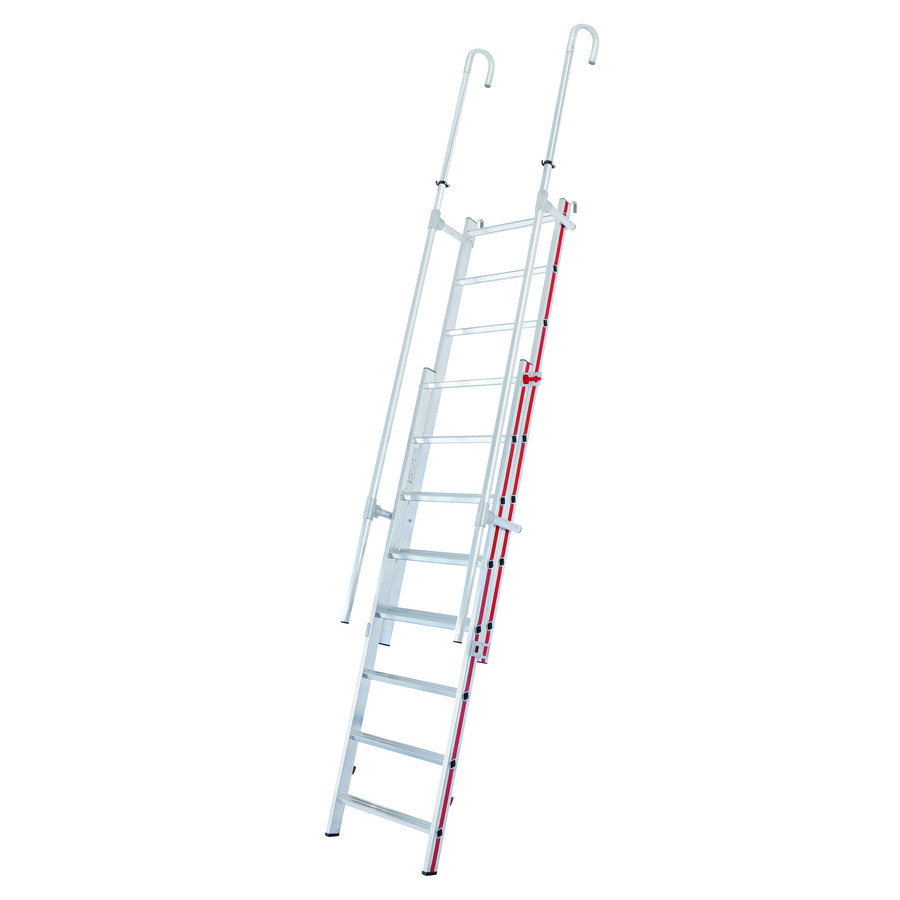

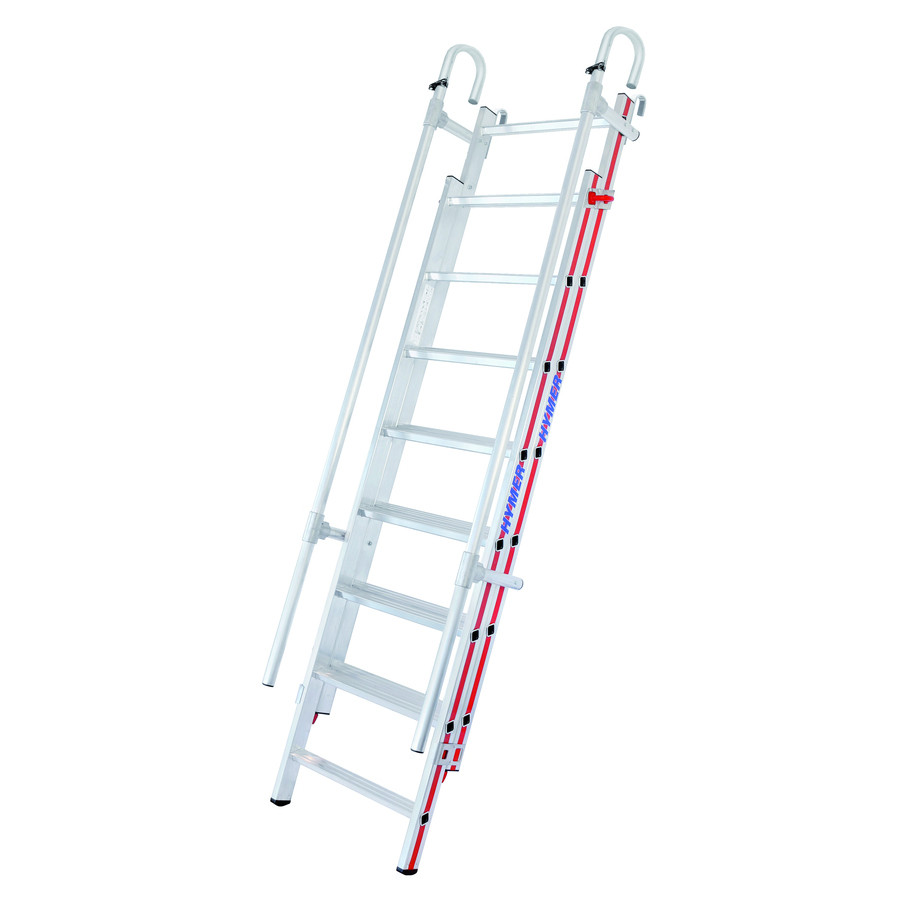

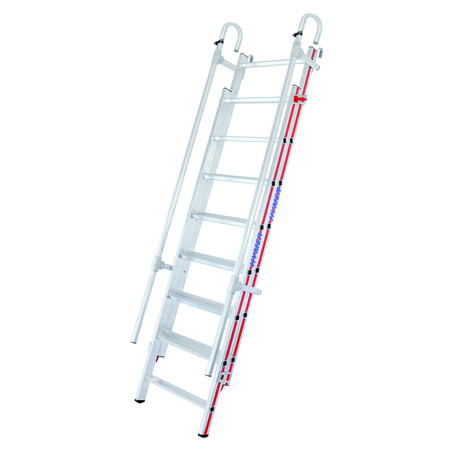

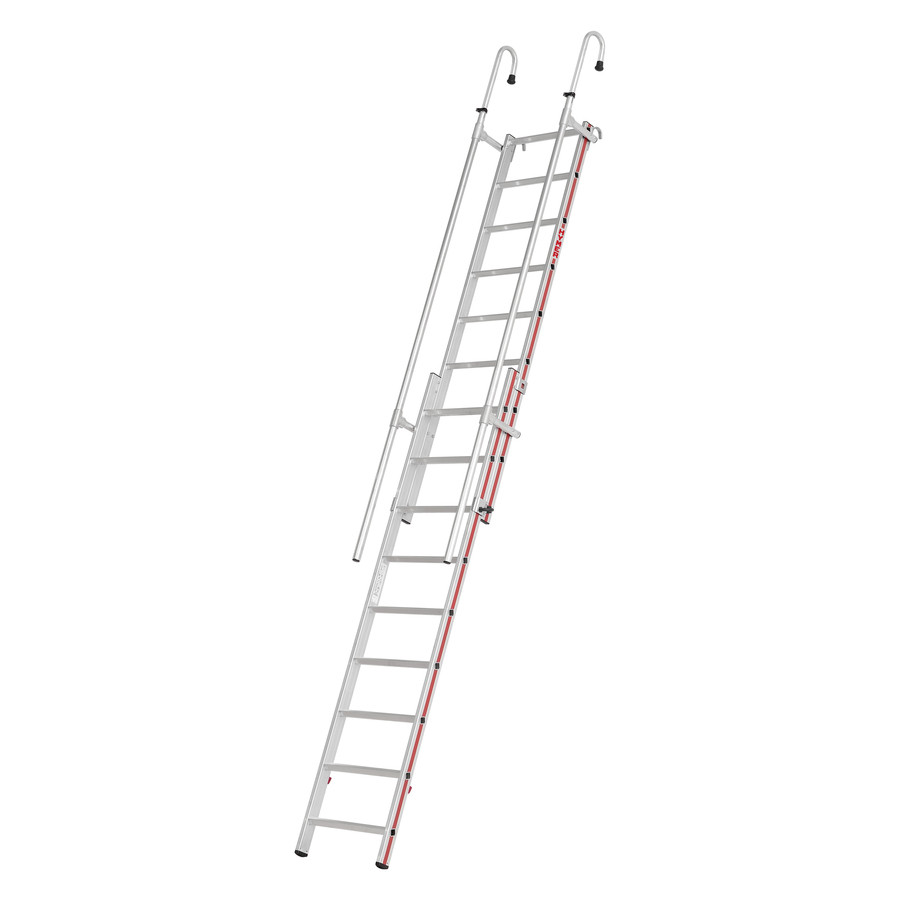

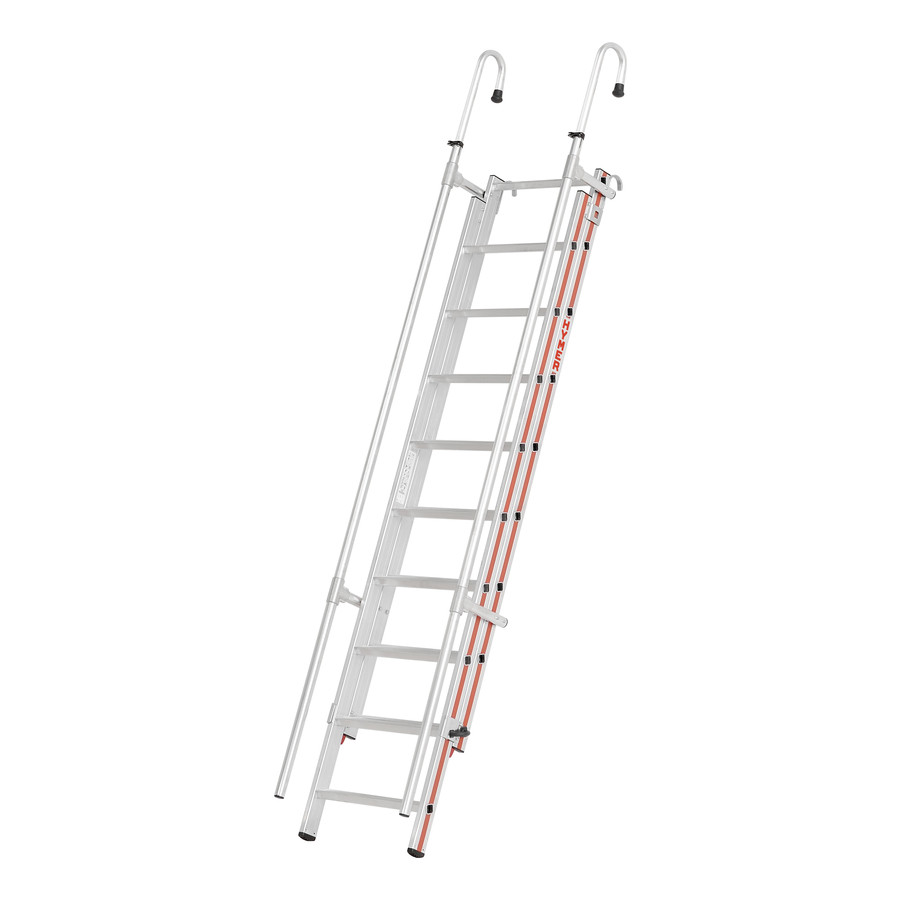

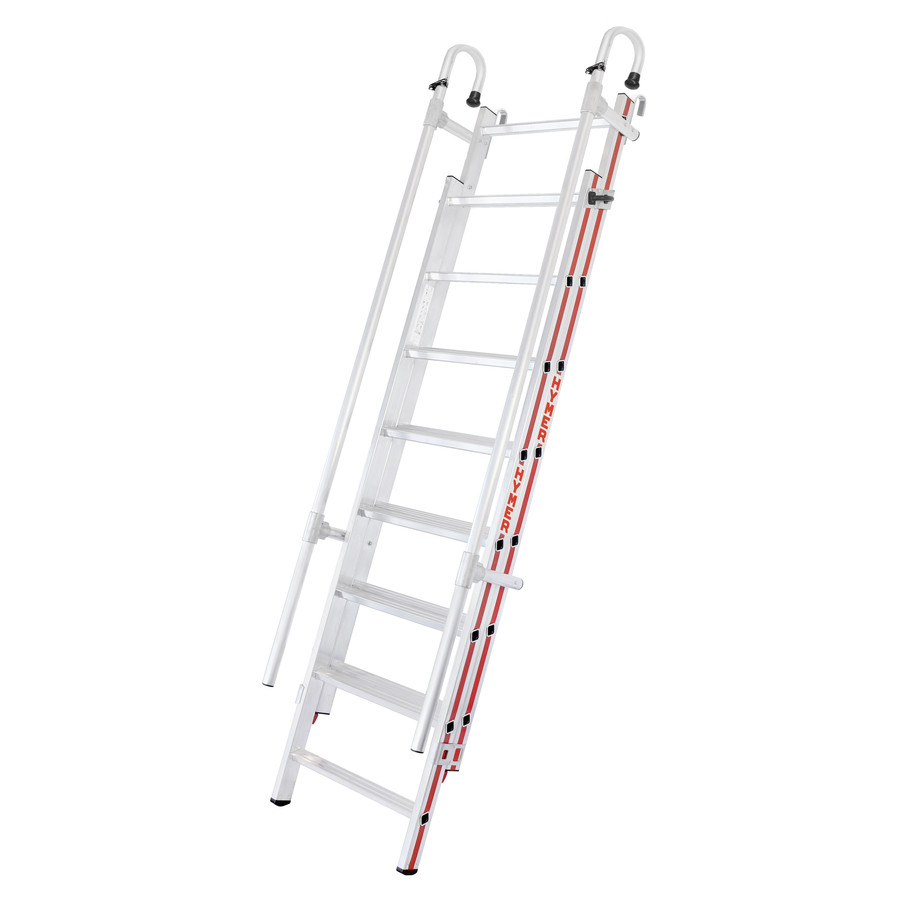

Telescopic secured step ladder for bungalow access

Telescopic secured step ladder for bungalow access

Warranty 10 years
Standard: EN 131

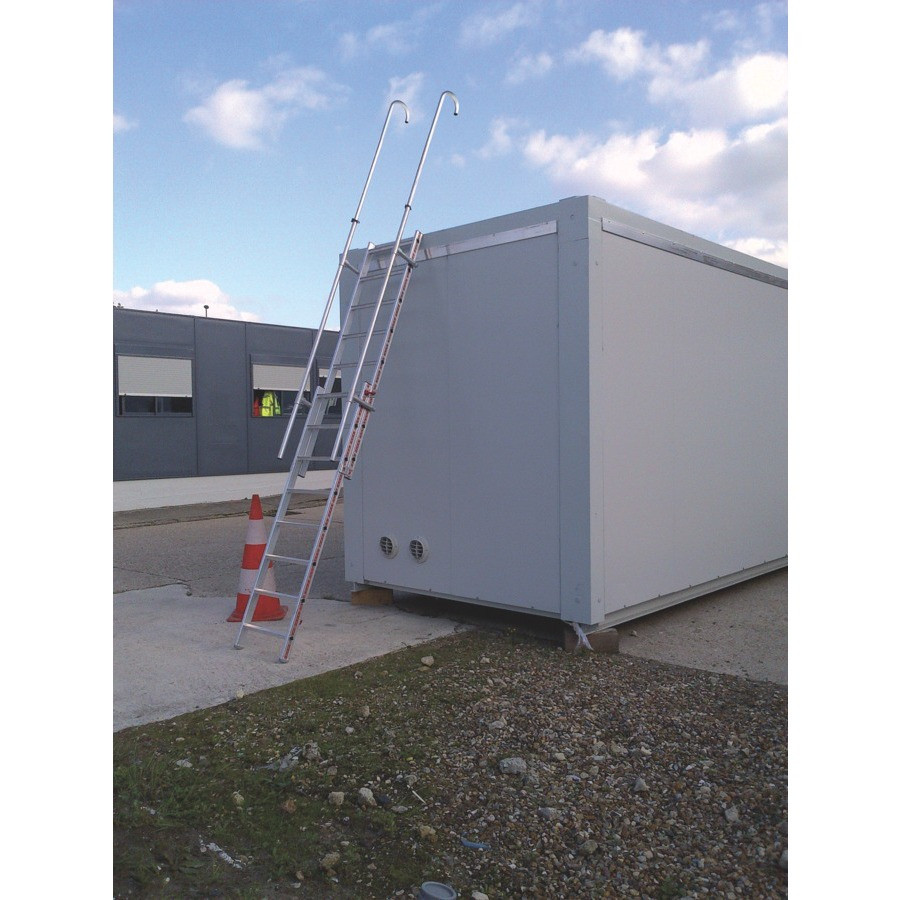

Allows secure access for users for backup access (construction bungalows, tippers, tanks, pre-slabs, etc.).

Select your reference
+
-
Telescopic secured step ladder for bungalow access

Technical characteristics

Reference Number of walking Support height (') Folded length (') Unfolded length (') Width ('') Weight (lb) Quantity Quote
Ref. 609204
Code A0006905
Escalier d'accès pour bungalow 2x8
2 x 8 7 - 10 ' 7 ' 11 ' 22 '' 39,60 lb
+
-
Ref. 609215
Code A0006906
Escalier d'accès pour bungalow 2x9
2 x 9 8 - 12 ' 8 ' 12 ' 22 '' 44,00 lb
+
-
Ref. 609205
Code A0006907
Escalier d'accès pour bungalow 11+12
11+12 10 - 15 ' 11 ' 16 ' 22 '' 56,44 lb
+
-
Ref. 0054063
Code A0006822
0 0 ' 0 ' 0 ' 0 '' 0 lb
+
-
Escalier d'accès pour bungalow 2x8
Reference : 609204
Number of walking 2 x 8
Support height (') 7 - 10 '
Folded length (') 7 '
Unfolded length (') 11 '
Width ('') 22 ''
Weight (lb) 39,60 lb
Quantity :
+
-
Escalier d'accès pour bungalow 2x9
Reference : 609215
Number of walking 2 x 9
Support height (') 8 - 12 '
Folded length (') 8 '
Unfolded length (') 12 '
Width ('') 22 ''
Weight (lb) 44,00 lb
Quantity :
+
-
Escalier d'accès pour bungalow 11+12
Reference : 609205
Number of walking 11+12
Support height (') 10 - 15 '
Folded length (') 11 '
Unfolded length (') 16 '
Width ('') 22 ''
Weight (lb) 56,44 lb
Quantity :
+
-
Reference : 0054063
Number of walking 0
Support height (') 0 '
Folded length (') 0 '
Unfolded length (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-

Use

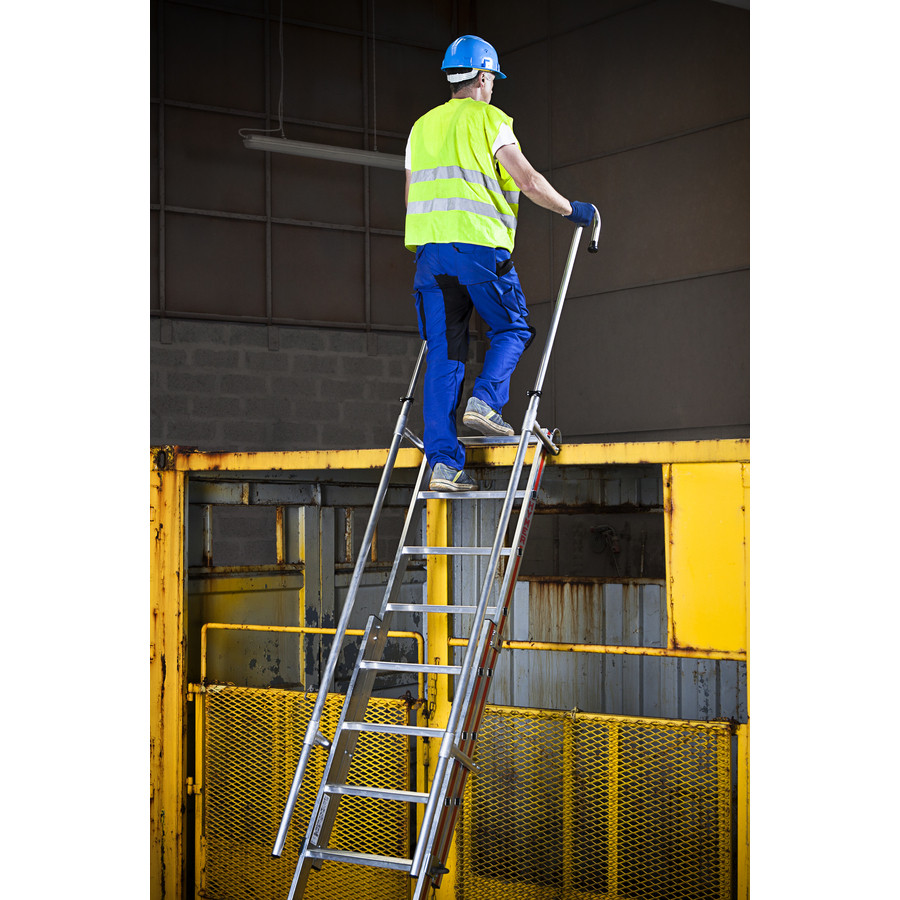

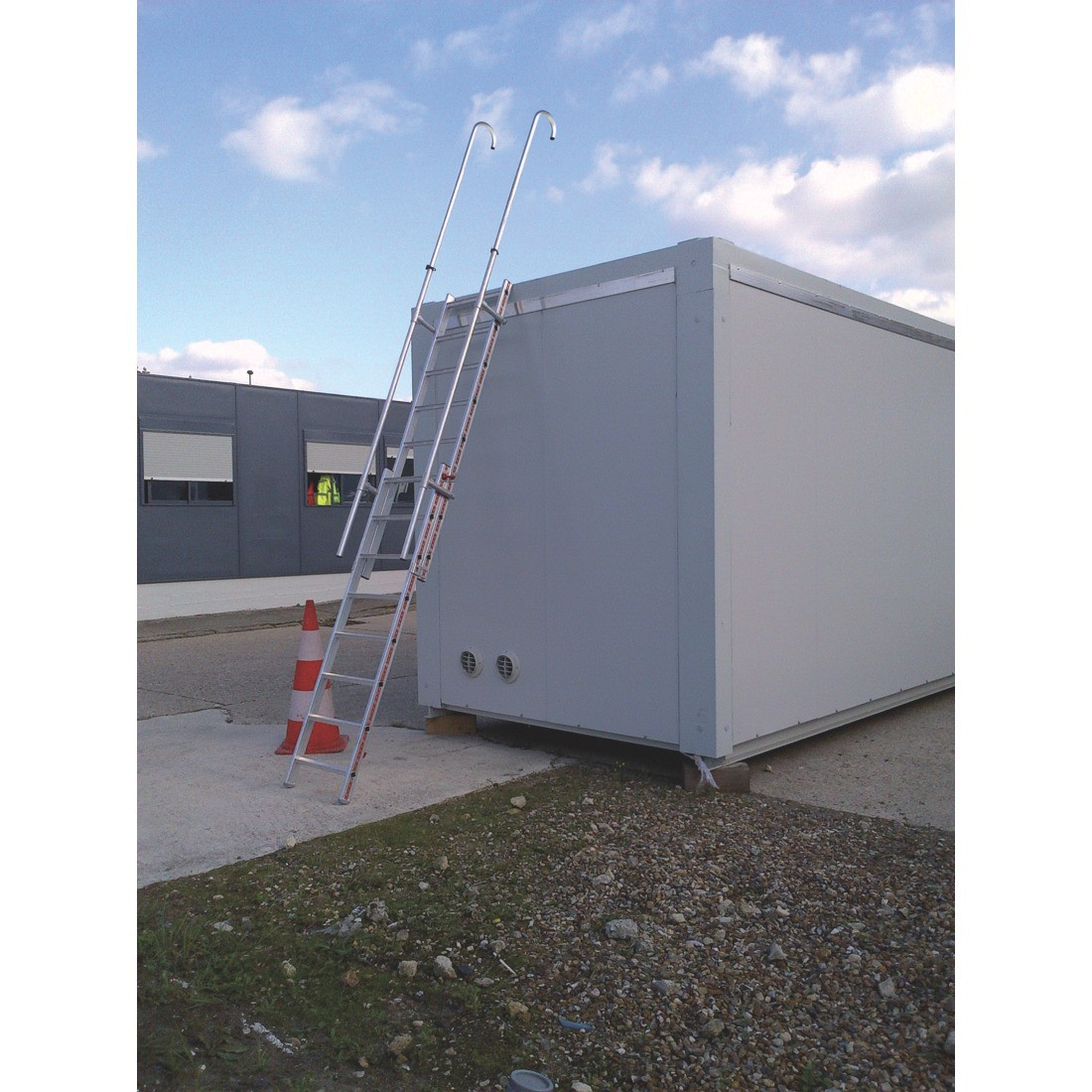

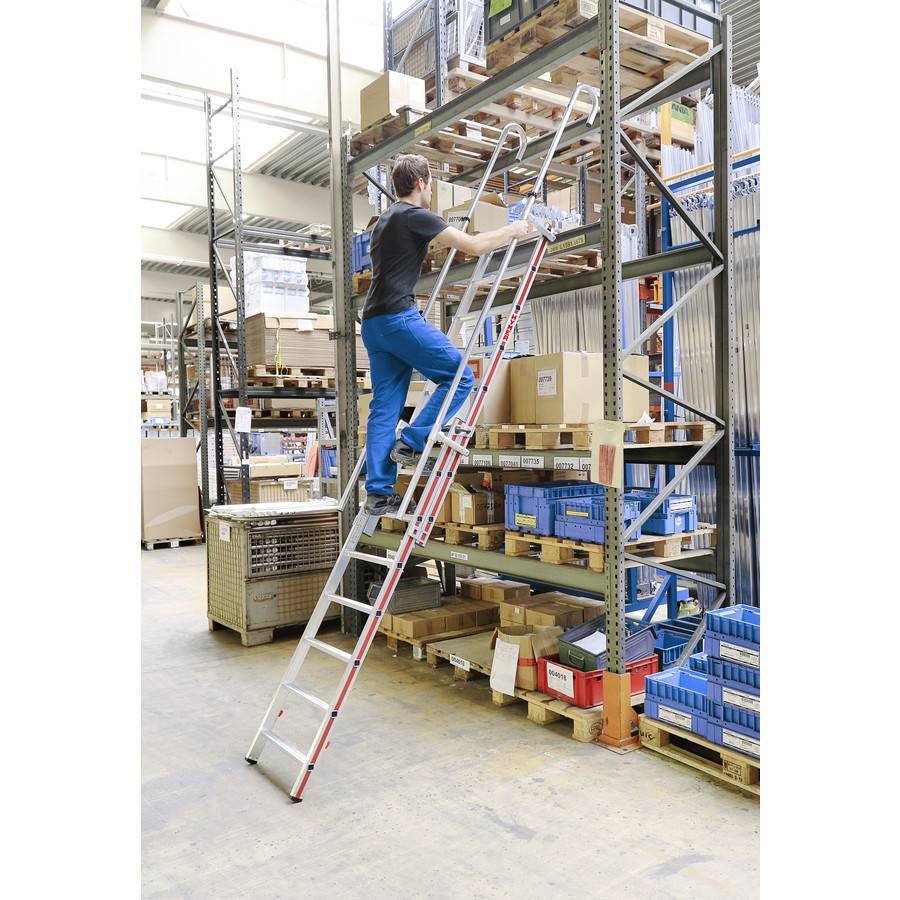

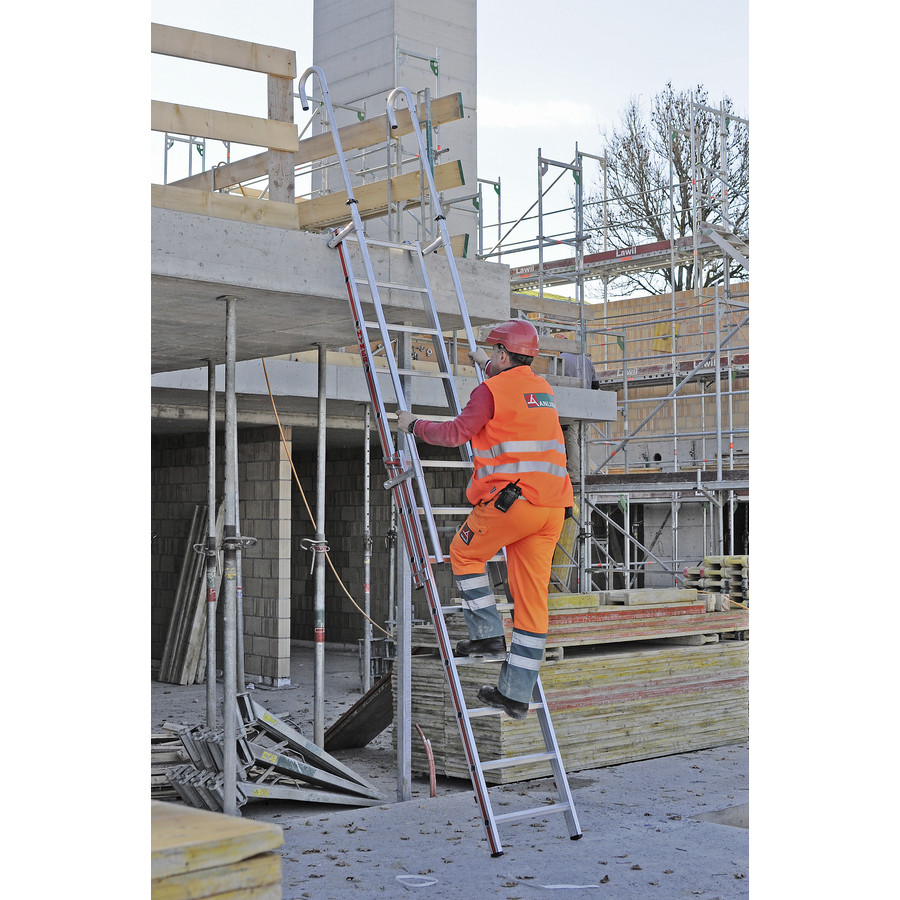

Allows secure access for users for backup access (construction bungalows, tippers, tanks, pre-slabs, etc.).

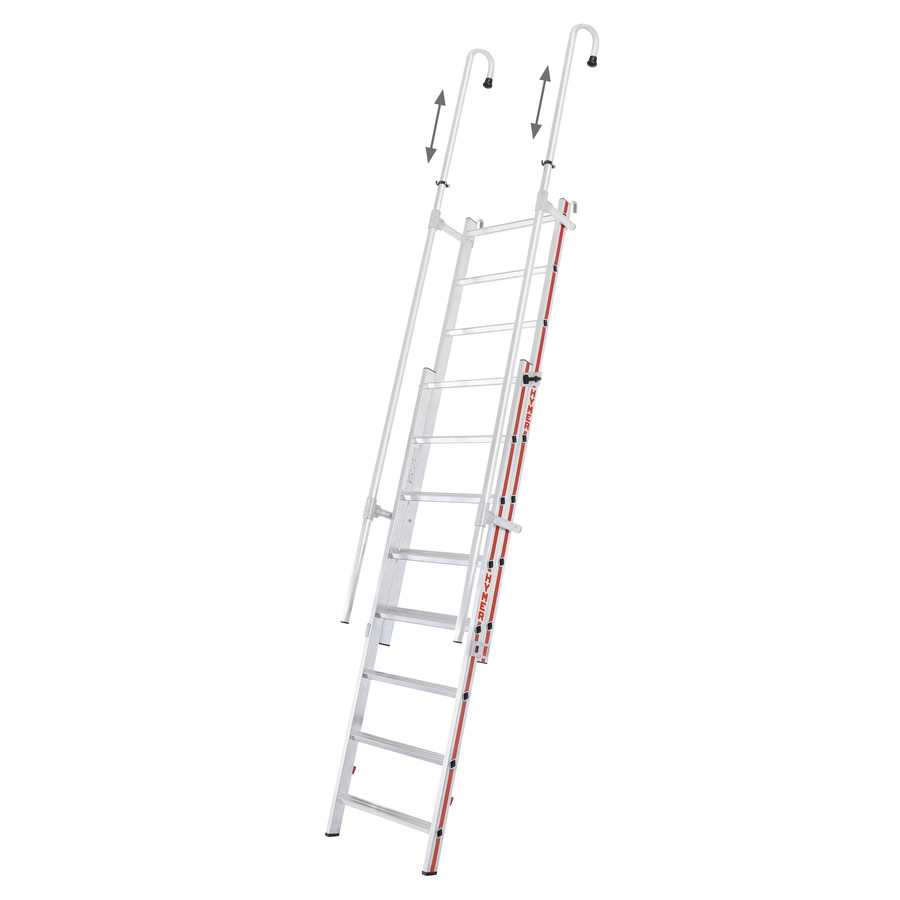

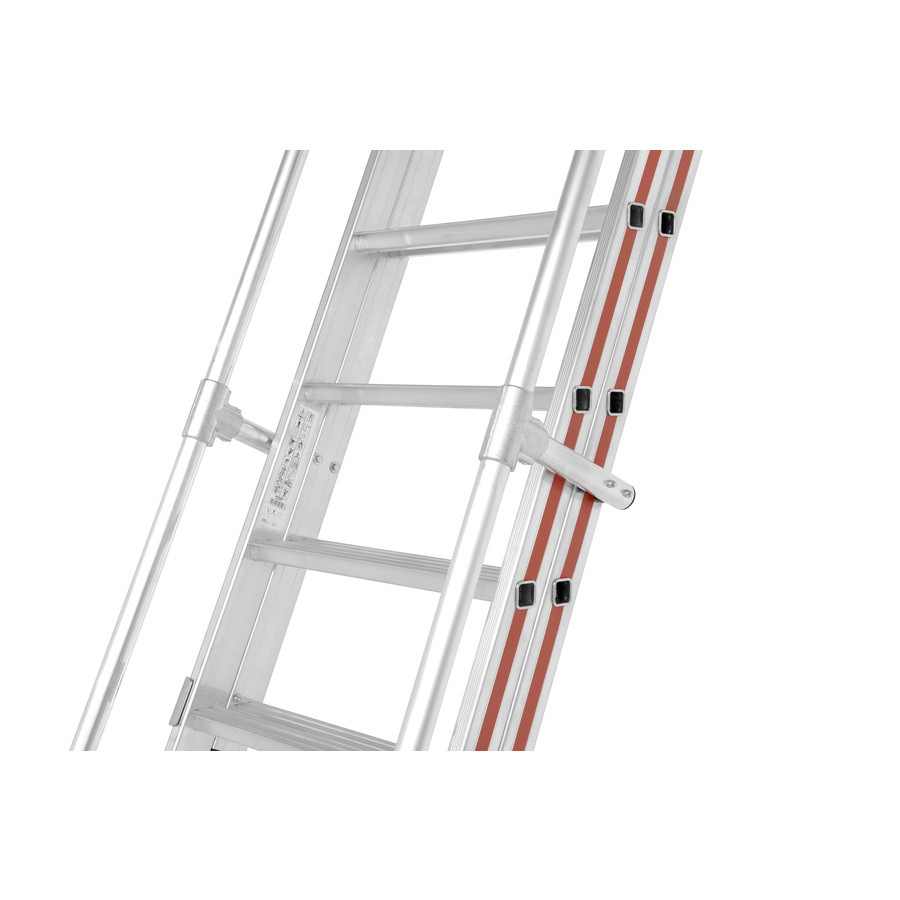

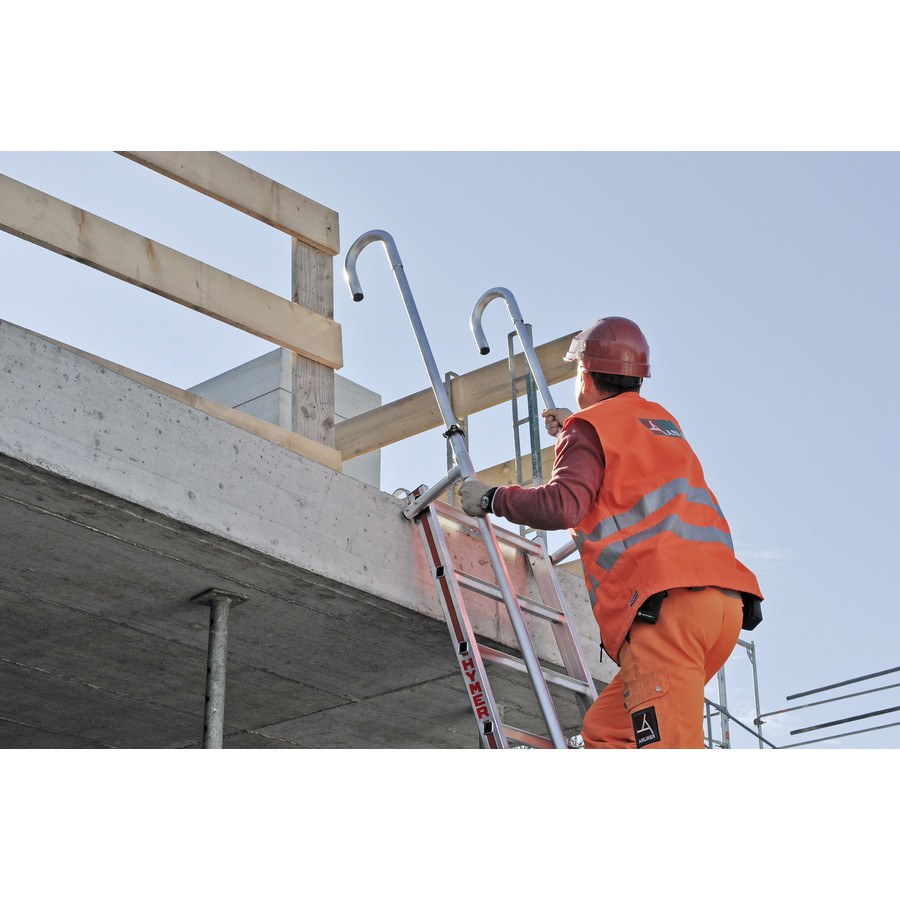

Front exit on the arrival area and secured assistance during the descent thanks to its retractable handrails.

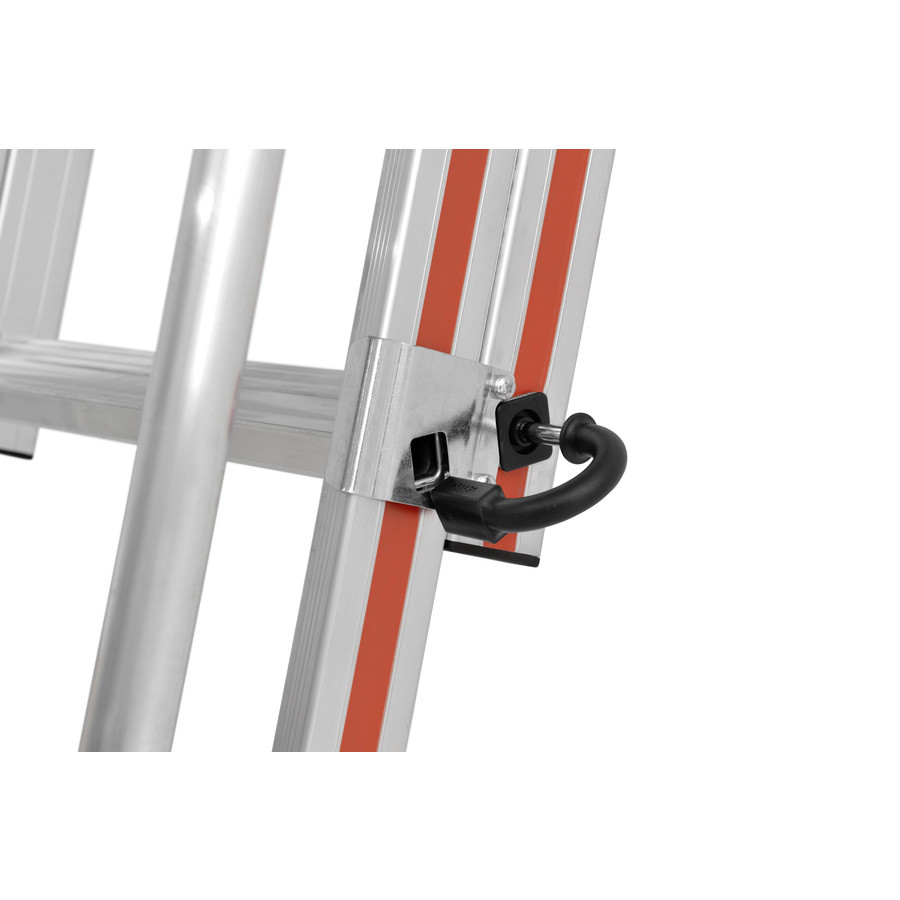

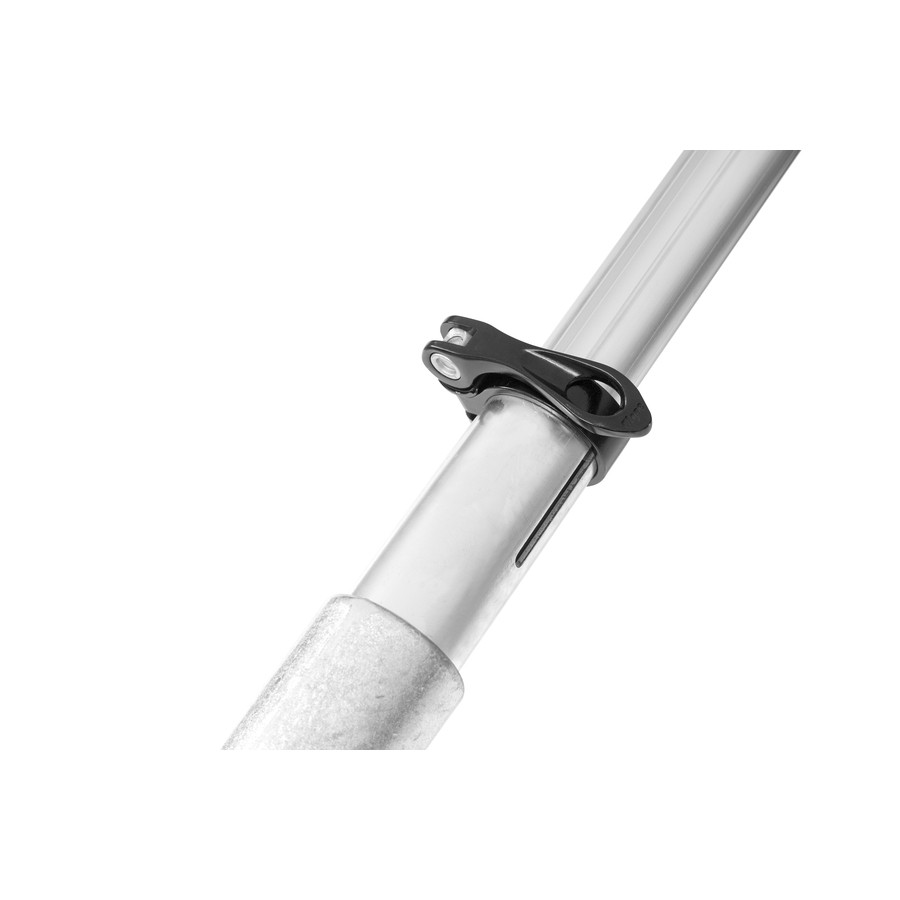

Millimetric adjustment of the stick length via a non-detachable clamping system.

Quick height adjustment by locking in the step.

Technical description

500 mm (20") wide step position

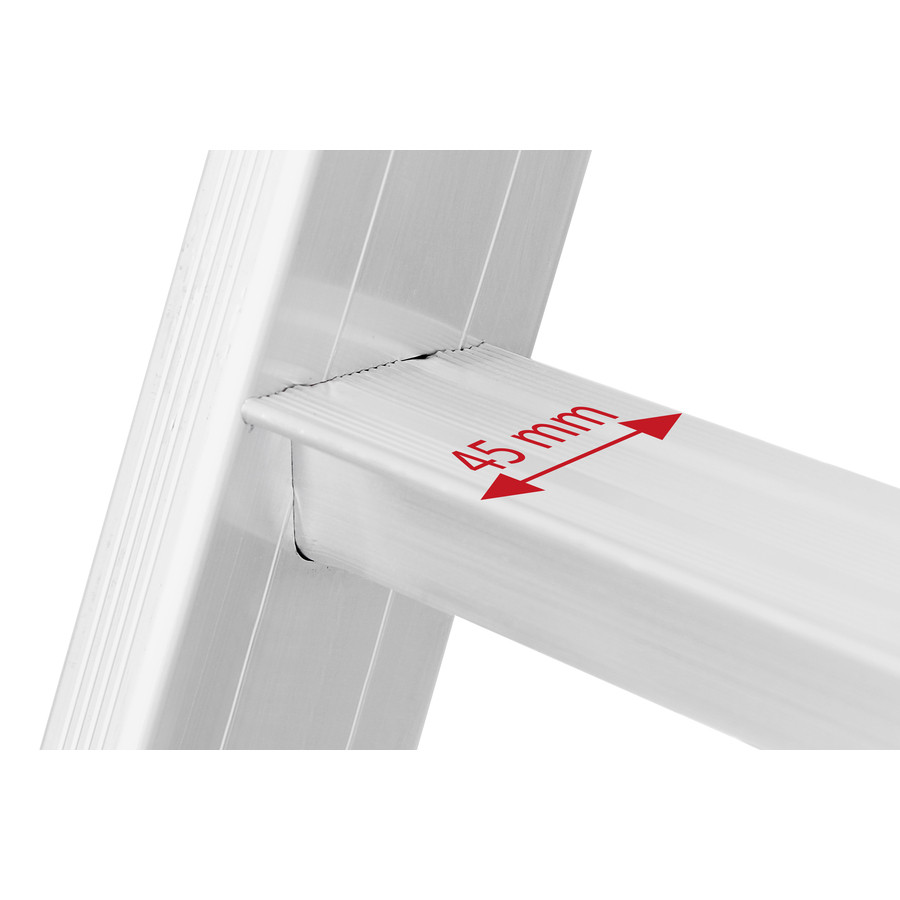

48 mm (2") deep rungs (110 m (4") in overlapping) - 25 cm spacing (10")


Access ramps on both sides


Retractable legs on 1 metre (3'3") integrated in the ramps


Anti-slip pads

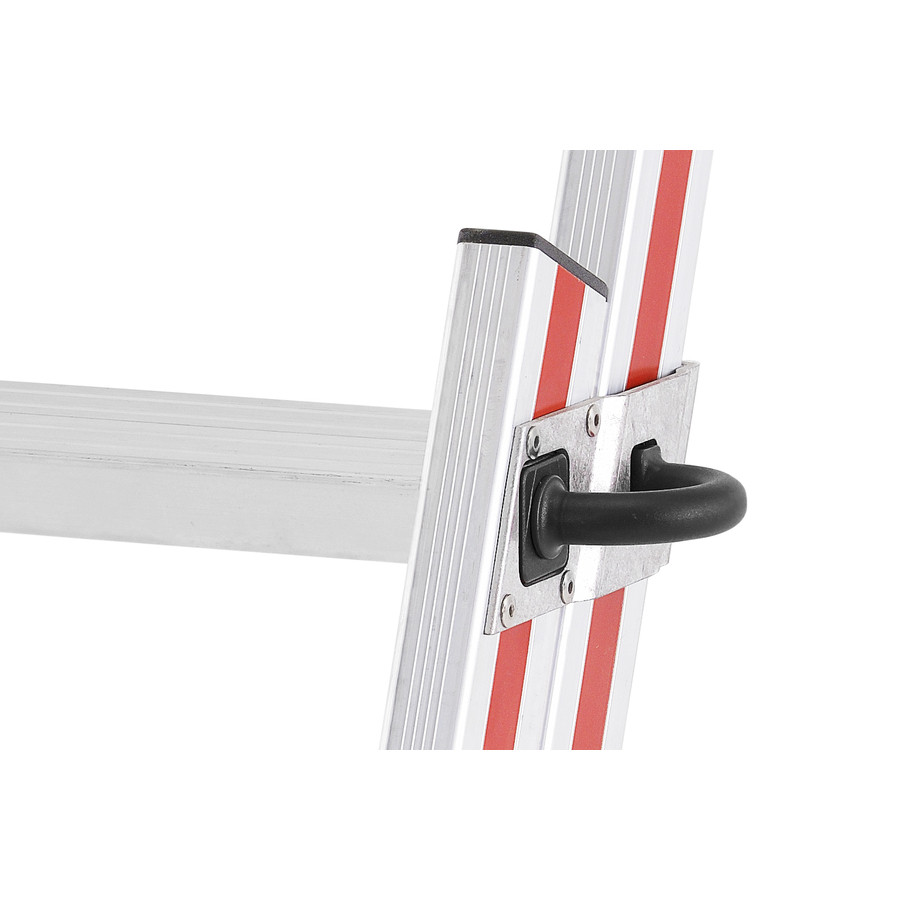

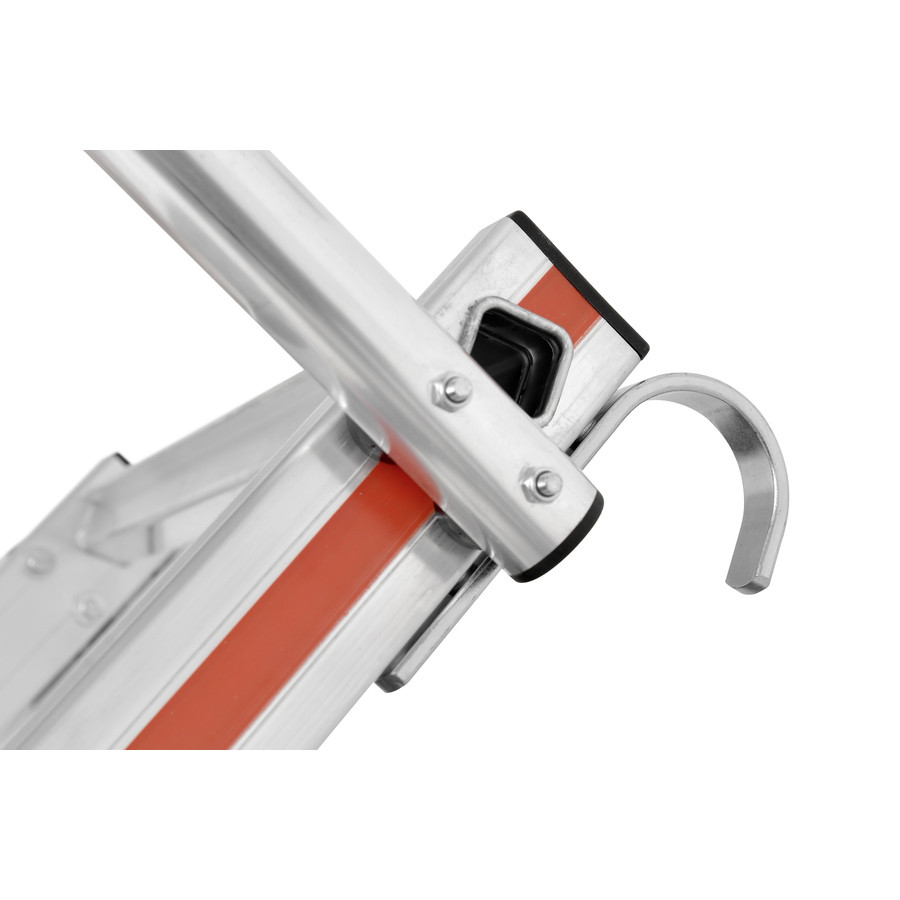

Equipped as standard with 2 suspension hooks (60 mm (24") diameter)
