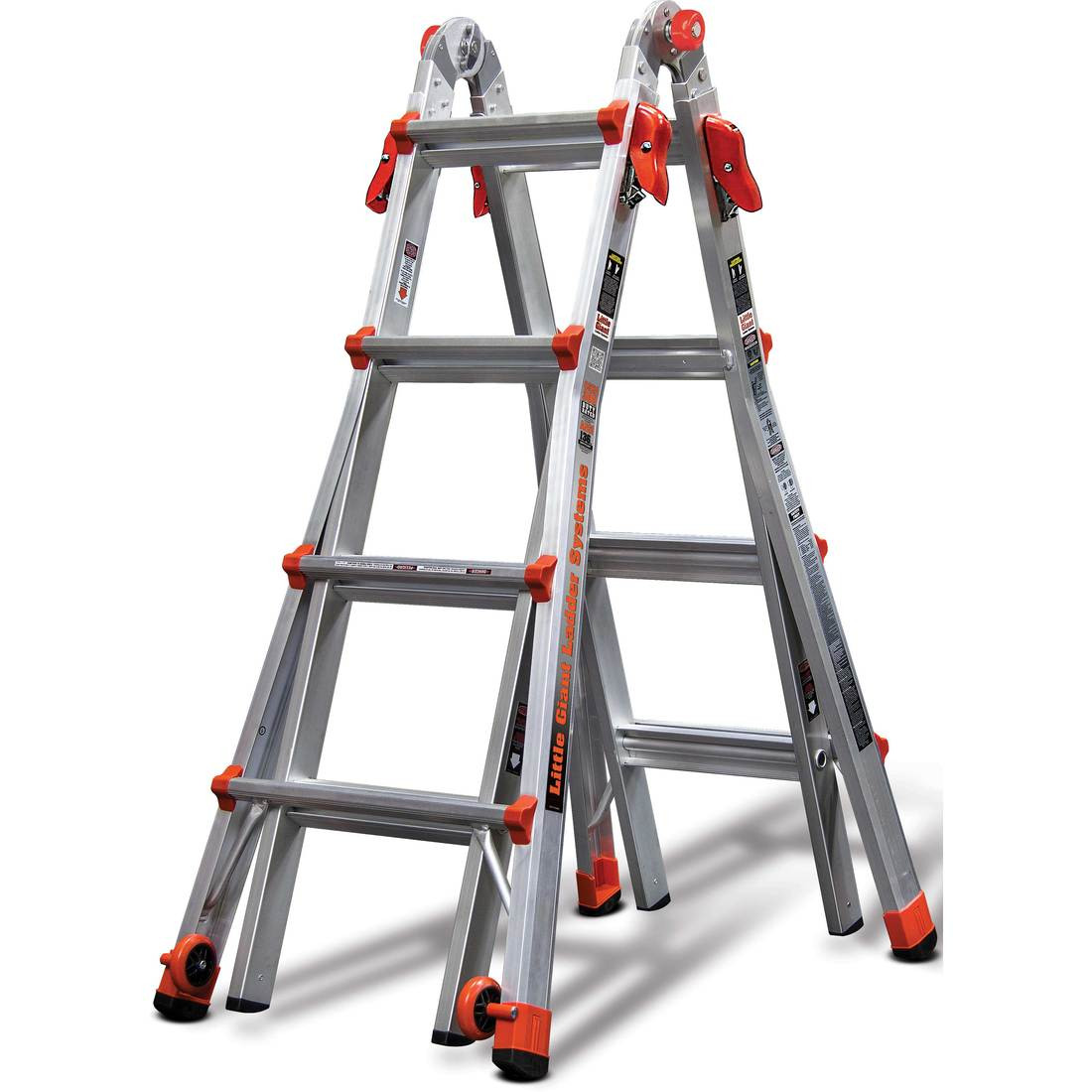

VELOCITY TELESCOP LADDER
VELOCITY TELESCOP LADDER

VELOCITY TELESCOP LADDER

Standard: ANSI A14.2/OSHA 1910.66

Aluminium ladder ideal for maximum durability and stability.

Select your reference
+
-

Advantages and strengths

Assembly in seconds thanks to the patented Rock Lock system.

Technical characteristics

Reference Total height (') Width (') Weight (lb) Quantity Quote
Ref. 15417-303
Code AC000074
VELOCITY TELESCOPIC 17
15 ' 2 ' 30,00 lb
+
-
Ref. 15422-303
Code AC000075
VELOCITY TELESCOPIC 22
19 ' 2 ' 40,00 lb
+
-
VELOCITY TELESCOPIC 17
Reference : 15417-303
Total height (') 15 '
Width (') 2 '
Weight (lb) 30,00 lb
Quantity :
+
-
VELOCITY TELESCOPIC 22
Reference : 15422-303
Total height (') 19 '
Width (') 2 '
Weight (lb) 40,00 lb
Quantity :
+
-

Use

Its aluminium construction made from a special aeronautical quality alloy makes it 20% lighter than any comparable industrial ladder.

Equipped with double pin hinge for added stability and convenience.

Completed with Tip & Glide wheels for easy transport. Easily adapts to different heights.

2 models available with a maximum height of 4.50 m and 5.80m (14'9" and 19').

Technical description

Storage depth: 20 cm (8")


Weight capacity: 130 kg (286 lb)


Width at the base: 0.60 m(2')


Maximum height of the scaffolding: 90 cm (35")


Standard weight: 14/18 kg (30 lb/40 lb)


Maximum height of frame: 2.15/2.77 m (7'/9')


Max. extension height: 4.57/5.80 m (15'/19')


Maximum height of the bench: 1.22/1.52 m (4'/5')


Minimum height of frameA: 1.24/1.55 m (4'/5')


Min. extension height: 2.74/3.35 m (9'/11')


Storage height: 1.40/1.70 m (4'7"/5'7")
