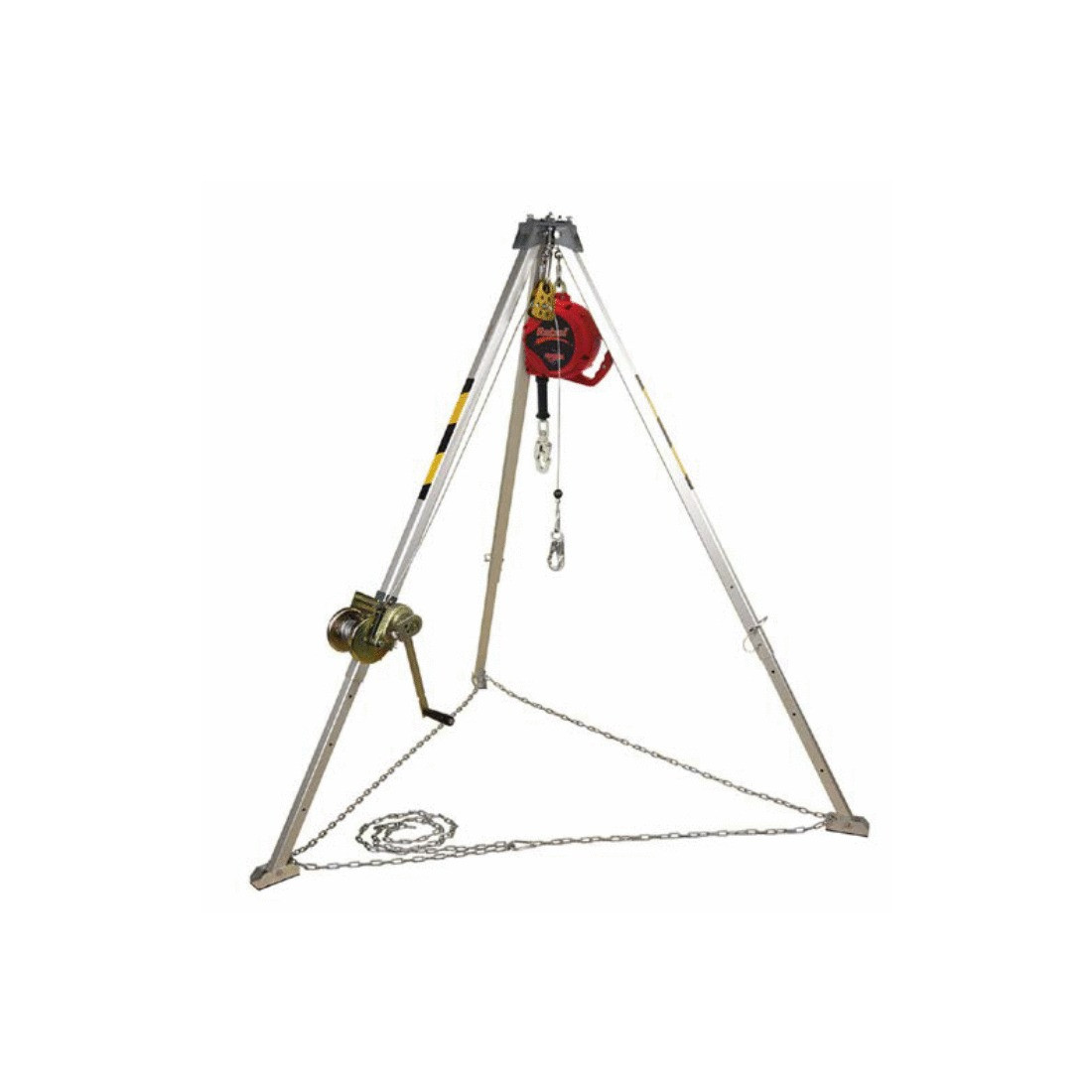

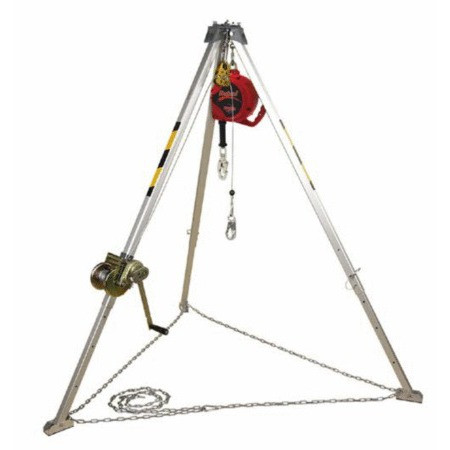

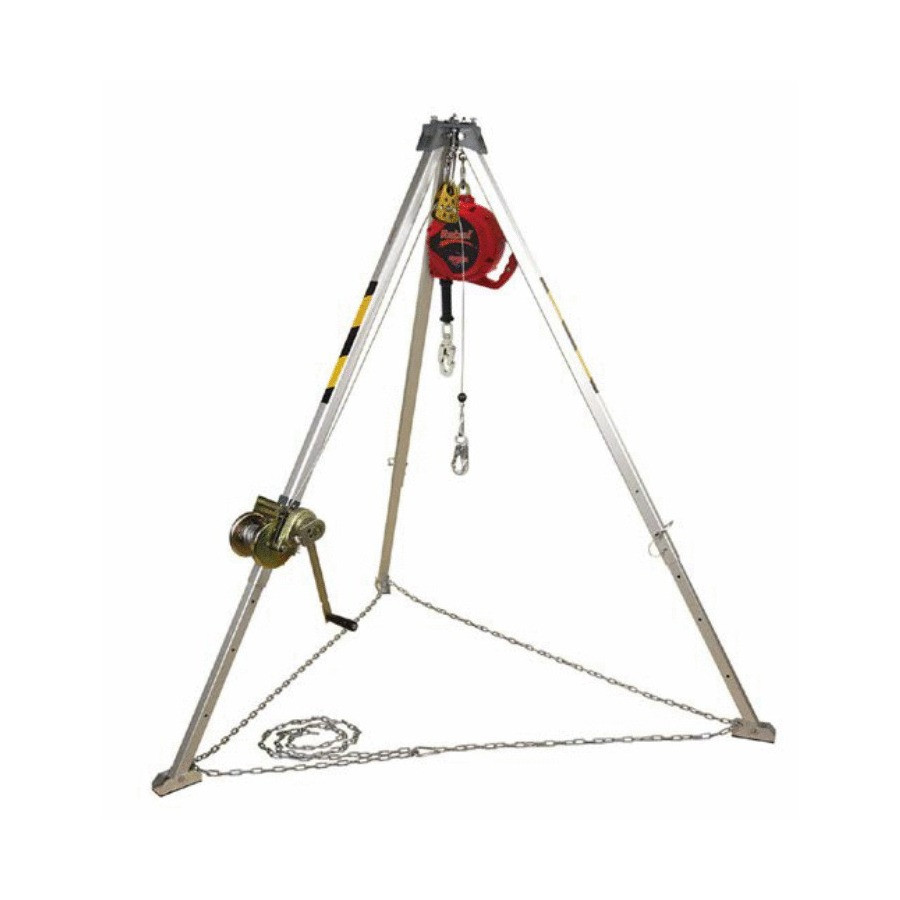

Three-way self-retracting lifeline tripod
Three-way self-retracting lifeline tripod

Three-way self-retracting lifeline tripod

Standard: ANSI Z117.1-1995/OSHA 1910.66/OSHA 1910.146/OSHA 1926.502

Tripod ideal for confined space.

Select your reference
+
-
Three-way self-retracting lifeline tripod

Advantages and strengths

Extremely easy assembly; does not bother the workers during emergency rescue situations, for added security.

Technical characteristics

Reference Load-bearing capacity (lb) Weight (lb) Quantity Quote
Ref. 8308009
Code AC000178
Three-way self-retracting lifeline tripod
310 lb 163,60 lb
+
-
Three-way self-retracting lifeline tripod
Reference : 8308009
Load-bearing capacity (lb) 310 lb
Weight (lb) 163,60 lb
Quantity :
+
-

Use

This tripod includes:

- a recovery winch

- a 15 m (50') galvanised three-way self-retracting lifeline with a mounting bracket and a pulley for confined space entrances.

The fastening bracket is used to attach the self-retracting lifeline to the tripod.

Its aluminium construction enables the lightweight and durability of the product.

This tripod is easy to transport, mount and use and is weatherproof, for a longer lifetime.

Its feet are lockable, adjustable and telescopic.

Compact and durable design.

Technical description

Aluminium tripod of 2,40 m (8’)


Capacity : 140 kg (310 lb)


Portable assembly


Galvanised steel lifeline cable, with a length of 15,20 m (50’) and a diameter of 5 mm 3/16’"


Winch housing : cast aluminium, powder coating
