Standard fastening legs for crinoline ladders
Standard fastening legs for crinoline ladders

Standard fastening legs for crinoline ladders

Standard: NF E85-016/EN ISO 14122-4

Select your reference
+
-
Standard fastening legs for crinoline ladders

Technical characteristics

Reference Version Length ('') Width ('') Spacing ('') Weight (lb) Quantity Quote
Ref. 50139
Code A0002594
STANDARD FASTENING LEGS
visserie zinguée 11 '' 2 '' 7,50 '' 1,80 lb
+
-
Ref. 50139X
Code A0010519
50139X PAIRE PATTES STD 50139 AVEC VISSERIE INOX
visserie inox 11 '' 2 '' 7,50 '' 1,80 lb
+
-
STANDARD FASTENING LEGS
Reference : 50139
Version visserie zinguée
Length ('') 11 ''
Width ('') 2 ''
Spacing ('') 7,50 ''
Weight (lb) 1,80 lb
Quantity :
+
-
50139X PAIRE PATTES STD 50139 AVEC VISSERIE INOX
Reference : 50139X
Version visserie inox
Length ('') 11 ''
Width ('') 2 ''
Spacing ('') 7,50 ''
Weight (lb) 1,80 lb
Quantity :
+
-

Use

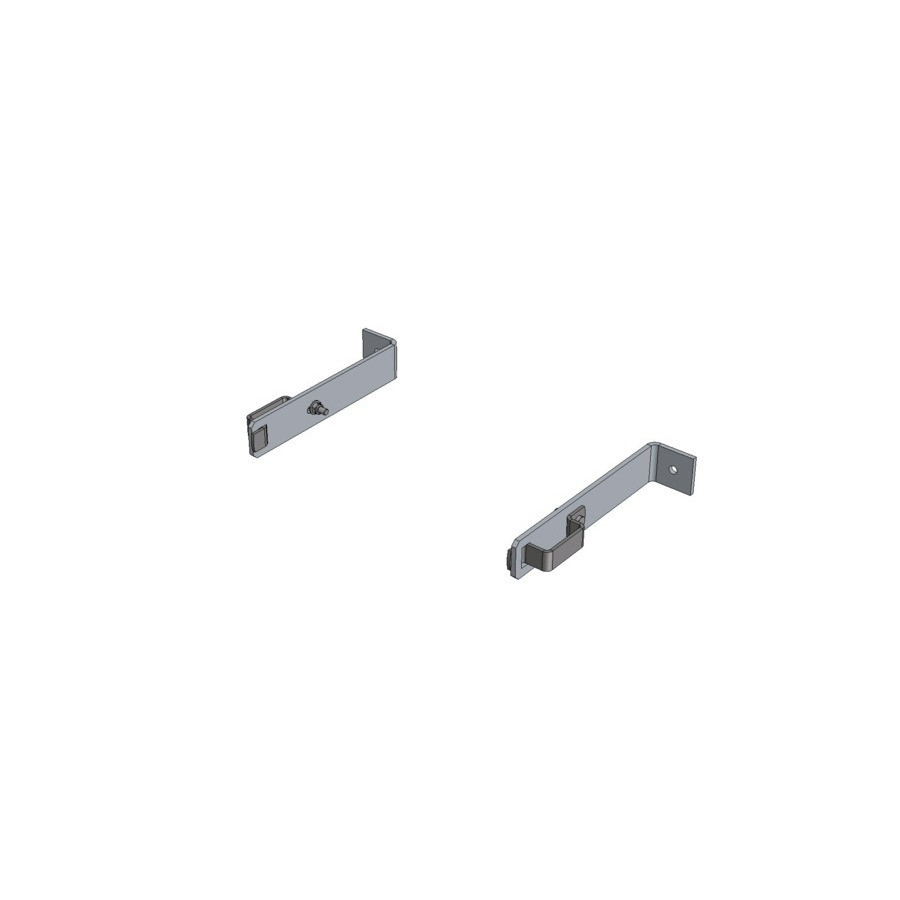

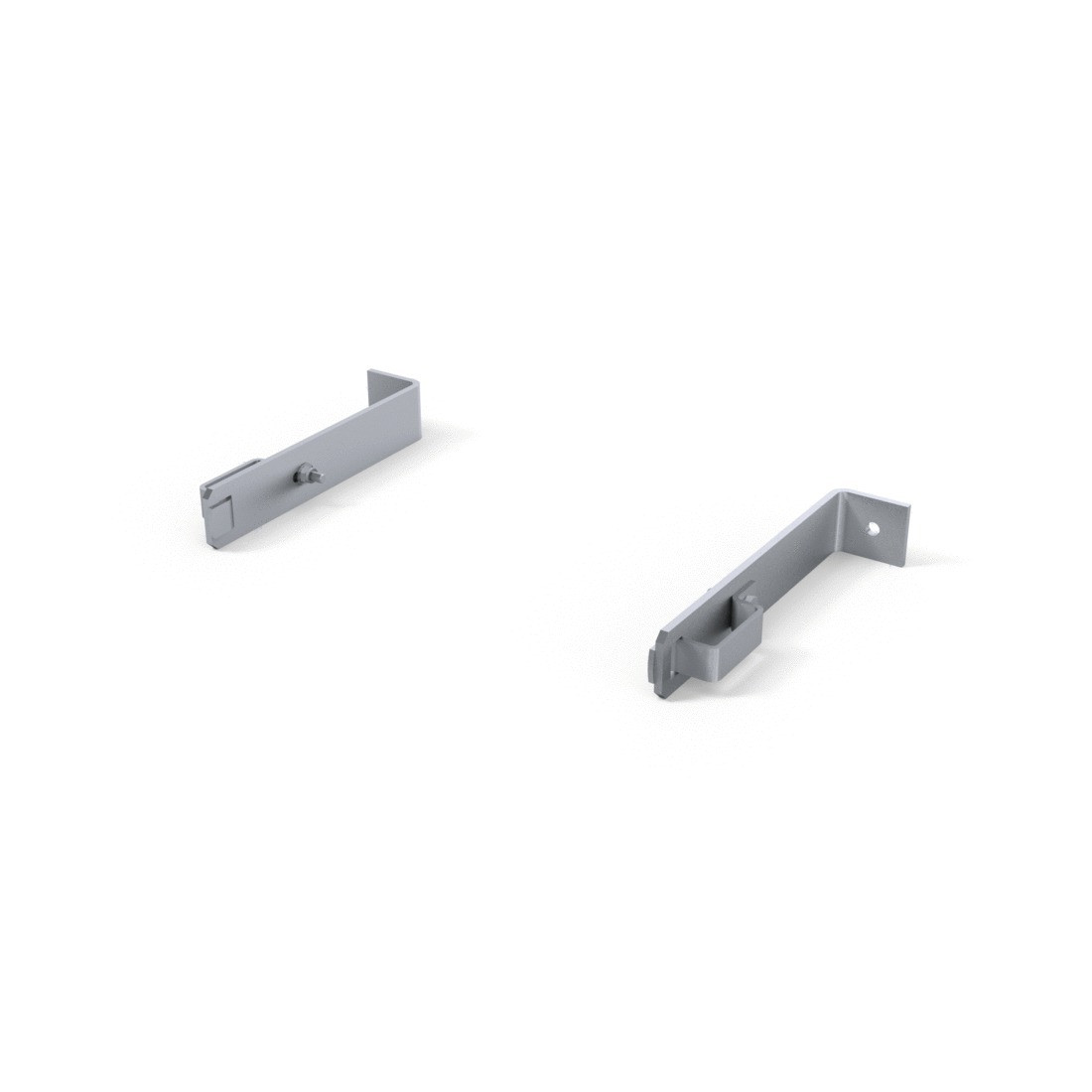

Pair of fastening legs for the crinoline ladder.

Pre-assembled and sold in pairs.

To be fastened vertically at every 2.50 m maximum.

Technical description

Made of aluminium


Bore diameter: 11 mm


Wall spacing: 184 mm


Length: 272 mm


Width: 50 mm
