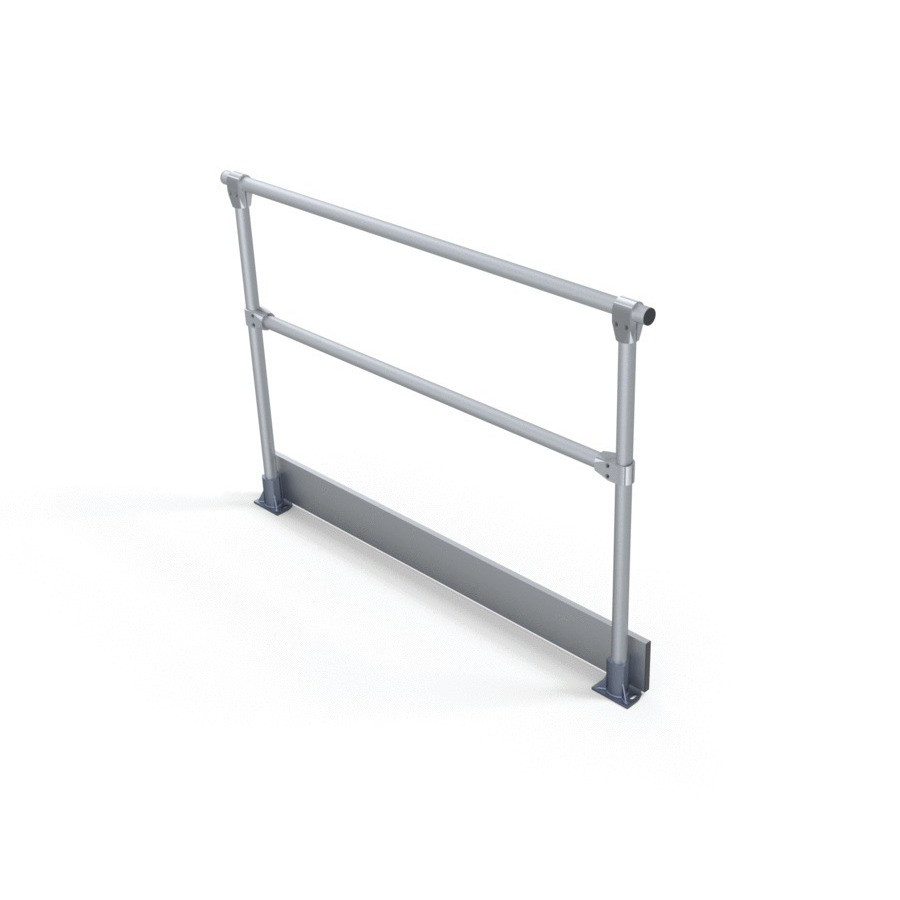

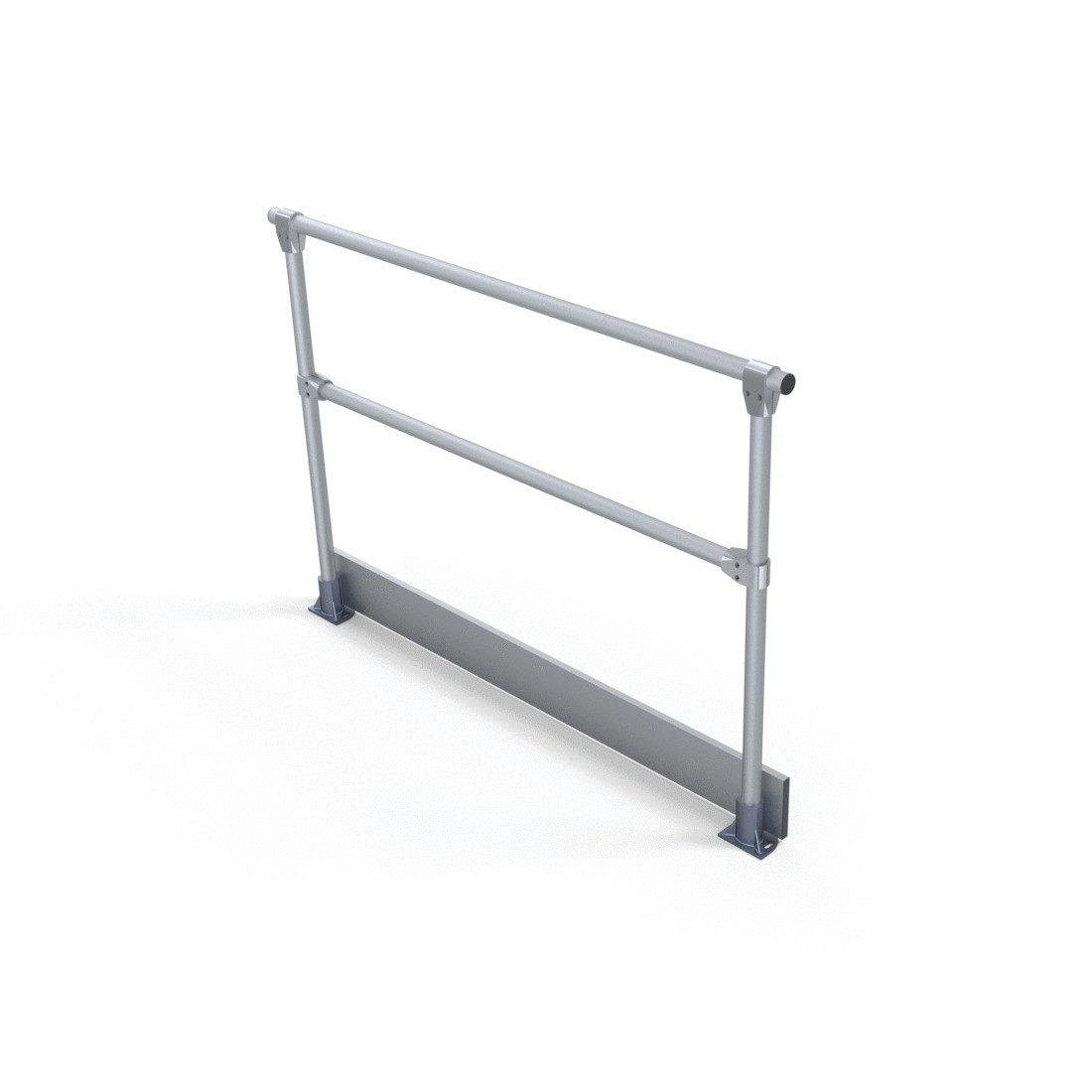

Crinoline ladders exit guardrails
Crinoline ladders exit guardrails

Crinoline ladders exit guardrails

Standard: NF E85-015/EN ISO 14122-3

Select your reference
+
-
Crinoline ladders exit guardrails

Technical characteristics

Reference Version Length (') Weight (lb) Quantity Quote
Ref. 53337AP
Code A0002627
EXIT GUARDRAILS with plinth 1.50 (59’’)
avec plinthe 5,00 ' 13,23 lb
+
-
Ref. 53337SP
Code A0002628
EXIT GUARDRAILS without plinth 1.50 (59’’)
sans plinthe 5,00 ' 11,02 lb
+
-
EXIT GUARDRAILS with plinth 1.50 (59’’)
Reference : 53337AP
Version avec plinthe
Length (') 5,00 '
Weight (lb) 13,23 lb
Quantity :
+
-
EXIT GUARDRAILS without plinth 1.50 (59’’)
Reference : 53337SP
Version sans plinthe
Length (') 5,00 '
Weight (lb) 11,02 lb
Quantity :
+
-

Use

Side guardrails recommended when exiting crinoline ladders on machines.

To be positioned on each side of the exit.

Available with or without plinth.

Technical description

Made of aluminium Structure of tubes connected by tubular connectors


Length: 1500 mm
