Cladding fastening plate

Cladding fastening plate

Standard: NF E85-016/EN ISO 14122-4

Select your reference
+
-

Advantages and strengths

Avoids the cutting of the steel cladding.

Technical characteristics

Reference Weight (lb) Sizes ('') Quantity Quote
Ref. PLAQUEFIXBARDAGE
Code A0009001
Fastening plate for cladding
3,35 lb 28 - 7 ''
+
-
Ref. BANDEETANCH10M
Code A0008888
Roll of sealing tape
0 lb 72 ''
+
-
Ref. RIVETPOP77
Code A0008881
Pop-clinchalu7.7
0 lb 0,30 ''
+
-

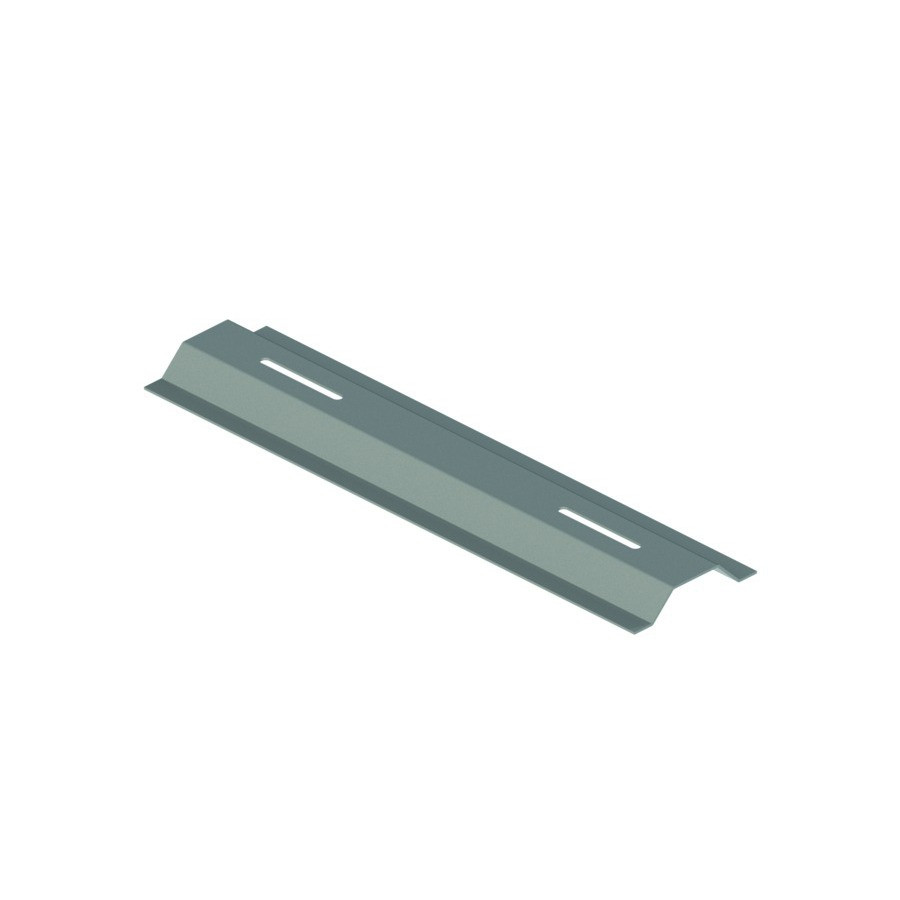

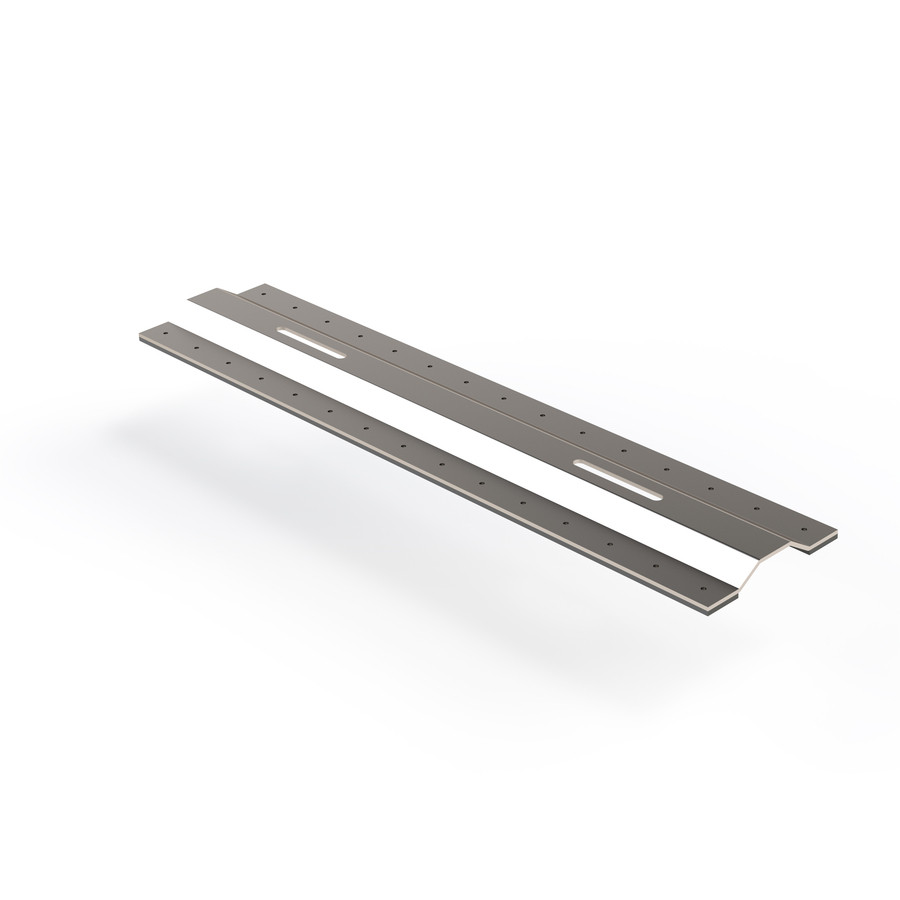

Fastening plate for cladding
Reference : PLAQUEFIXBARDAGE
Weight (lb) 3,35 lb
Sizes ('') 28 - 7 ''
Quantity :
+
-

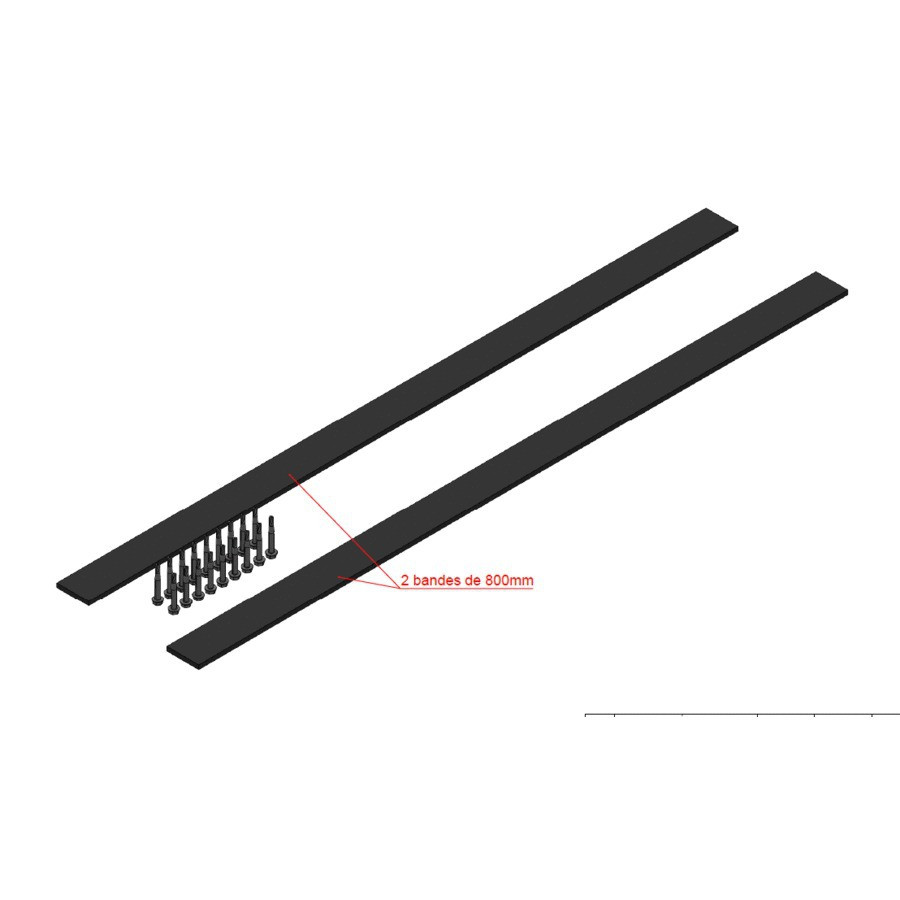

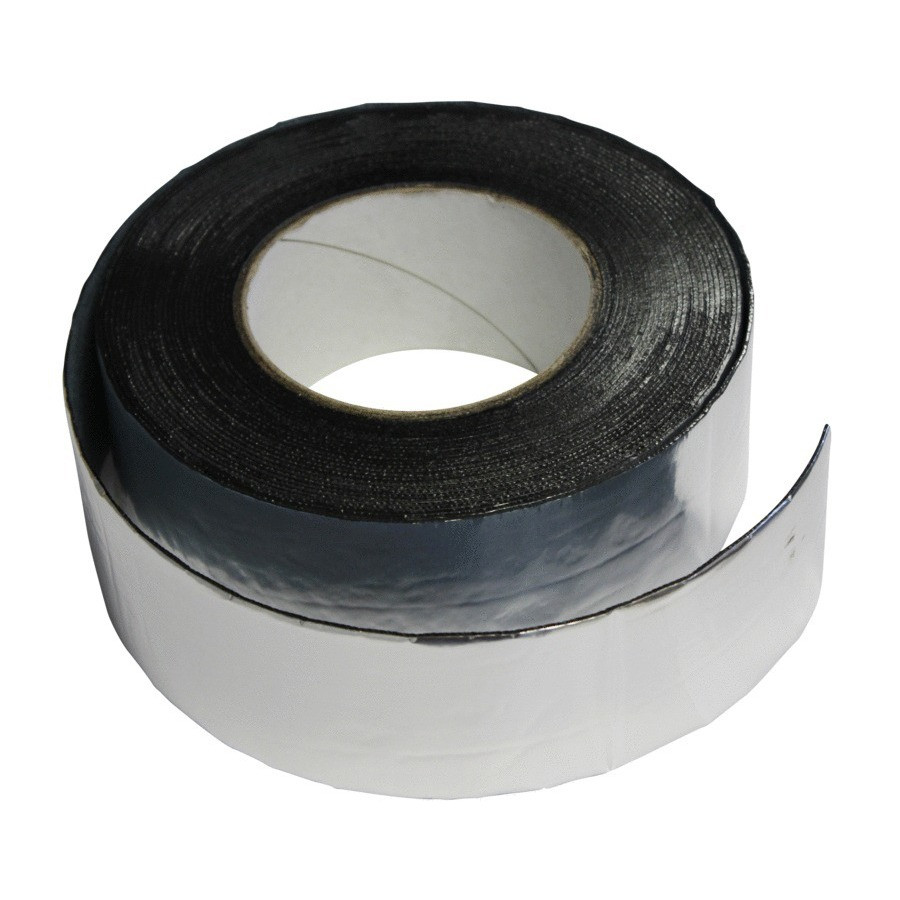

Roll of sealing tape
Reference : BANDEETANCH10M
Weight (lb) 0 lb
Sizes ('') 72 ''
Quantity :
+
-

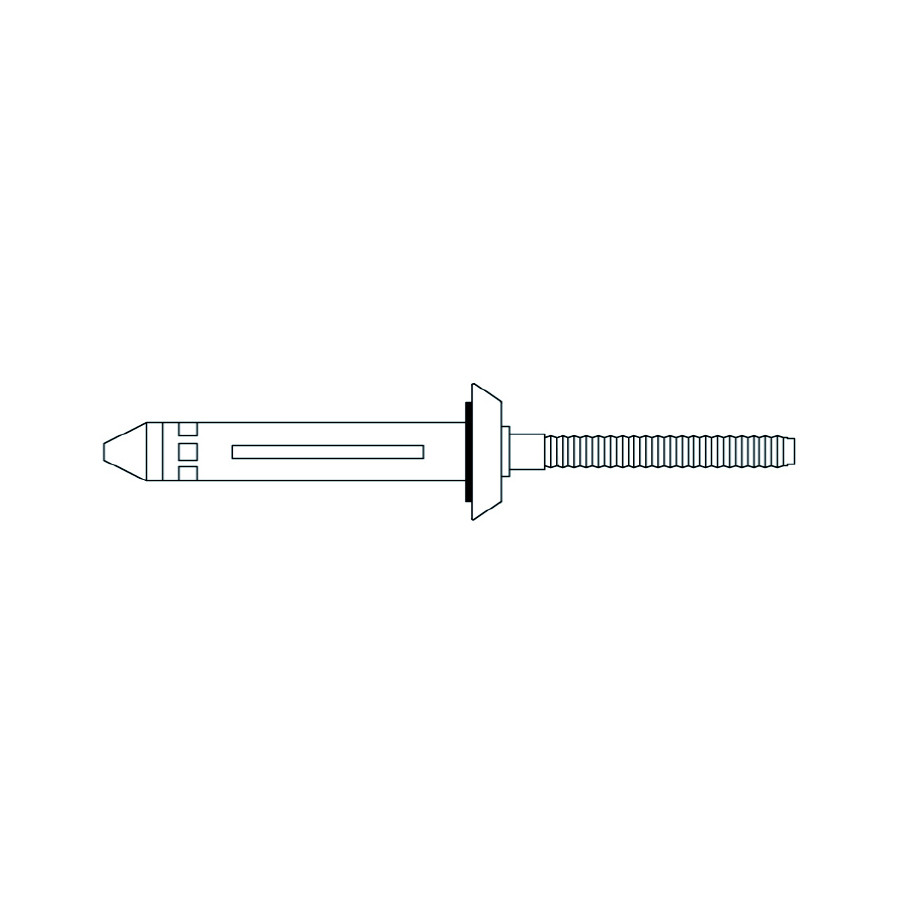

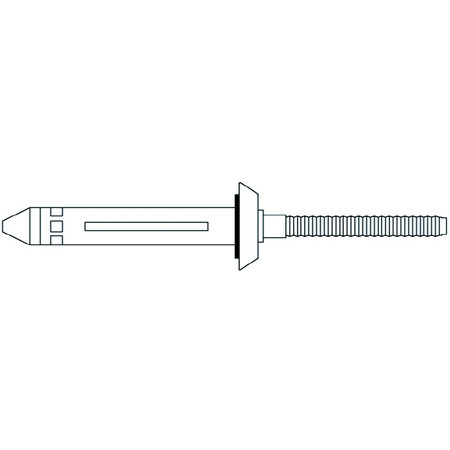

Pop-clinchalu7.7
Reference : RIVETPOP77
Weight (lb) 0 lb
Sizes ('') 0,30 ''
Quantity :
+
-

Use

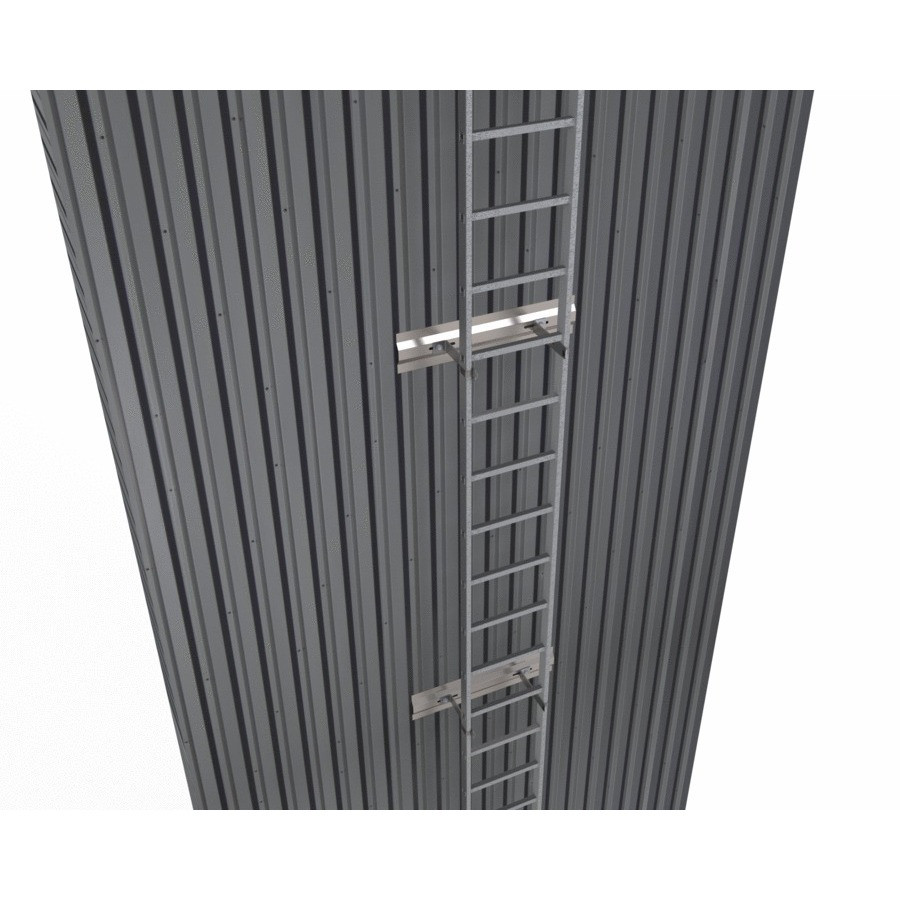

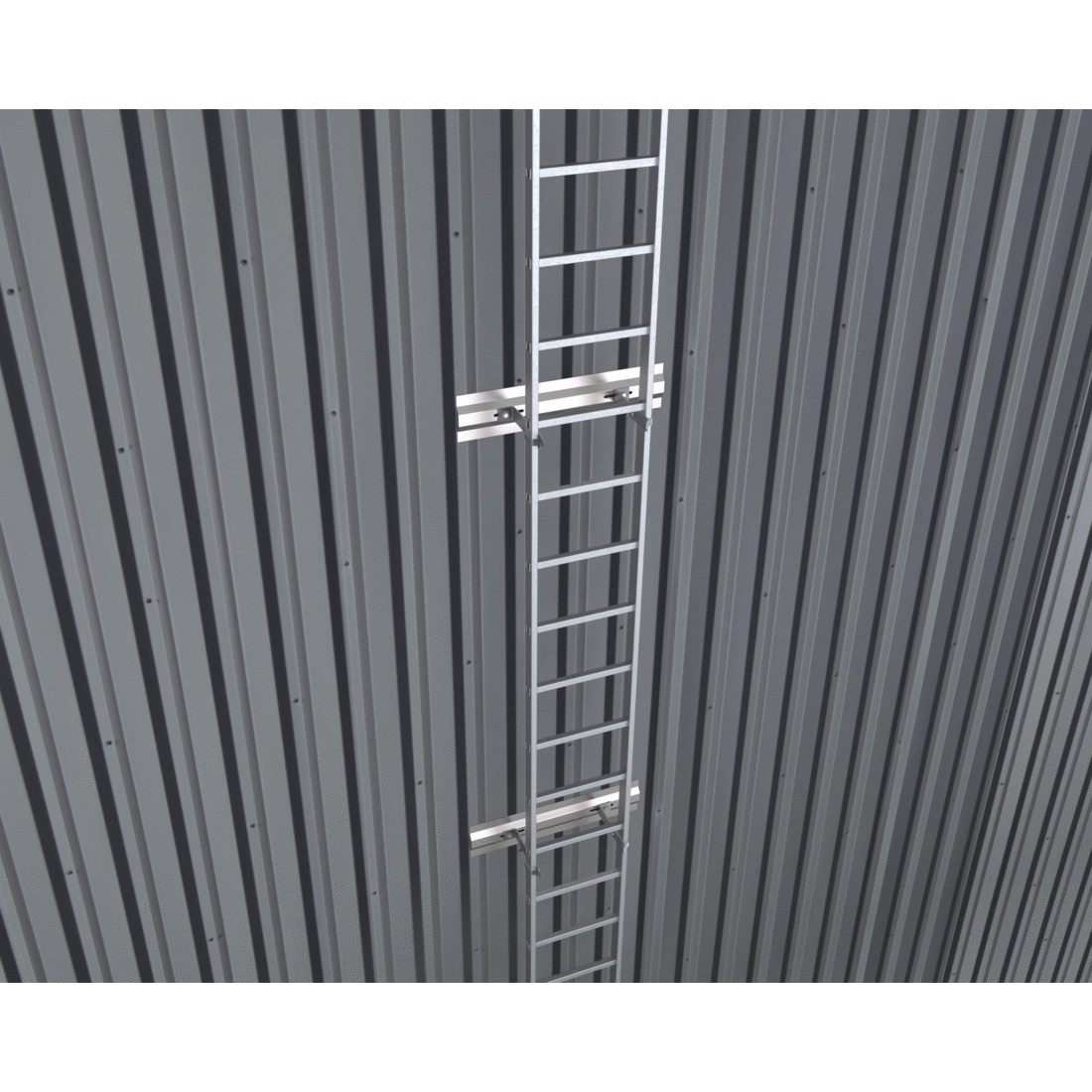

Accessory for fastening the crinoline ladder on the steel cladding.

Waterproofing preserved by the use of neoprene washers and sealing tape.

Maximum spacing between plates: 2.50 m.

Technical description

Thickness of the plate: 4 mm


Recommended fastening: 8 clinches pop alu 7.70 mm or 16 self-drilling screws


Provide a sealing tape role for 6 fastening plates
