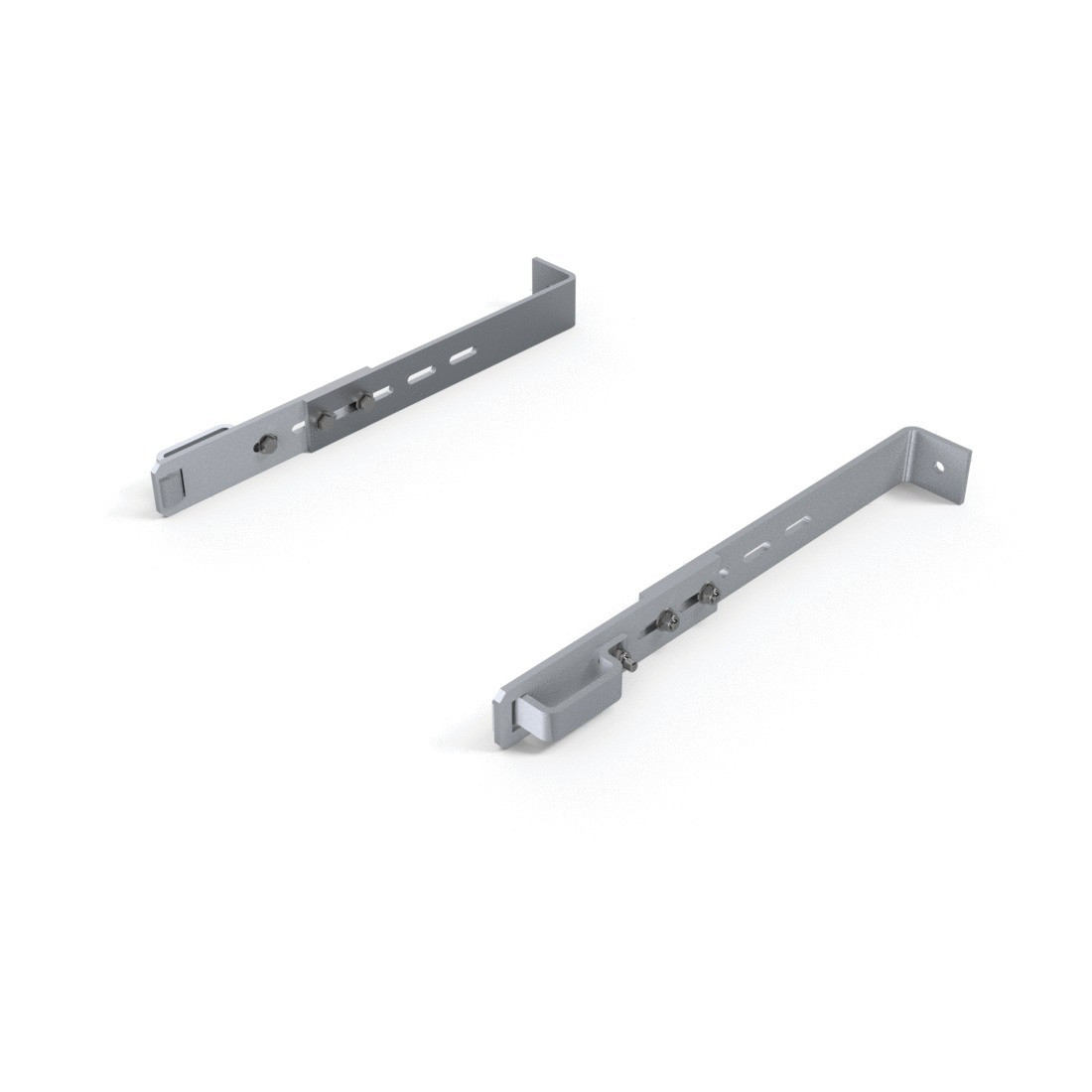

Adjustable fastening legs for crinoline ladders
Adjustable fastening legs for crinoline ladders

Adjustable fastening legs for crinoline ladders

Standard: NF E85-016/EN ISO 14122-4

Select your reference
+
-
Adjustable fastening legs for crinoline ladders

Technical characteristics

Reference Version Length ('') Spacing ('') Weight (lb) Quantity Quote
Ref. 51571
Code A0002611
ADJUSTABLE FASTENING LEGS 239 - 359 (9,4’’-14’’)
visserie inox 9 - 14 '' 6 - 11 '' 2,20 lb
+
-
Ref. 51571L
Code A0002612
ADJUSTABLE FASTENING LEGS 359 - 479 (14’’-18,8’’)
visserie inox 14 - 19 '' 11 - 15 '' 2,30 lb
+
-
ADJUSTABLE FASTENING LEGS 239 - 359 (9,4’’-14’’)
Reference : 51571
Version visserie inox
Length ('') 9 - 14 ''
Spacing ('') 6 - 11 ''
Weight (lb) 2,20 lb
Quantity :
+
-
ADJUSTABLE FASTENING LEGS 359 - 479 (14’’-18,8’’)
Reference : 51571L
Version visserie inox
Length ('') 14 - 19 ''
Spacing ('') 11 - 15 ''
Weight (lb) 2,30 lb
Quantity :
+
-

Use

Fastening legs allowing to shift the ladder from the façade.

To fasten vertically at every 2.50 maximum.

Pre-assembled and sold in pairs.

Technical description

Made of aluminium


Zinc-plated or stainless-steel hardware 2 setting fields: 150-270 mm and 270-390 mm


Bore diameter: 11 mm
