Adjustable fastening bracket
Adjustable fastening bracket

Adjustable fastening bracket

Standard: NF E85-016/EN ISO 14122-4

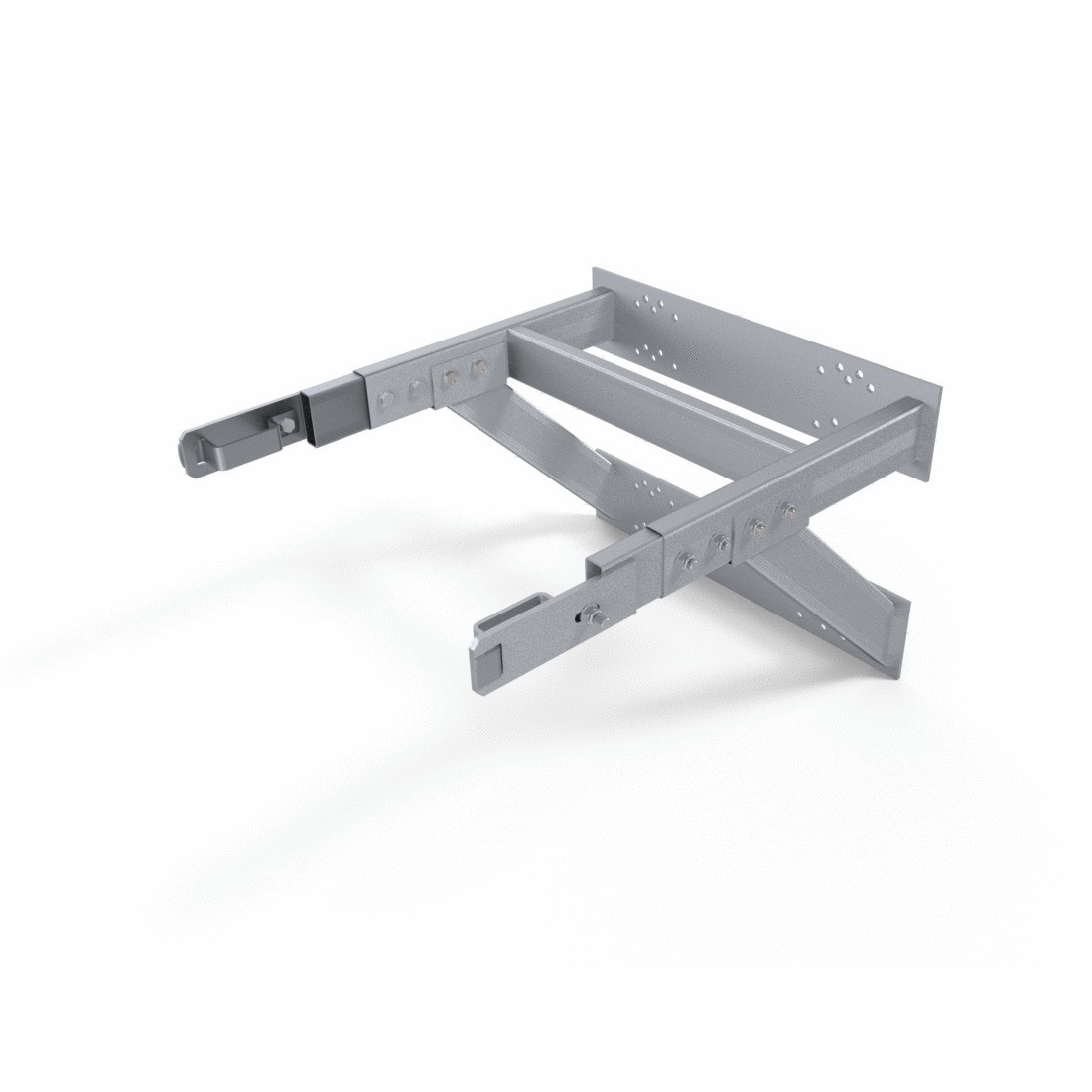

Telescopic fastening bracket for handling large fastening offsets.

Select your reference
+
-

Technical characteristics

Reference Spacing (') Weight (lb) Quantity Quote
Ref. 53320
Code A0008236
ADJUSTABLE FASTENING BRACKET 350 - 720 (13,8’’-28,3’’)
1 - 2 ' 8,81 lb
+
-
ADJUSTABLE FASTENING BRACKET 350 - 720 (13,8’’-28,3’’)
Reference : 53320
Spacing (') 1 - 2 '
Weight (lb) 8,81 lb
Quantity :
+
-

Use

Aluminium wall support bracket for the crinoline ladder.

4 setting fields available.

Fastened in solid brackets and fitted on the cladding.

Technical description

Horizontal boring distance: 420 mm


Vertical boring distance: 250 mm


Max. deflection: 720 mm


Min. deflection: 420 mm
