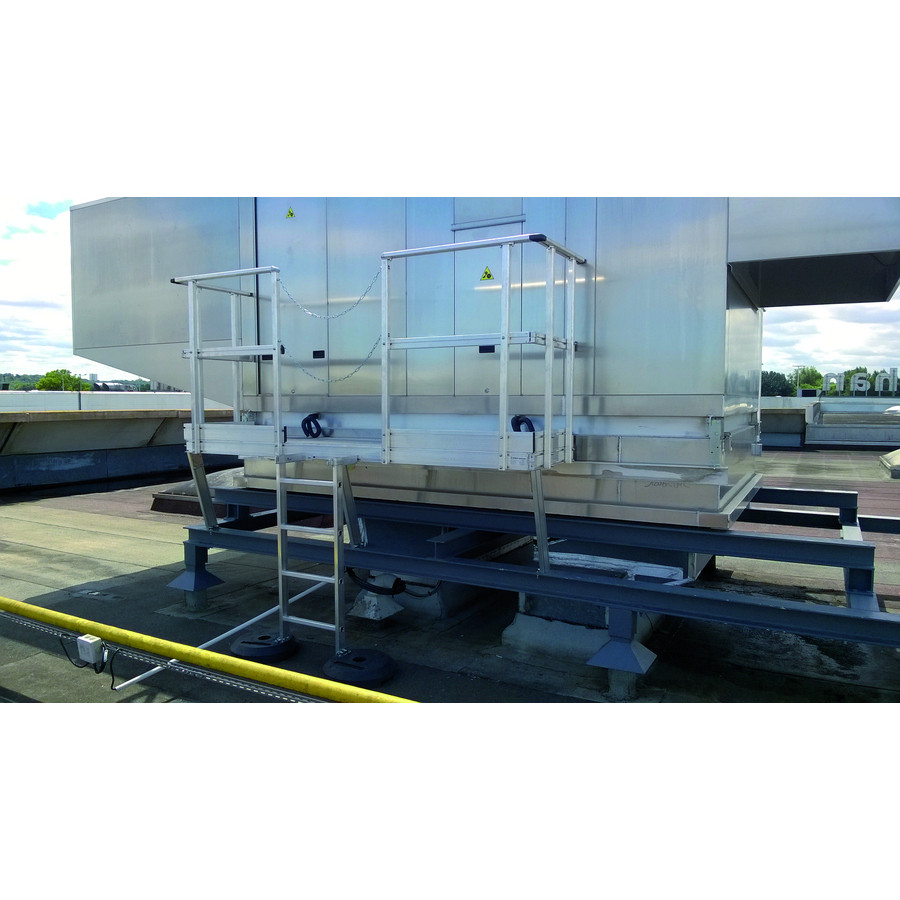

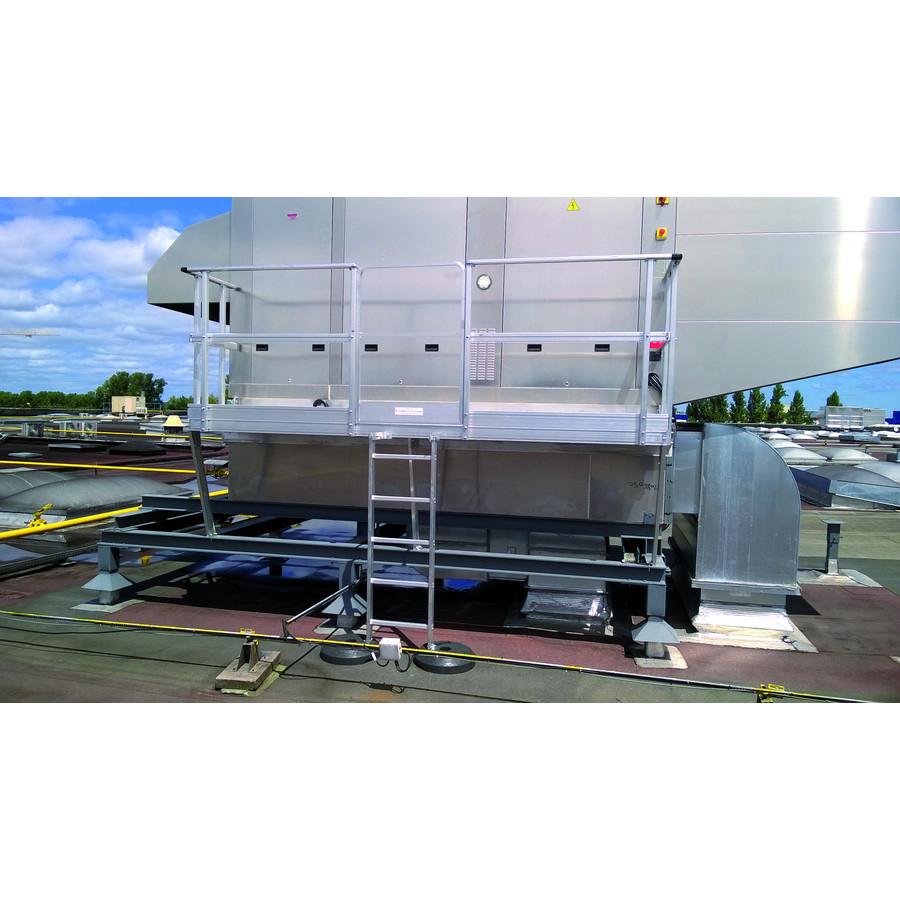

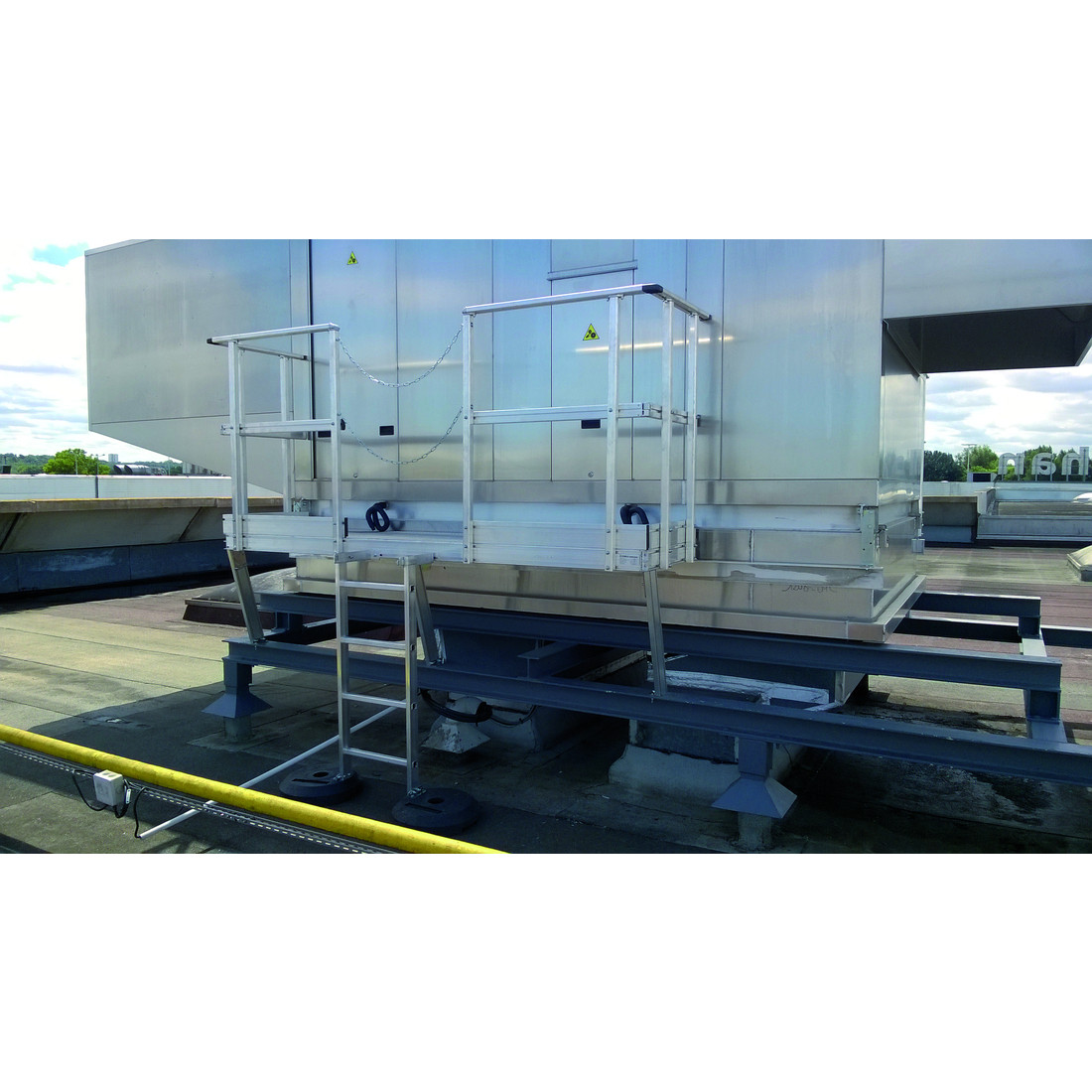

Secure access to the air conditioning on the roof
Enables 2 secure accesses to air conditioning units on the roof of a building.
Use
Impossible to fasten on the waterproofing unit of the roof.
Several obstacles to manage : design to go around the machinery and to be integrated between the skylights of the roof, to manage the roof slope issues and the waterproofing flexibility.
Collective security of equipment.
Technical description

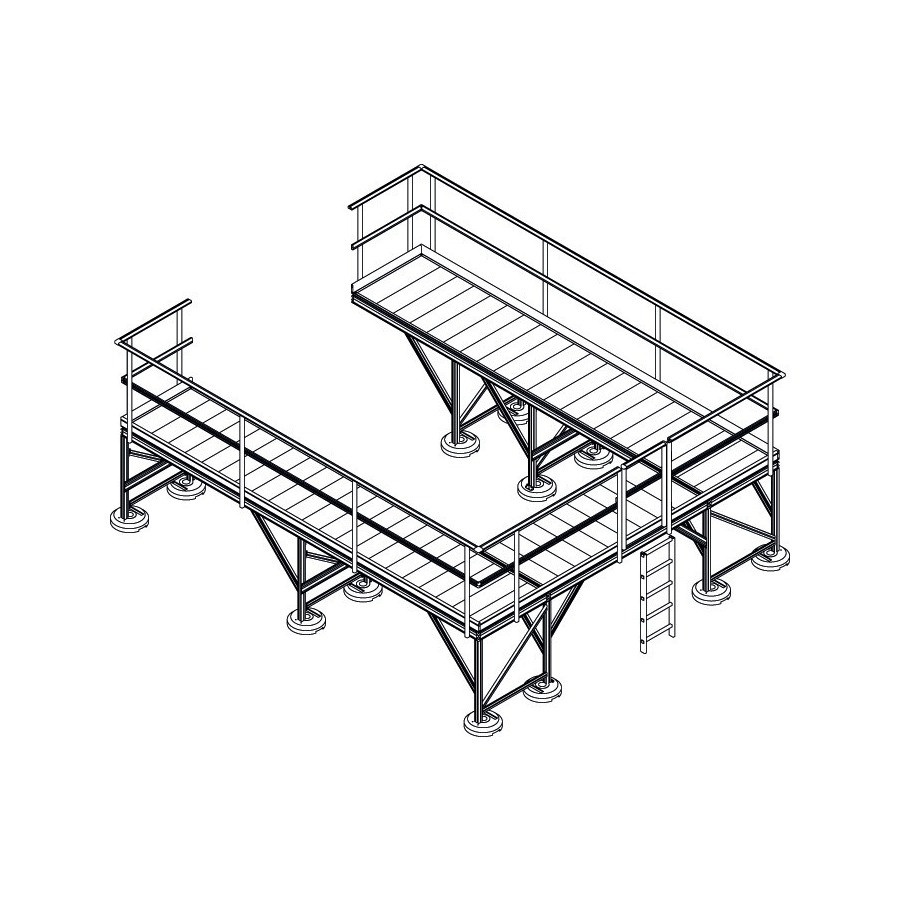

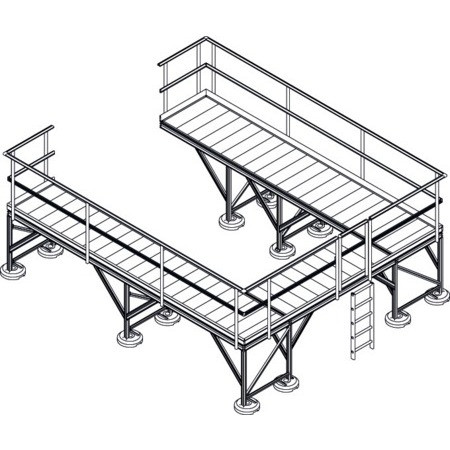

2 peripheral self-supporting platforms with ladder access
Platform height of 1280 mm (50")
Platform sizes : 600 x 3400 mm: 600 x 3400 mm (24" x 134")
Grooved aluminium planking
Enabling of cantilevers allowing the passing over the skylights of the roof
Working width of 1000 mm (39")
Fastening on a concrete resin block preserving the waterproofing
Access by vertical ladder
Fall arrest securing by guardrails and side doors
