FASTWALK roof walkway

FASTWALK roof walkway

Warranty 3 years
Standard: CNB/RSST

Secure the movements of roof workers with FASTWALK.

Select your reference
+
-

Advantages and strengths

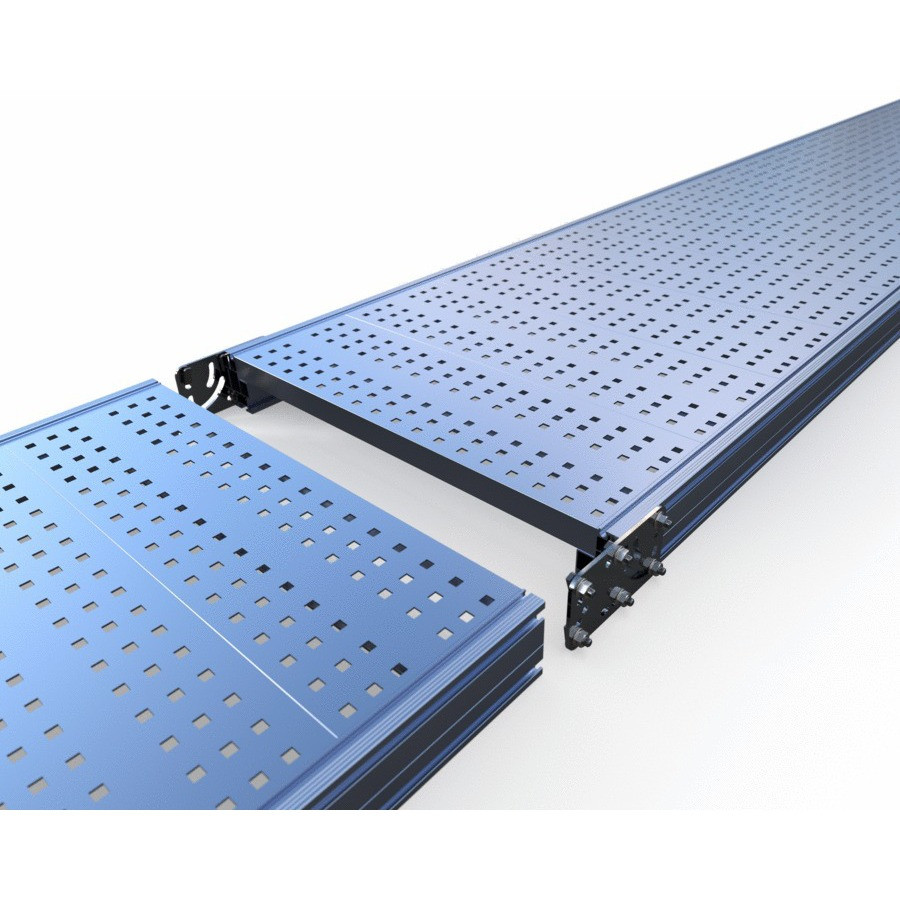

Easy to install thanks to the seamless connection plate systems. Quotation in 48 hours.

Technical characteristics

Reference Quantity Quote
Ref. 11282586847621
Code A0010824
FASTWALK roof walkway
+
-
FASTWALK roof walkway
Reference : 11282586847621
Quantity :
+
-

Use

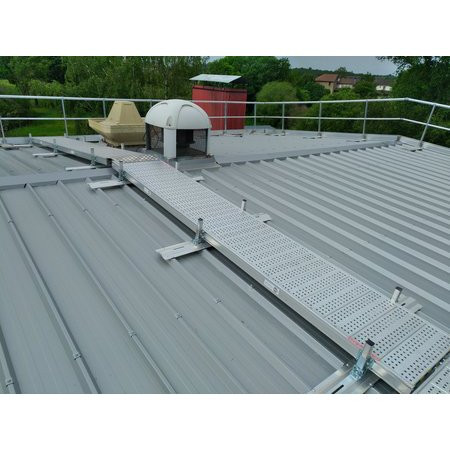

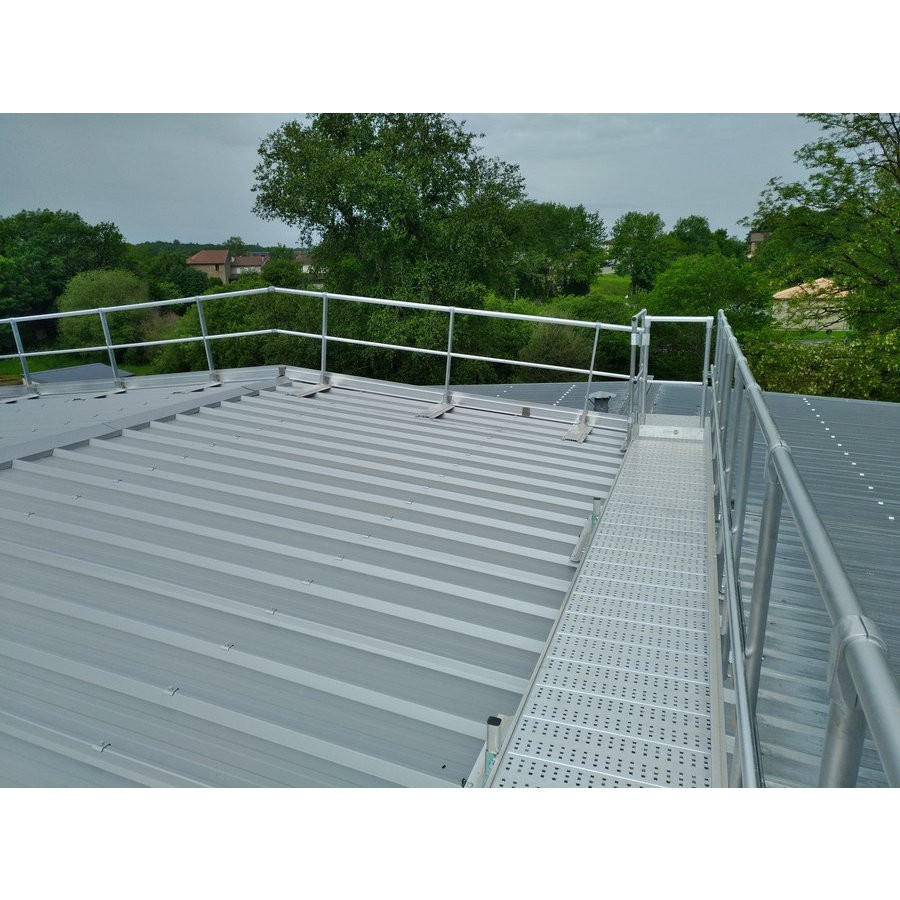

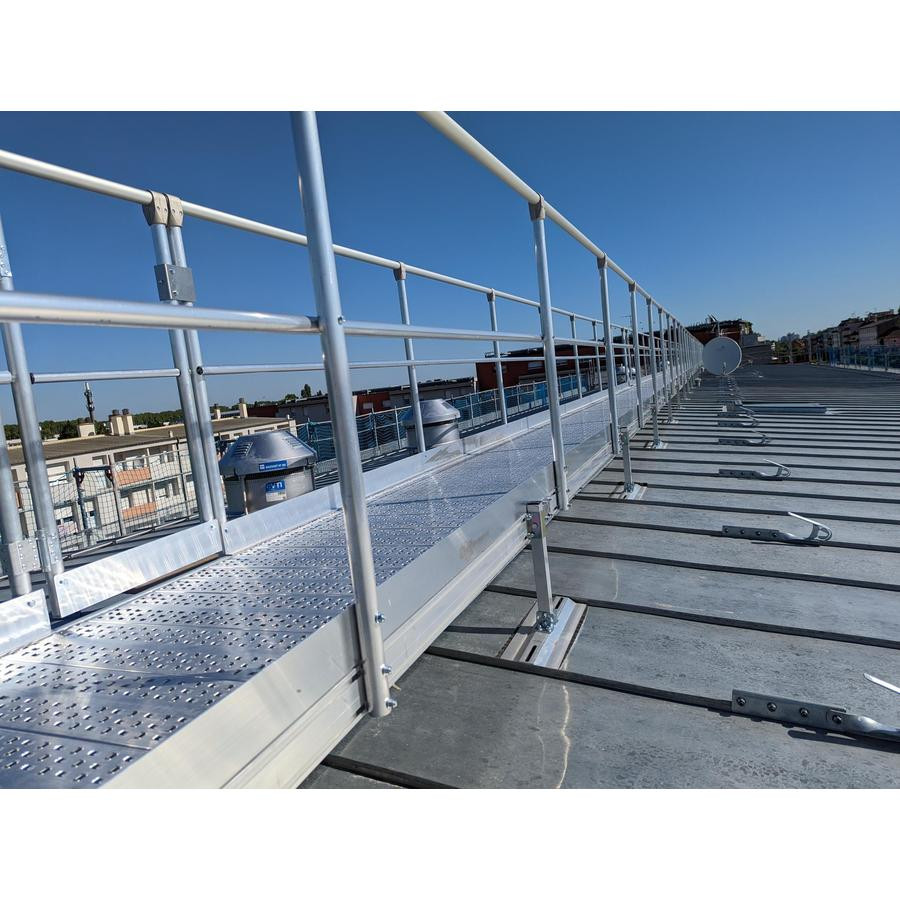

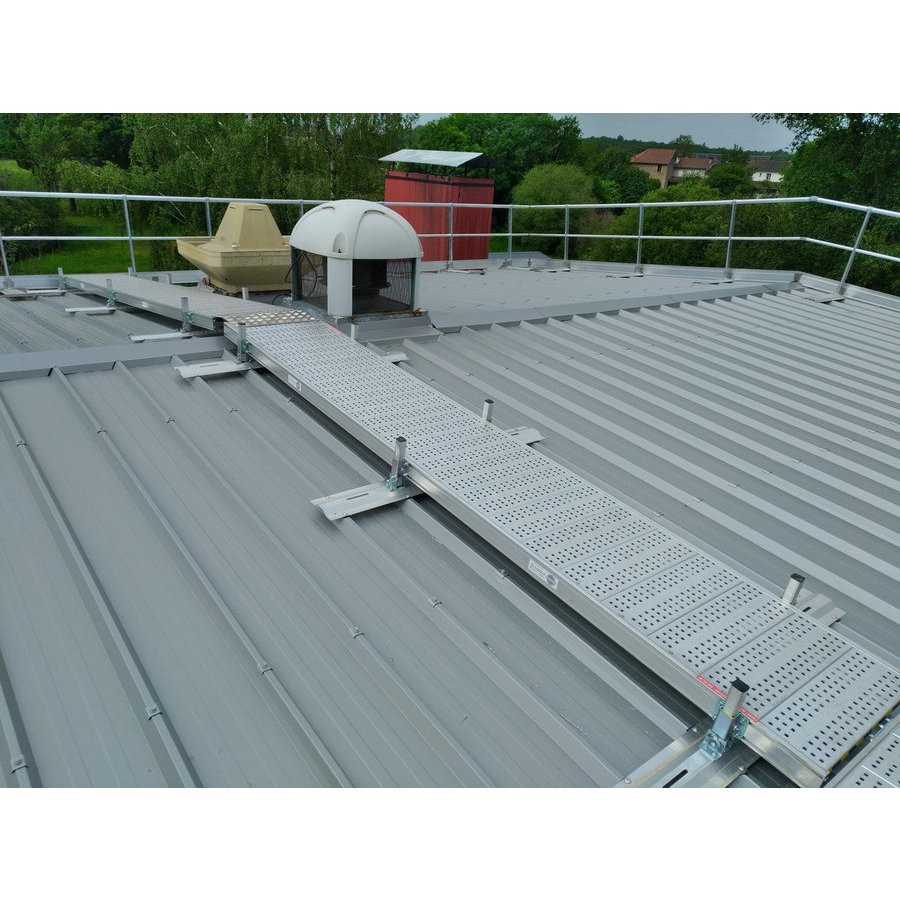

New quick-to-install roofing guiding system that adapts to all roof configurations.

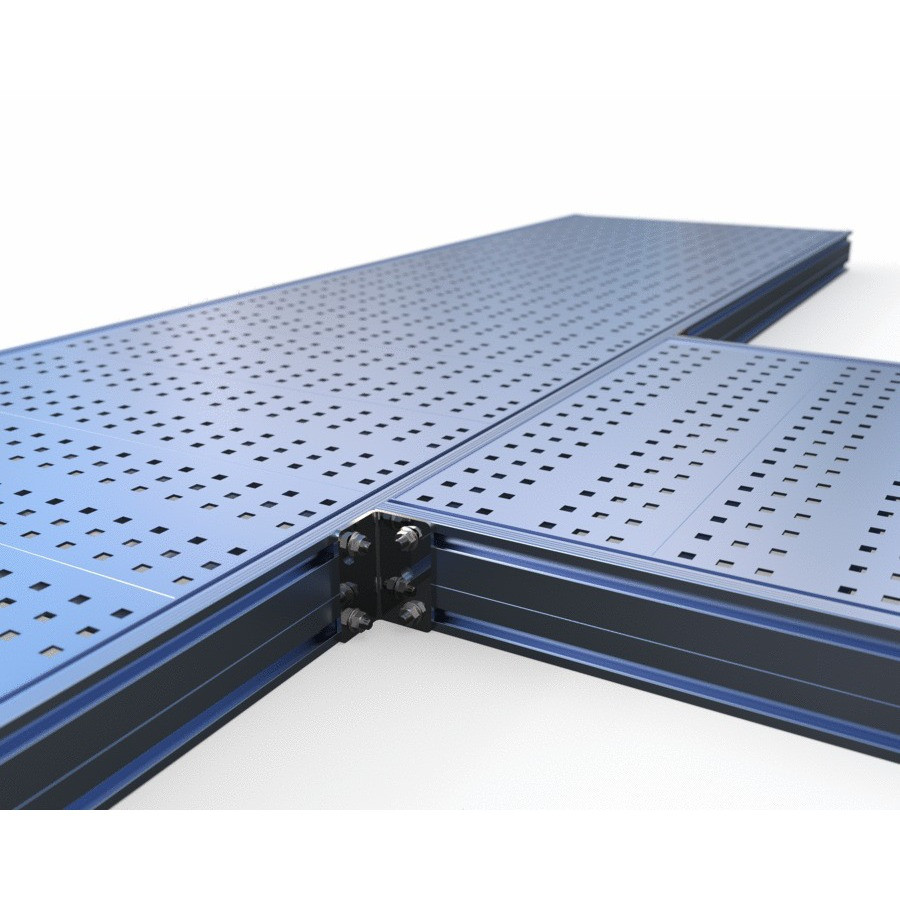

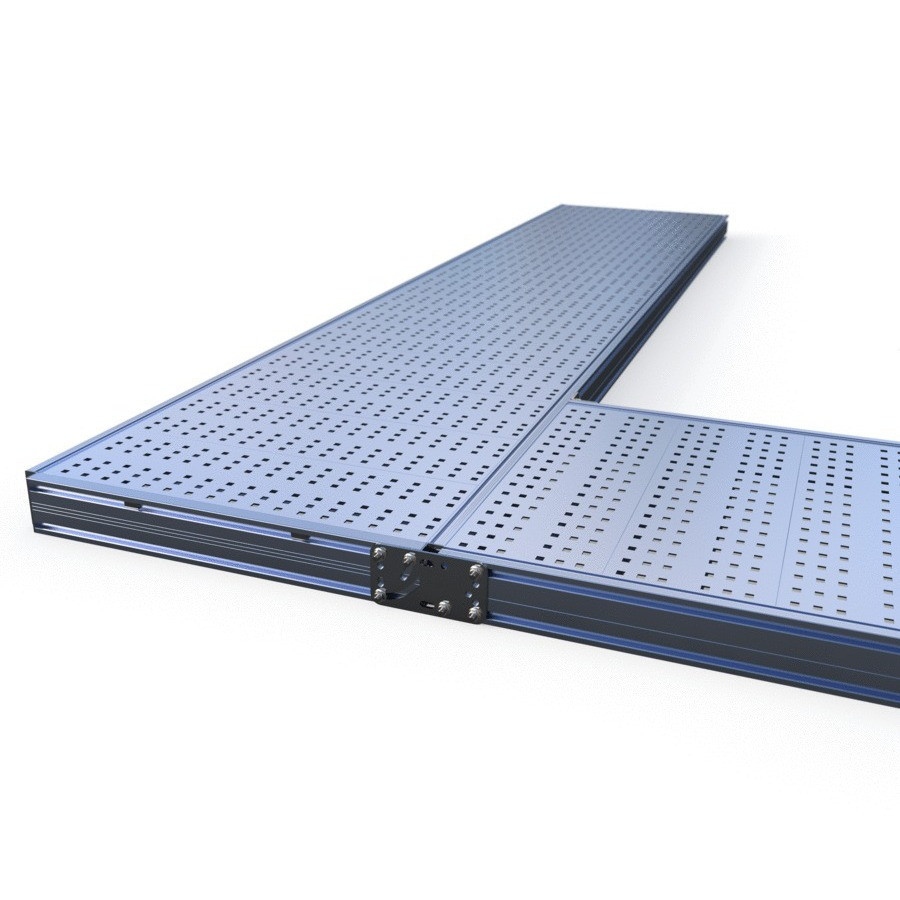

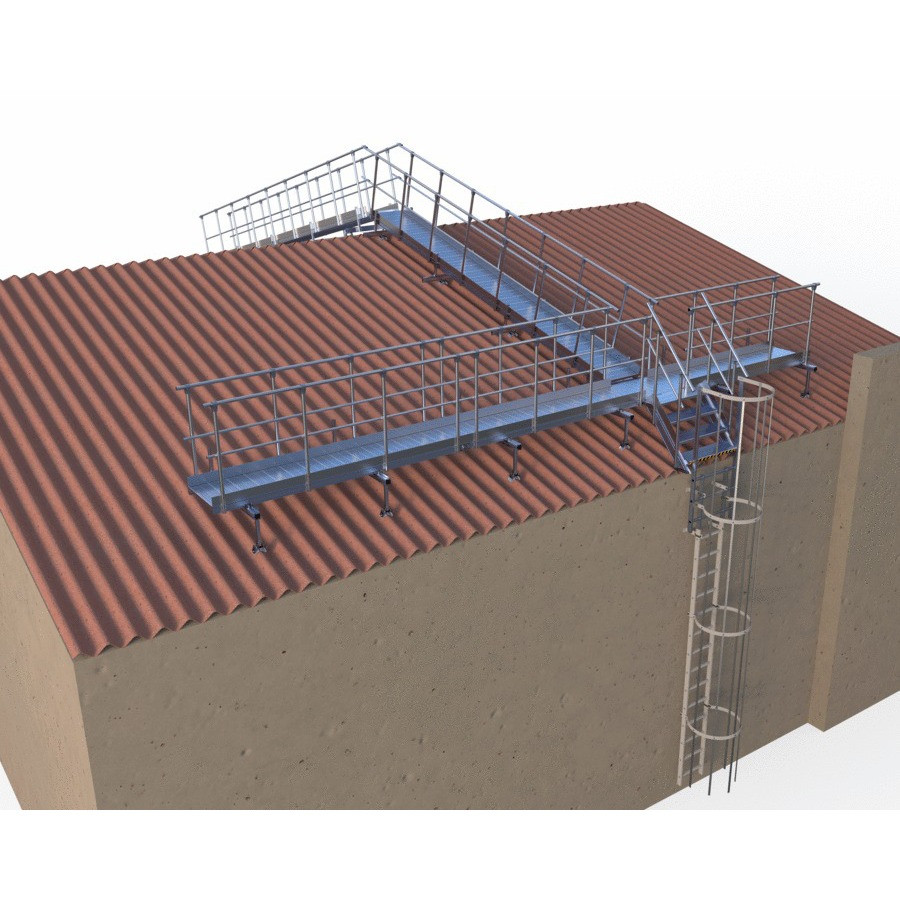

It creates safe traffic areas with straight configurations, 90 ° angles and T-junctions, L-shaped with slope changes.

All standard roof tilts (0-45 °) are managed with clever fastening kits.

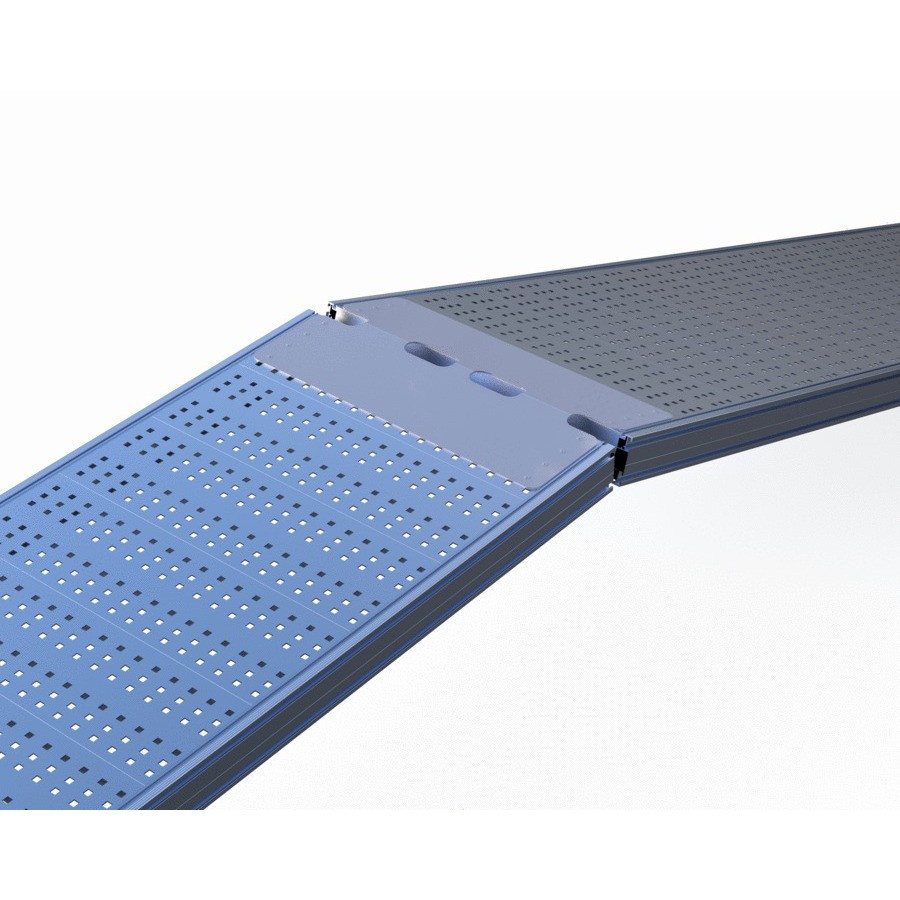

The FASTWALK walkway allows changes of slope for the passage of roof ridge and valley.

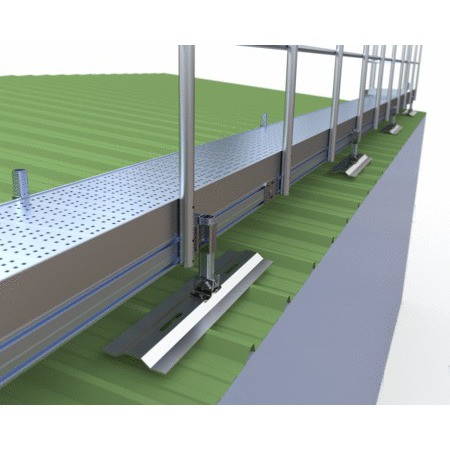

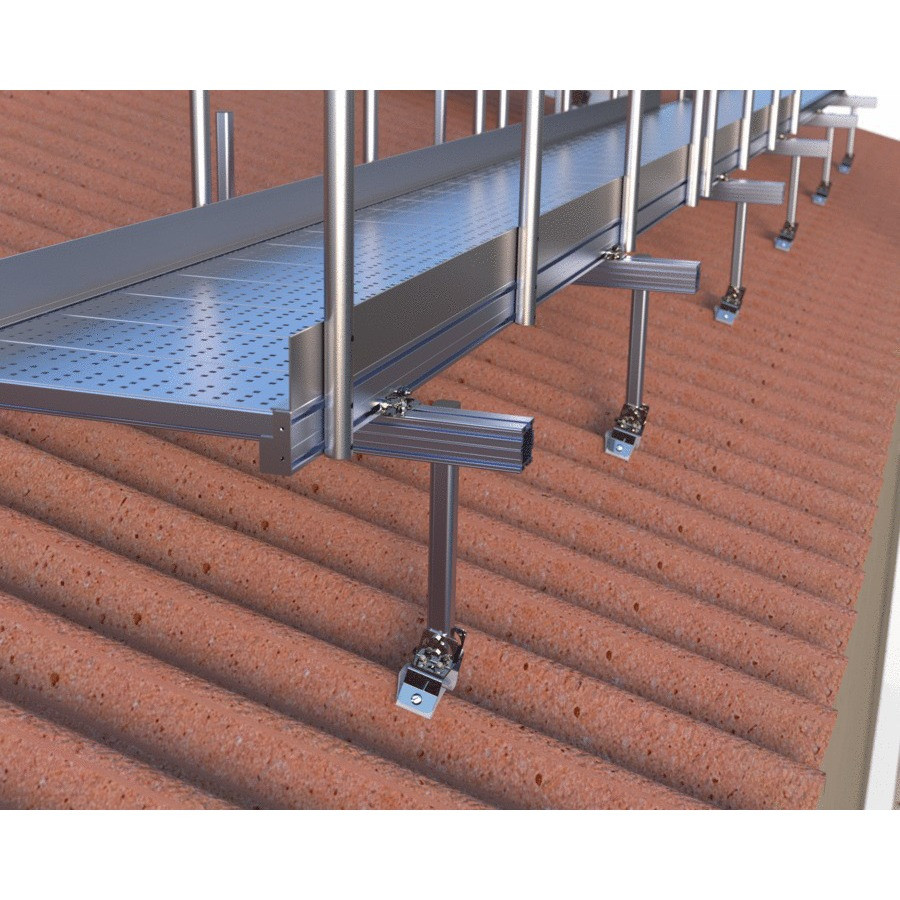

The FASTWALK walkway attaches to the steel pan and on the fibre cement thanks to dedicated fastening interfaces.

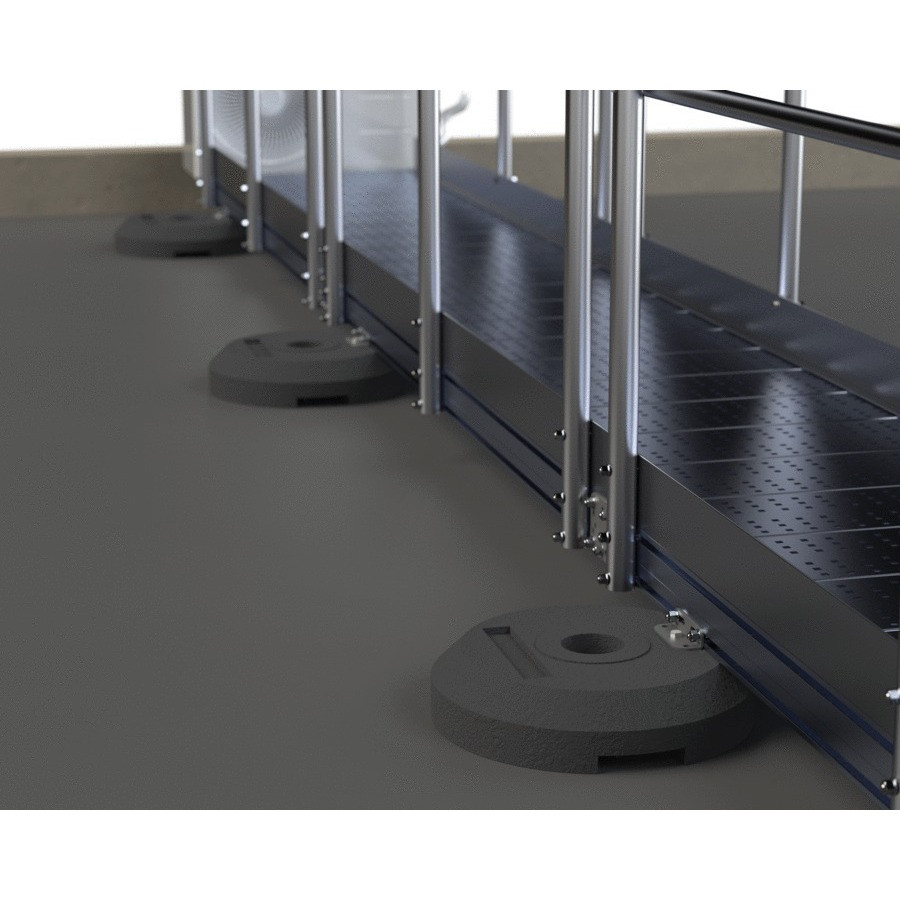

The FASTWALK walkway is easy to install on pads for all common sealing compounds.

Technical description

Working width (mm) : 600/800/1000 (24"/32"/39")

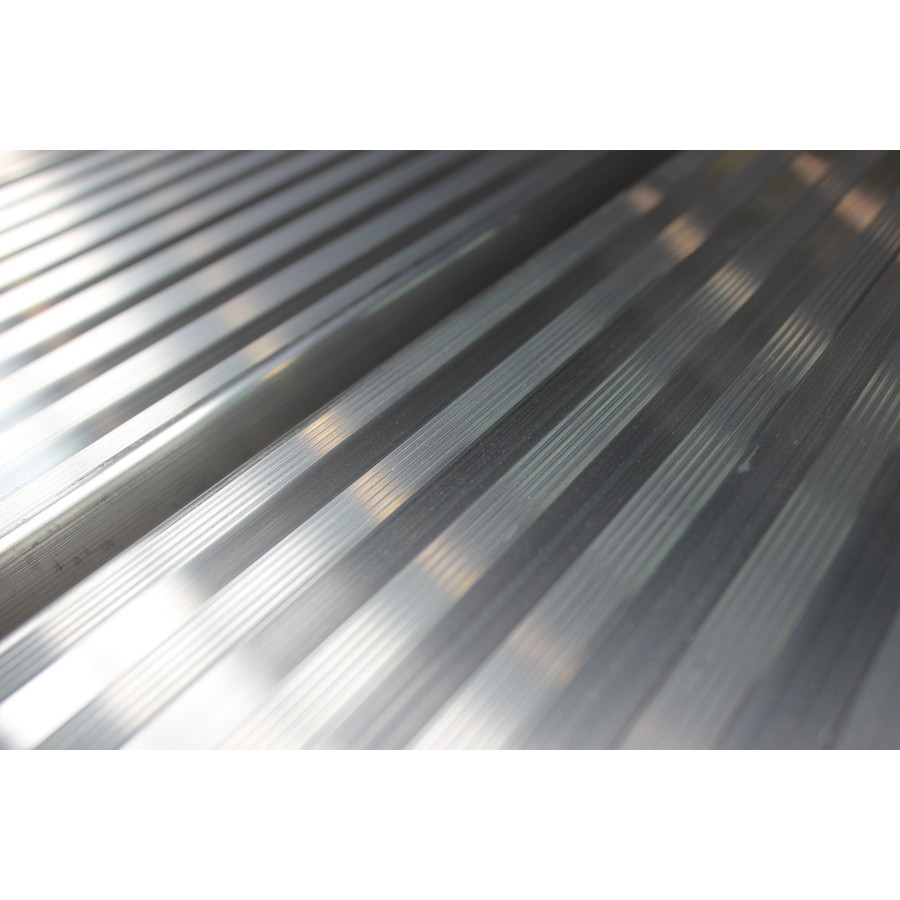

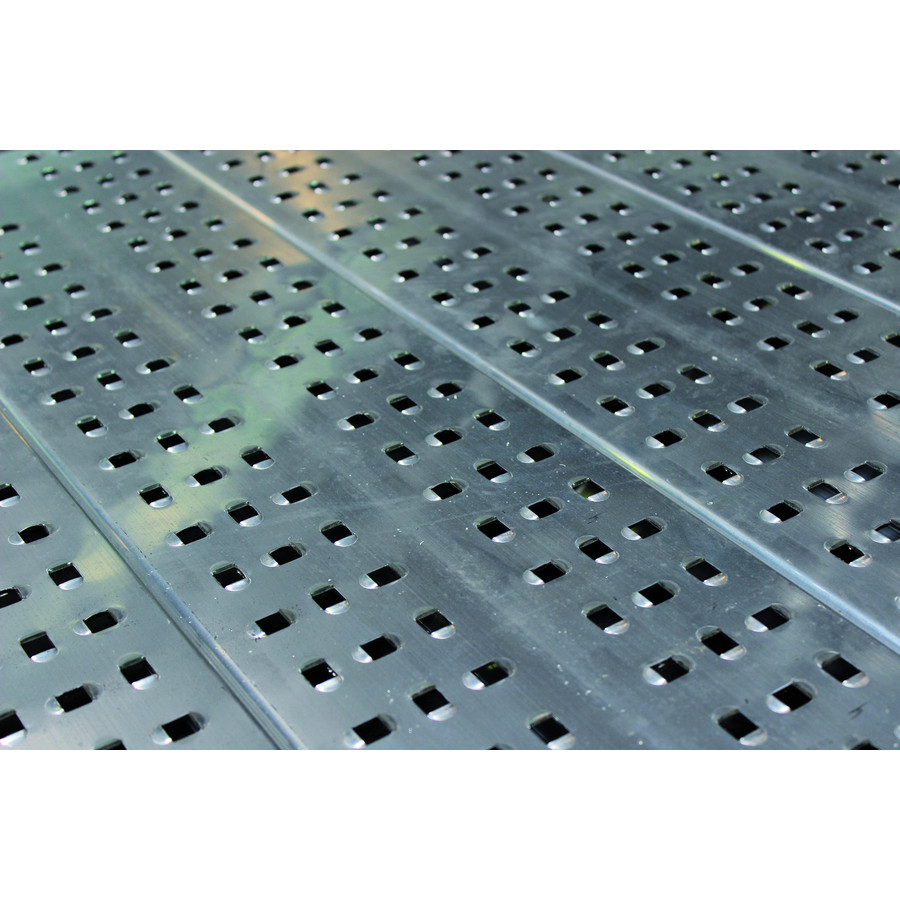

Planking : draining and anti-slip LEEVELGRIP or grooved anti-slip profile


Managed tilts : 0-15°/15-30°/30-45°


Standard walkway length (mm) : 2400 (94")


Walkway weight (kg/m) : 8,66 - 191 lb (GRIP 600 mm - 24") / 10,25 - 231 lb (GRIP 800 mm - 32") /
15,00 - 331 lb (GRIP 1000 mm - 39")


Max fastening centre line (mm) : 2500 (98")


Operating load (kg/m²) : 150 (330 lb)
