Tank work walkway system
Tank work walkway system

Tank work walkway system

Select your reference
+
-

Technical characteristics

Reference Quantity Quote
Ref. PASSERELLECUVE
Tank work walkway system
+
-
Tank work walkway system
Reference : PASSERELLECUVE
Quantity :
+
-

Use

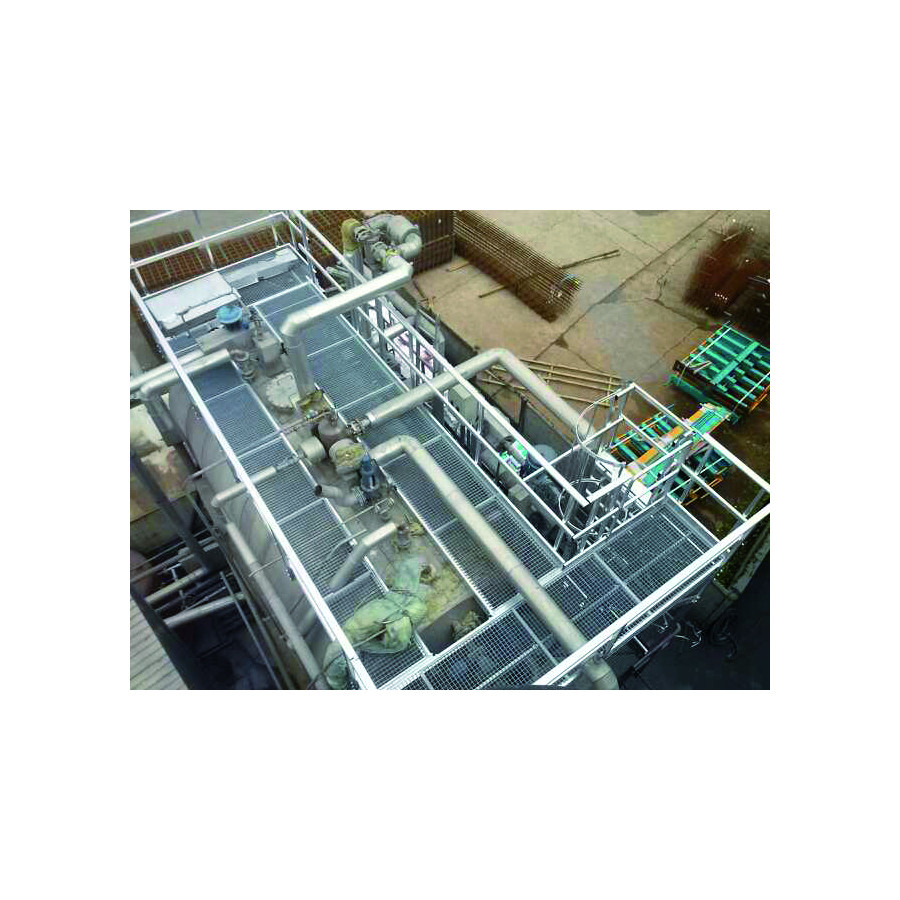

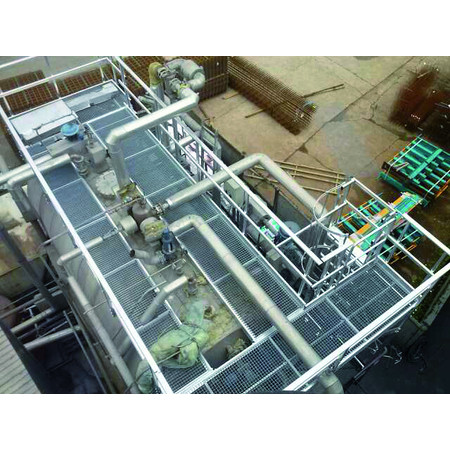

Operators must access an industrial tank to perform daily pressure readings and quarterly maintenance operations.

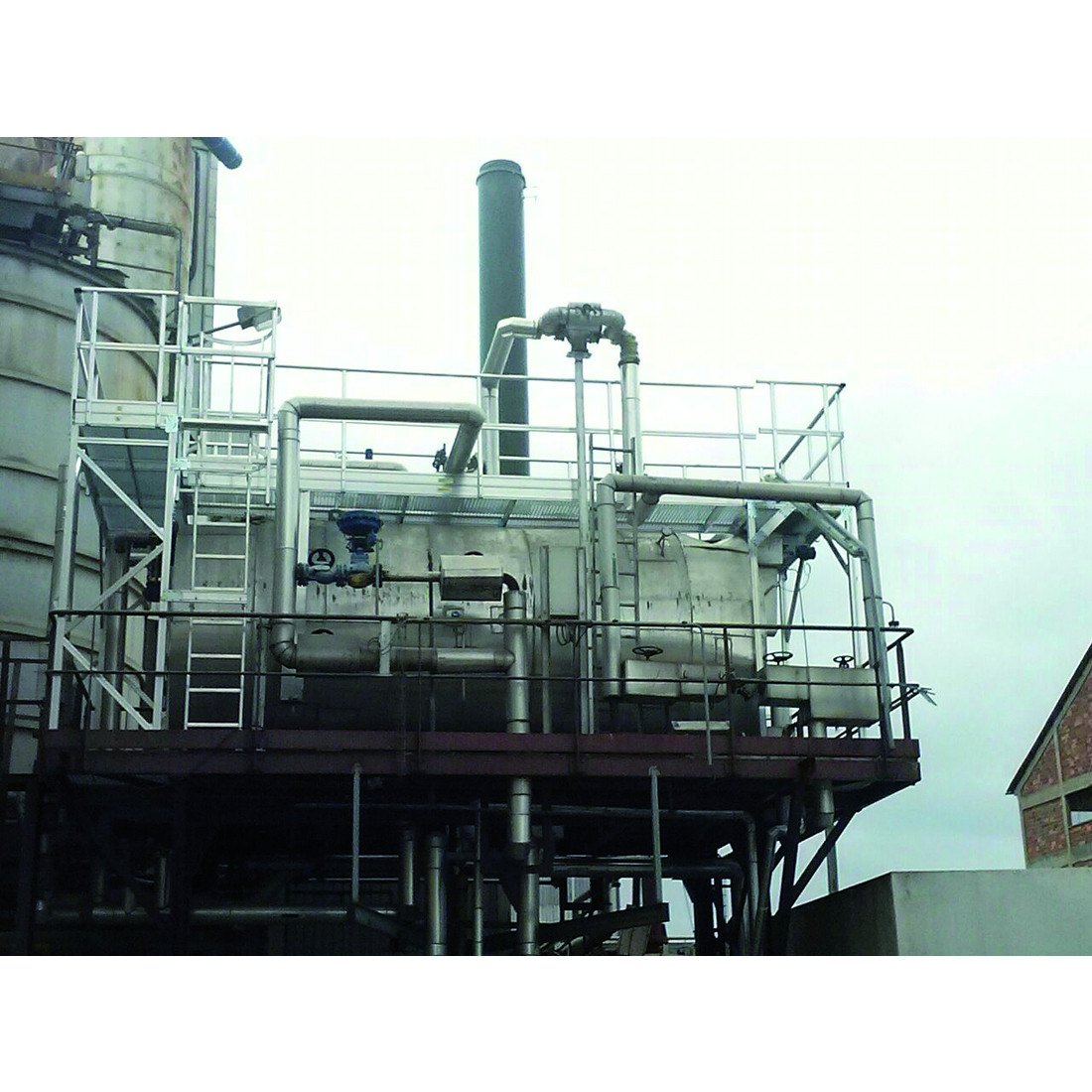

6000 mm (236") elevated outdoor tank.

Collective security of the operators. Integration of the platform to the tank piping system and the survey and measurement settings.

Sizes of the tank : 5000 x 3000 diameter (197" x 118").

Technical description

Platform height : 3000 mm (118")

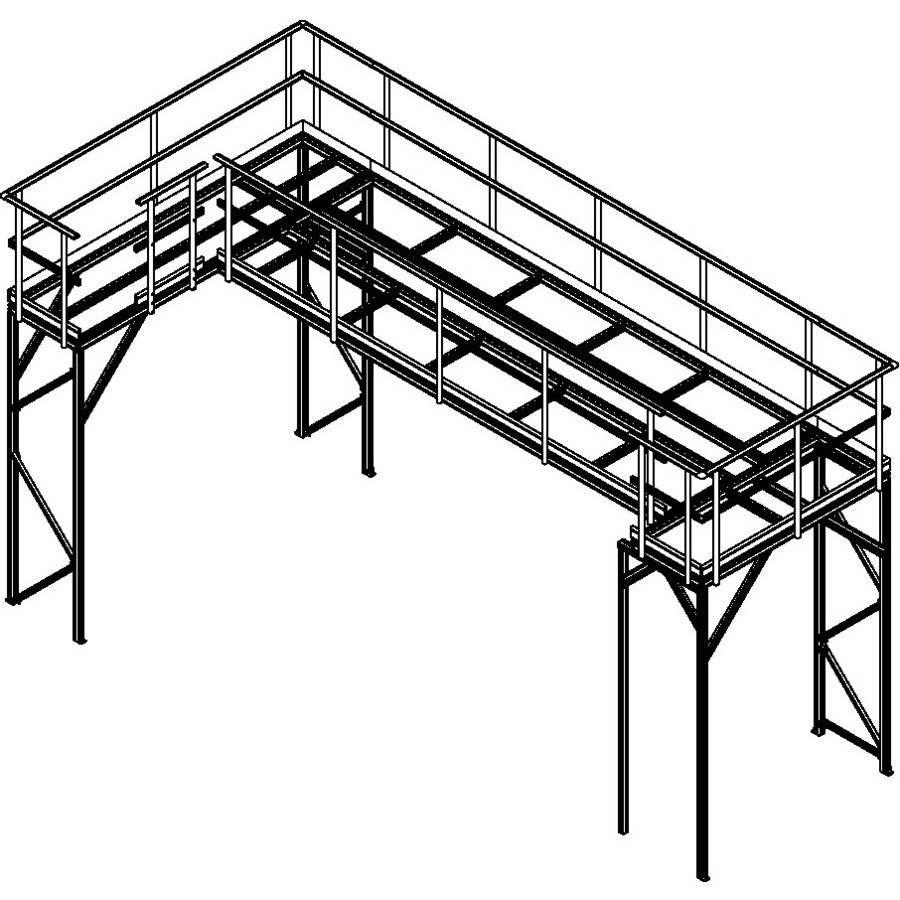

Set of 4 walkways with integrated access by crinoline ladder


Walkway width : 600 mm and 800 mm (24" et 31")


Steel grating planking
