Secure platform for access on excavations and trenches

Advantages and strengths

Plate-forme grutable avec un engin de levage grâce à ses 4 points d'amarrage. Équipement réparable facilement sur chantier avec la gamme de pièces détachées.

Technical characteristics

Reference Length (') Width ('') Weight (lb) Quantity Quote
Ref. A0009895
Code A0009895
Secure access platform with trapdoor, length 6’6’’ (2 m)
7 ' 28 '' 77 lb
+
-
Ref. A0006936
Code A0006936
Platform extension, length 3’3’’ (1 m)
3 ' 0 '' 44 lb
+
-
Ref. LEEVEL80511PF
Code A0007352
LEEVEL80511PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 11 STEPS
10 ' 20 '' 0 lb
+
-
Ref. LEEVEL80515PF
Code A0007353
LEEVEL80515PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 15 STEPS
15 ' 20 '' 0 lb
+
-
Ref. LEEVEL805122PF
Code A0007354
LEEVEL805122PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 22 STEPS
20 ' 20 '' 0 lb
+
-
Ref. A0006940
Code A0006940

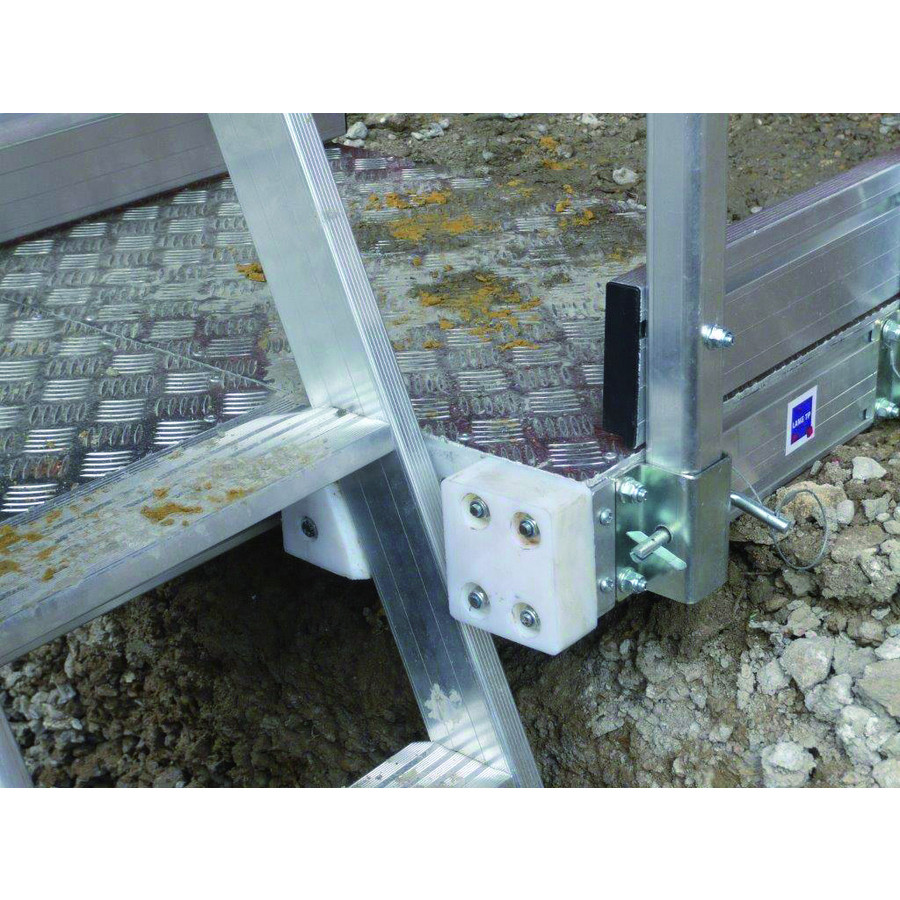

Complete set of 3 pairs of polyamide cleats for pit access platform
0 ' 0 '' 0 lb
+
-
Ref. A0006941
Code A0006941
Corner guardrail for pit access platform
0 ' 0 '' 0 lb
+
-
Ref. A0006942
Code A0006942
Side guardrail for pit access platform
0 ' 0 '' 0 lb
+
-
Ref. A0006939
Code A0006939
Sliding gate for pit access platform
0 ' 0 '' 0 lb
+
-
Secure access platform with trapdoor, length 6’6’’ (2 m)
Reference : A0009895
Length (') 7 '
Width ('') 28 ''
Weight (lb) 77 lb
Quantity :
+
-
Platform extension, length 3’3’’ (1 m)
Reference : A0006936
Length (') 3 '
Width ('') 0 ''
Weight (lb) 44 lb
Quantity :
+
-
LEEVEL80511PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 11 STEPS
Reference : LEEVEL80511PF
Length (') 10 '
Width ('') 20 ''
Weight (lb) 0 lb
Quantity :
+
-
LEEVEL80515PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 15 STEPS
Reference : LEEVEL80515PF
Length (') 15 '
Width ('') 20 ''
Weight (lb) 0 lb
Quantity :
+
-
LEEVEL805122PF 3.1’’ (80 mm) DEEP ACCESS STEP LADDERS 22 STEPS
Reference : LEEVEL805122PF
Length (') 20 '
Width ('') 20 ''
Weight (lb) 0 lb
Quantity :
+
-
Complete set of 3 pairs of polyamide cleats for pit access platform
Reference : A0006940
Length (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-
Corner guardrail for pit access platform
Reference : A0006941
Length (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-
Side guardrail for pit access platform
Reference : A0006942
Length (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-
Sliding gate for pit access platform
Reference : A0006939
Length (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-

Use

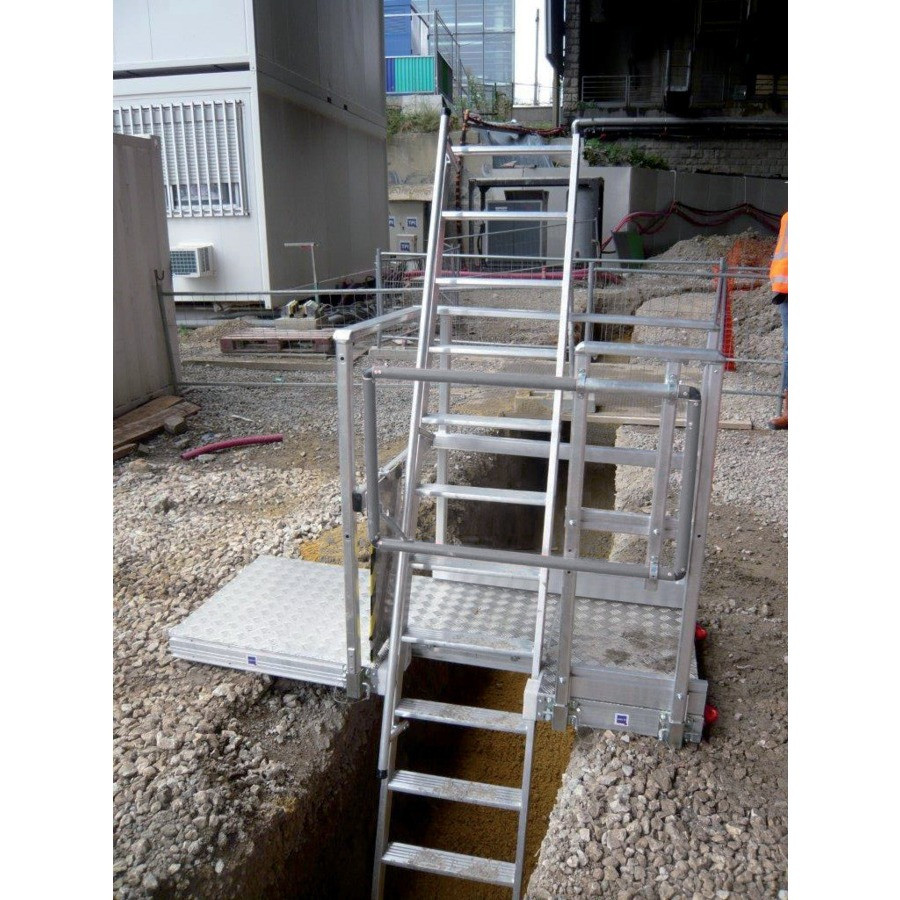

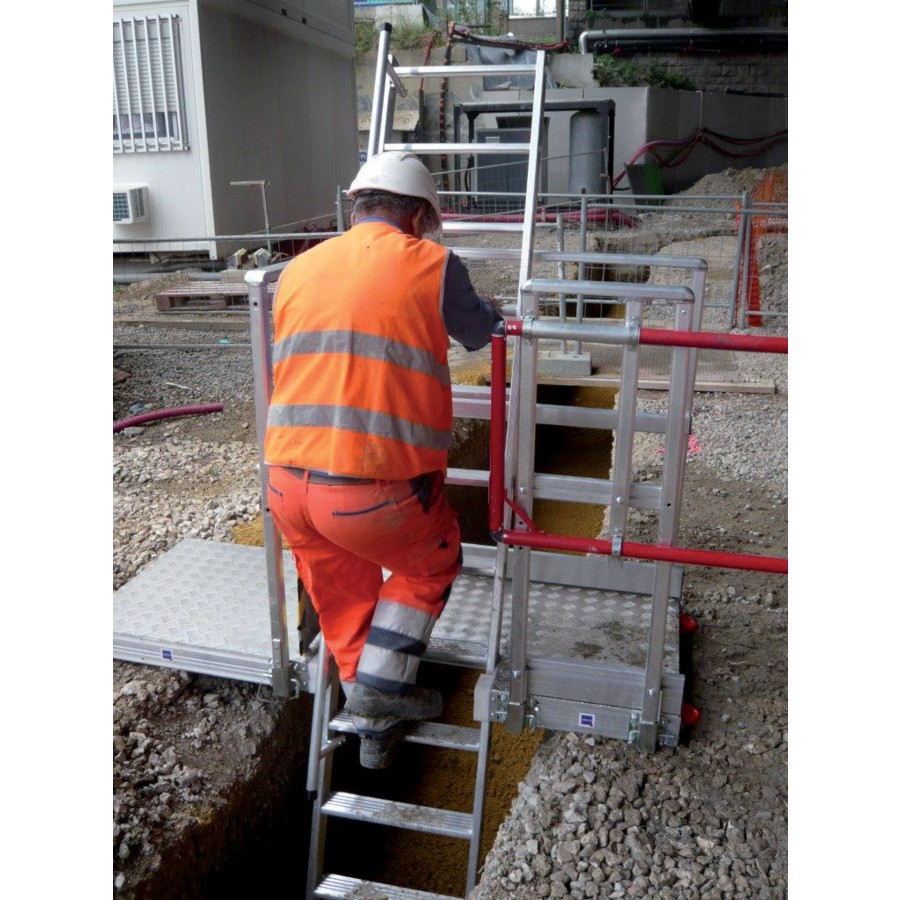

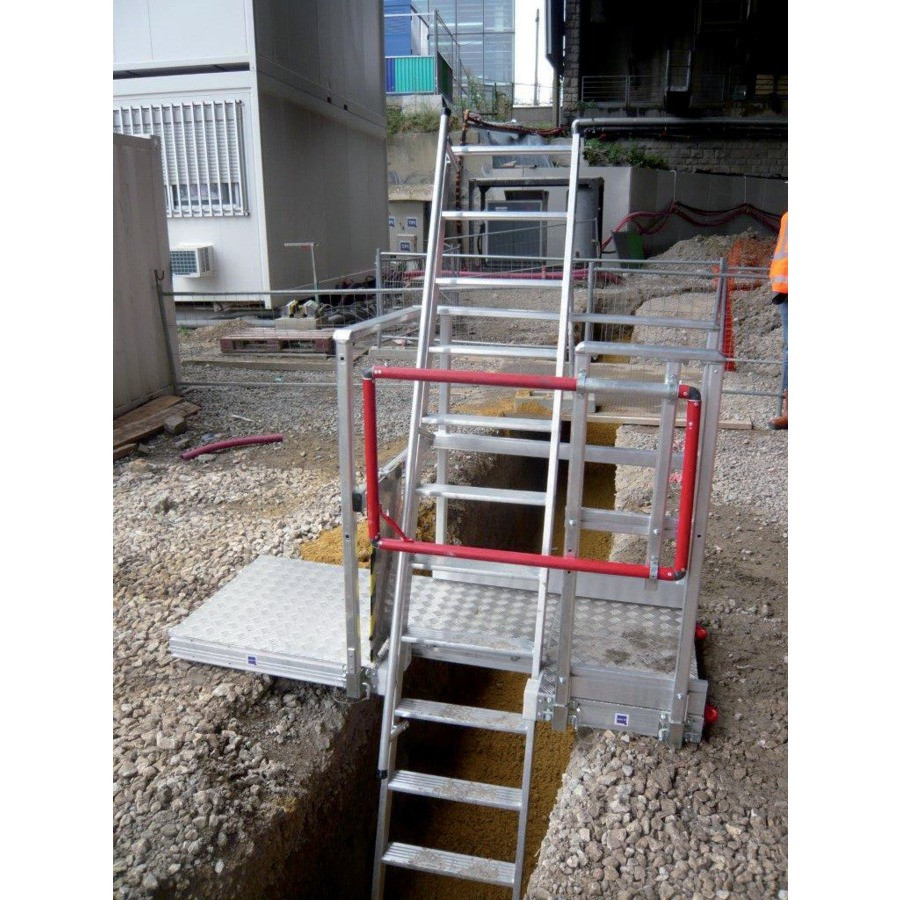

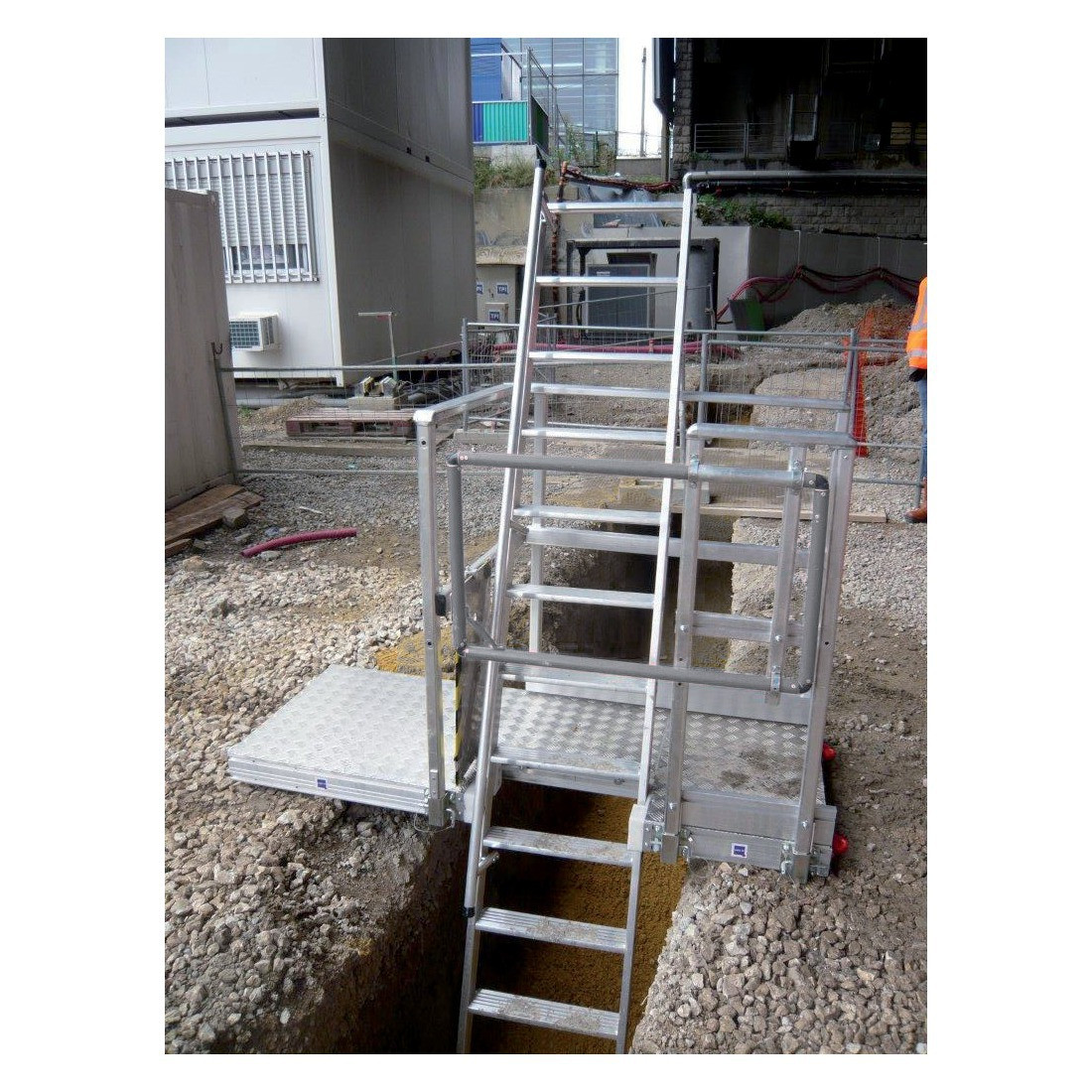

Secure platform designed to access trenches with or without shielding in urban areas, or outside on all sewerage or network burial sites.

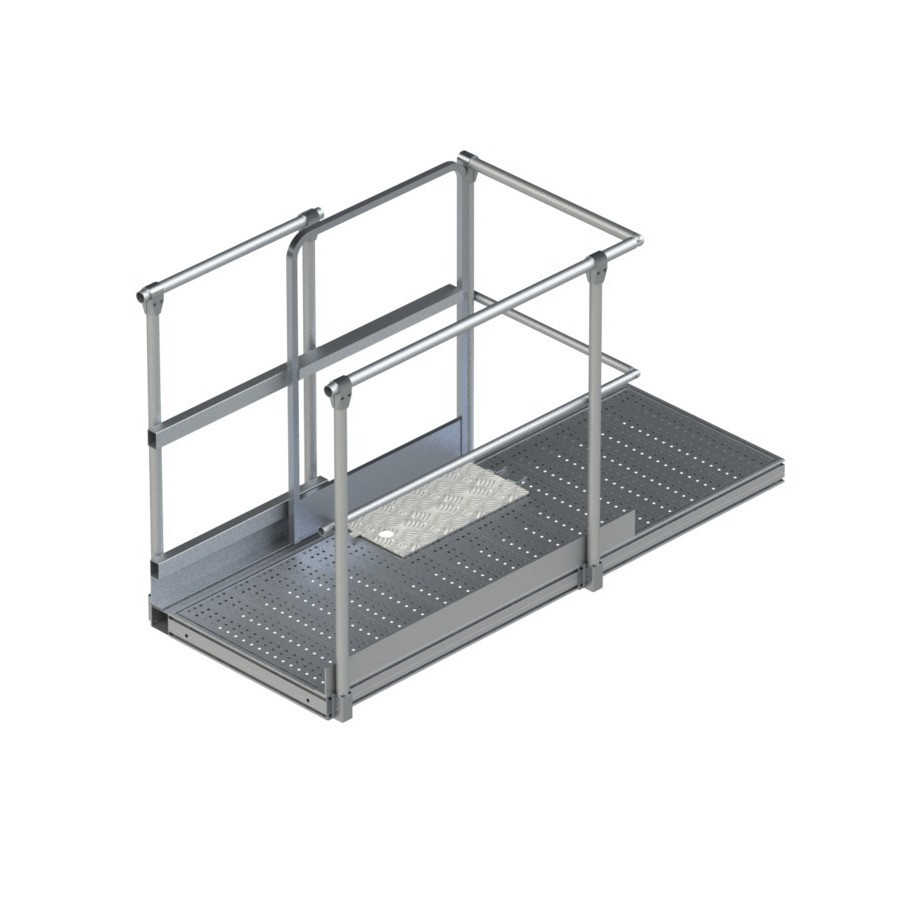

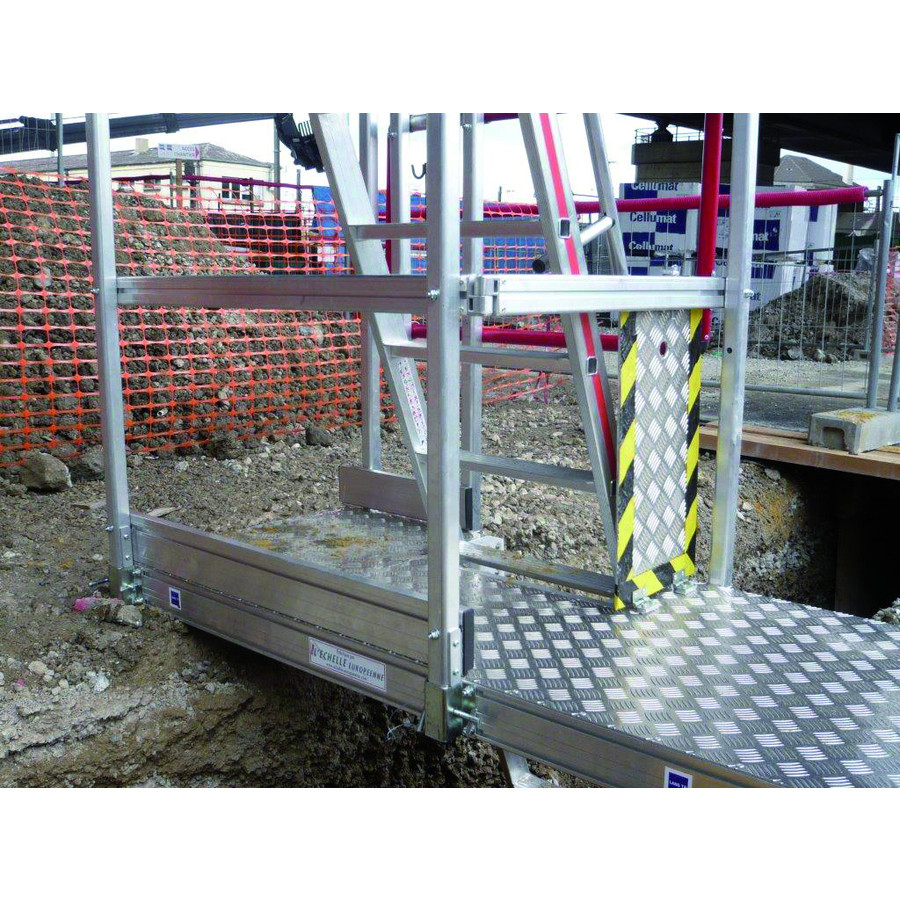

The area of access to the trench is fully collectively secured by guardrails and a sliding side door.

LEEVELGRIP rugged antis-slip platform. To be used with 3 step ladder lengths to reach trench depths up to 5,50 m.

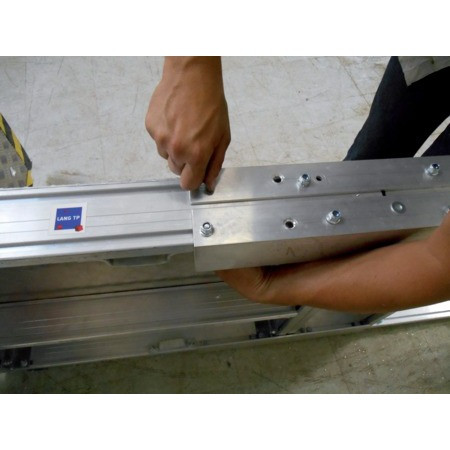

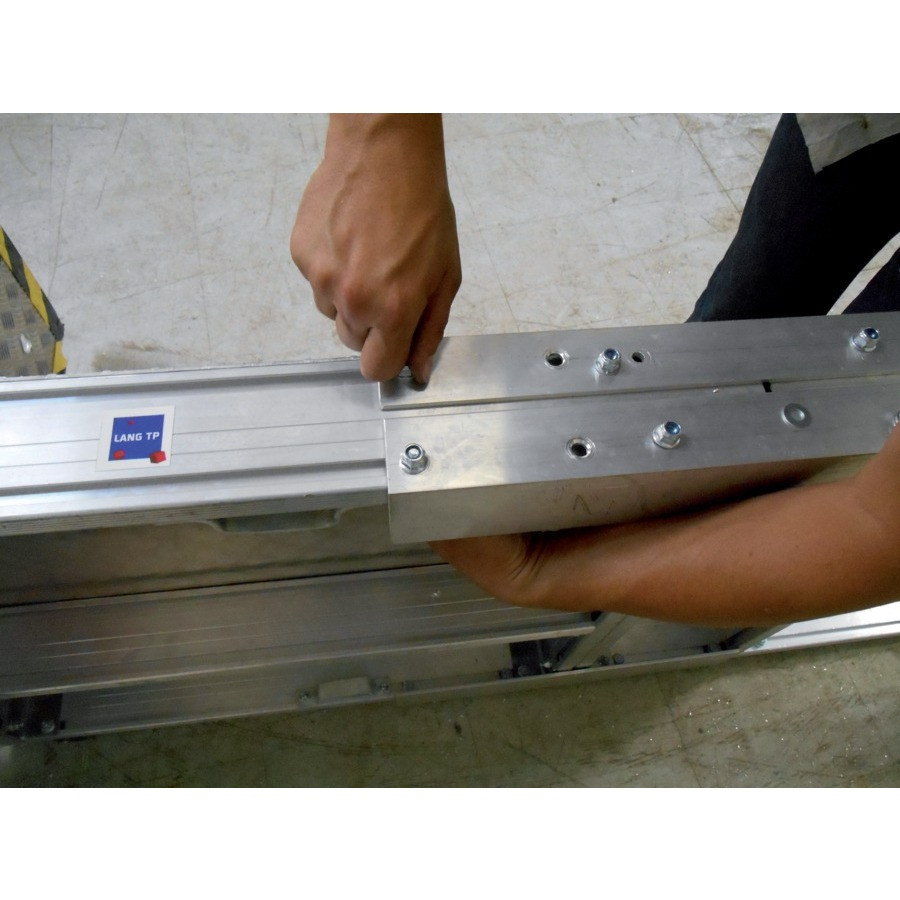

The connection of the platform extension by 2 slides with a fast bolting system.

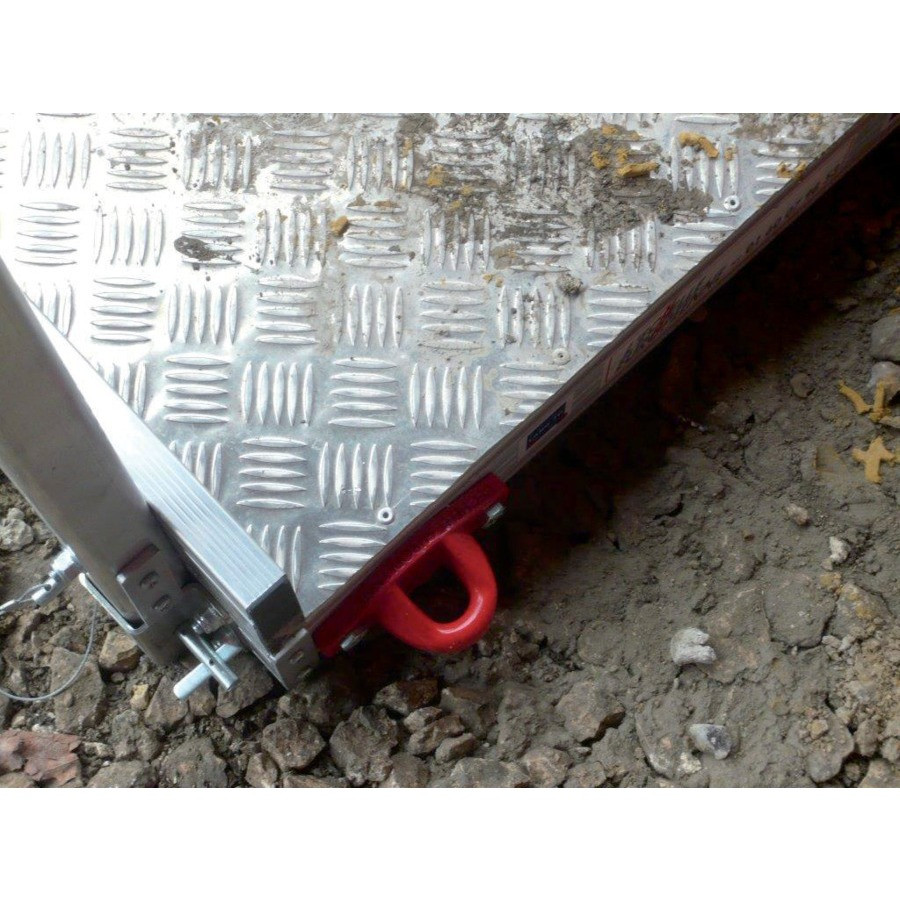

Liftable platform with a hoist thanks to its 4 bolting points.

Equipment easily repairable on site with the range of spare parts.

Technical description

Platform sizes : 2000 x 700 mm (79" x 28") or 3000 x 700 mm (118" x 28") with the extension of 1000 mm (39")


Access tilt : 68°


Step depth : 80 mm (3")


Ladder width : 500 mm (20")


Platform width : 700 mm (28")


Platform operating load : 200 kg/m² (41 lb/ft²)
