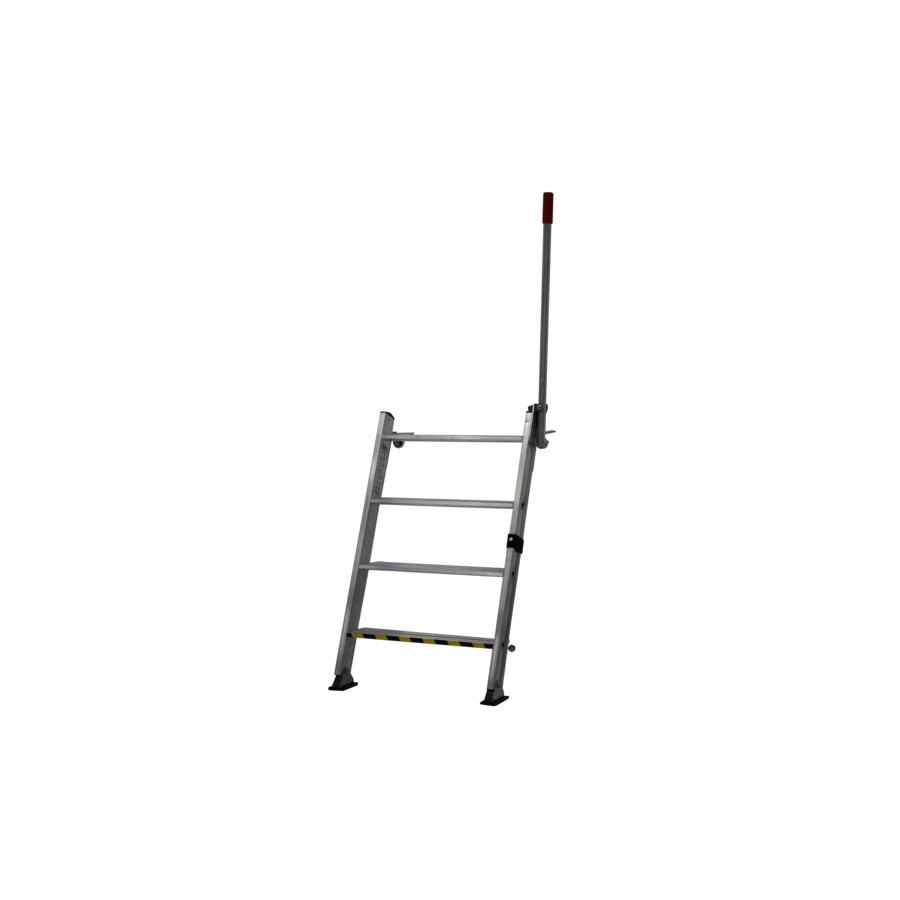

LTC truck access ladder

LTC truck access ladder

Warranty 1 year
Standard: EN 131

Safe access ladder designed for access in logistics.

Select your reference
+
-

Advantages and strengths

Very light, it can be worn and put on quickly.

Technical characteristics

Reference Number of walking Support height (') Spacing (') Width ('') Weight (lb) Quantity Quote
Ref. LTC1304
Code A0007337
LEEVEL TRUCK HANDRAIL 4-STEP NON-TELESCOPIC ARTICULATED FEET
4 3 - 4 ' 2 ' 29 '' 17,64 lb
+
-
Ref. LTC1305
Code A0007135
LEEVEL TRUCK HANDRAIL 5-STEP NON-TELESCOPIC ARTICULATED FEET
5 4 - 5 ' 2 ' 29 '' 20,00 lb
+
-
Ref. LTC1306
Code A0007381
LEEVEL TRUCK HANDRAIL 6-STEP NON-TELESCOPIC ARTICULATED FEET
6 4 - 5 ' 2 ' 29 '' 22,00 lb
+
-
Ref. R65L
Code A0007331
25.6" ramp kit on the product with its stirrups
0 0 ' 0 ' 0 '' 0 lb
+
-
Ref. RS130
Code A0007177
Square kit aluminium tube outlet ramp to fix on the products with its stirrups
0 0 ' 0 ' 0 '' 0 lb
+
-
Ref. PRLTC
Code A0007335
Climbing articulated shoe pair option
0 0 ' 0 ' 0 '' 0 lb
+
-
LEEVEL TRUCK HANDRAIL 4-STEP NON-TELESCOPIC ARTICULATED FEET
Reference : LTC1304
Number of walking 4
Support height (') 3 - 4 '
Spacing (') 2 '
Width ('') 29 ''
Weight (lb) 17,64 lb
Quantity :
+
-
LEEVEL TRUCK HANDRAIL 5-STEP NON-TELESCOPIC ARTICULATED FEET
Reference : LTC1305
Number of walking 5
Support height (') 4 - 5 '
Spacing (') 2 '
Width ('') 29 ''
Weight (lb) 20,00 lb
Quantity :
+
-
LEEVEL TRUCK HANDRAIL 6-STEP NON-TELESCOPIC ARTICULATED FEET
Reference : LTC1306
Number of walking 6
Support height (') 4 - 5 '
Spacing (') 2 '
Width ('') 29 ''
Weight (lb) 22,00 lb
Quantity :
+
-
25.6" ramp kit on the product with its stirrups
Reference : R65L
Number of walking 0
Support height (') 0 '
Spacing (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-
Square kit aluminium tube outlet ramp to fix on the products with its stirrups
Reference : RS130
Number of walking 0
Support height (') 0 '
Spacing (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-
Climbing articulated shoe pair option
Reference : PRLTC
Number of walking 0
Support height (') 0 '
Spacing (') 0 '
Width ('') 0 ''
Weight (lb) 0 lb
Quantity :
+
-

Use

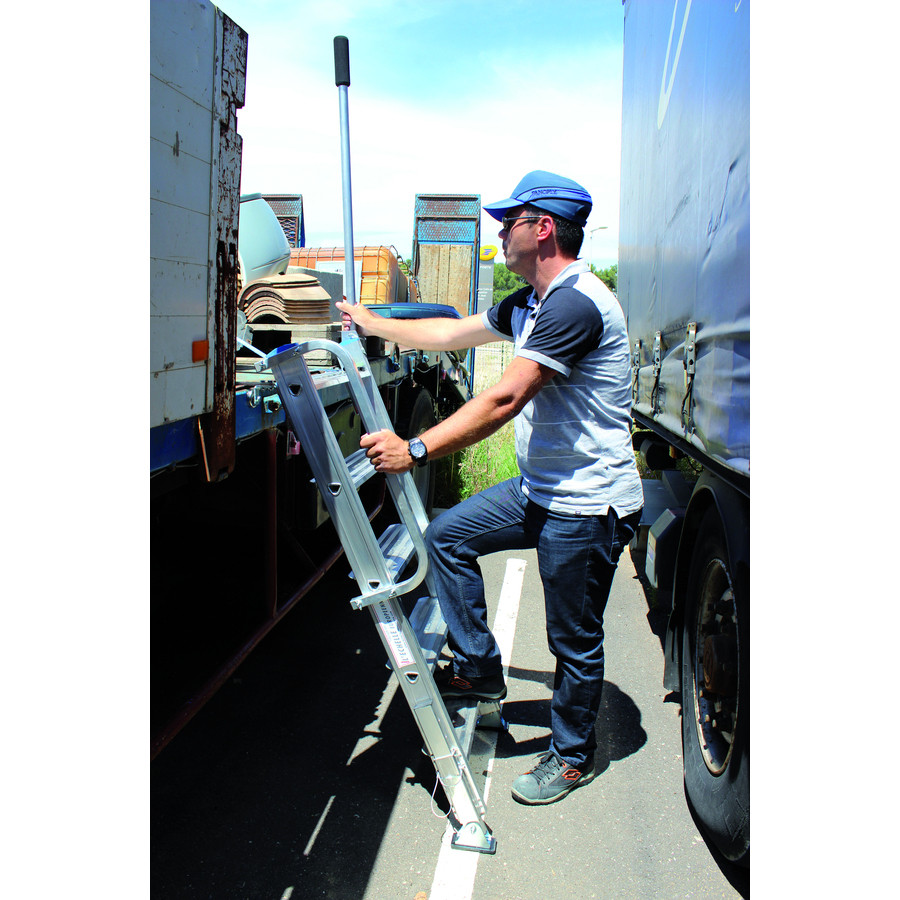

Secured access staircase designed for logistics access.

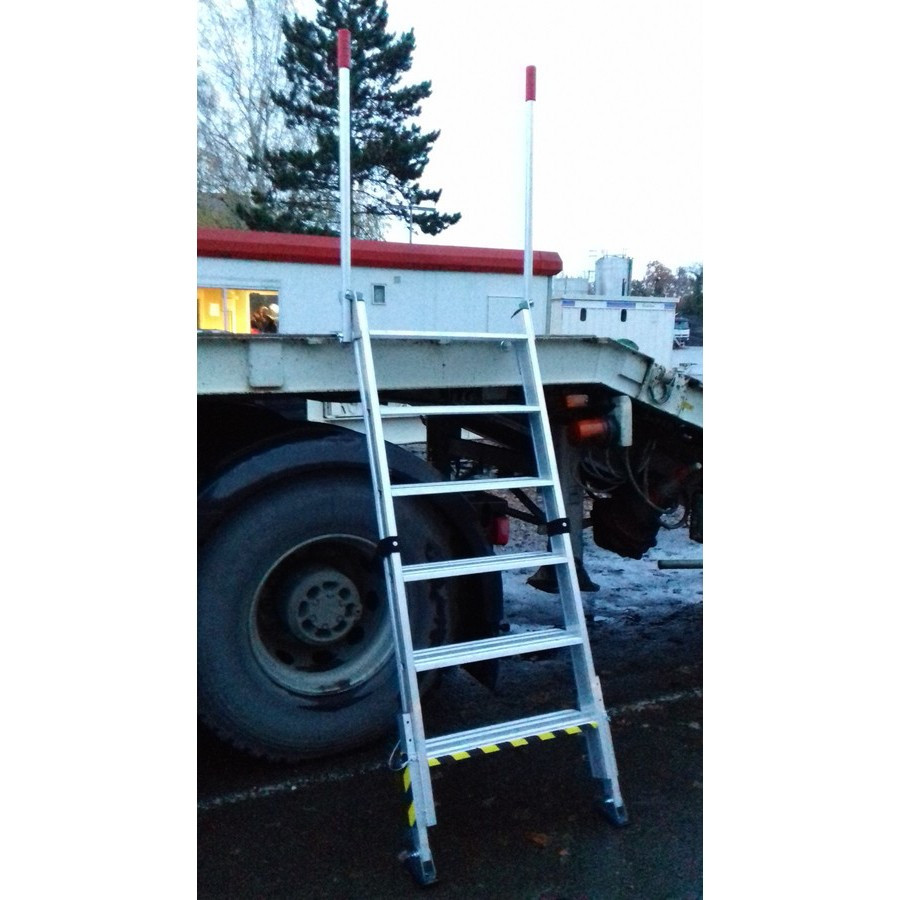

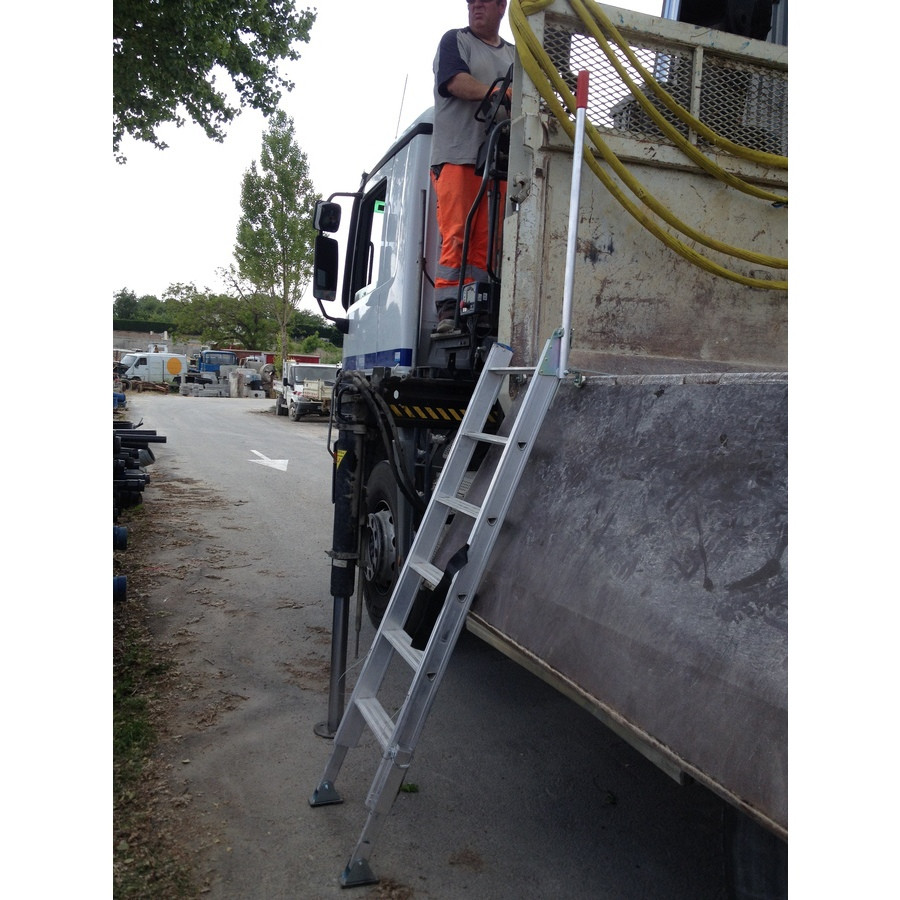

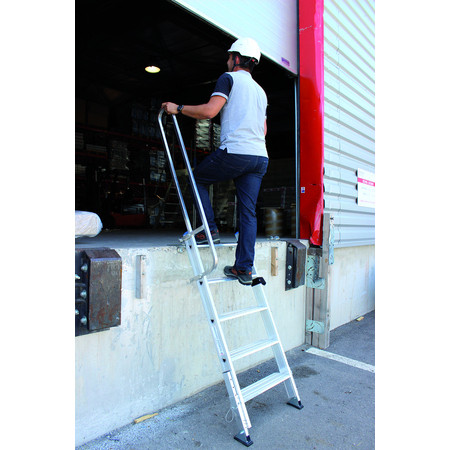

Prevents falls when accessing truck trays, tank carriers, unloading docks.

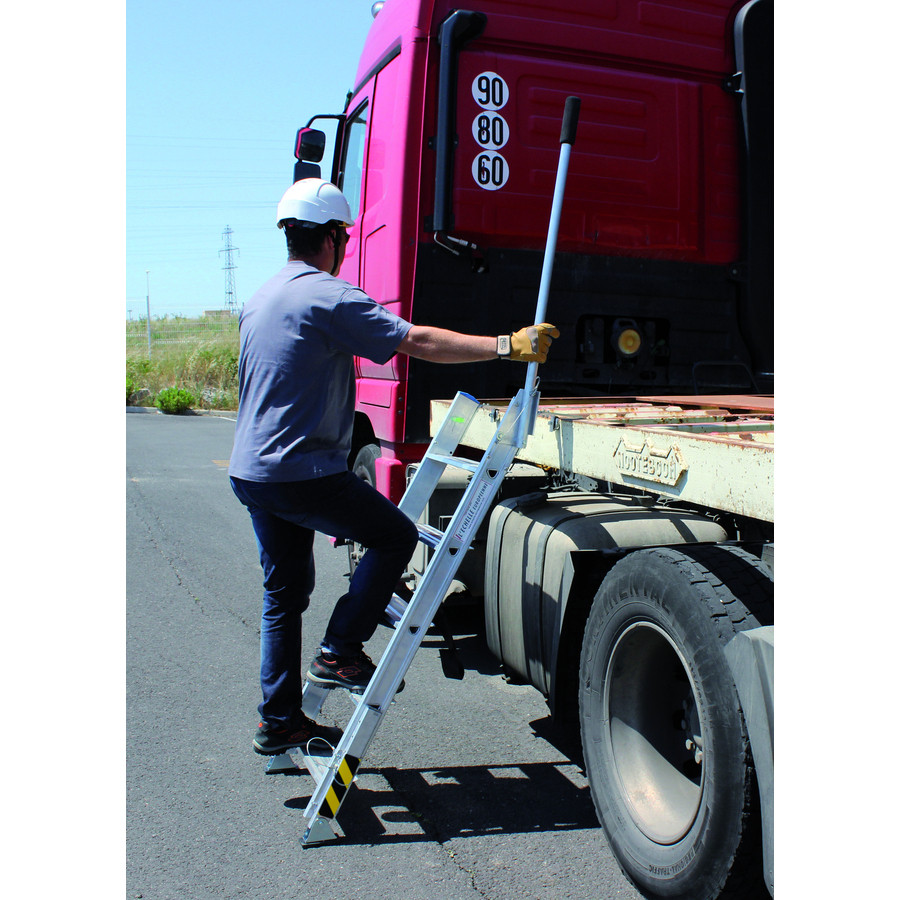

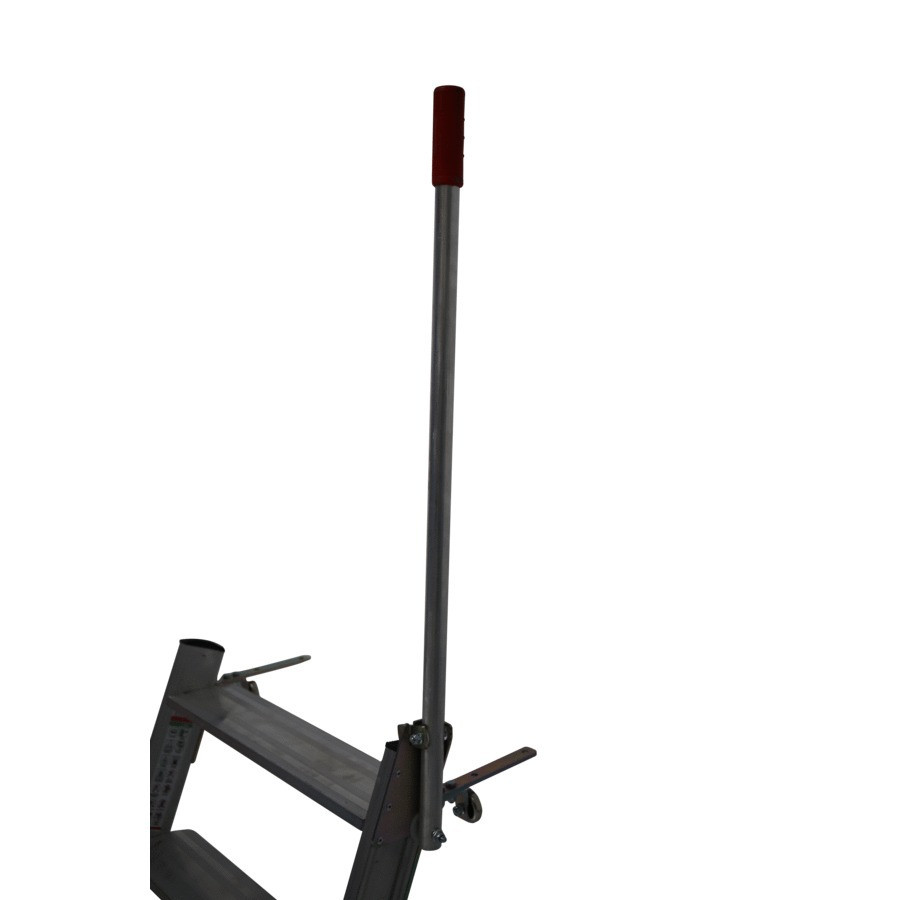

Equipped with a foldable stick allowing access assistance.

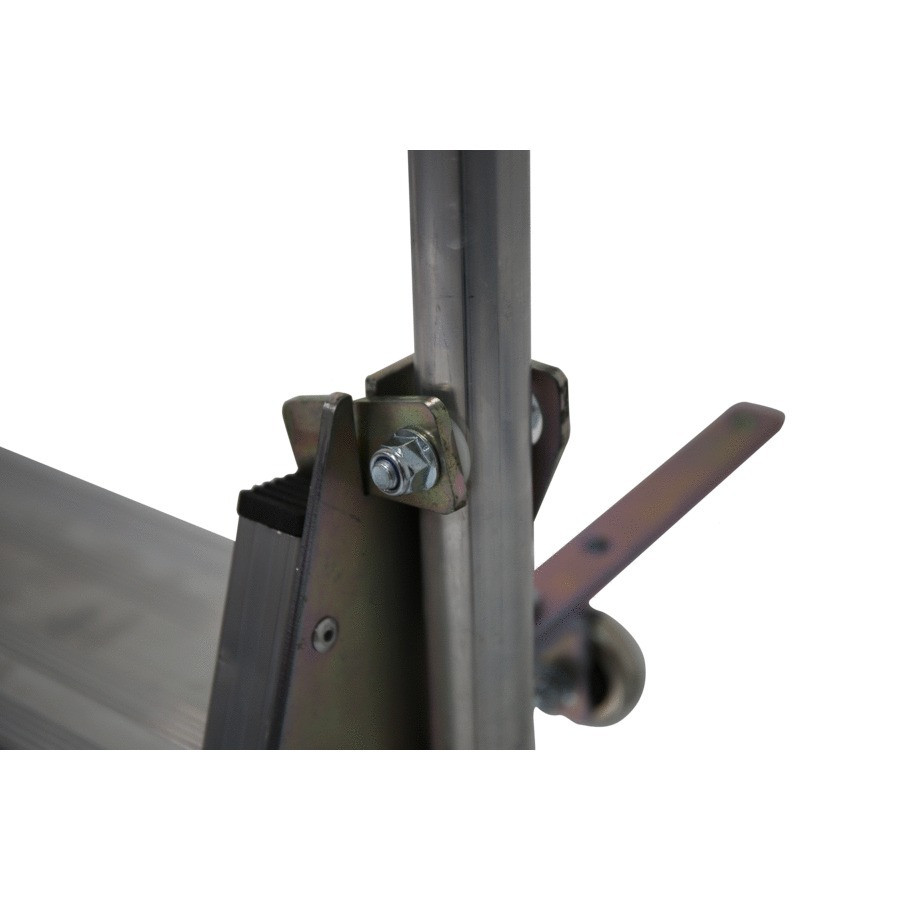

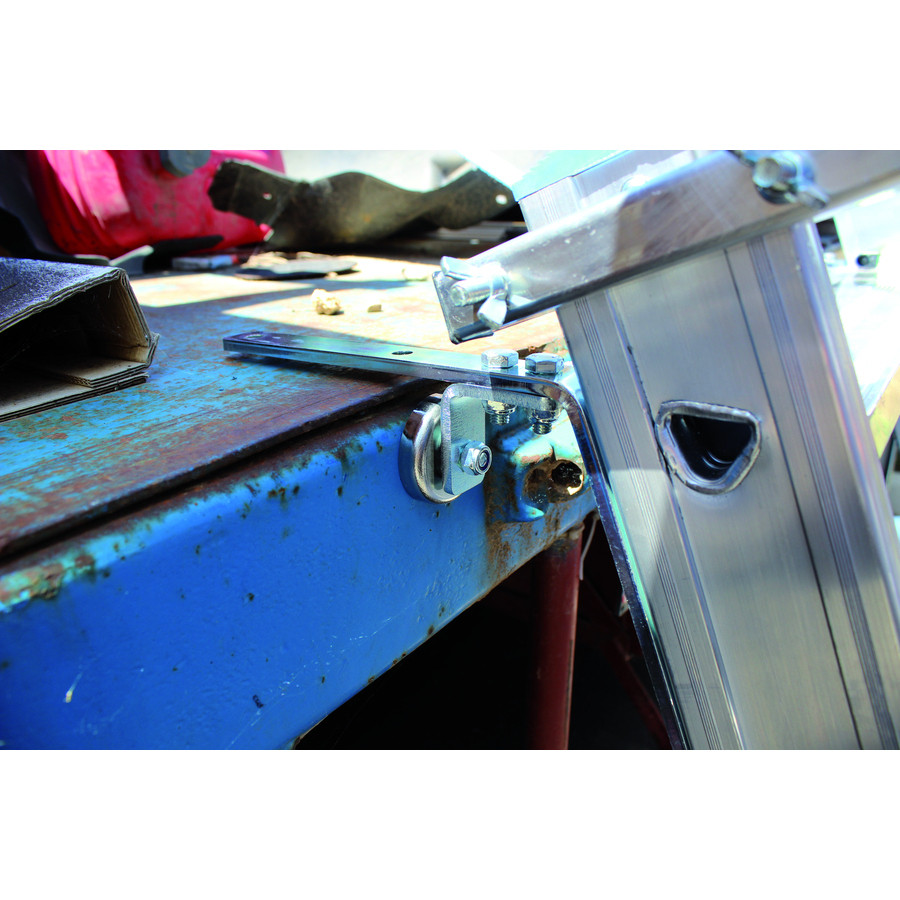

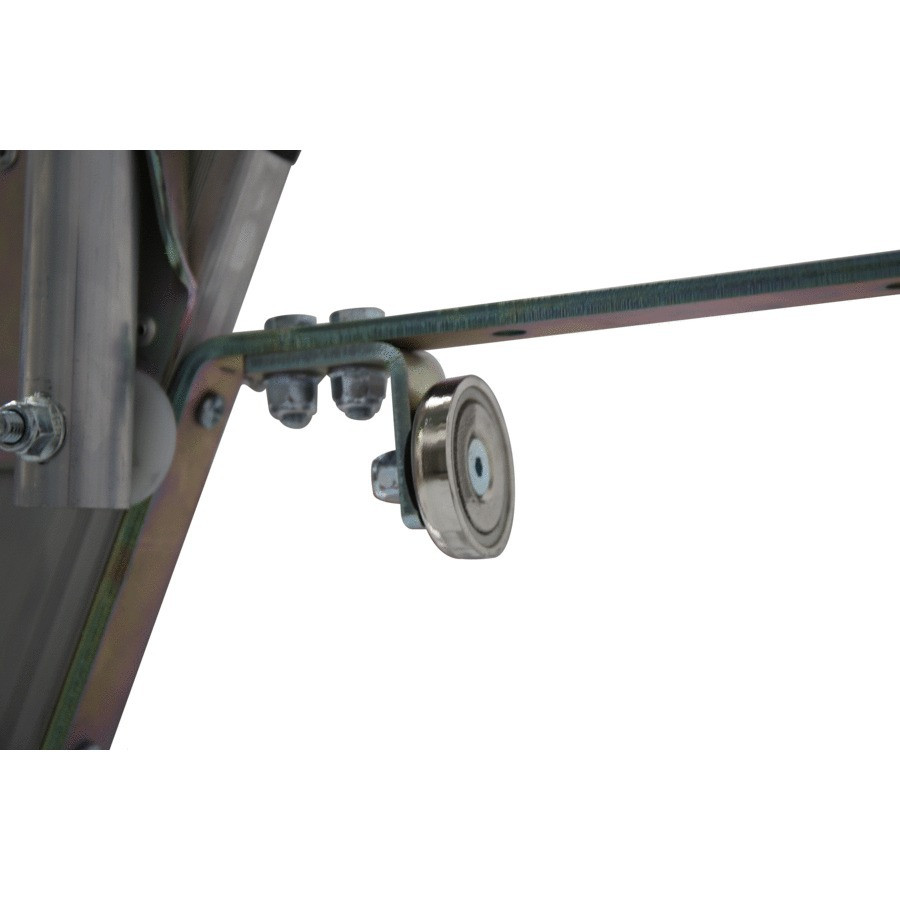

Fast attachment and setting thanks to 2 holding magnets of 87 kg each.

Built-in spirit level to make sure of having horizontal steps.

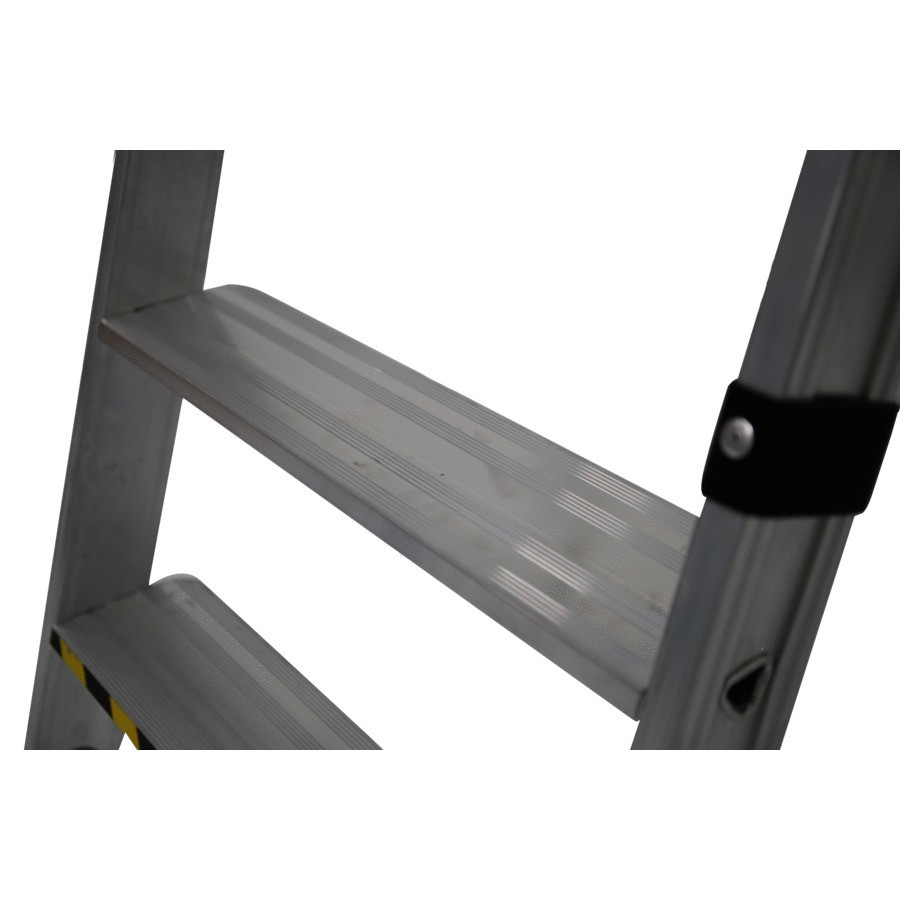

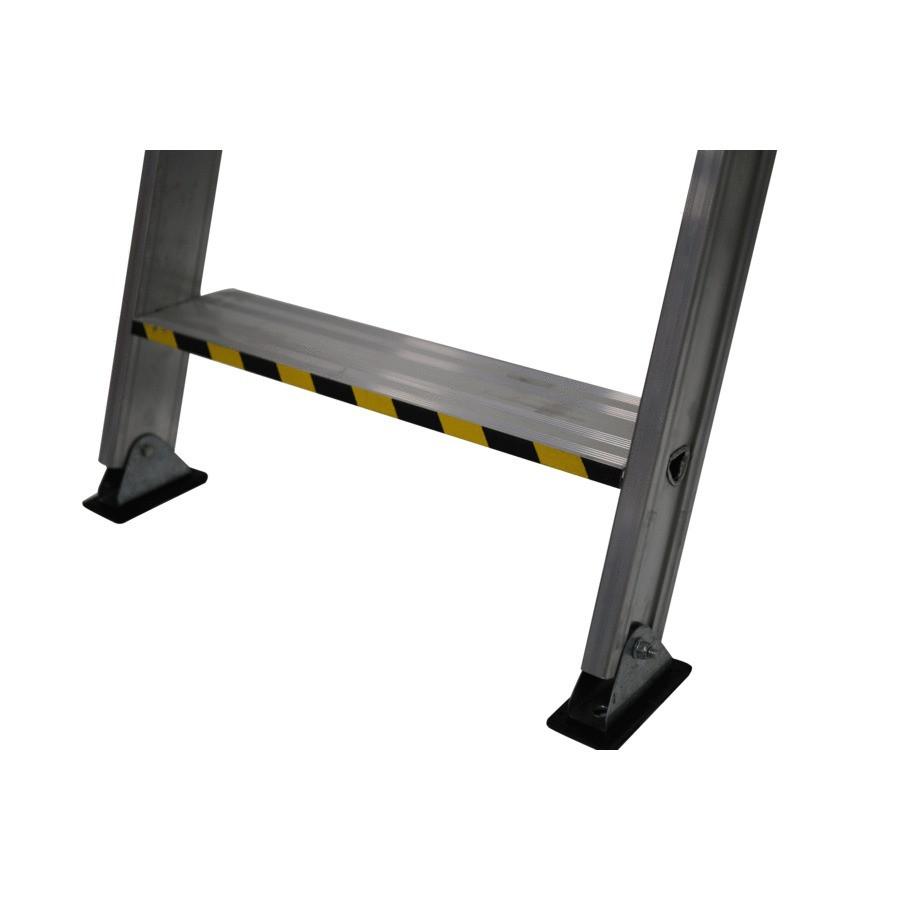

Anti-slip pads.

Optionally: - Long or mini access ramp. -

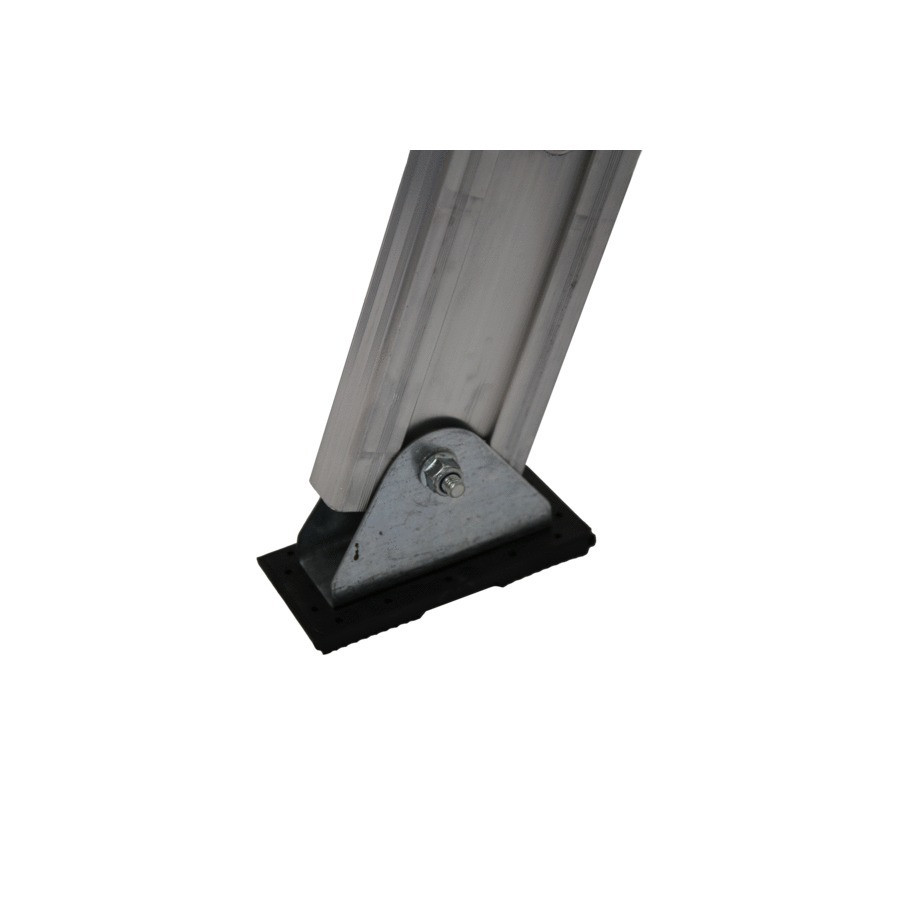

Feet adjustable in height to manage several truck heights.

Technical description

Available in 4, 5 and 6 steps


Overall width: 731 mm


Step position: 600 mm


Spacing between steps: 250 mm


Tilting: 70 °


Entirely made of aluminium
